SMTCL CAK3665 Series Parts Book

,

The machine is mainly used for turning various shaft-type workpieces and disc workpieces, cutting all kinds of threads, arcs,cones and internal and external curvic surfaces of gyro-rotors, and it can meet the need of speed while cutting ferrous and non-ferrous metals at high speed.


Therefore, the machine is suitable for of gyro-rotor workpieces in high-efficiency, large-batch and high-accuracy machining in the fields of automobile, motorcycle, electronic, aerospace, war industry, etc.

The workpieces produced on the machine can be up to the working accuracy of Grade IT6~IT7 and Cp can be up to 1.6.

Accuracy of the machine is in accordance with Standard JB/T8324.1-1996《Testing of the Accuracy for Horizontal NC Turning Machines》.

Request a Quote
Please enable JavaScript in your browser to complete this form.
Name
Please contact me by
Consultation details
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Contact

Wide Product Portfolio

We supply a diverse range of conventional and CNC metalworking machines loaded with features

Watch It

Professional Consultation

Trusted consultation and in house demonstrations to provide the best solutions for your business needs

Get Support

Outstanding Service

Full time, skilled service team employees available for start-up, maintenance and repair of your SMTCL machine

Details

Contact us

Please enable JavaScript in your browser to complete this form.
Name
Please contact me by
Consultation details
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Have any Questions?

Check our frequently asled question hope you get answer.

If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Check out our FAQ page for answers to common questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Check out our FAQ page for answers to common questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Check out our FAQ section for more information on how we can help
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Check out our FAQ page for answers to common questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

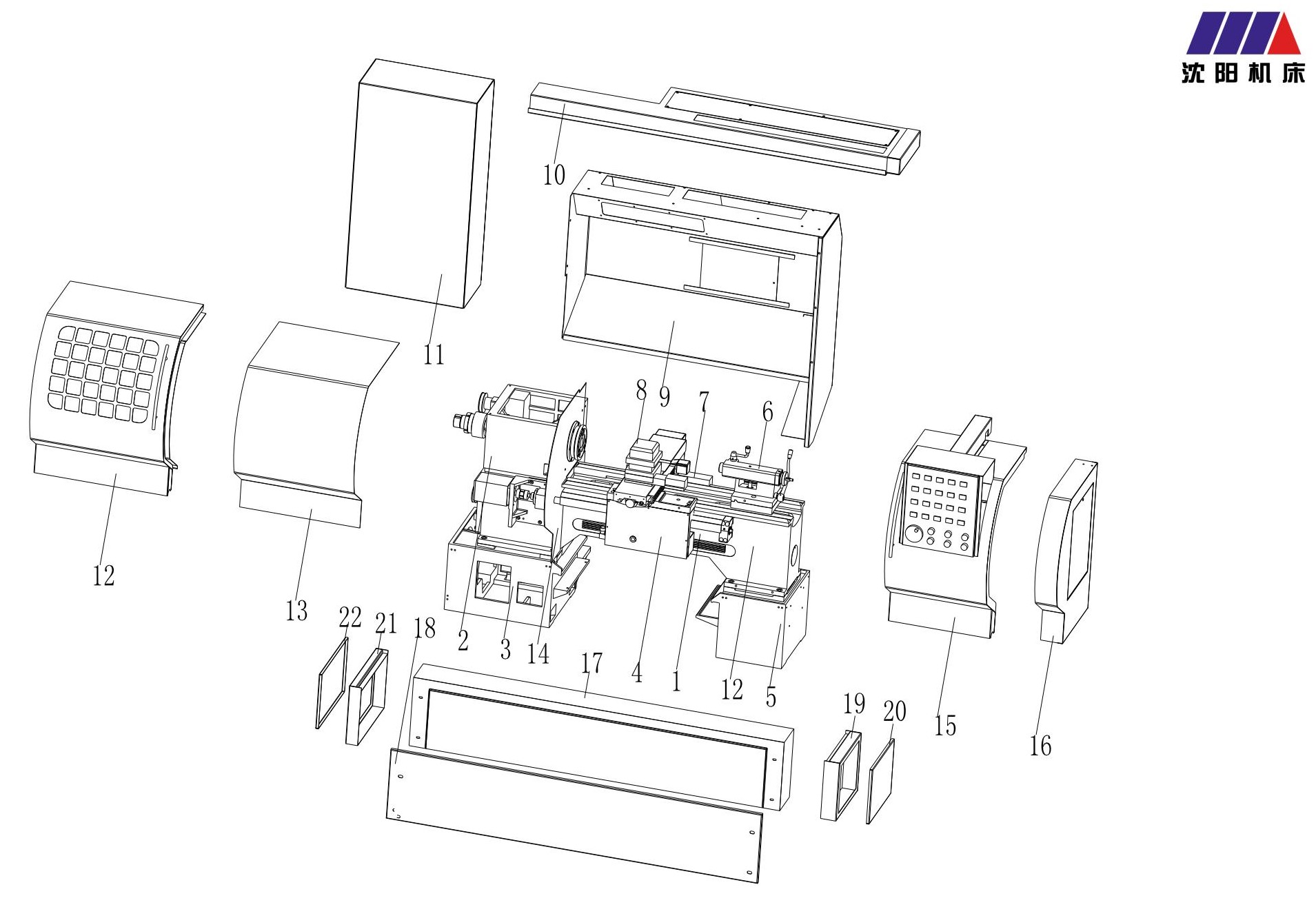

序号/Ref.No.名称/Part Name备注/Remarks
1床身 / Bed
2床头 / Head Stock
3前床腿 / Front Leg
4溜板箱 / Apron Box
5后床腿 / Back Leg
6尾台 / Tail Stock
7床鞍 / Carriage21
8刀架 / Tool Holder
9后防护 / Rear Protection
10顶盖 / Top Cover
11电箱 / Electrical Box
12左拉门 / Left Sliding Door
13皮带罩 / Belt Cover
14挡板 / Baffle
15右拉门 / Right Sliding Door
16尾座防护罩 / Tailstock Guard
17前围板 / Front Guard Plate
18前盖板 / Front Cover
19右围板 / Right Guard Plate
20右盖板 / Right Cover
21右围板 / Right Guard Plate
22右盖板 / Right Cover

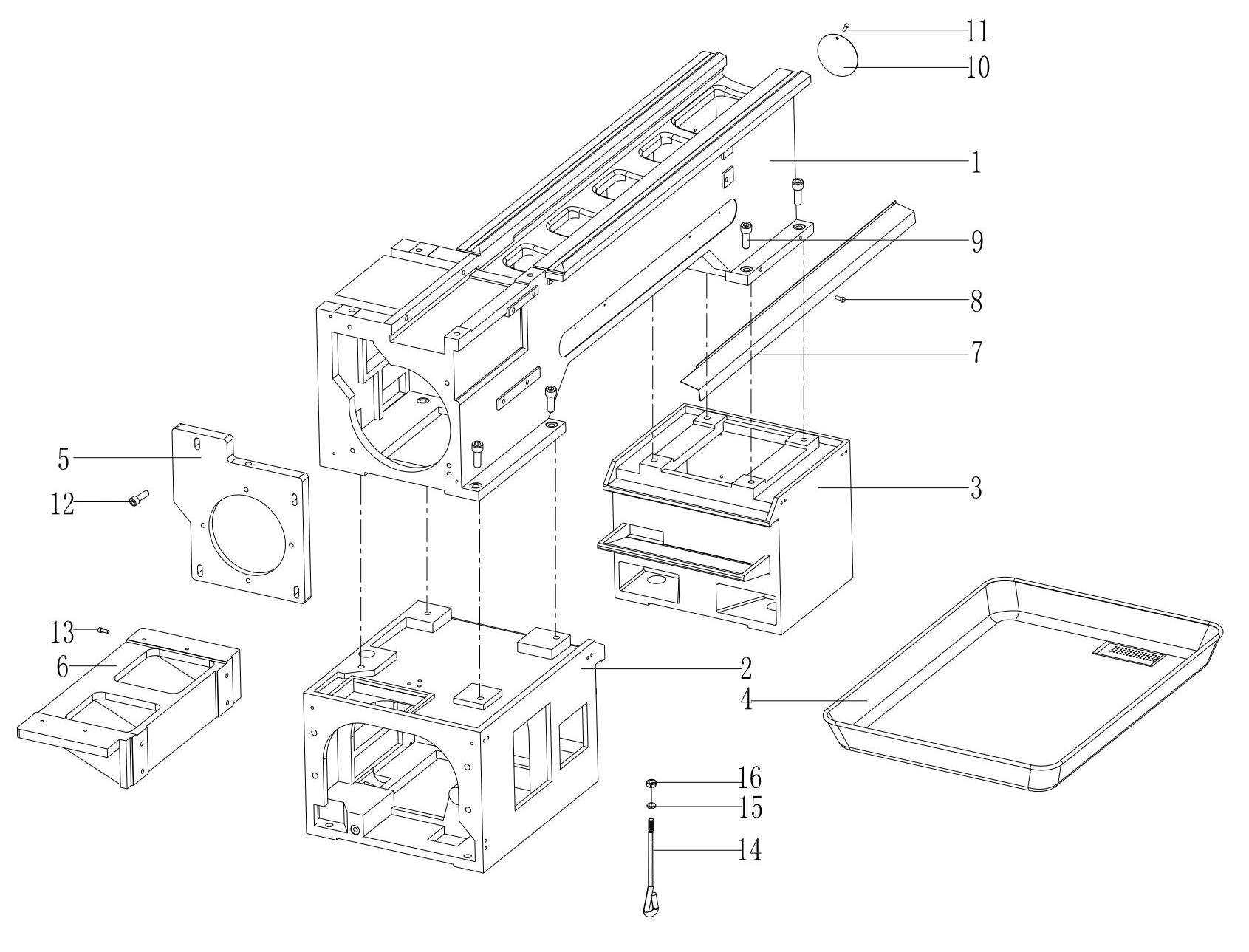

床身 / Bed
序号 / Serial No.件号 / Part No.名称 / Part Name规格型号 / Specification Model数量 / Quantity备注 / Remarks
110011-1床身 / Bed
210014前床腿 / Front Leg
310015后床腿 / Back Leg
4CA6136-1015/1-3油盘 / Oil Pan
510012电机座 / Motor Mount
610023电箱支架 / Electrical Box Bracket
710017防尘罩 / Dust Cover
8GB/T70.1-00圆柱头钉 / Cylindrical Head ScrewM6X10
9GB/T70.1-00圆柱头钉 / Cylindrical Head ScrewM16X80
10CAK3675V-10121盖板 / Cover Plate
11GB/T70.1-00圆柱头钉 / Cylindrical Head ScrewM6X20
12GB/T70.1-00圆柱头钉 / Cylindrical Head ScrewM12X40
13GB/T70.1-00圆柱头钉 / Cylindrical Head ScrewM10X40
14GB/T799-88地脚螺栓 / Foundation BoltM16X400
15GB/T97.1—85垫圈 / Washer16
16GB/T41—00六角螺母 / Hex NutM16

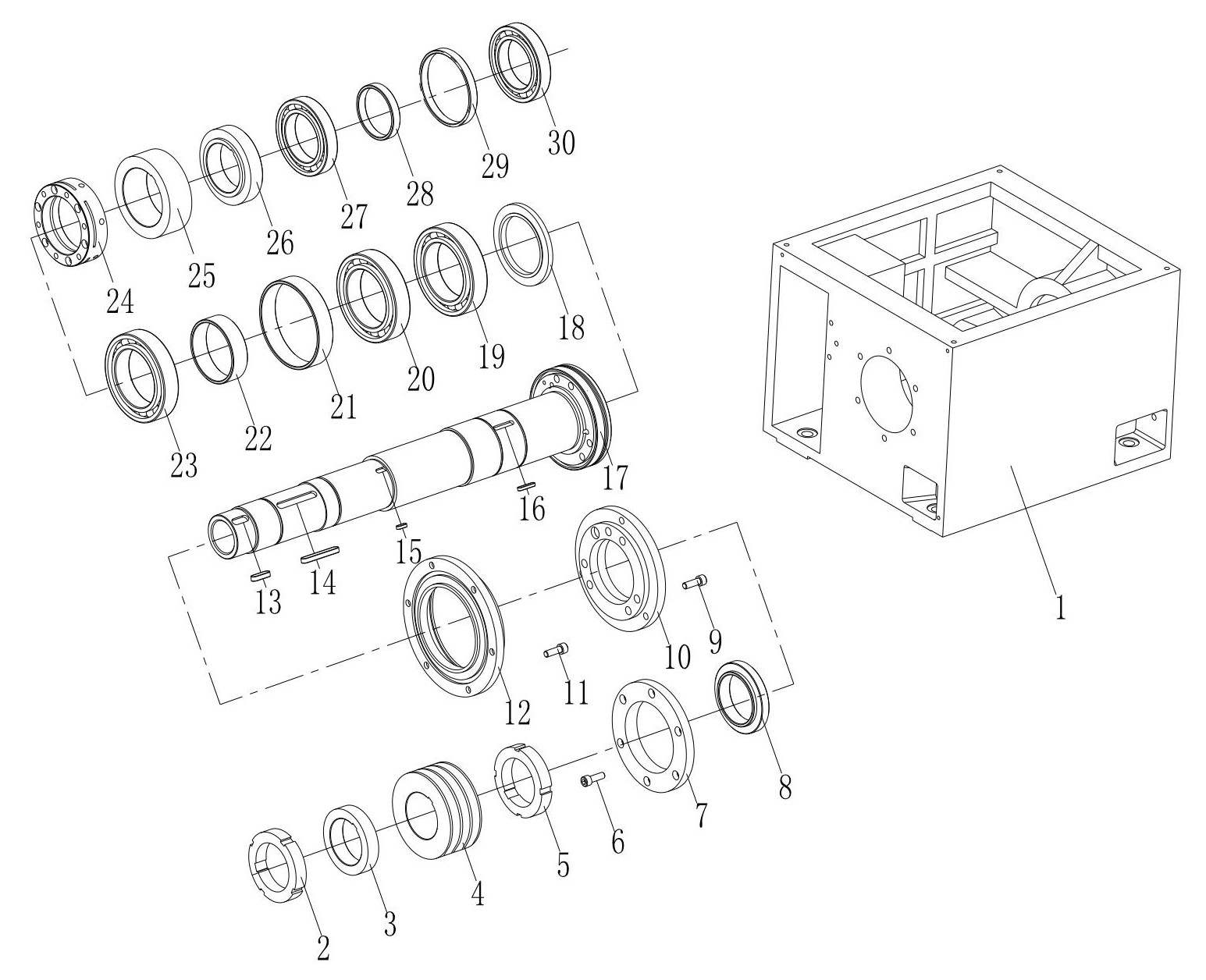

主轴箱/Headstock
序号 / Serial No.件号 / Part No.名称 / Part Name规格 型号 / Specification Model数量 / Quantity备注 / Remarks
120011床头箱体 / Headstock Box
2J14-6圆螺母 / Round NutM72X2
320027圆弧带轮 / Arc Pulley
420028皮带轮 / Belt Pulley
5J14-6圆螺母 / Round NutM72X2
6GB/T70.1-00螺钉 / ScrewM8X16
720021法兰盘 / Flange
820025套 / Sleeve
9GB/T70.1-00螺钉 / ScrewM10X35
1020029法兰盘 / Flange
11GB/T70.1-00螺钉 / ScrewM10X50
1220015法兰盘 / Flange
13GB/T1096-1979键 / Key12X20
14GB/T1096-1979键 / Key12X80
15GB/T1096-1979键 / Key8X20
16GB/T1096-1979键 / Key12X40
1720014主轴 / Spindle
1820020套 / Sleeve
19NSK轴承 / Bearing7019A5TYNDBBMP4
20NSK轴承 / Bearing7019A5TYNDBBMP4
2120017套 / Sleeve
2220018套 / Sleeve
23NSK轴承 / Bearing7019A5TYNDBBMP4
2420121螺母 / Nut
2520016套 / Sleeve
2620022套 / Sleeve
27NSK轴承 / Bearing7016CTYNDBMP4
2820023套 / Sleeve
2920024套 / Sleeve
30NSK轴承 / Bearing7016CTYNDBMP4

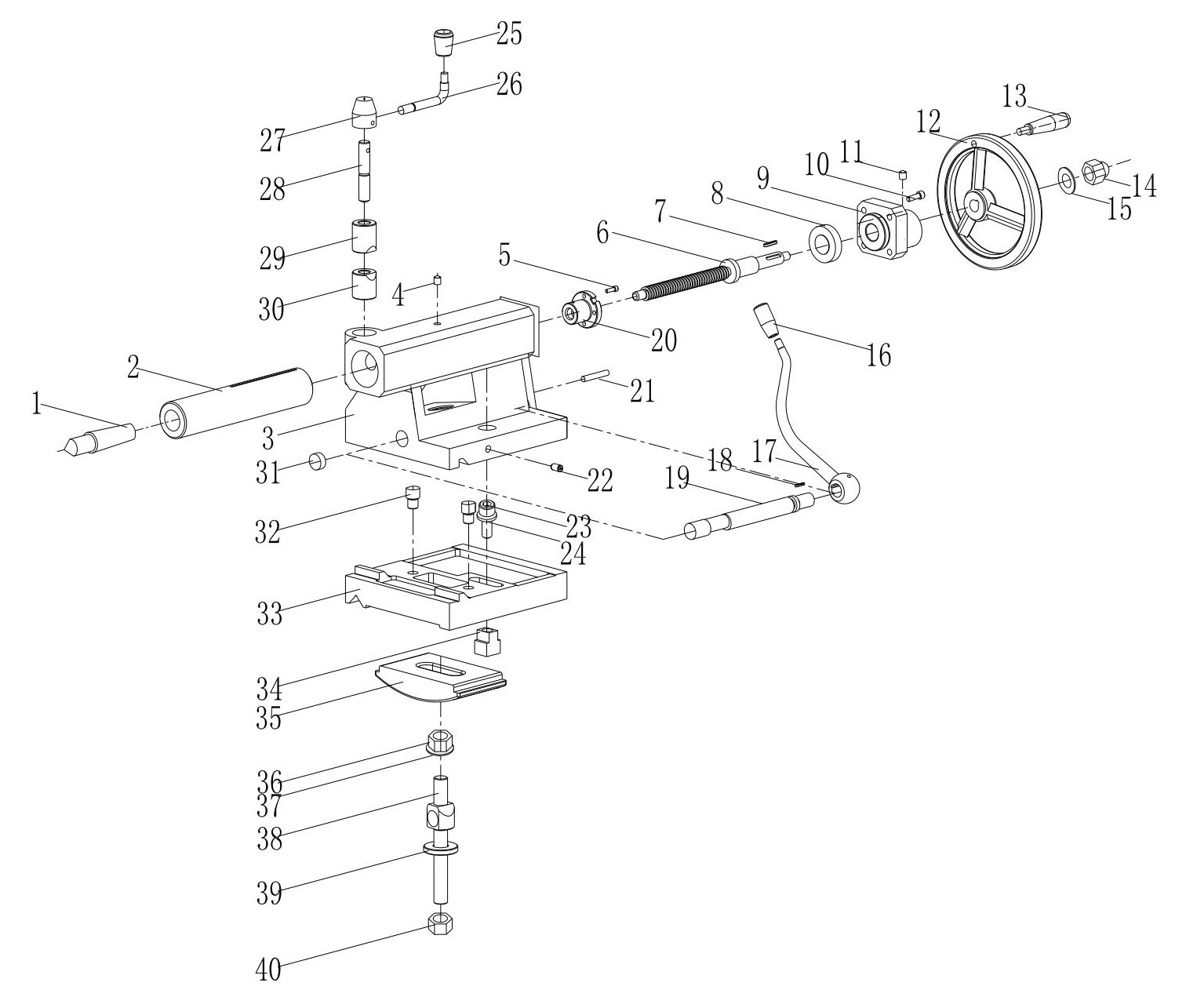

尾座/Tailstock
序号 / Serial No.件号 / Part No.名称 / Part Name规格 型号 / Specification Model数量 / Quantity备注 / Remarks
1顶尖 / QuillS77-1;M4
2CA6136-6129床尾主轴 / Tailstock Spindle
3CA6136-6111床尾体 / Tailstock Body
4油杯 / Oil CupR71-1;10
5GB/T70.1-00螺钉 / ScrewM5X16
6CA6136-6114丝杠 / Lead Screw
7GB/T1096-79平键 / Key6X18
88105轴承 / Bearing25X42X11
9CA6136-6117端盖 / End Cover
10GB/T70.1-00螺钉 / ScrewM6X25
11油杯 / Oil CupR71-1;10
12Z52-3手轮 / HandwheelB-18X200
13Z11-2手柄 / Handle10X80X18-Cr
14GB923螺母 / NutM12-Zn.D
15GB/T97.1—85平垫圈 / Washer12-Zn.D
16手柄 / HandleZ16-3;M12
17CA6136-6134扳手 / Wrench
18GB/T1096-79平键 / Key8X32
19CA6136-6135偏心轴 / Eccentric Shaft
20CA6136-6115端盖 / End Cover
21GB/T119-00圆柱销 / Cylindrical Pin8X50
22GB/T78-00螺钉 / ScrewM10X30-Zn.D
23GB/T70.1-00螺钉 / ScrewM16X40
24GB/T97.1—85平垫圈 / Washer16
25手柄 / HandleZ16-3;M10
26CA6136-6139-3手把 / Handlebar
27CA6136-6140-2手柄座 / Handle Base
28CA6136-6141-1固定螺杆 / Fixing Screw
29CA6136-6138-2右砸块 / Right Block
30CA6136-6142-1左砸块 / Left Block
31Q56-1堵 / Plug24n6
32CA6136-6137定位键 / Positioning Key
33CA6136-6112-2底座 / Base
34GB158-84T型螺母 / T-NutM16
35CA6136-6133托板 / Support Plate
36GB/T6170-00螺母 / NutM20
37GB/T97.1—85平垫圈 / Washer20
38CA6136-6136螺杆 / Screw Rod
39CA6136-6143垫 / Washer
40GB/T6170-00螺母 / NutM20

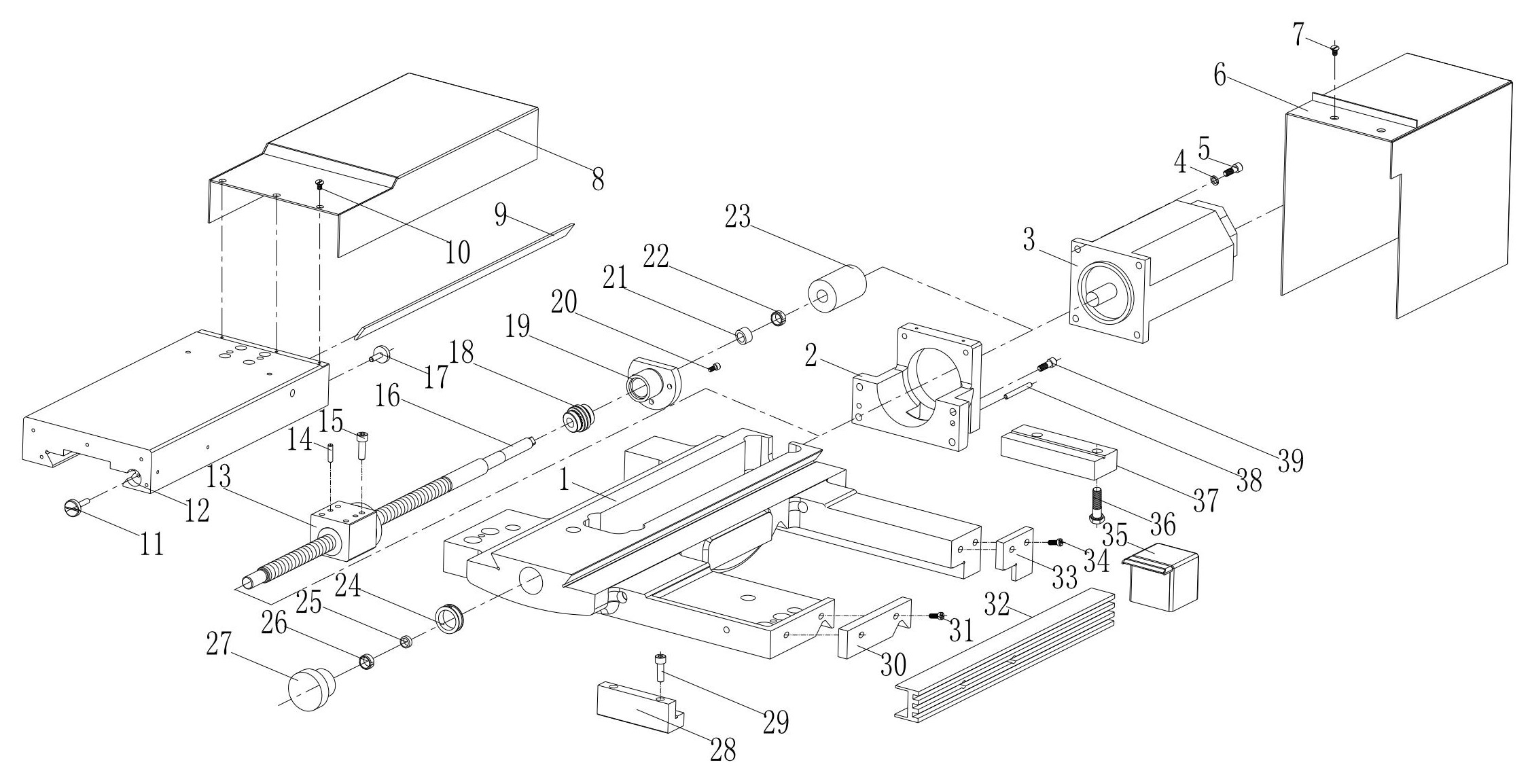

床鞍 /Saddle
序号 / Serial No.件号 / Part No.名称 / Part Name规格 型号 / Specification Model数量 / Quantity备注 / Remarks
15511滑鞍 / Saddle
25513支架 / Bracket
3电机 / Motor
4GB/T93—87弹簧垫圈 / Spring Washer8
5GB/T70.1-00螺钉 / ScrewM8x30
613-Jan电机罩 / Motor Cover
7GB/T68-85螺钉 / ScrewM4x8
850015盖板 / Cover Plate
950068镶条 / Inlaid Strip
10GB/T68-85螺钉 / ScrewM5x8
11CA6136-5742-1镶条螺钉 / Inlay Screw
1255017滑板 / Slide Plate
1355018丝母托 / Nut Bracket
14GB/T120-86圆柱销 / Cylindrical Pin8
15GB/T70.1-00螺钉 / ScrewM8x35
1655016丝杠 / Lead Screw
17CA6136-5734镶条螺钉 / Inlay Screw
18ZARN轴承 / Bearing1545TN
1955014压板 / Pressing Plate
20GB/T70.1-00螺钉 / ScrewM6x20
2155012隔垫 / Spacer
22YSF螺母 / NutM14X1.5-6g
23EKL-20联轴节 / CouplingB/φ19/φ12
24轴承 / Bearing202
2555019隔垫 / Spacer
26YSF螺母 / NutM14X1.5-6g
27Q56-1堵 / PlugB36n6
2850058导轨板 / Guide Plate
29GB/T70.1-00螺钉 / ScrewM12x45
30CA6136-5749-1刮板 / Scraper
31GB/T68-85螺钉 / ScrewM6x12
3250024撞块槽板 / Block Slot Plate
33CA6136-5747-1刮板 / Scraper
34GB/T68-85螺钉 / ScrewM6x12
3555029行程开关罩 / Limit Switch Cover
36GB/T5783-00螺钉 / ScrewM12x40
3750066导轨板 / Guide Plate
38GB/T118-86销 / Pin8×25
39GB/T70.1-00螺钉/ ScrewM8x25

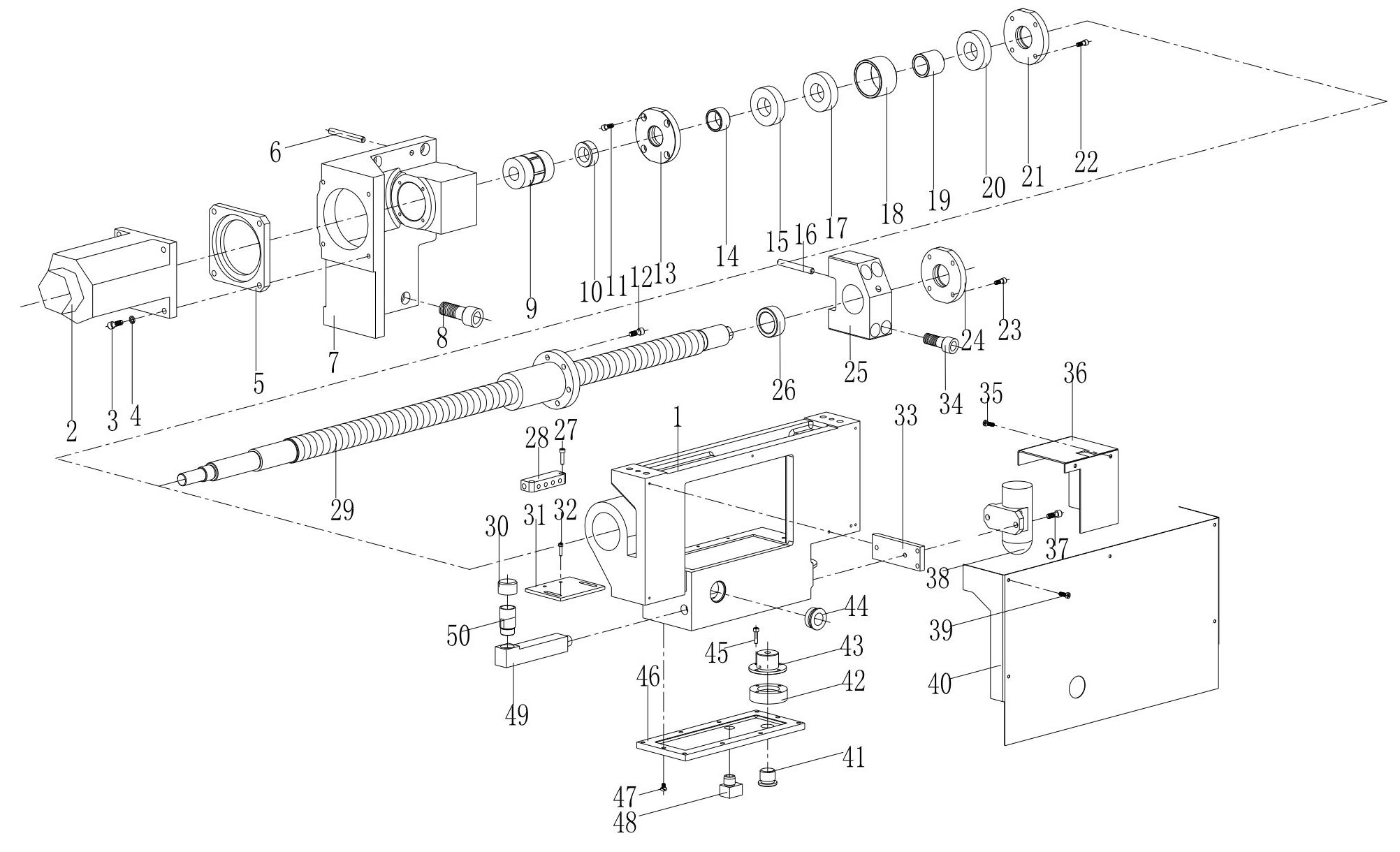

纵进给/Longitudinal feed
序号 / Serial No.件号 / Part No.名称 / Part Name规格 型号 / Specification Model数量 / Quantity备注 / Remarks
151011溜板箱体 / Saddle Box Body
2电机 / Motor
3GB/T70.1-00螺钉 / ScrewM8X30
4GB/T97.1-85垫 / Washer8
510041连接盘 / Connecting Plate
6GB/T118-00销 / Pin8X40
710040支架 / Bracket
8GB/T70.1-00螺钉 / ScrewM12X40
9CS1998联轴节 / Couplingφ22Bφ20B
10YSF螺母 / NutM24X1.5
11GB/T70.1-00螺钉 / ScrewM6X20
12GB/T70.1-00螺钉 / ScrewM6X20
1310027端盖 / End Cover
1410028套 / Sleeve
15760206TNI10037 端盖 / 10037 End Cover
16GB/T118-00销 / Pin10X40
17760206TNI轴承 / Bearing30X62X16
1810025套 / Sleeve
1910026套 / Sleeve
20760206TNI轴承 / Bearing30X62X16
2110029端盖 / End Cover
22GB/T70.1-00螺钉 / ScrewM6X20
23GB/T70.1-00螺钉 / ScrewM6X20
2410037端盖 / End Cover
2510033托架 / Support
266006轴承 / Bearing30X62X16
2715326C分油器 / Oil Distributor
28GB/T70.1-00螺钉 / ScrewM6X35
2910016丝杠 / Lead Screw
3051020盖 / Cover
3151025板 / Plate
32GB/T70.1-00螺钉 / ScrewM6X16
3351022板 / Plate
34GB/T70.1-00螺钉 / ScrewM12X35
35
3651030支架 / Bracket
37GB/T70.1-00螺钉 / ScrewM6X16
38QB211过滤器 / Filter
39GB/T68-85螺钉 / ScrewM4x8
4051016盖板 / Cover Plate
41G38-4管接头 / Pipe Joint20
4251151法兰盘 / Flange
4351014法兰盘 / Flange
44R51-2A油窗 / Oil Window20
45GB/T70.1-00螺钉 / ScrewM5x8
4651021盖板 / Cover Plate
47GB/T5783-00螺钉 / ScrewM6x16
4851013管接头 / Pipe Joint
4951018管接头 / Pipe Joint
5051019管接头 / Pipe Joint

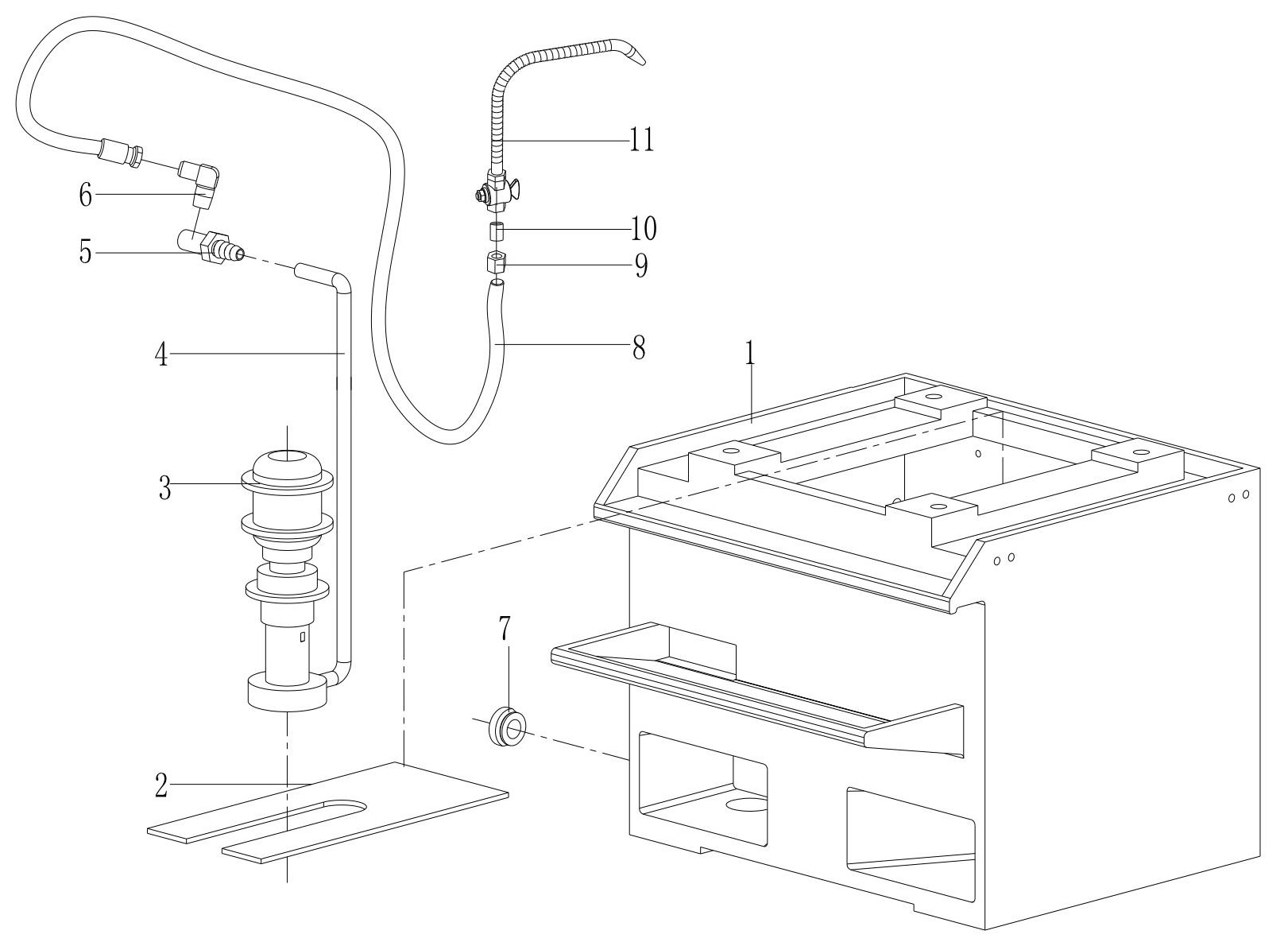

冷却/Cooling
序号 / Serial No.件号 / Part No.名称 / Part Name规格 型号 / Specification Model数量 / Quantity备注 / Remarks
1水箱 / Water Tank后床腿 / Rear Bed Legs
2CA6136-1049-1泵架 / Pump Bracket
3冷却泵 / Cooling PumpG1/2″
4聚氯乙烯管 / PVC Pipeφ14X600
510104管接头 / Pipe Joint
6G93-1A管接头 / Pipe Joint12
7G38-4油塞 / Oil PlugM24X1.5
8G74-4胶管总成 / Hose Assembly10I-C-1600
910034管接头 / Pipe Joint
10G11-1管接头 / Pipe JointG1/2
11JR301冷却管 / Cooling PipeG1/2Xφ6Xφ16X700

床身 / Bed
序号 / Serial No.件号 / Part No.名称 / Part Name规格型号 / Specification Model数量 / Quantity备注 / Remarks
110011-1床身 / Bed
210014前床腿 / Front Leg
310015后床腿 / Back Leg
4CA6136-1015/1-3油盘 / Oil Pan
510012电机座 / Motor Mount
610023电箱支架 / Electrical Box Bracket
710017防尘罩 / Dust Cover
8GB/T70.1-00圆柱头钉 / Cylindrical Head ScrewM6X10
9GB/T70.1-00圆柱头钉 / Cylindrical Head ScrewM16X80
10CAK3675V-10121盖板 / Cover Plate
11GB/T70.1-00圆柱头钉 / Cylindrical Head ScrewM6X20
12GB/T70.1-00圆柱头钉 / Cylindrical Head ScrewM12X40
13GB/T70.1-00圆柱头钉 / Cylindrical Head ScrewM10X40
14GB/T799-88地脚螺栓 / Foundation BoltM16X400
15GB/T97.1—85垫圈 / Washer16
16GB/T41—00六角螺母 / Hex NutM16

主轴箱/Headstock
序号 / Serial No.件号 / Part No.名称 / Part Name规格 型号 / Specification Model数量 / Quantity备注 / Remarks
120011床头箱体 / Headstock Box
2J14-6圆螺母 / Round NutM72X2
320027圆弧带轮 / Arc Pulley
420028皮带轮 / Belt Pulley
5J14-6圆螺母 / Round NutM72X2
6GB/T70.1-00螺钉 / ScrewM8X16
720021法兰盘 / Flange
820025套 / Sleeve
9GB/T70.1-00螺钉 / ScrewM10X35
1020029法兰盘 / Flange
11GB/T70.1-00螺钉 / ScrewM10X50
1220015法兰盘 / Flange
13GB/T1096-1979键 / Key12X20
14GB/T1096-1979键 / Key12X80
15GB/T1096-1979键 / Key8X20
16GB/T1096-1979键 / Key12X40
1720014主轴 / Spindle
1820020套 / Sleeve
19NSK轴承 / Bearing7019A5TYNDBBMP4
20NSK轴承 / Bearing7019A5TYNDBBMP4
2120017套 / Sleeve
2220018套 / Sleeve
23NSK轴承 / Bearing7019A5TYNDBBMP4
2420121螺母 / Nut
2520016套 / Sleeve
2620022套 / Sleeve
27NSK轴承 / Bearing7016CTYNDBMP4
2820023套 / Sleeve
2920024套 / Sleeve
30NSK轴承 / Bearing7016CTYNDBMP4

尾座/Tailstock
序号 / Serial No.件号 / Part No.名称 / Part Name规格 型号 / Specification Model数量 / Quantity备注 / Remarks
1顶尖 / QuillS77-1;M4
2CA6136-6129床尾主轴 / Tailstock Spindle
3CA6136-6111床尾体 / Tailstock Body
4油杯 / Oil CupR71-1;10
5GB/T70.1-00螺钉 / ScrewM5X16
6CA6136-6114丝杠 / Lead Screw
7GB/T1096-79平键 / Key6X18
88105轴承 / Bearing25X42X11
9CA6136-6117端盖 / End Cover
10GB/T70.1-00螺钉 / ScrewM6X25
11油杯 / Oil CupR71-1;10
12Z52-3手轮 / HandwheelB-18X200
13Z11-2手柄 / Handle10X80X18-Cr
14GB923螺母 / NutM12-Zn.D
15GB/T97.1—85平垫圈 / Washer12-Zn.D
16手柄 / HandleZ16-3;M12
17CA6136-6134扳手 / Wrench
18GB/T1096-79平键 / Key8X32
19CA6136-6135偏心轴 / Eccentric Shaft
20CA6136-6115端盖 / End Cover
21GB/T119-00圆柱销 / Cylindrical Pin8X50
22GB/T78-00螺钉 / ScrewM10X30-Zn.D
23GB/T70.1-00螺钉 / ScrewM16X40
24GB/T97.1—85平垫圈 / Washer16
25手柄 / HandleZ16-3;M10
26CA6136-6139-3手把 / Handlebar
27CA6136-6140-2手柄座 / Handle Base
28CA6136-6141-1固定螺杆 / Fixing Screw
29CA6136-6138-2右砸块 / Right Block
30CA6136-6142-1左砸块 / Left Block
31Q56-1堵 / Plug24n6
32CA6136-6137定位键 / Positioning Key
33CA6136-6112-2底座 / Base
34GB158-84T型螺母 / T-NutM16
35CA6136-6133托板 / Support Plate
36GB/T6170-00螺母 / NutM20
37GB/T97.1—85平垫圈 / Washer20
38CA6136-6136螺杆 / Screw Rod
39CA6136-6143垫 / Washer
40GB/T6170-00螺母 / NutM20

床鞍 /Saddle
序号 / Serial No.件号 / Part No.名称 / Part Name规格 型号 / Specification Model数量 / Quantity备注 / Remarks
15511滑鞍 / Saddle
25513支架 / Bracket
3电机 / Motor
4GB/T93—87弹簧垫圈 / Spring Washer8
5GB/T70.1-00螺钉 / ScrewM8x30
613-Jan电机罩 / Motor Cover
7GB/T68-85螺钉 / ScrewM4x8
850015盖板 / Cover Plate
950068镶条 / Inlaid Strip
10GB/T68-85螺钉 / ScrewM5x8
11CA6136-5742-1镶条螺钉 / Inlay Screw
1255017滑板 / Slide Plate
1355018丝母托 / Nut Bracket
14GB/T120-86圆柱销 / Cylindrical Pin8
15GB/T70.1-00螺钉 / ScrewM8x35
1655016丝杠 / Lead Screw
17CA6136-5734镶条螺钉 / Inlay Screw
18ZARN轴承 / Bearing1545TN
1955014压板 / Pressing Plate
20GB/T70.1-00螺钉 / ScrewM6x20
2155012隔垫 / Spacer
22YSF螺母 / NutM14X1.5-6g
23EKL-20联轴节 / CouplingB/φ19/φ12
24轴承 / Bearing202
2555019隔垫 / Spacer
26YSF螺母 / NutM14X1.5-6g
27Q56-1堵 / PlugB36n6
2850058导轨板 / Guide Plate
29GB/T70.1-00螺钉 / ScrewM12x45
30CA6136-5749-1刮板 / Scraper
31GB/T68-85螺钉 / ScrewM6x12
3250024撞块槽板 / Block Slot Plate
33CA6136-5747-1刮板 / Scraper
34GB/T68-85螺钉 / ScrewM6x12
3555029行程开关罩 / Limit Switch Cover
36GB/T5783-00螺钉 / ScrewM12x40
3750066导轨板 / Guide Plate
38GB/T118-86销 / Pin8×25
39GB/T70.1-00螺钉/ ScrewM8x25

纵进给/Longitudinal feed
序号 / Serial No.件号 / Part No.名称 / Part Name规格 型号 / Specification Model数量 / Quantity备注 / Remarks
151011溜板箱体 / Saddle Box Body
2电机 / Motor
3GB/T70.1-00螺钉 / ScrewM8X30
4GB/T97.1-85垫 / Washer8
510041连接盘 / Connecting Plate
6GB/T118-00销 / Pin8X40
710040支架 / Bracket
8GB/T70.1-00螺钉 / ScrewM12X40
9CS1998联轴节 / Couplingφ22Bφ20B
10YSF螺母 / NutM24X1.5
11GB/T70.1-00螺钉 / ScrewM6X20
12GB/T70.1-00螺钉 / ScrewM6X20
1310027端盖 / End Cover
1410028套 / Sleeve
15760206TNI10037 端盖 / 10037 End Cover
16GB/T118-00销 / Pin10X40
17760206TNI轴承 / Bearing30X62X16
1810025套 / Sleeve
1910026套 / Sleeve
20760206TNI轴承 / Bearing30X62X16
2110029端盖 / End Cover
22GB/T70.1-00螺钉 / ScrewM6X20
23GB/T70.1-00螺钉 / ScrewM6X20
2410037端盖 / End Cover
2510033托架 / Support
266006轴承 / Bearing30X62X16
2715326C分油器 / Oil Distributor
28GB/T70.1-00螺钉 / ScrewM6X35
2910016丝杠 / Lead Screw
3051020盖 / Cover
3151025板 / Plate
32GB/T70.1-00螺钉 / ScrewM6X16
3351022板 / Plate
34GB/T70.1-00螺钉 / ScrewM12X35
35
3651030支架 / Bracket
37GB/T70.1-00螺钉 / ScrewM6X16
38QB211过滤器 / Filter
39GB/T68-85螺钉 / ScrewM4x8
4051016盖板 / Cover Plate
41G38-4管接头 / Pipe Joint20
4251151法兰盘 / Flange
4351014法兰盘 / Flange
44R51-2A油窗 / Oil Window20
45GB/T70.1-00螺钉 / ScrewM5x8
4651021盖板 / Cover Plate
47GB/T5783-00螺钉 / ScrewM6x16
4851013管接头 / Pipe Joint
4951018管接头 / Pipe Joint
5051019管接头 / Pipe Joint

冷却/Cooling
序号 / Serial No.件号 / Part No.名称 / Part Name规格 型号 / Specification Model数量 / Quantity备注 / Remarks
1水箱 / Water Tank后床腿 / Rear Bed Legs
2CA6136-1049-1泵架 / Pump Bracket
3冷却泵 / Cooling PumpG1/2″
4聚氯乙烯管 / PVC Pipeφ14X600
510104管接头 / Pipe Joint
6G93-1A管接头 / Pipe Joint12
7G38-4油塞 / Oil PlugM24X1.5
8G74-4胶管总成 / Hose Assembly10I-C-1600
910034管接头 / Pipe Joint
10G11-1管接头 / Pipe JointG1/2
11JR301冷却管 / Cooling PipeG1/2Xφ6Xφ16X700

Resources & Downloads

SMTCL CAK Series Economic CNC Lathe Catalog

File size: 8.15 MB
Created: 29-06-2024
Updated: 29-06-2024
Hits: 199
Download Preview

CAK36 Series Operation Manual (For Mechanical Unit)

File size: 675.33 KB
Created: 25-09-2024
Updated: 25-09-2024
Hits: 23
Download Preview
Recommended Related Products
If needed, please contact us for further selection

Recommended Related Products

Load More
Need help finding a machine?
We will gladly assist you in making the right decision to achieve your business goals
Get a free Consultation
