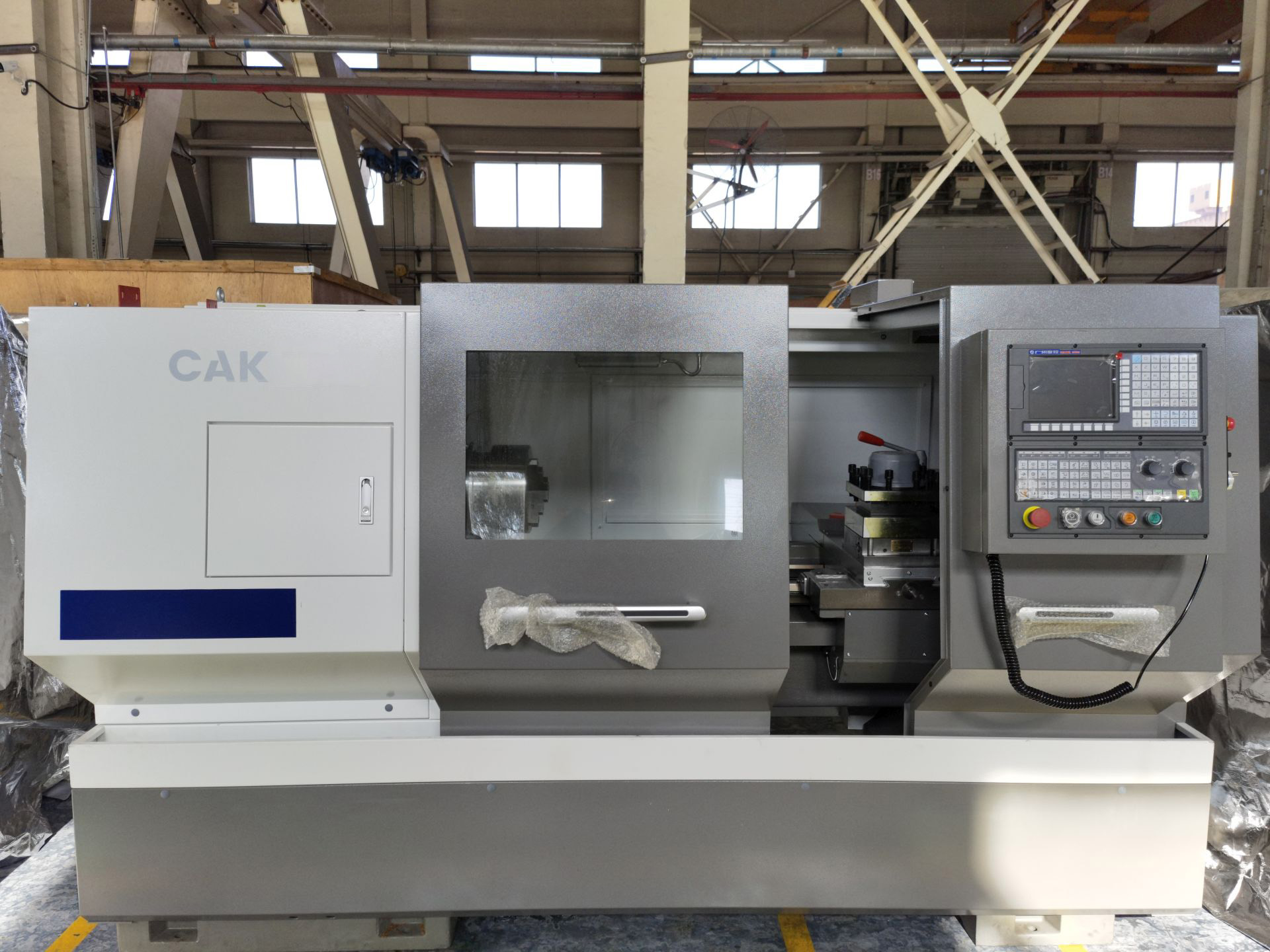

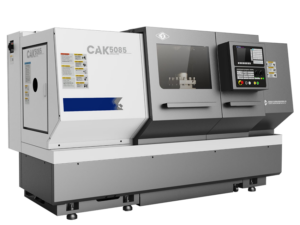

CAK50 Series Parts Book

,

PRODUCT FEATURES
The machine is mainly used for turning various shaft-type workpieces and disc workpieces, cutting all kinds of threads, arcs,cones and internal and external curvic surfaces of gyro-rotors, and it can meet the need of speed while cutting ferrous and non-ferrous metals at high speed.

Therefore, the machine is suitable for of gyro-rotor workpieces in high-efficiency, large-batch and high-accuracy machining in the fields of automobile, motorcycle, electronic, aerospace, war industry, etc.

The workpieces produced on the machine can be up to the working accuracy of Grade IT6~IT7 and Cp can be up to 1.6.

Accuracy of the machine is in accordance with Standard JB/T8324.1-1996《Testing of the Accuracy for Horizontal NC Turning Machines》.
Request a Quote
Please enable JavaScript in your browser to complete this form.
Name
Please contact me by
Consultation details
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Contact

Wide Product Portfolio

We supply a diverse range of conventional and CNC metalworking machines loaded with features

Watch It

Professional Consultation

Trusted consultation and in house demonstrations to provide the best solutions for your business needs

Get Support

Outstanding Service

Full time, skilled service team employees available for start-up, maintenance and repair of your SMTCL machine

Details

Contact us

Please enable JavaScript in your browser to complete this form.
Name
Please contact me by
Consultation details
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Have any Questions?

Check our frequently asled question hope you get answer.

If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Check out our FAQ page for answers to common questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Check out our FAQ page for answers to common questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Check out our FAQ section for more information on how we can help
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Check out our FAQ page for answers to common questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

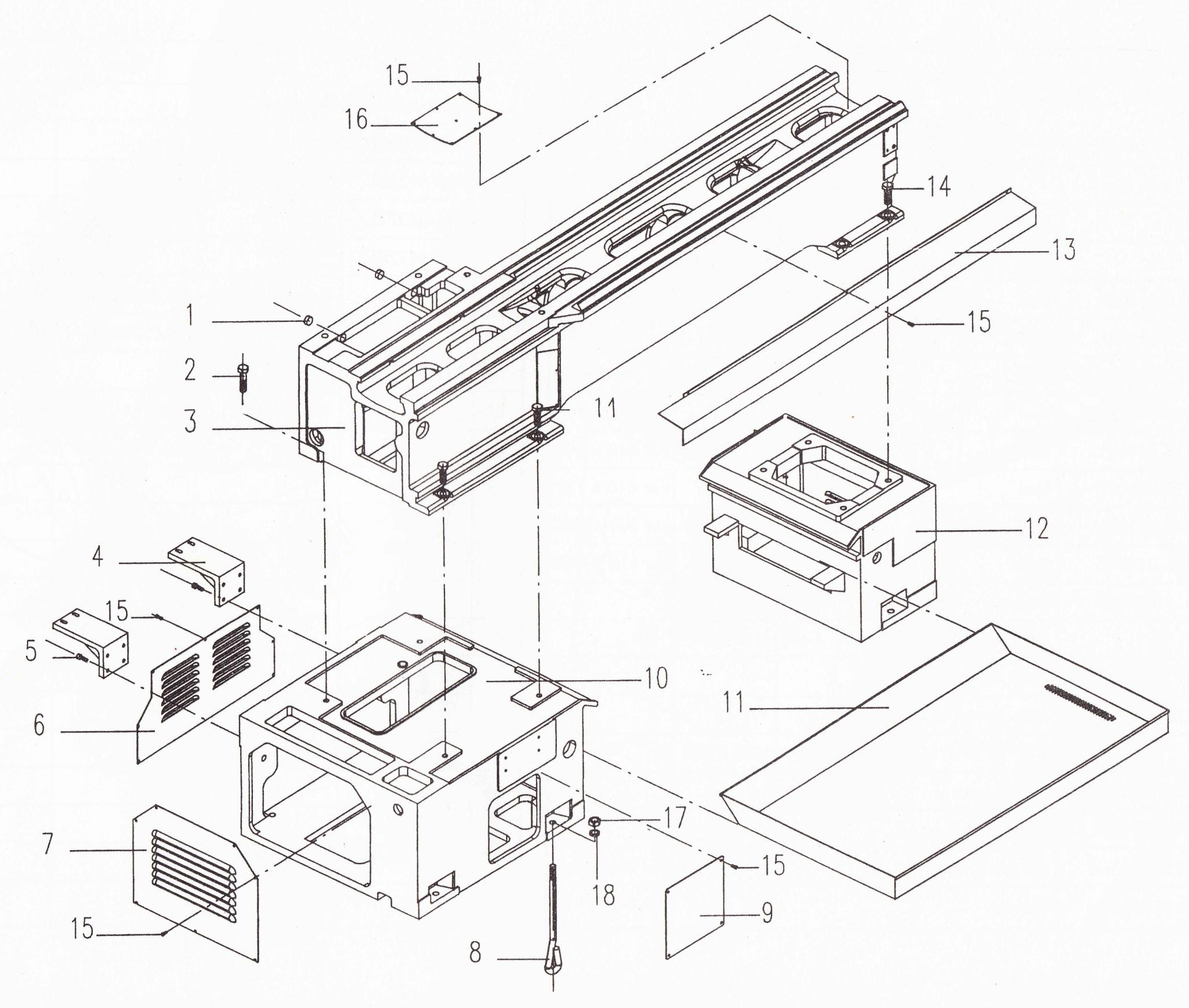

BED UNIT
No.Part No.NameTypeSizeRemarks
1 PlugQ56-1B-28k6
2 Hex.Head boltGB/T5782-00M20×80
3 A15-01101LBedFor 500×890
A15-01102LBedFor 500×640
A15-01103LBedFor 500×1390
A15-01106LBedFor 610×890
A15-01107LBedFor 610×640
A15-01108LBedFor 610×139
A15-01109LBedFor 500×1900
A15-01110LBedFor 610×1900
4 A15D01421L1Support
5 Cylinder head screwGB/T70.1-00M10×30
6 A15D01043LBack cover
7 A15D01041LSide cover
8 Foundation boltGB/T799-88M20×400
9 A15D010420LFront cover
10 A15D01420L1Front leg
11 A15F01206HOil panFor 890
A15F01207HOil panFor 640
A15F01208HOil panFor 1390
12 A15-01020LRear leg
13 A15-01326LProtective
cover		For 890
A15-01327LProtective
cover		For 640
A15-01328LProtective
Cover		For 1390
14 Hex.Head bolGB/T5783-00M20×60
15 Disc-type screwGB/T818-00M6×12
16 A15-01035LCovering plate
17 Hex.nutGB/T41-00M20
18 WasherGB/T97.1-8520

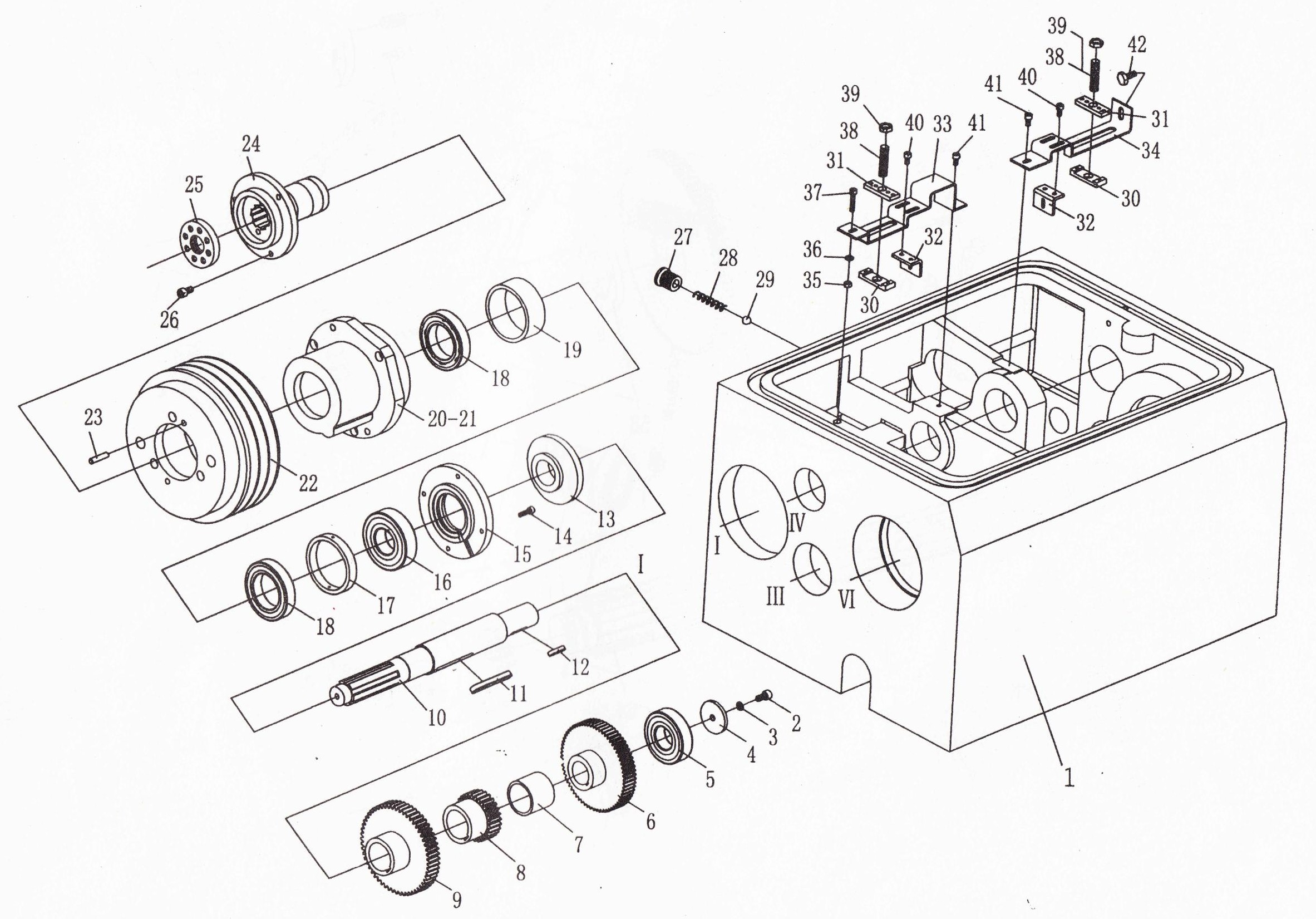

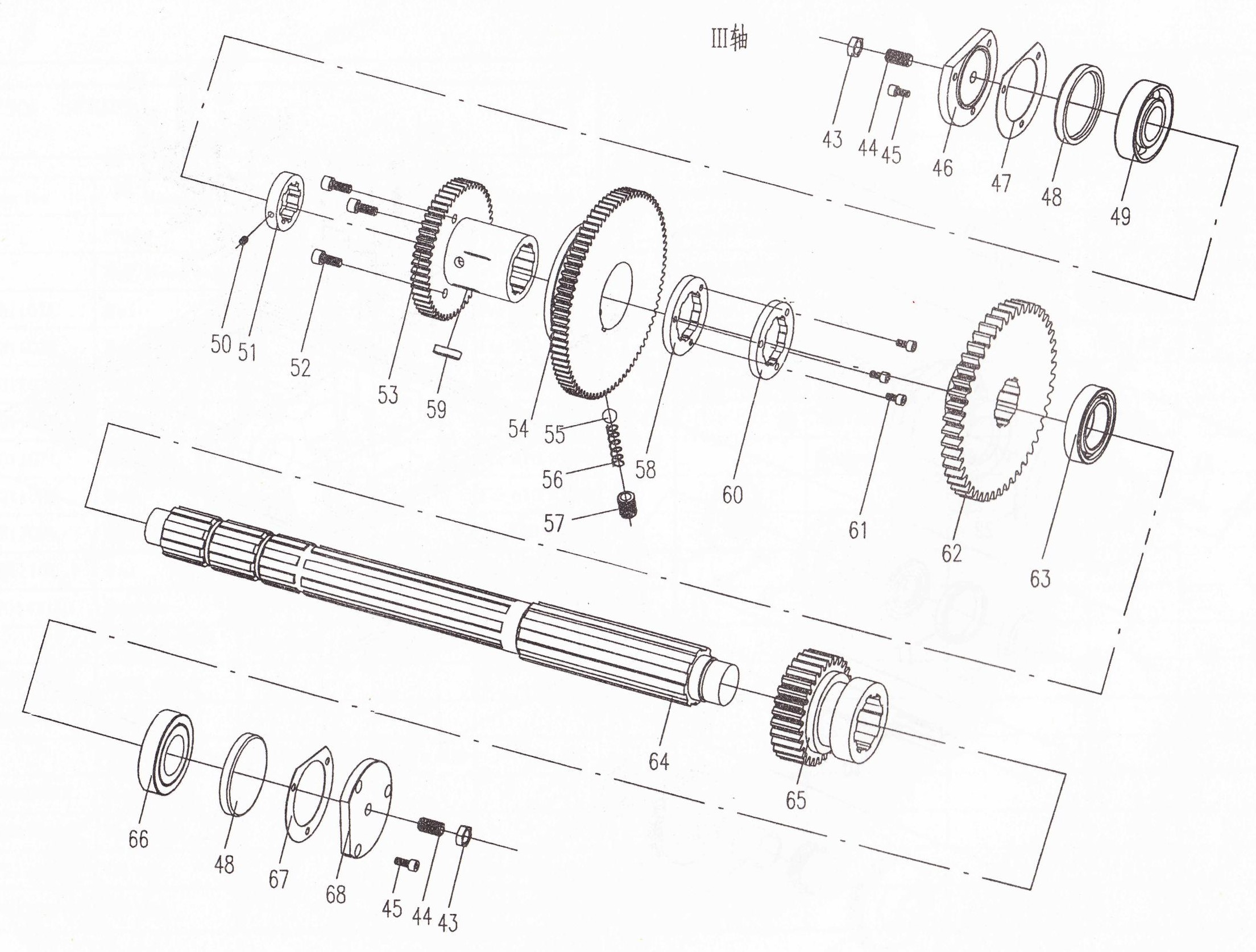

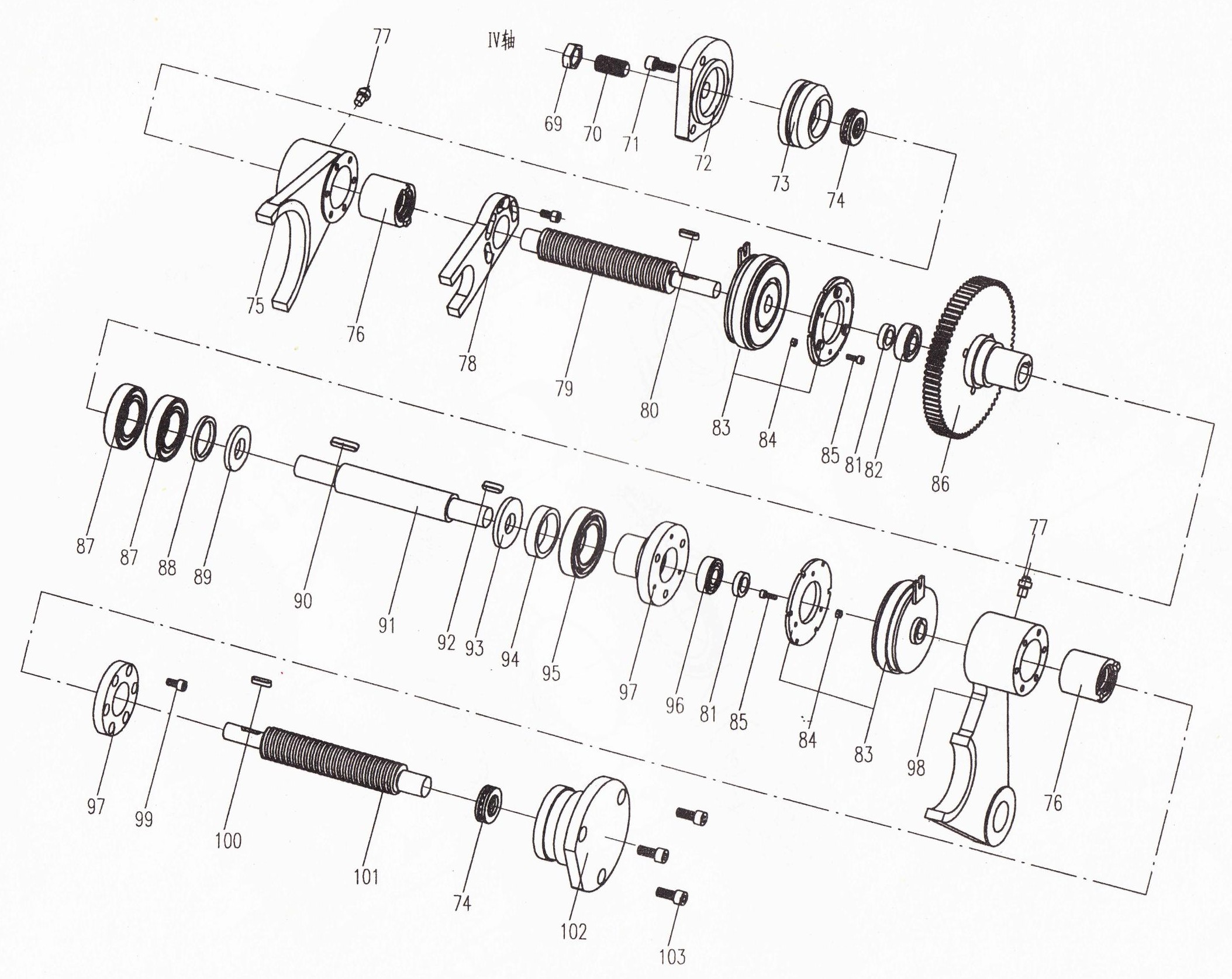

SPINDLE BOX UNIT
No.Part No.NameTypeSizeRemarks
1 A15D02701L1Headstock body
2 Hex.HeadGB/T5783-00M8×16
3 SpringGB/T93-878
4 A15D02524LCheck ring
5 Deep-groove ballE30735×80×21
6 A15D02731L1Gear
7 A15D02736LSeparating
8 A15D02725L1Gear
9 A15D02724L1Gear
10 A15D02730LShaft I
11 Common flatGB/T1096-7912×80
12 Common flatGB/T1096-796×32
13 A15D02704LFlange
14 Cylinder headGB/T70.1-00M6×20
15 A15D02703L1Flange
16 Centripetal
ball		E30840×90×23
17 A15-02013LSeparating
18 Deep-groove ballE11155×90×18
19 A15-02012ISeparating
20 A15-02011LSealing
21 A15D02720LBearing seat
22 A15D02539LPulley
23 Conic pinGB/T117-008×28
24 A15D02104LPulley sea
25 A15-02008LCap nut
26 Cylinder headGB/T70.1-00M8×16
27 A15D02733LScrew
28 Compression springQ81-1A1.6×10×58
29 Steel ballQ29-1A12
30 A15D02765L1Plate
31 A15D02764L1Plate
32 CAK-02759LAngle iron
33 A15D02705L1Ribbed plate
34 A15D02708L1ribbed plate
35 NutGB/T6170-00M6
36 Flat washerGB/T97.1-856
37 Cylinder headGB/T70.1-00M6×30
38 Approach switchE2E-X3D1-N2-wire M12Dc24V
39 Approach switchE2E-X3D1-N2-wire M12Dc24V
40 Cylinder headGB/T70.1-00M6×12
41 Cylinder headGB/T70.1-00M6×12
42 Hex.HeadGB/T5783-00M8×12
43 Thin nutGB/T6173-00M16×1.5
44 Screw with locking atJ22-9M16×1.5×30
45 Cylinder headGB/T70.1-00M8×16
46 A15-02020LCover
47 A15-02021LSealing
48 Top coverQ55-880
49 Angular contact ballE4630735×80×12
50 Screw with locking atGB/T78-00M6×10
51 A15D02706L1Separating bush
52 Cylinder headGB/T70.1-00M8×20
53 A15D02707L1Gear
54 A15D02709L1Gear
55 Steel ballQ29-19.5
56 CompressionQ81-1A1×8×25
57 A15D02743LScrew
58 A15D02737LRetaining
59 Common flatGB/T1096-798×28
60 A15D02738LRetaining
61 Cylinder headGB/T70.1-00M6×12
62 A15D02734L1Gear
63 Deep-groove ball bearingE11050×80×16
64 A15D02739LShaft I
65 A15D02740L1Gear
66 Angular contact ballE4620840×80×18
67 A15-02039LSealing washer
68 A15-02302LCover
69 Thick nutGB/T6173-00M16×1.5
70 Screw with locking atJ22-9M16×1.5×30
71 Cylinder headGB/T70.1-00M8×20
72 A15D02702L1End cover
73 A15D02709L1Bush
74 Thrust ball bearing8104 20×35×10
75 A15D02721LExtracting
76 A15D02722L1Transmitting
77 A15D02757LSignal block
78 A15D02755L1End cover
79 A15D02710L1Changing speed shaft
80 Common flatGB/T1096-795×20
81 A15D02711L1Separating
82 Angular contact ballE4620220×35×11
83 Magnetic clutchDDL3-1.0内径φ15
84 NutGB/T6170-00M4
85 Countersunk screw0GB/T819.1-00M4×10
86 A15D02712L1Gear
87 Deep-groove ball bearingE10735×62×14
88 A15D02713LSeparating bush
89 A15D02714LPad
90 Common flat keyGB/T1096-796×28
91 A15D02715LTransmitting shaft
92 Common flat keyGB/T1096-796×20
93 A15D02717LSeparating bush
94 A15D02718LSeparating bush
95 Deep-groove ball bearingE10840×68×15
96 Deep-groove ball bearingE4620215×35×11
97 A15D02719LIEnd cover
98 A15D02742L3Driving fork
99 Cylinder headGB/T70.1-00M6×15
100 Common flat keyGB/T1096-795×20
101 A15D02727L1Changing speed shaf
102 A15D02744L1Flange
103 Cylinder headGB/T70.1-00M8×25

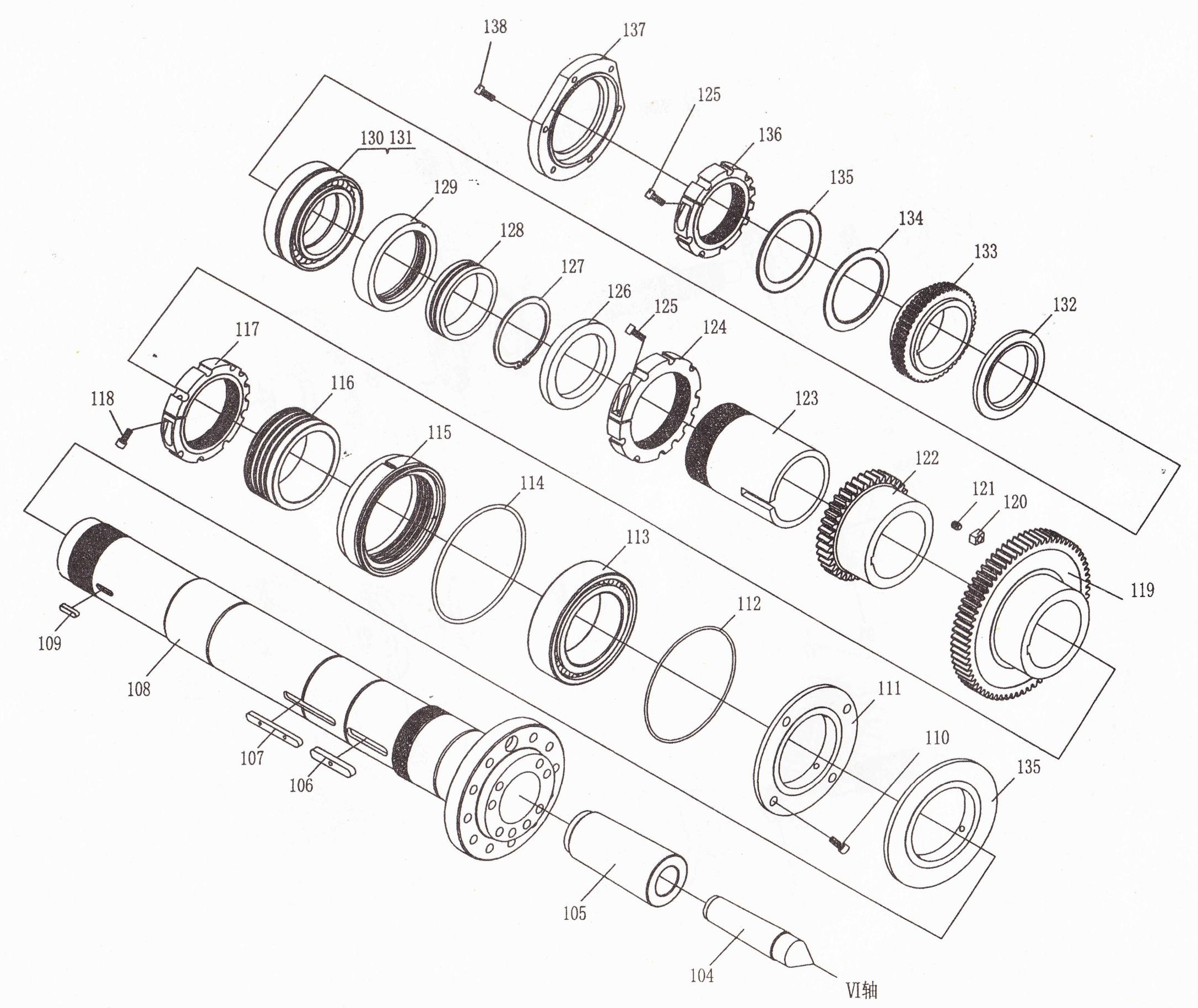

104 CenterS25-25
105 Center sleeveS25-1080/5
106 A15D02750LFlat key
107 A15D02746LKey
108 A15D02915LSpindle
109 Flat keyGB/T1096-798×32
110 Cylinder headGB/T70.1-00M8×20
111 A15D02311LFlange
112 0-ringG51-9A170×2.65
113 Cylinder rollerNN3022MBKR110×70×45
114 0-ringG51-9A170×5.7
115 A15D02112L1Betaining oil ring
116 A15D02123LShedding oil ring
117 A15D02058LNut
118 Cylinder headGB/T70.1-00M8×25
119 A15D02748L1Gear
120 A15D02055LBalancing block
121 Screw with cone centerGB/T77-00M8×12
122 A15D02749L1Gear
123 A15D02747LSeparating
124 A15D02053LNut
125 Cylinder headGB/T70.1-00M8×20
126 A15D02745LSeparating bush
127 Elastic retainingGB/T894.1-86100
128 A15D02191L1Betaining oil ring
129 A15D02192LGasket
130 BearingD4611995×45×24
131 A15D02198LSeparating bush
132 A15D02197LSeparating bush
133 A15D02196LTiming pulley
134 A15D02041LDisk-shaped spring
135 A15-02310LAdjusting gasket
136 A15D02040LNut
137 A15D02195LFlange
138 Cylinder headGB/T70.1-00M8×20

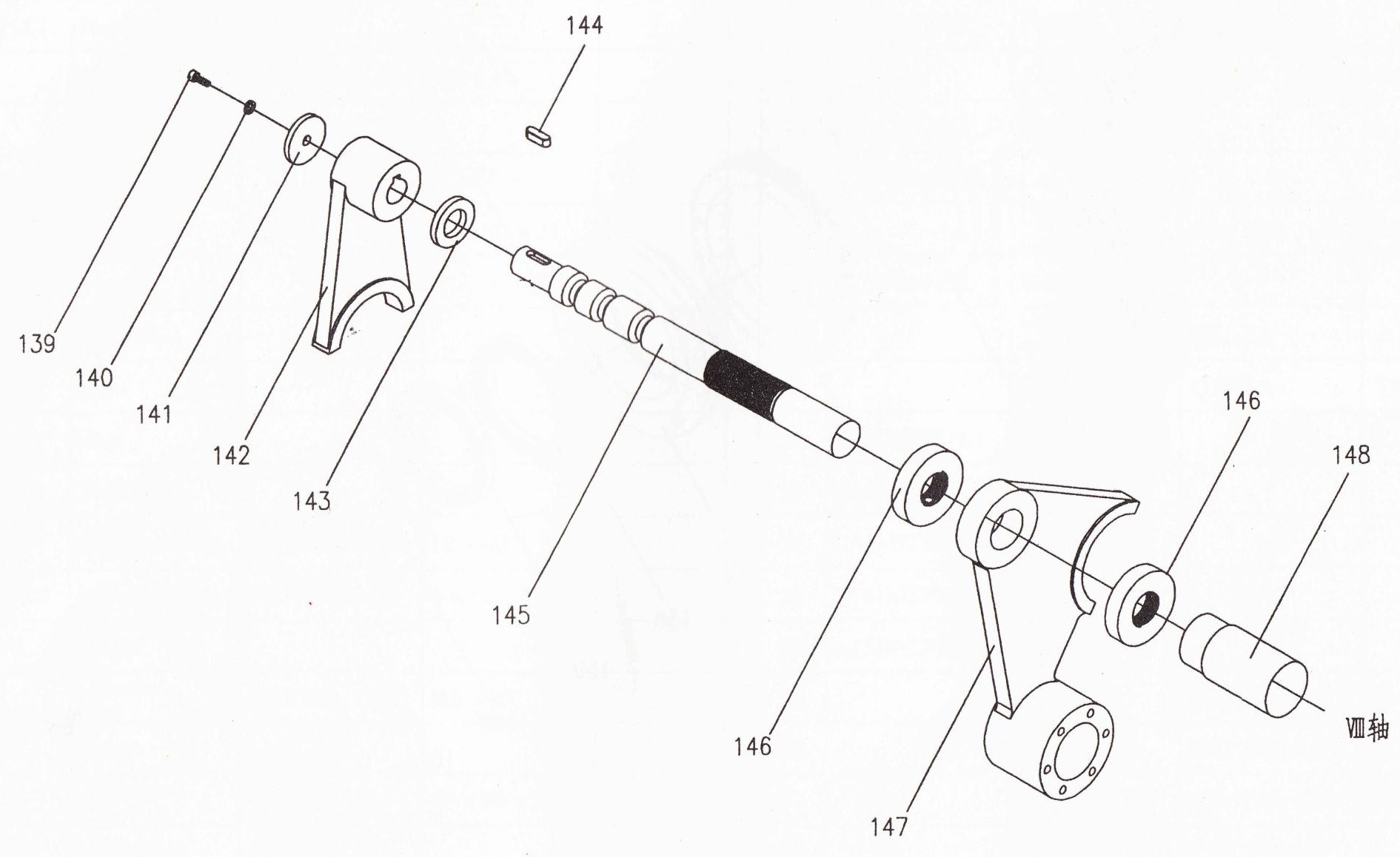

139 BoltGB/T5783-00M6×12
140 ElasticGB/T93-876
141 A15D02732LDriving
142 A15D02716L1End cover
143 A15D02735LGasket
144 Flat keyGB/T1096-796×20
145 A15D02728L2Driving
146 NutJ14-6M27×1.5
147 A15D02742L3Driving
148 A15D02741LLPositioning

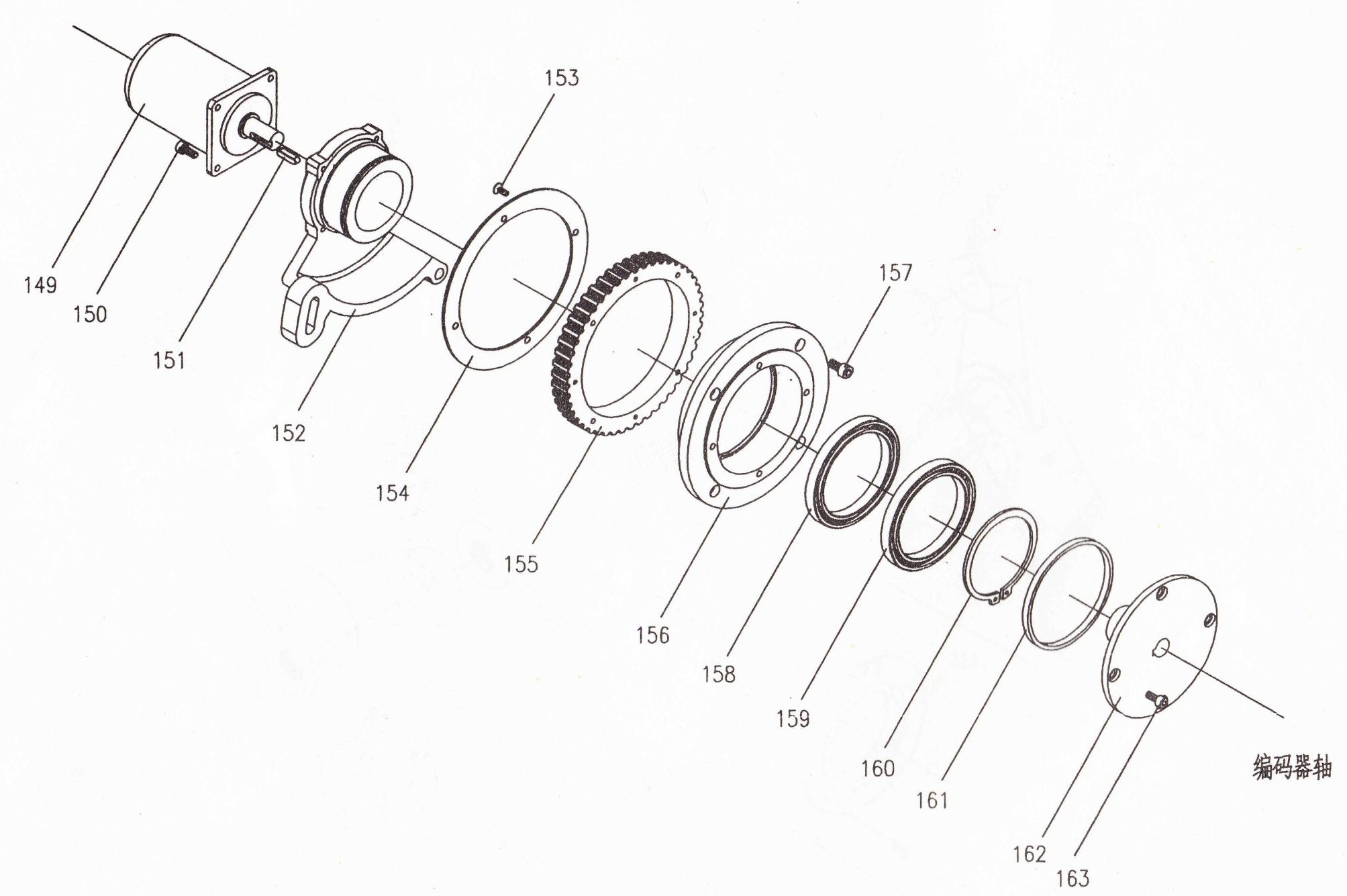

149 Encoder
150 Cylinder headGB/T70.1-00M5×10
151 Flat keyGB/T1096-796×20
152 A15D02141LSupport
153 Countersunk screwGB/T819.1-00M4×8
154 A15D02138LRetaining ring
155 A15D02142LTiming pullev
156 A15D02137LBush
157 Cylinder headGB/T70.1-00M5×12
158 Bearing1000814 70×90×10
159 Bearing1000814 70×90×10
160 Elastic retainingGB/T894.1-8670
161 A15D02139LSeparating bush
162 A15D02136LEnd cover
163 Cylinder headGB/T70.1-00M6×12

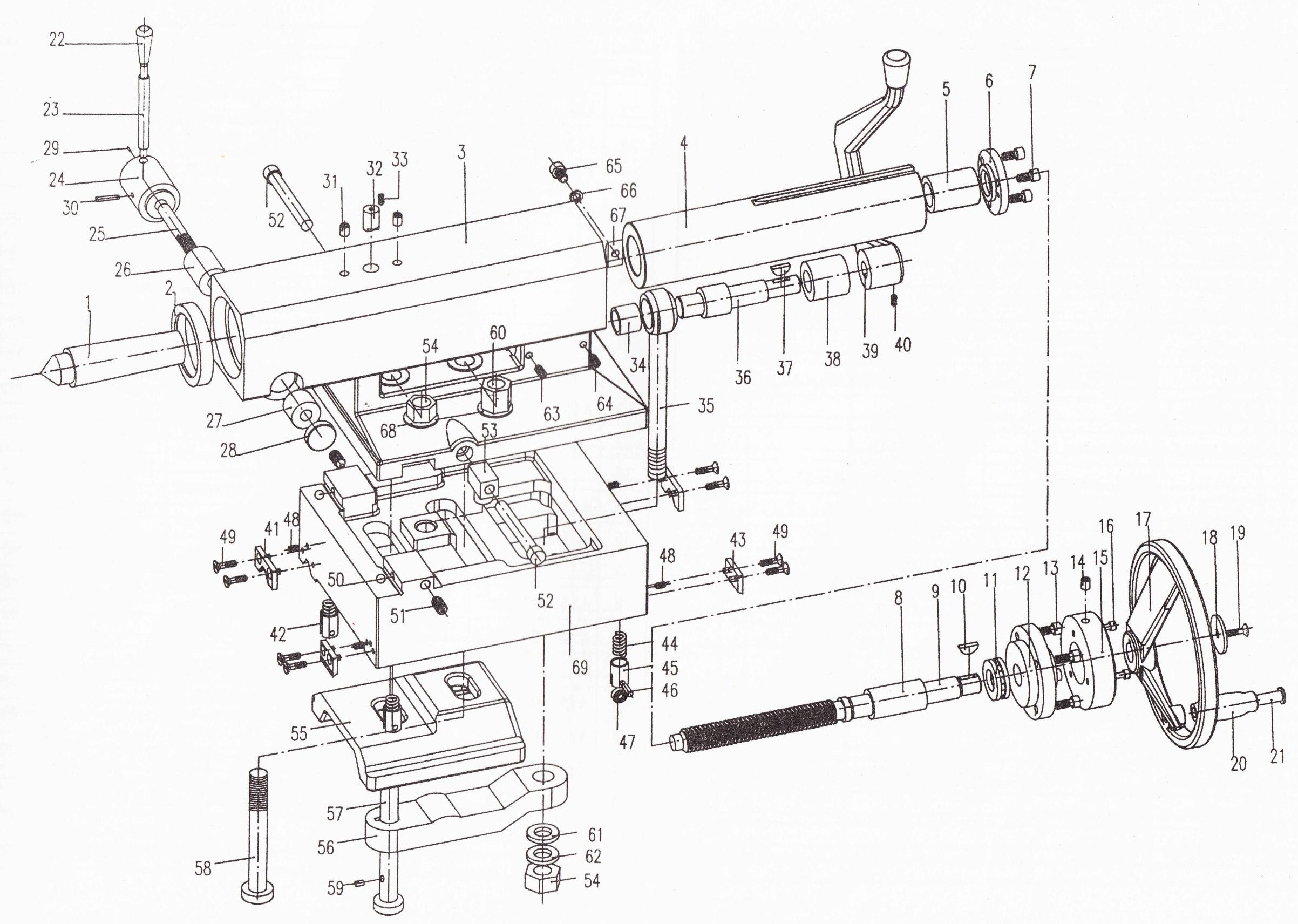

TALLSTOCK UNIT
No.Part No.NameTypeSizeRemarks
1 CenterS25-25
2 A15-03001HSealing ring
3 A15-03201LTailstock body
4 A15-03202ITailstock spindle
5 A15-03204LNut
6 A15-03205LCenter sleeve Cover
7 Cylinder head screwGB/T70.1-00M8×16
8 A15-03206LBush
9 A15-03203LLead screw rod
10 Half-round keyGB/T1096-796×22
11 Thrust ball bearing51205 25×47×15
12 A15-03207LFlange
13 Cylinder head screwGB/T70.1-00M8×20
14 Compressing fill oil cupR71-110
15 A15-03208LFlange
16 Cylinder head screwGB/T70.1-00M6×30
17 A15-03304LAHand wheel
18 A15-03305LAGasket
19 Cylinder head screwGB/T819.1-00IM8x16
20 A15-03307LAHandle sleeve
21 A15-03306LAHandle core
22 A15-02079LHandle
23 A15-03301LAHandle rod
24 A15-03302LAHandle seat
25 A15-03004LHandle rod
26 A15-03002LLocking block
27 A15-03003LLocking block
28 A15-030051Plug
29 Conic pinGB/T117-004×30
30 Conic pinGB/T117-005×50
31 Compressing fill Oil cupR71-110
32 A15-03001LGuiding key
33 Serew wit lockinga Conic endGB/T71-85M5×8
34 Shaft sleeveQ41-132k6×25
35 A15-03104LPulling rod
36 A15-03209LEccentric shaft
37 Half -round keyGB/T1096-796×22
38 A15-03210LSleeve
39 A15-03303LAHandle
40 Screw with locking at cylinder endGB/T79-00M8×16
41 A15-03019LChip scraping plate
42 A15-03011LAdjusting gasket
43 A15-03020LCompression plate
44 Compressed springQ81-1A1.8×12×22
45 A15-03009LSliding block
46 A15-03010LSmall shaft
47 Deep-groove ball BearingE1066×16×6
48 Screw with locking at cylinder endGB/T79-00M6×8
49 Countersunk screwGB/T819.1-00M6×20
50 Steel ballQ29-1A10
51 A15-03018LScrew with cone center
52 A15-03012LScrew
53 A15-03013LNut
54 A15-03008LScrew cap
55 A15-03007LCompressing plate
56 A15-03006LCompressing plate
57 A15-03102LScrew rod
58 A15-03103LScrew rod
59 Cylimder pinGB/TI19.2-005×12
60 Thick nutGB/T56-88M20
61 Spherical washerGB/T849-8820
62 Conic surface WasherGB/T850-8820
63 Screw with locking at cylinder endGB/T79-00M8×25
64 Screw with locking at cylinder endCB/T79-00M8×30
65 Flat round head ScrewGB/T70.2-00M10×20
66 Elastic washerGB/T93-8710
67 A15-03211LConpression block
68 Flat washerGB/T97.1-8516
69 A15-03101LTailstock sea

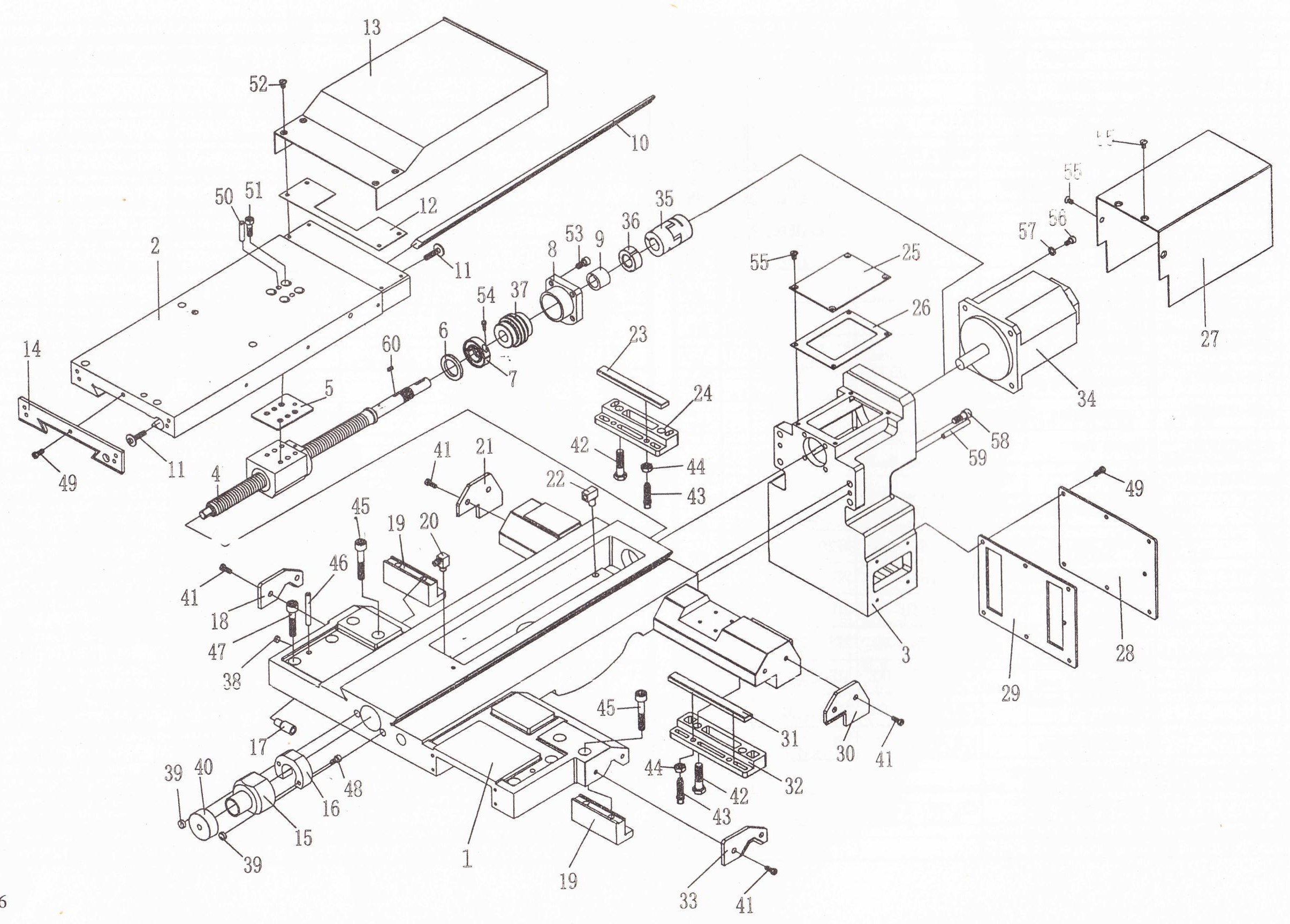

CARRIAGE UNIT
No.Part No.NameTypeSizeRemarks
1 A15A05191L1CarriageΦ500
A16-05198L1CarriageΦ610
2 A15-05201L1SlideVerical 4-station turret,
external cooling
A15-05203L1SlideVertical 6-station turret,
external cooling
A16-05205L1SlideVertical 4-station turret,
external cooling
A16-05207L1SlideVertical 6-station turret,
external cooling
A15-05210L1SlideVertical 4-station turret,
external cooling
A15-05212L1SlideVetical 6-station turret,
external cooling
A16-05213L1SlideVertical 4-station turret,
external cooling
A16-05214L1SlideVertical 6-station turret,
external cooling
A15-05241LSlideHorizontal,
6-station turret
A16-05242LSlide
3 A15P05607LBox bodyFANUC
A15G05630LBox bodySIEMENS
A15F05615LBox bodyFAGO
4 A15A05311HLeadscrew rodΦ500
A16D05312H1Leadscrew rodΦ610
5 A15-05150LAdjusting padΦ500
A16-05151LAdjusting padΦ610
6 A15D05171L1Stop block
7 A15D05170LJStop block
8 A15A05484LBearing cover
A15D05446LBearing cover
9 A15A05483LSeparating bush
10 A15-05102L2Gib
A16-05109L2Gib
11 A15-05032LGib screw rod
12 A15-05224LRubber pad
13 A15P05602LProtective cover
14 A15-05106L1Chip scrapping plateΦ500
A16-05120L1Chip scrapping plateΦ610
15 A15D05172LStop block
16 A15D05173LStop block
17 A15-05005L1Pipe joint
18 A15-05020LIChip Scrapping plate
19 A15-05002LFront compressing plate
20 A15-05058LPipe joint
21 A15-05021LIChip Scrappirg plate
22 A15-05025LPipe joint
23 A15-05029LPlate
24 A15-05015LBack compressing plate
25 A15P05604LCover
26 A15-05605LRubber pad
27 A15-05603LMotor cover
A15-05625LMotor Cover
28 A15-05403H1Support
29 A15-05409L1Rubber pad
30 A15-05023L1Chip Scrapping plate
31 A15-05030LPlate
32 A15-05014LBack Compressing plate
33 A15-05020LChip scrapping plate
34 β8is/3000Motorβ8is/3000FANUC
Motor130ST-M05025HGUANGZHOUCNC
Motor1FK7060SIEMENS
MotorSCG-130A6-25DASEN 9i
35 CoupleEK2/20/B/22/17
CoupleEK2/20/B/1:10φ 16/17
CoupleEK2/20/B/24/17
CoupleEK2/20/B/19/17
36 Locking nutGH-YSF
37 Combination bearingsZARN2052TN
38 PlugQ56-110n6
39 PlugQ56-112k6
40 PlugQ56-145n6
41 ScrewGB/T822-00M6×16-Zn.D
42 BoltGB/T5782-00
43 ScrewGB/T83-88M10×3
44 NutGB/T6170-00M10
45 ScrewGB/T70.1-00M12×60
46 PinGB/T118-868×60
47 ScrewGB/T70.1-00M12×25
48 ScrewGB/T70.1-00M6×20
49 ScrewGB/T818-00M6×16
50 PinGB/T118-868×35
51 ScrewGB/T70.1-00M8×25
52 ScrewGB/T819.1-00M5×10
53 ScrewGB/T70.1-00M8×16
54 ScrewGB/T70.1-00M4×12
55 ScrewGB/T819.1-00M6×8
56 ScrewGB/T70.1-00M8×20
57 WasherGB/T93-878
58 ScrewGB/T70.1-00M10×25
59 PinGB/T118-868×35
60 KeyGB/T1096-794×10

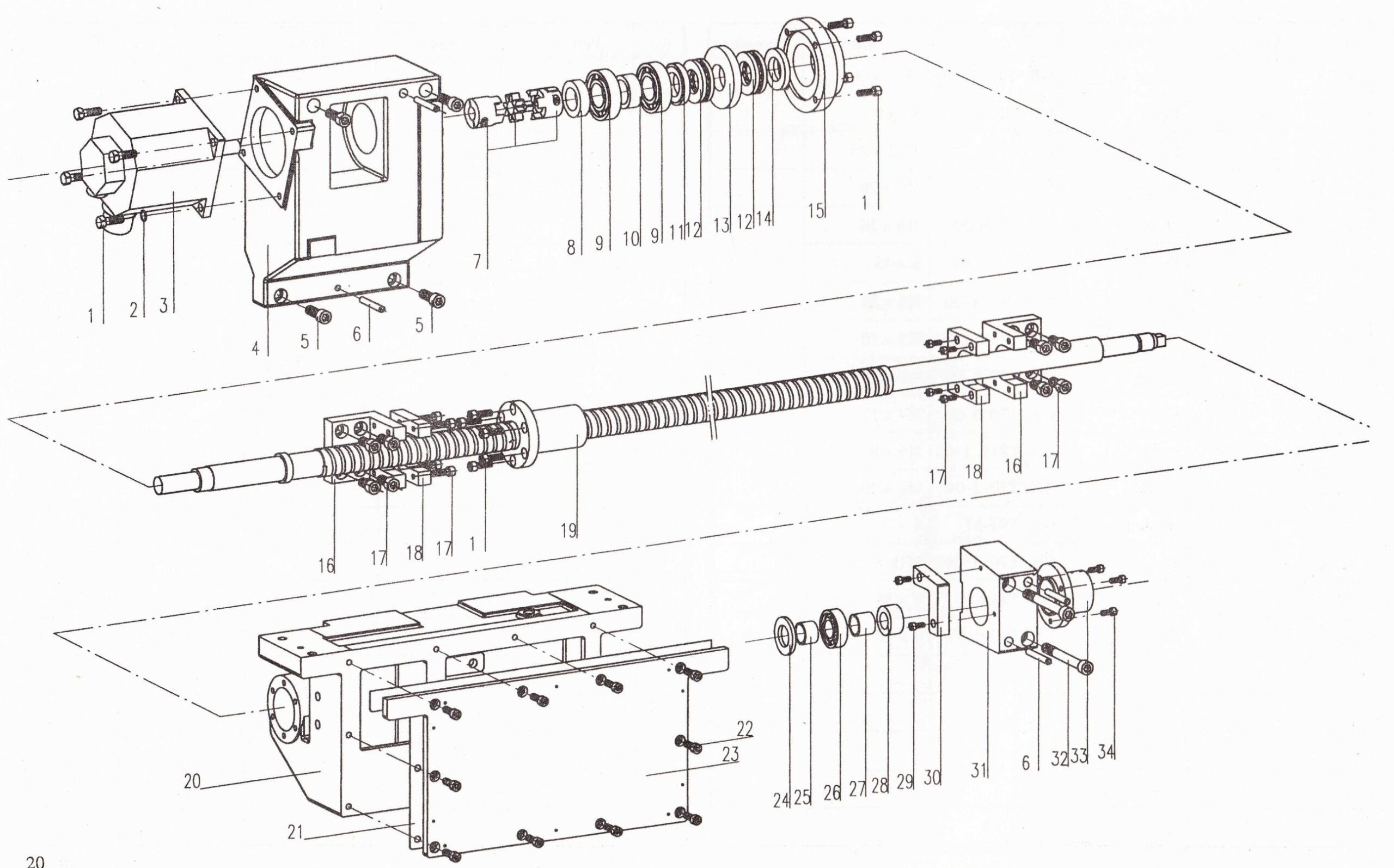

LONGITUDINAL FEED BOX UNIT
No.Part No.NameTypeSizeRemarks
1 Cyinder head screwGB/T70.1-00M8×25
2 Elastic washenCB/T93-878
3 Servo motorβ8/3000isFANUC
Seryo motor1FK7060-5SIEMENS
4 A15-07110LBox body
5 Cyinder head screwGB/T70.1-00M12×40
6 Conic pin with internal threadsGB/T118-008×60
7 CoupleEK2/60/B/19/25FANUC
CoupleEK2/60/B/24/25SIEMENS
8 Round nutJ14-6M33×1.5
9 Deep-groove ball bearing6207/P535×72×17
10 A15-07004LBush
11 A15-07005LWasher
12 Trust bal bearingD820735×62×18
13 A15-07006LRetaining ring
14 A15-07007LGasket
15 A15-07008LFlange
16 A15-07015LSupport
17 Cylinder head screwGB/T70.1-00M12×35
18 A15-07016LGasket
19 A15D07301HAssembly of Screw rod
20 A15-06191IApron box body
21 A15-06005LPaper pad
22 Cylinder head screwGB/T70.1-00M8×16
23 A15-06004LCover
24 A15-07002LBush
25 Separating bushQ43-125×32×20
26 Deep-grooV6 Bearing205 25×52×15
27 Separating bushQ43-125×32×25
28 Bound nutJ14-6M24×1.5
29 Cylinder head ScrewGB/T70.1-00M6×20
30 A15-07001ISupporting block
31 A15-07009Rear support
32 Cylinder head ScrewGB/T70.1-00M12×120
33 A15-07010IEnd cover
34 Cylinder head ScrewGB/T70.1-00M6×12

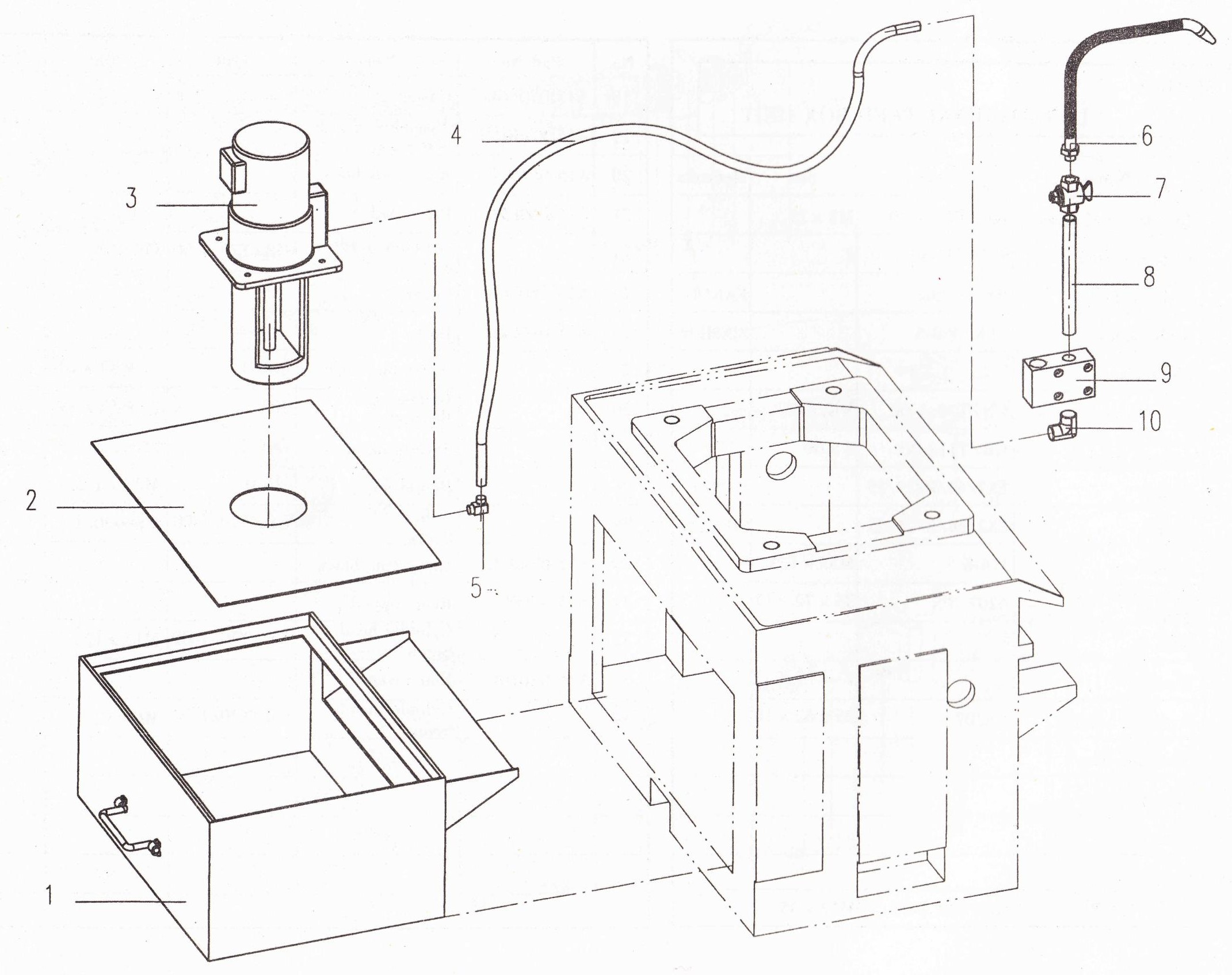

COOLING UNIT
No.Part No.NameTypeSizeRemarks
1 A15-14002H1Water tank
2 A15-14007L1Gasket plate
3 Cooling pumpACP-180HF18 A-YUNG,ROK
Cooling pumpYWP-18G18 SHENYANG
4 Oil rubber pipeA64-119×1500
5 JointMounted on Cooling punp
6 A15-14001HCooling pipe
7 CorkL81-1G1/2
8 A15-14002LJoint
9 A15-14001LSeat
10 A15-14001LJoint

Resources & Downloads

SMTCL CAK Series Economic CNC Lathe Catalog

File size: 8.15 MB
Created: 29-06-2024
Updated: 29-06-2024
Hits: 327
Download Preview

SMTCL CAK50,61 Series Instruction Book(For Mechanical Unit)

File size: 7.43 MB
Created: 29-06-2024
Updated: 29-06-2024
Hits: 191
Download Preview
Recommended Related Products
If needed, please contact us for further selection

Recommended Related Products

Load More
Need help finding a machine?
We will gladly assist you in making the right decision to achieve your business goals
Get a free Consultation
