CAK63 Series Parts

, , ,

PRODUCT FEATURES
The machine is mainly used for turning various shaft-type workpieces and disc workpieces, cutting all kinds of threads, arcs,cones and internal and external curvic surfaces of gyro-rotors, and it can meet the need of speed while cutting ferrous and non-ferrous metals at high speed.

Therefore, the machine is suitable for of gyro-rotor workpieces in high-efficiency, large-batch and high-accuracy machining in the fields of automobile, motorcycle, electronic, aerospace, war industry, etc.

The workpieces produced on the machine can be up to the working accuracy of Grade IT6~IT7 and Cp can be up to 1.6.

Accuracy of the machine is in accordance with Standard JB/T8324.1-1996《Testing of the Accuracy for Horizontal NC Turning Machines》.
Request a Quote
Please enable JavaScript in your browser to complete this form.
Name
Please contact me by
Consultation details
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Contact

Wide Product Portfolio

We supply a diverse range of conventional and CNC metalworking machines loaded with features

Watch It

Professional Consultation

Trusted consultation and in house demonstrations to provide the best solutions for your business needs

Get Support

Outstanding Service

Full time, skilled service team employees available for start-up, maintenance and repair of your SMTCL machine

Details

Contact us

Please enable JavaScript in your browser to complete this form.
Name
Please contact me by
Consultation details
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Have any Questions?

Check our frequently asled question hope you get answer.

If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Check out our FAQ page for answers to common questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Check out our FAQ page for answers to common questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Check out our FAQ section for more information on how we can help
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Check out our FAQ page for answers to common questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

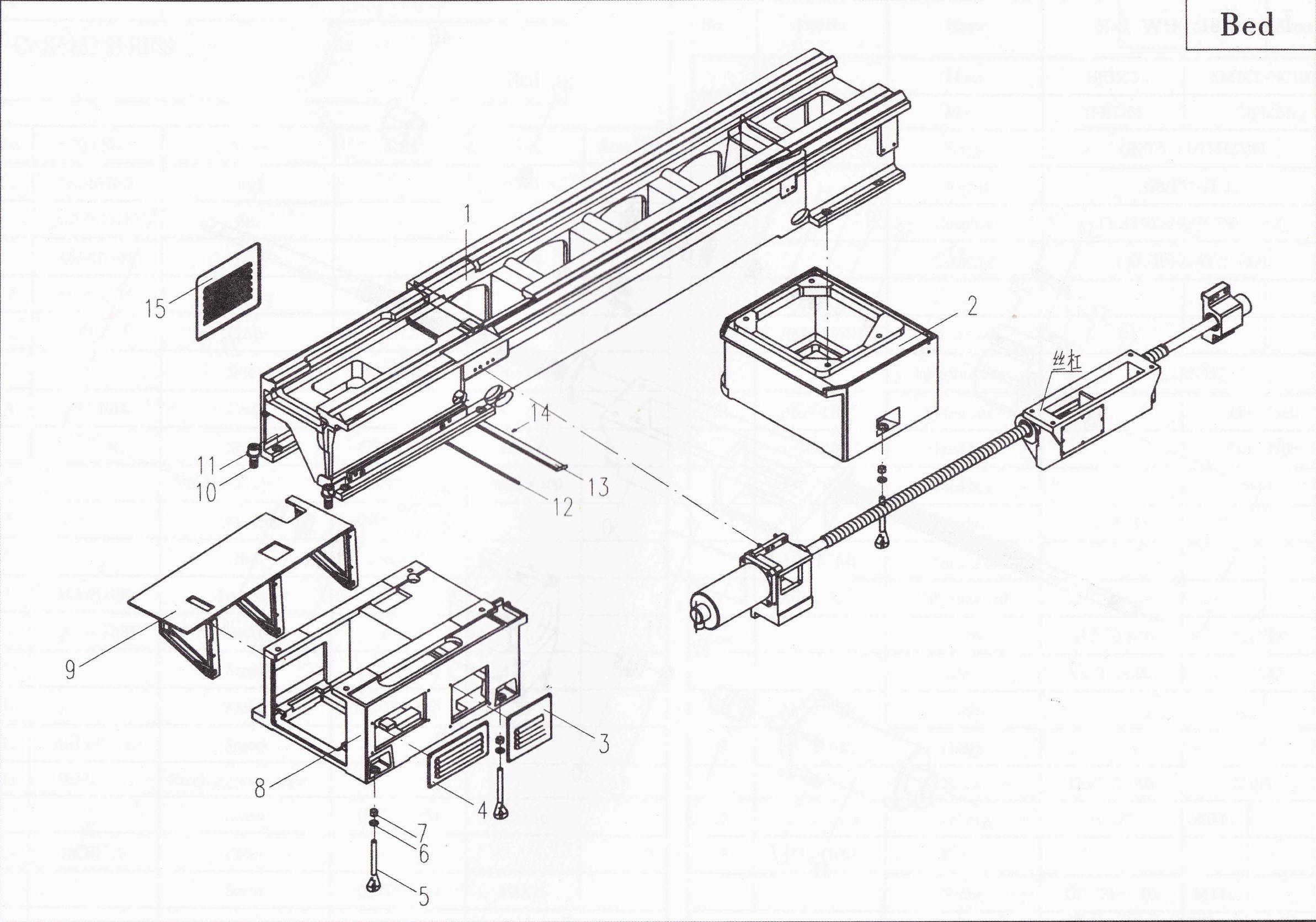

Bed
No.Part No.NameMarkSizeRemarks
1 A63-01762LBed750
A63-01151L2Bed1500
A63-01368LBed3000
2 A63-01120LRear leg
3 16C01015Cover
ScrewGB/T818-00M8X16
4 16C01014Cover
ScrewGB/T818-00M8X16
5 Foundation boltGB/T799-88M24×400
6 WasherGB/T97.1-8524
7 NutGB/T41-00M24
8 A63-01119LFrontleg
9 A63-01120HBracket
10 ScrewGB/T5782-00M20X70
11 WasherGB/T97.1-8520
12 A63-01028LSpacer
13 A63-01127LReceiving water plate
14 ScrewGB/T818-00M6X16
15 16C01218Cover
ScrewGB/T818-00M8X16
16 Motorβ22/2000isFANUC
MotorHF352SSMTCL-NC100
Motor1FK7101SIEMENS

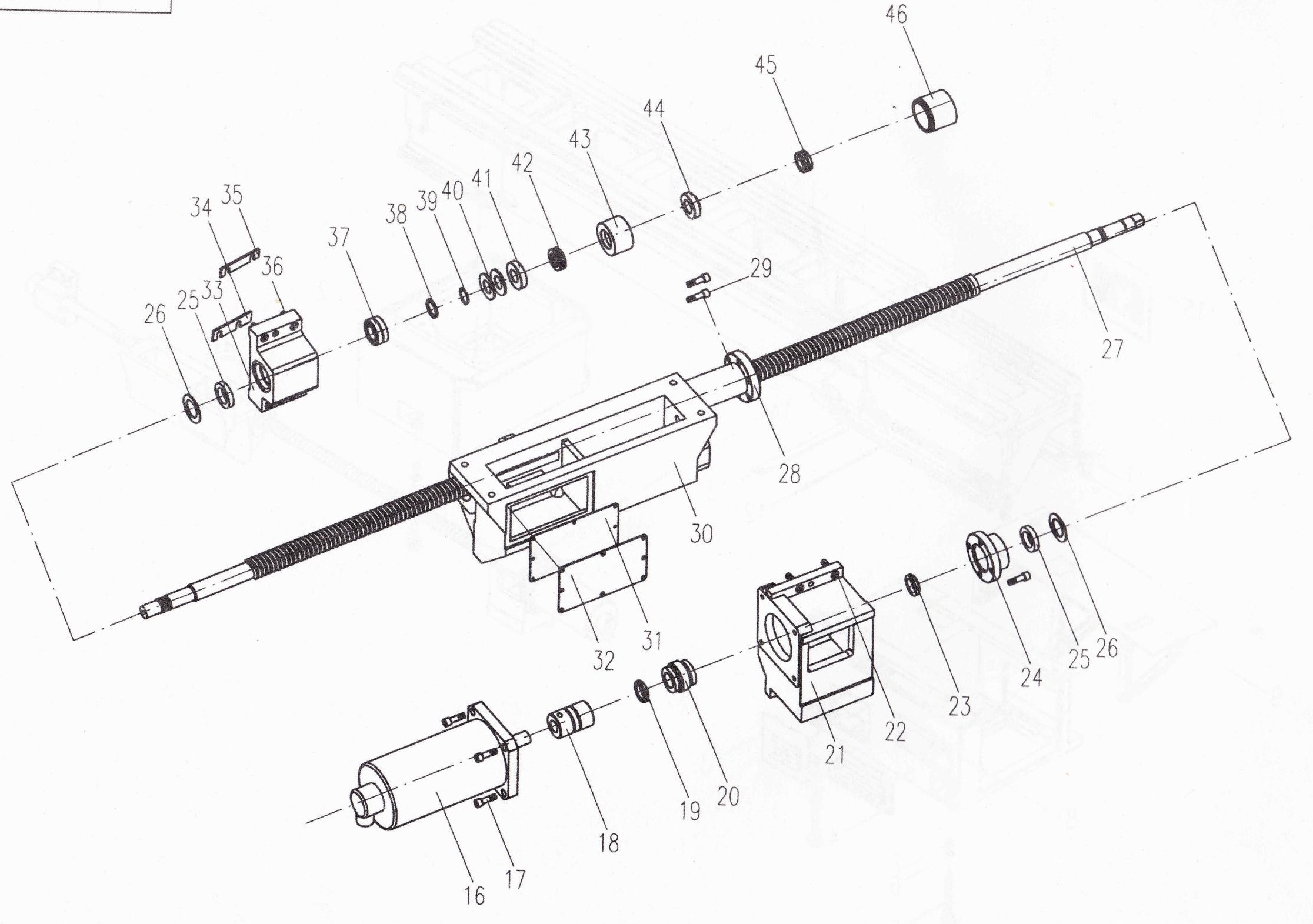

17 ScrewGB/T70.1-00 M12X40
WasherGB/T93-8712
18 CouplingEK2/150/A/30/35750;1500
CouplingEKL/300/A/40/353000
19 A63-01761HRound nut
20 Combination bearingZARN357
21 A63-01761LFeed box750;1500
A63C01001LFeed box750;1500
A18-01311LFeed box3000
WasherGB/T93-8712
A63-01764LAdjusting pad
A63-01765LAdjusting pad
22 ScrewGB/T70.1-00M12X35
PinGB/T118-0012X45
23 A63-01007LBush
24 A63-01108LFlange
ScrewGB/T70.1-00M10X25
25 Seal ringG51-440X62
26 A63-01109LCover
ScrewGB/T819.1-00M3X6
27 A63-01150LZ-axis leadscrew1500
A63-01760L750
A18-01369L3000
28 Seatofscrew nut
29 ScrewGB/T70.1-00M12X40
30 A63-06101LApronbody750;1500
A63B0631IL2Apronbody3000
31 A63-06006LSpacer
32 A63-061051Cover
33 A63-01111LRear bracket
34 A63-010351Lower adjusting pad
35 A63-01034LUpperadjusting pad
30 A63-06101LApronbody750;1500
36 ScrewGB/T70.1-00M12X50Upper part of bracket
Cylindrical pin with inner threadsGB/T118-0012X60
ScrewGB/T70.1-00M12X70Lower part of bracket
Cylindrical pin withinner threadsGB/T118-0012X80
37 Bearing6007 35X62X14
38 A63-01012LSpacer
39 Retaining ringGB/T894.1-8635
40 Disc springQ81-463X32.5X1.8X4.15
41 A63-01014LSpacer bush
42 Thrust bearing51206 30X52X1
43 A63-01013LSlidingbush
44 A63-01015LShaftsleeve
45 Round nutGB/T812-88M30X1.5
46 A63-01016LPlug

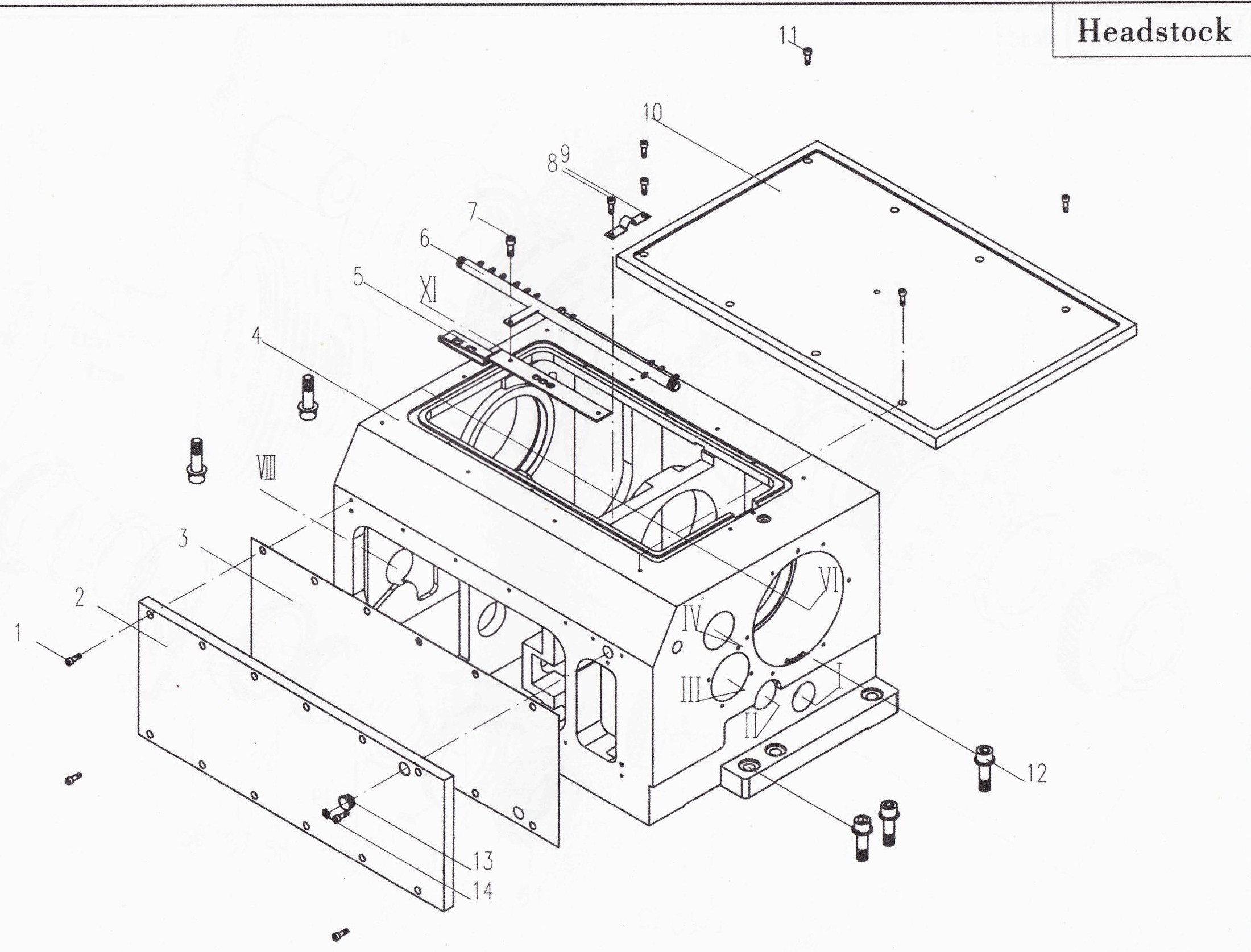

Headstock
No.PartNo.NameMarkSizeRemarks
1 ScrewGB/T70.1-00M8X25
2 A63-02185LFront cover
3 GasketA82-11X1000X800
4 A63-02477LHeadstock body
5 A63-02102HBracket
6 A63-02101HOildistributor
Flared typepipe sleeveG91-3A
Nut forflared typepipe jointG51-9
Copper pipeA31-8T3M-4X2X800
7 ScrewGB/T818-00M6X12
8 ScrewGB/T818-00M6X12
9 One-end hose clipG31-220
10 A63-02196LCover for headstock
11 ScrewGB/T70.1-00M8X25
12 ScrewGB/T5782-86M20X70
WasherGB/T97.1-8520
13 16C02166Oilleveler
14 16C02165Oil window
15 A63-02079LConnection plate
16 A63-02080LPulley for timing belts
17 ScrewGB/T70.1-00M6X25
WasherGB/T93-876
18 ScrewGB/T79-00M12X16
Steel-wire snap ringGB/T921-86142
19 Round nutJ14-6GM125X2
20 16C02079Spacerbush
21 BearingD3182126130X200X52
22 16C02077Retaining ring
23 Round nutJ14-6GM140X2
24 A63-02042LSpacer bush
25 BearingE128140X210X33

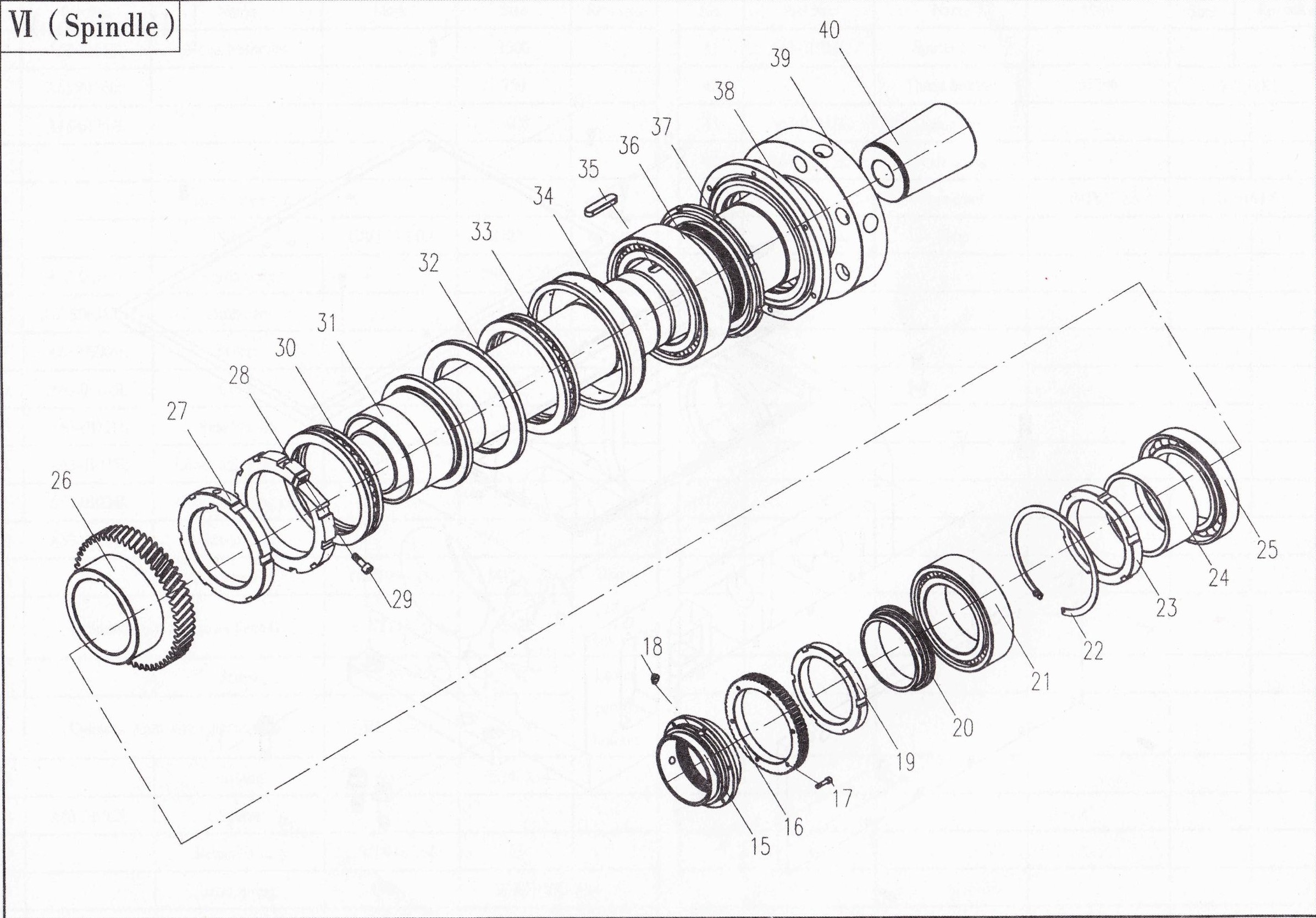

26 A63-02180LGear
27 16C02084Round nut
ScrewJ22-9M16X1.5X16
Pressing blockJ14-6-3218X26
28 16C02085Nut
29 ScrewGB/T70.1-00M10X30
30 BearingD8134170X215X34
31 16C02091Bearing sleeve
32 16C02092Spacer
16C02086Pin
33 BearingD8134170X215X34
34 16C02095Spacer bush
35 KeyGB/T1096-7916X70
36 BearingC3182132160X240X60
37 A63-02178LNut
38 A63-02179LFront flange
Sealing ringG51-9250X5.7
39 16C02089Spindle
16C02093Screw
16C02094Lock dog
Compressed spring for common boltQ81-1A1X8X25
40 16C02090Center sleeve
41 ScrewGB/T70.1-00M8X16
42 Al5-02008LScrew cap
43 ScrewGB/T70.1-00M8X20
WasherGB/T93-878

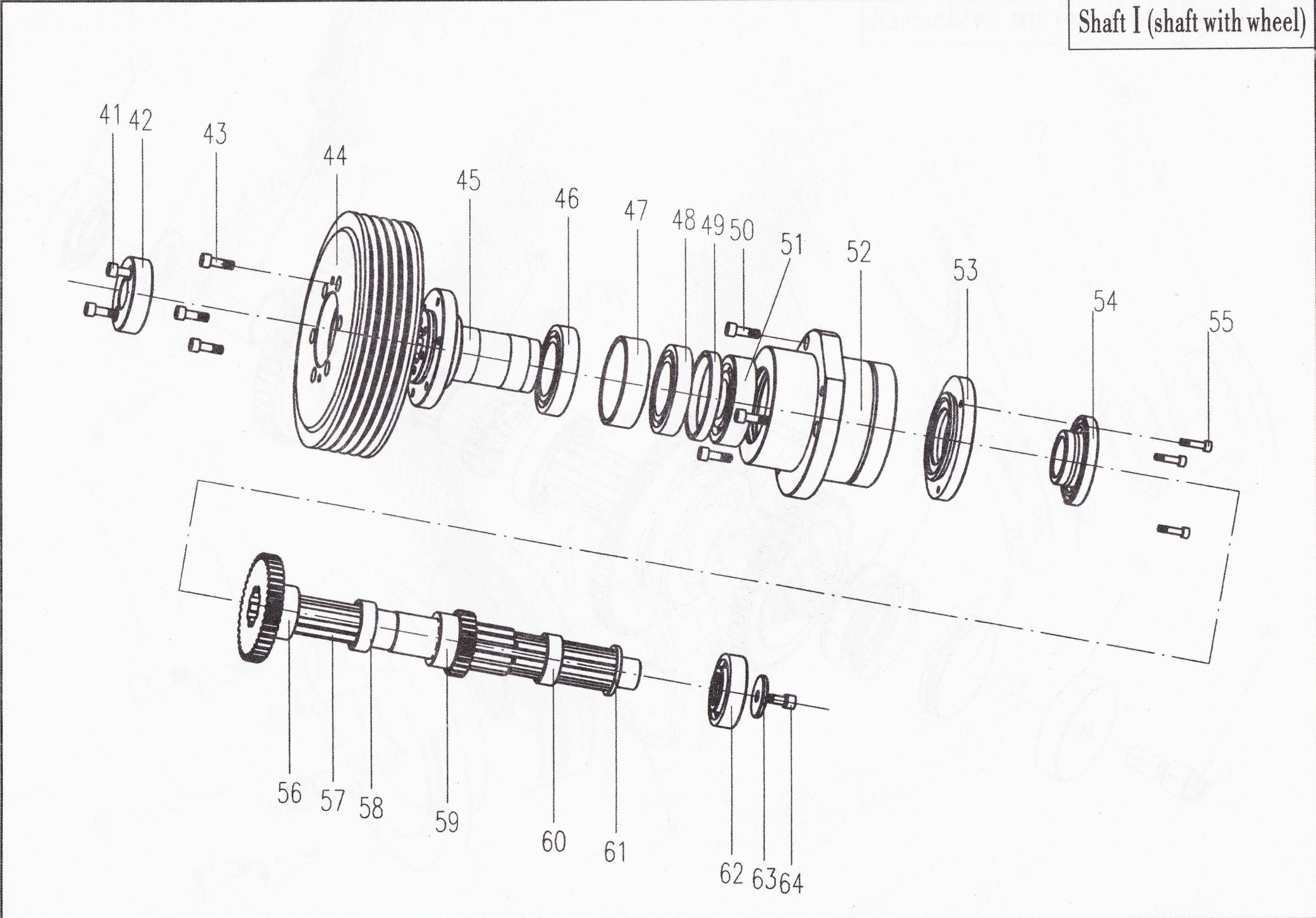

44 A63-02150LPulley
45 A63-02149LFlange
46 BearingE11155X90X18
47 A15-02012LSpacer bush
48 BearingE11155X90X18
49 A15-02013LSpacer bush
50 ScrewGB/T70.1-00M8X25
51 BearingE30840X90X23
52 A63-02151LBearing seat
GasketG51-9125X3.1
53 A63-02152LFlange
GasketG51-990X3.1
54 A63-02153LOil thrower
55 ScrewGB/T70.1-00M6X20
56 A63-02154L1Gear
57 A63-02148LShaft I
58 Spacer bushQ43-142X50X16
59 A63-02155LGear
60 Spacer bushQ43-142X50X16
61 Spacer bushQ43-130X50X5
62 BearingE30630X72X19
63 A63-02166LRetain ring
64 ScrewGB/T5783-00M8X25
WasherGB/T93-878
65 ScrewGB/T77-00M16X35
NutGB/T6172.1-00M16

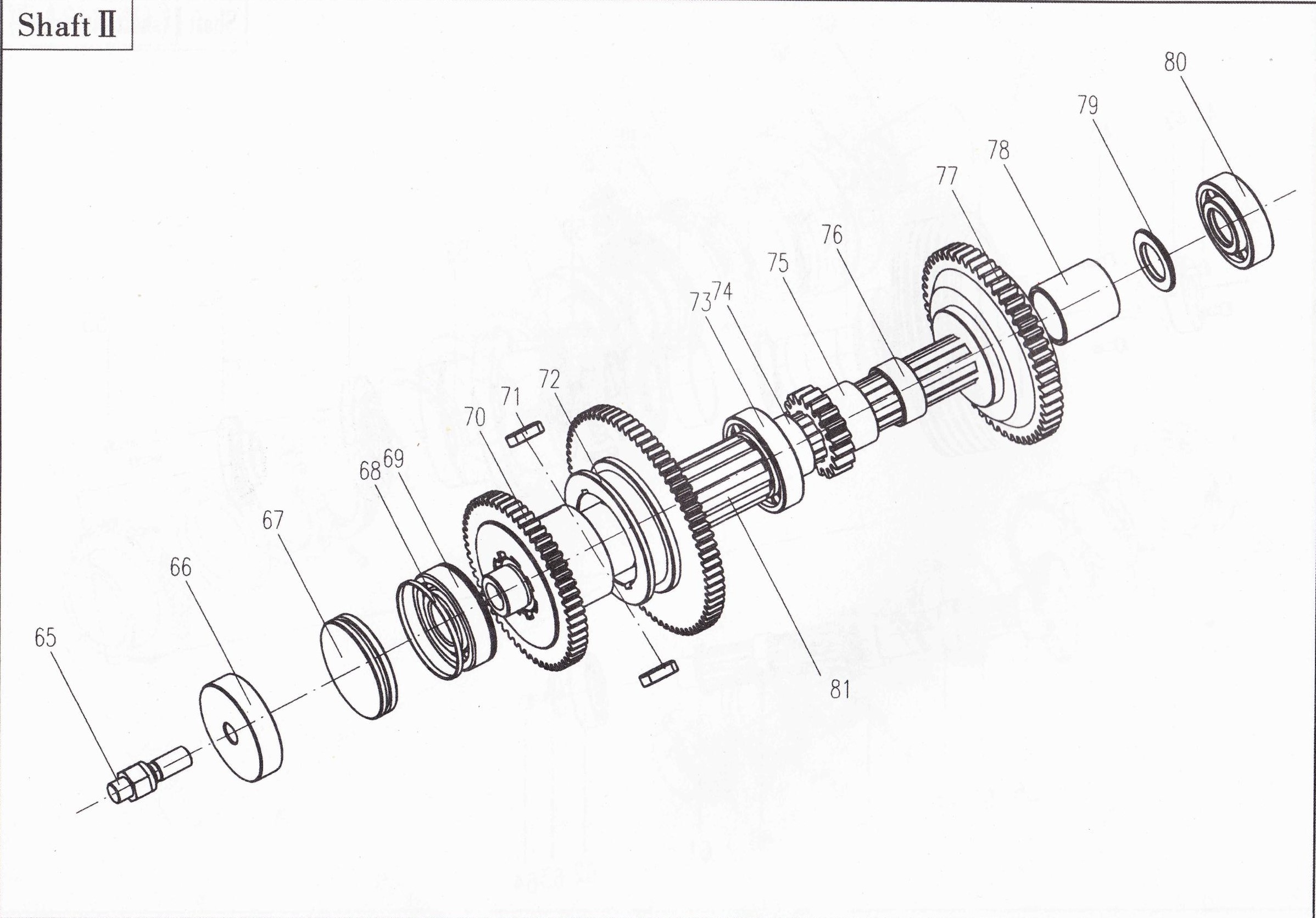

66 A63-02146LPlug
ScrewGB/T71-85M8X12
67 A63-02145LOil-seal plug
68 GasketG51-980X3.1
69 BearingE30730X80X21
70 A63-02168LGear
71 KeyGB/T1096-7910X30
72 A63-02169LGear
73 BearingE20840X80X18
74 Spacer bushQ43-140X48X18
75 A63-02170L2Gear
76 Spacer bushQ43-140X48X20
77 A63-02171L1Gear
78 Spacer bushQ43-140X48X50
79 A63-02167LWasher
80 BearingE30630X72X19
81 A63-02147LShaftIⅡ
82 ScrewGB/T70.1-00M8X30
83 ScrewGB/T77-00M12X40
84 NutGB/T6172.1-00M12
85 A63-02144LFlange
86 A63-02142LOil-seal ring
87 GasketG51-9130X3.11-2
88 GasketG51-945X3.11-2
89 ScrewGB/T70.1-00M8X25

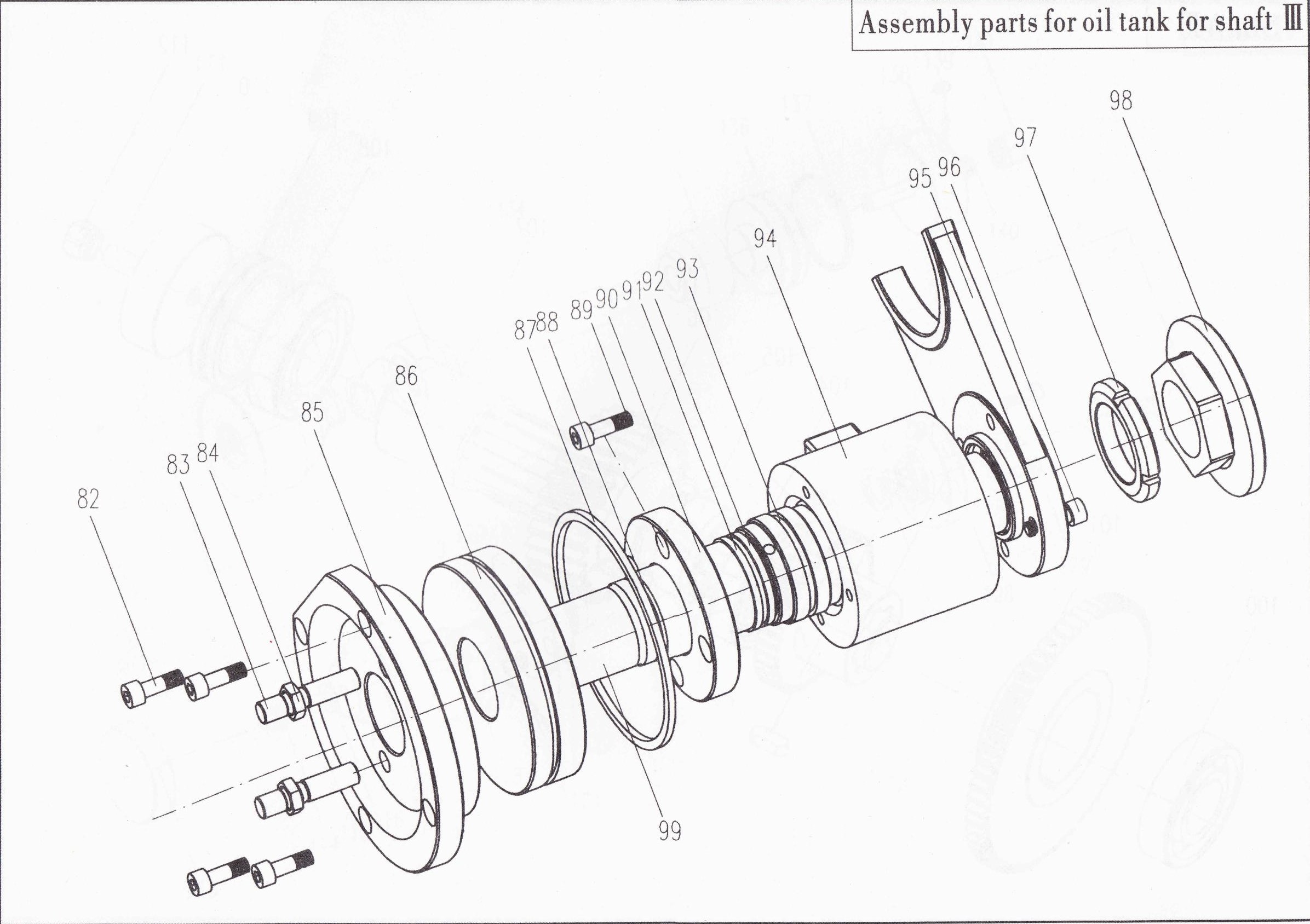

90 A63-02183LFlange
91 GasketGSJ0500D50
92 GasketGST5858D50
GasketG51-965X3.1
93 GasketGSF0600
94 A63-02182IOil cylinder
95 A63-02181LDriving fork
GasketGSJ0500D50
GasketGST5858D50
GasketG51-965X3.1
96 ScrewGB/T70.1-00M8X25
97 Round nutJ14-6GM45X1.5
98 A63-02184LAdjusting seat
99 A63-02143LPiston of shaft I

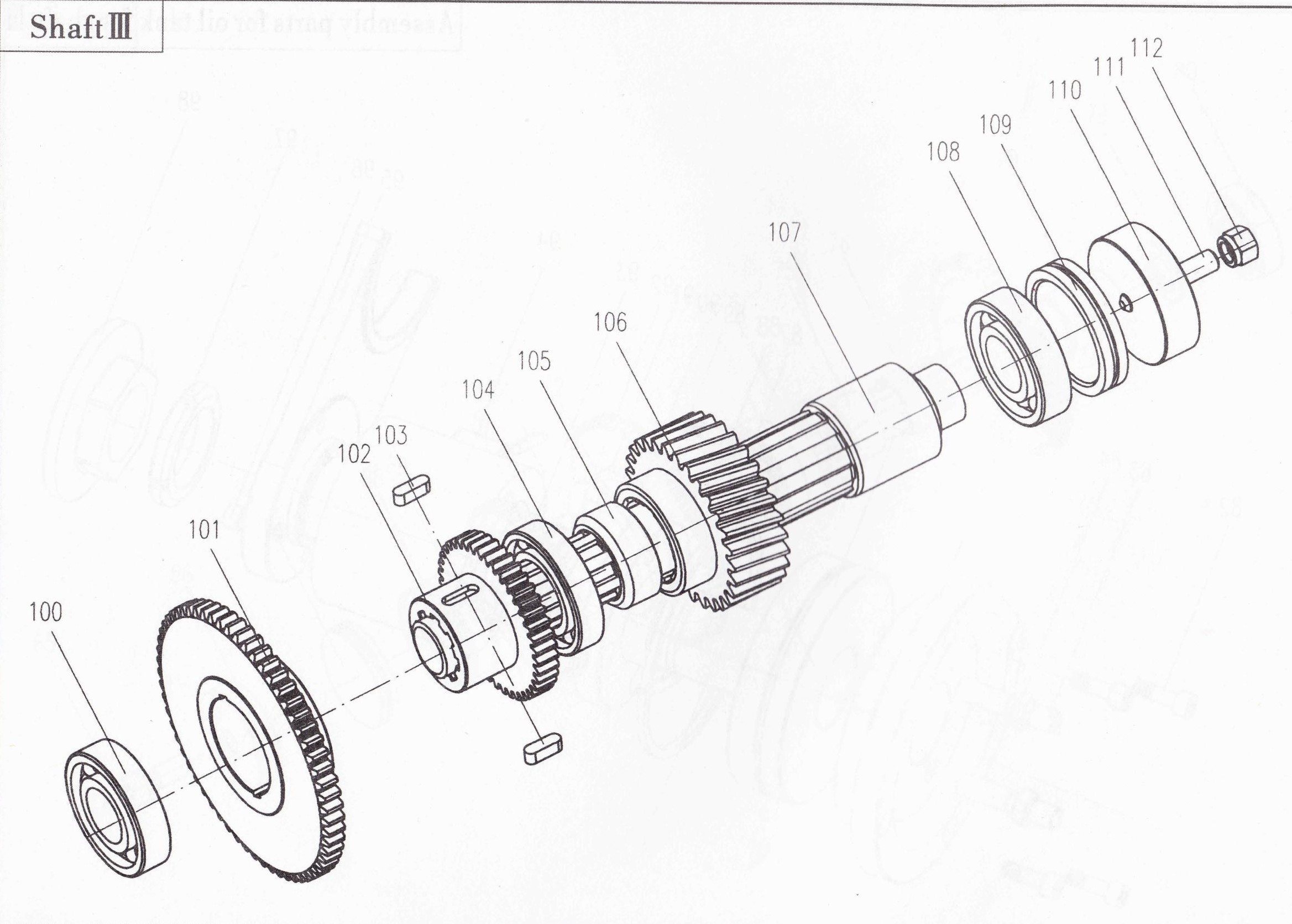

100 BearingE4630945X100X25
101 A63-02172L2Gear
ScrewGB/T77-00M10X20
102 A63-02173LGear
103 KeyGB/T1096-7910X30
104 BearingE4621155X100X21
105 A63-02176LSpacer bush
106 A63-02175LGear
107 A63-02174LShaft Ⅲ
108 BearingE4630945X100X25
109 A63-02085LPlug
GasketG51-9100X3.11-2
110 A63-02028LPlug
ScrewGB/T71-85M8X12
111 A63-02011LScrew
112 NutGB/T6172.1-00M16
113 PlugQ56-1B80K6
114 ScrewGB/T6172.1-00M12
115 Double screw boltGB/T77-00M12X35
116 WasherG52-212

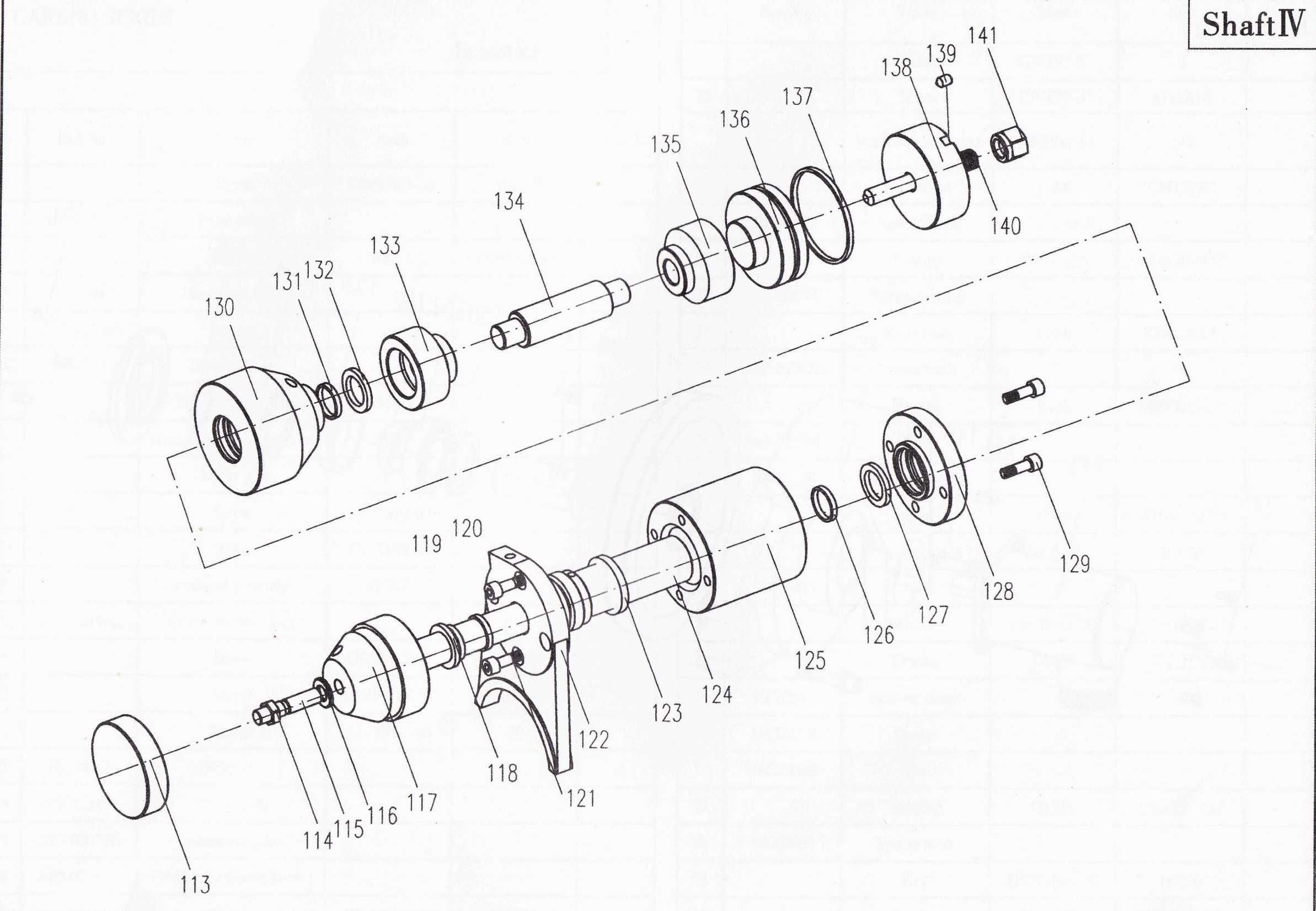

117 A63-02156LOil cylinder
118 GasketGST5854D25
119 GasketGSJ0250
120 GasketGSJ0250
121 ScrewGB/T70.1-00M8X25
122 A63-02158LDriving fork
GasketGST5854D25
123 GasketGSF0480
124 A63-02157LPiston
125 A63-02159LOil cylinder
GasketG51-955X3.11-2
126 GasketGST5856D38
127 GasketGSJ0830
128 A63-02160LFange
129 ScrewGB/T70.1-00M8X25
130 A63-02161LOil cylinder
131 GasketGST5856D38
132 GasketGSJ0830
133 A63-02162LSeat
134 A63-02163LRod
135 A63-02162LSeat
136 A63-02164LPlug
137 GasketG51-980X3.11-2
138 A63-02013LPlug
139 ScrewGB/T71-85M8X12
140 A63-02189LScrew
141 NutGB/T6172.1-00M16
142 ScrewGB/T70.2-00M5X12
143 EncoderA86L-0027-0001102
144 KeyGB/T1096-795X20
145 ScrewGB/T70.1-00M8X40
Flat washerGB/T97.1-858
Spring washerGB/T93-878
146 A63-02191LSupport
147 A63-02074LTiming belt
148 A63-02075LSmall shaft
149 KeyGB/T1096-796X18
150 A63-02076LSpacer bush
151 Bearing106 30X55X13
152Spacer bushQ43-145X55X10
153 Spacer bushQ43-130X37X10
154 Bearing106 30X55X13
155 Retaining ringGB/T894.1-8630
156 A63-02078LPressing cover
157 ScrewGB/T819.1-00M5X12
Parts included in shaft VIl are as followsi
SealingringG51-972X3.11-2
A63-02141LJoint seat
Straight-thru pipe joint with flared-type taper threadG92-1A10
CopperpipeA31-83-T3M-10X8X600
Part included in shaft XI are as follows:
A63-02190LJoint seat
Plastic-bound joinD96-8-91M16X1.5
Plastic-bound jointD96-8-81M16X1.5

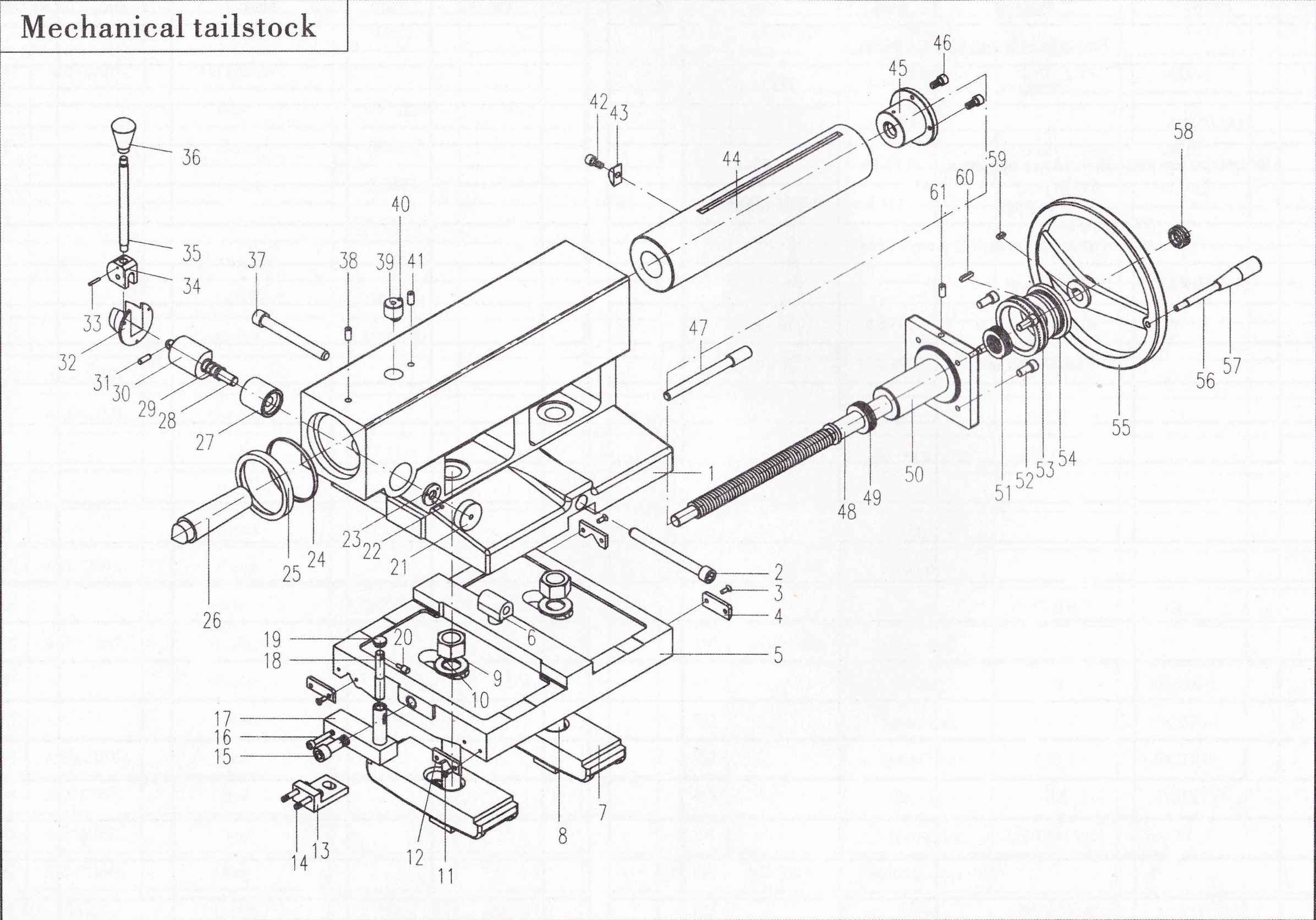

Mechanical tailstock
No.Part No.NameMarkSizeRemarks
1 16C03011Tailstock body
2 16C03034Screw
3 ScrewGB/T818-00M6X16-ZnD
4 16C03H02Chip scraper
5 16C03020Base
6 16C03023Nut
7 16C03021Pressure plate
8 16C03022Screw
9 WasherGB/T97.1-85B30
10 NutGB/T56-88M30
11 ScrewGB/T818-00M6X16-ZnD
12 16C03H01Chip scraper
13 A63-03014LBending plate
14 ScrewGB/T70.1-00M8X20
15 ScrewGB/T70.1-00M16X55
16 ScrewGB/T70.1-00M8X50
17 A63-03011HWelding holde
18 A63-03011LPin rod
19 A63-03013LPlug
20 A63-03012LKnurled nut
21 16C03043Plug
22 ScrewGB68-76M3X6
23 Round nutJB24-59M16X15
24 16C03025Strengthened ring
25 16C03024Gasket
26 CenterS25-2
27 16C03036Locking sleeve
28 16C03039Locking shaft
29 16C03029Spring
30 16C03037Locking sleeve
31 PinGB/T119.2-008dX25
32 16C03040Locking wheel
33 PinGB/T119.2-004X25
34 16C03040Locking wheel
35 16C03041Handle lever
36 HandleZ16-4A36
37 16C03035Screw
38 Pressureoil cupR71-110
39 16C03027Key
40 ScrewGB/T71-85M8X10
41 Pressure oil cupR71-110
42 ScrewGB/T70.1-00M10X20
43 16C03042Pressing block
44 16C03026Tailstock sleeve
45 16C03028Nut
46 ScrewGB/T71-85M10X16
47 16C03019Screw
48 16C03012Ieadscrew
49 Bearing8206K30X52X16
50 16C03018Fange
51 Bearing8206K30X52X16
52 ScrewGB/T70.1-00M12X25
53 16C03014Outer ring
54 16C03013Inner ring
55 16C03017Handwheel
56 16C03016Handle core
57 16C03015Handle
58 Round nutGB/T812-88M20X1.5
59 KeyGB/T1096-796X16
60 KeyGB/T1096-798X20
61 Pressure oil cupR71-110

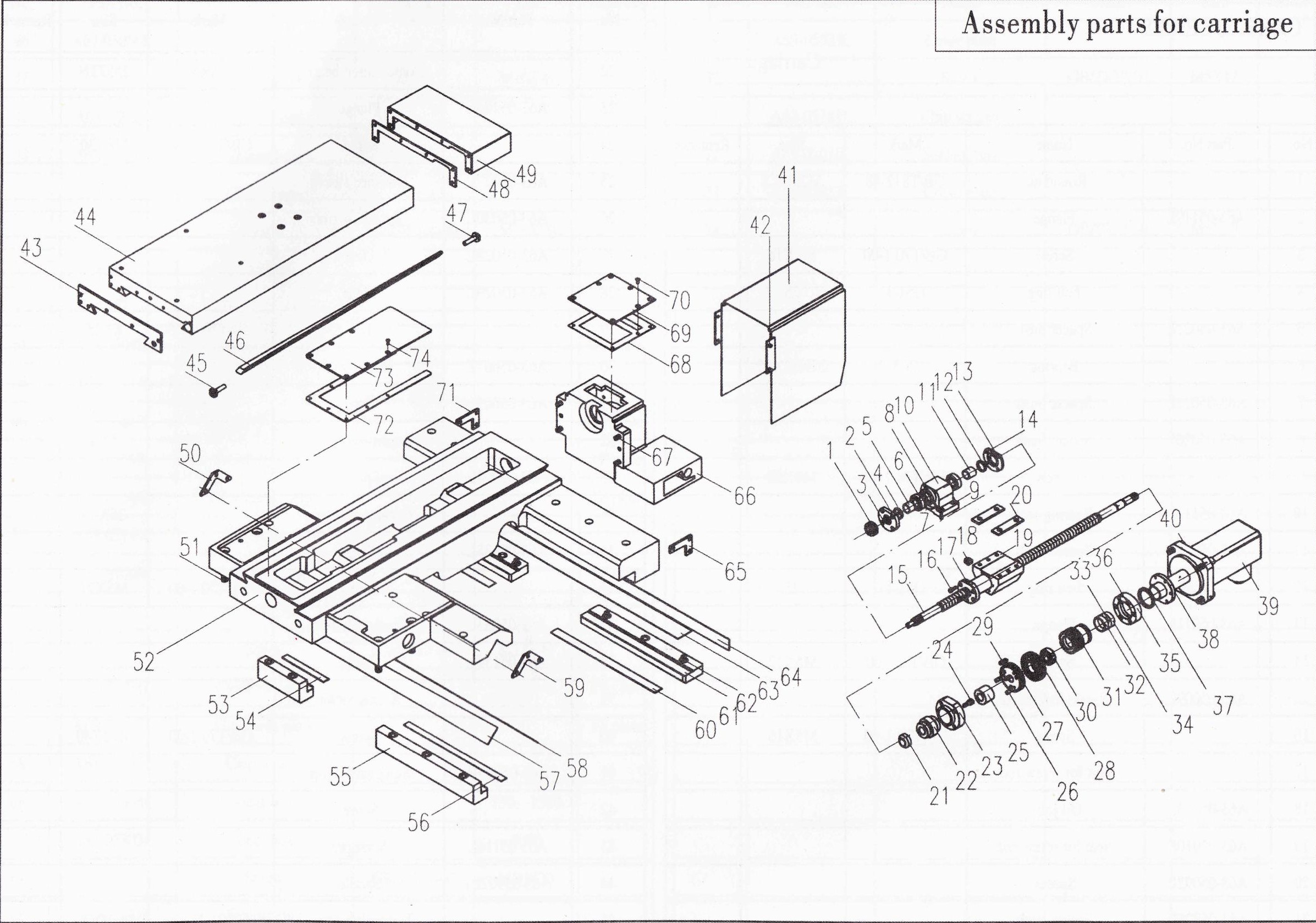

Carriage
No.Part No.NameMarkSizeRemarks
1 Round nutGB/T812-88M20X1.5
2 A63-05119LFlange
3 ScrewGB/T70.1-00M6X16
4 Felt ringG51-125
5 A63-05021LSpacerbush
6 Bearing205 25X52X15
7 A63-05022LSpacer bush
8 A63-05020LSpacer bush
9 ScrewGB/T70.1-00M8X20
10 A63-05112LBearing seat
11 A63-05023LSpacer bush
12 Felt ringG51-125
13 A63-05011LFlange
14 ScrewGB/T822-00M5X12
15 A63-05009LX-axis leadscrew
16 ScrewGB/T70.1-00M5X16
17 Nut for screw rod
18 A63-05093LOil joint
19 A63-05010LSeat for screw nut
20 A63-05092LSpacer
21 A63-05026LSpacer bush
22 Combination beatingZARN2557TN
23 A63-05106LFlange
24 ScrewGB/T70.1-00M8X30
25 A63-05027LDistance sleeve
26 A63-05030LRetaining pin
27 A63-05028LGear
28 A63-05029LGear
29 KeyGB/T1096-796X25
30 A63-05007ZRound nut
31 A63-05005LGear
32 Expansion sleeve35X40
33 A63-05004LSpacer
34 Expansion sleeve35X40
35 A63-05135LFlange
36 ScrewGB/T70.1-00M5X25
37 A63-05033LSemicircle ring
38 A63-05134LFlange
39 X-axis motor
40 ScrewGB/T70.1-00M12X40
41 A63-05005HSafeguard cover
42 Screw
43 A63-05116LScrapper
44 A63-05102L1Saddle
45 Tightening screwJ21-11M10X40
46 A63-05056L1Gib
47 Tightening screwJ21-11M10X40
48 A63-05025LSealing pad
49 A63-05104HSafeguard cover
50 A63-05140LChip scraper
51 ScrewGB/T70.1-00M16X70
52 16C05011Carriage
53 A63-05113LPressure plate
54 A63-05048LGuideway platTF plate
55 A63-05114LPressing plate
56 A63-05049LGuideway plateTF plate
57 A63-05050LGuideway platTF plate
58 A63-05044LGuideway platTF plate
59 A63-05143LChip scraper
60 A63-05046LGuideway plateTF plate
61 A63-05107LPressing plate
62 ScrewGB/T70.1-00M12X40
63 A63-05051LGuideway plateTF plate
64 A63-05045LGuideway plateTF plate
65 A63-05142LChip scraper
66 A63-05095IGear box750;1500
A63-05303LGear box3000
67 ScrewGB/T70.1-00M10X30
68 A63-05032LSealing ring
69 A63-05031LCover plate
70 ScrewGB/T822-00M5X12
71 A63-05141LChip scraper
72 A63-05018LSealing ring
73 A63-05017LCover plate
74 ScrewGB/T822-00M5X12

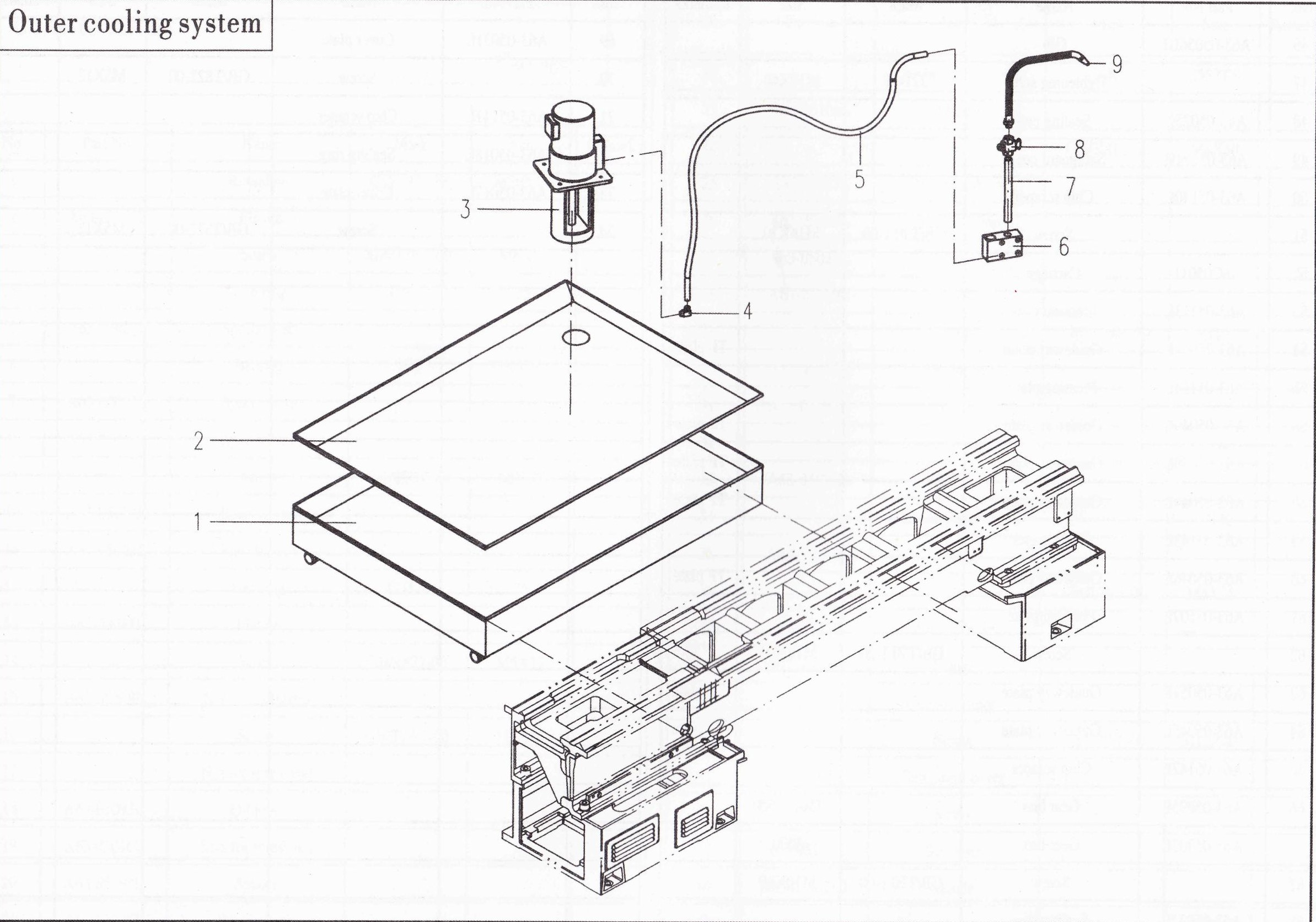

Cooling
No.Part No.NameMarkSizeRemarks
1 A63-14102HBody ofwater tank
2 A63-14101HCover ofwater tank
3 Three-phase pumpYSB-IⅡIncluding three-way pipe and plug
4 JointTogether with cooling pump
5 Oil hose
6 A63-14001LSeat
7 Threaded pipG11-1G1/2X300
8 CockL81-1G1/2
9 A63-14011HCoolant pipe

Resources & Downloads

SMTCL CAK Series Economic CNC Lathe Catalog

File size: 8.15 MB
Created: 29-06-2024
Updated: 29-06-2024
Hits: 198
Download Preview

CAK63 Series INSTRUCTION BOOK For Mechanical Unit

File size: 3.13 MB
Created: 29-09-2024
Updated: 29-09-2024
Hits: 27
Download Preview
Recommended Related Products
If needed, please contact us for further selection

Recommended Related Products

Load More
Need help finding a machine?
We will gladly assist you in making the right decision to achieve your business goals
Get a free Consultation
