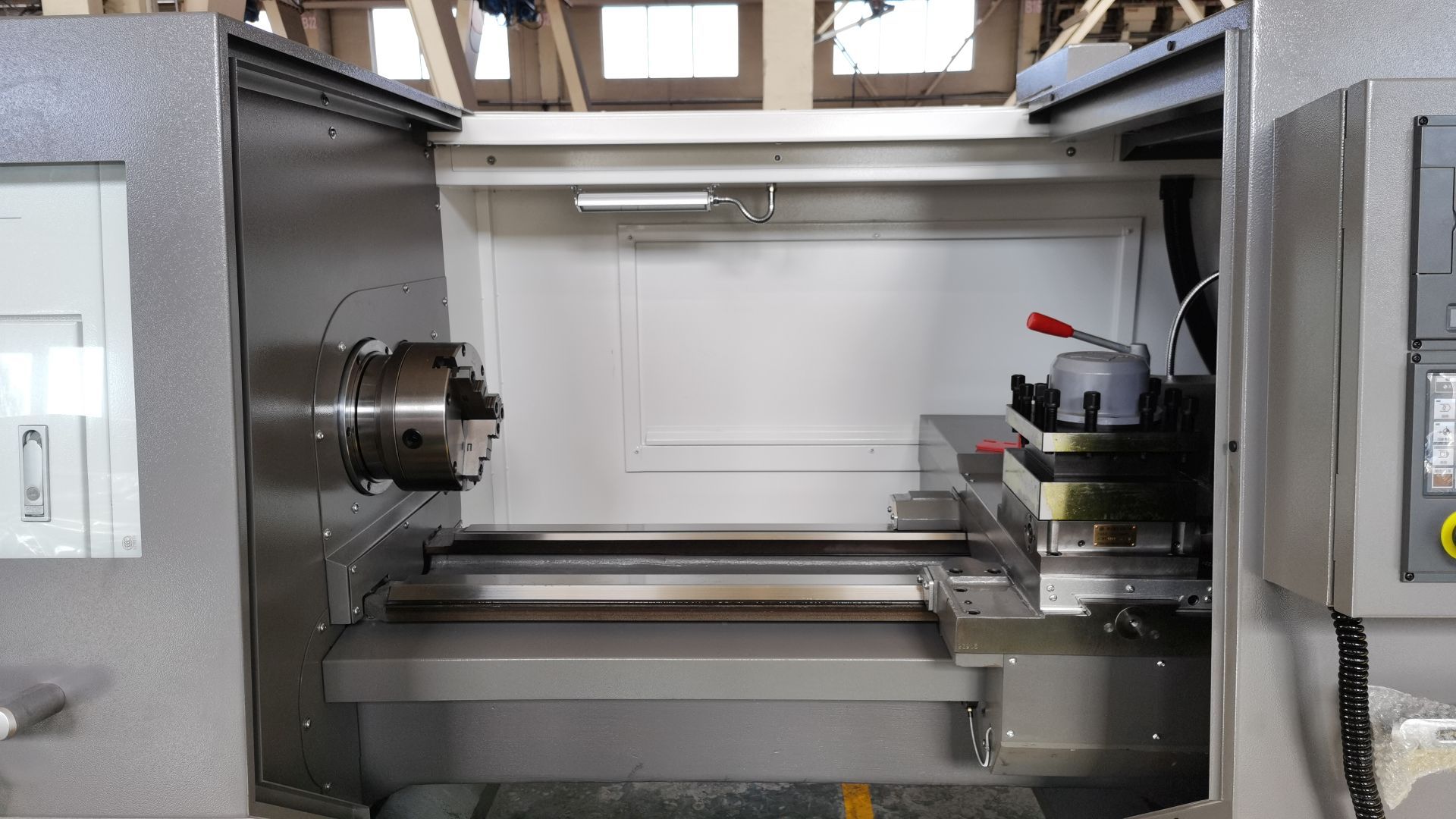

CAK80 Series Parts

, , ,

PRODUCT FEATURES
The machine is mainly used for turning various shaft-type workpieces and disc workpieces, cutting all kinds of threads, arcs,cones and internal and external curvic surfaces of gyro-rotors, and it can meet the need of speed while cutting ferrous and non-ferrous metals at high speed.

Therefore, the machine is suitable for of gyro-rotor workpieces in high-efficiency, large-batch and high-accuracy machining in the fields of automobile, motorcycle, electronic, aerospace, war industry, etc.

The workpieces produced on the machine can be up to the working accuracy of Grade IT6~IT7 and Cp can be up to 1.6.

Accuracy of the machine is in accordance with Standard JB/T8324.1-1996《Testing of the Accuracy for Horizontal NC Turning Machines》.
Request a Quote
Please enable JavaScript in your browser to complete this form.
Name
Please contact me by
Consultation details
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Contact

Wide Product Portfolio

We supply a diverse range of conventional and CNC metalworking machines loaded with features

Watch It

Professional Consultation

Trusted consultation and in house demonstrations to provide the best solutions for your business needs

Get Support

Outstanding Service

Full time, skilled service team employees available for start-up, maintenance and repair of your SMTCL machine

Details

Contact us

Please enable JavaScript in your browser to complete this form.
Name
Please contact me by
Consultation details
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Have any Questions?

Check our frequently asled question hope you get answer.

If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Check out our FAQ page for answers to common questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Check out our FAQ page for answers to common questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Check out our FAQ section for more information on how we can help
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Check out our FAQ page for answers to common questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

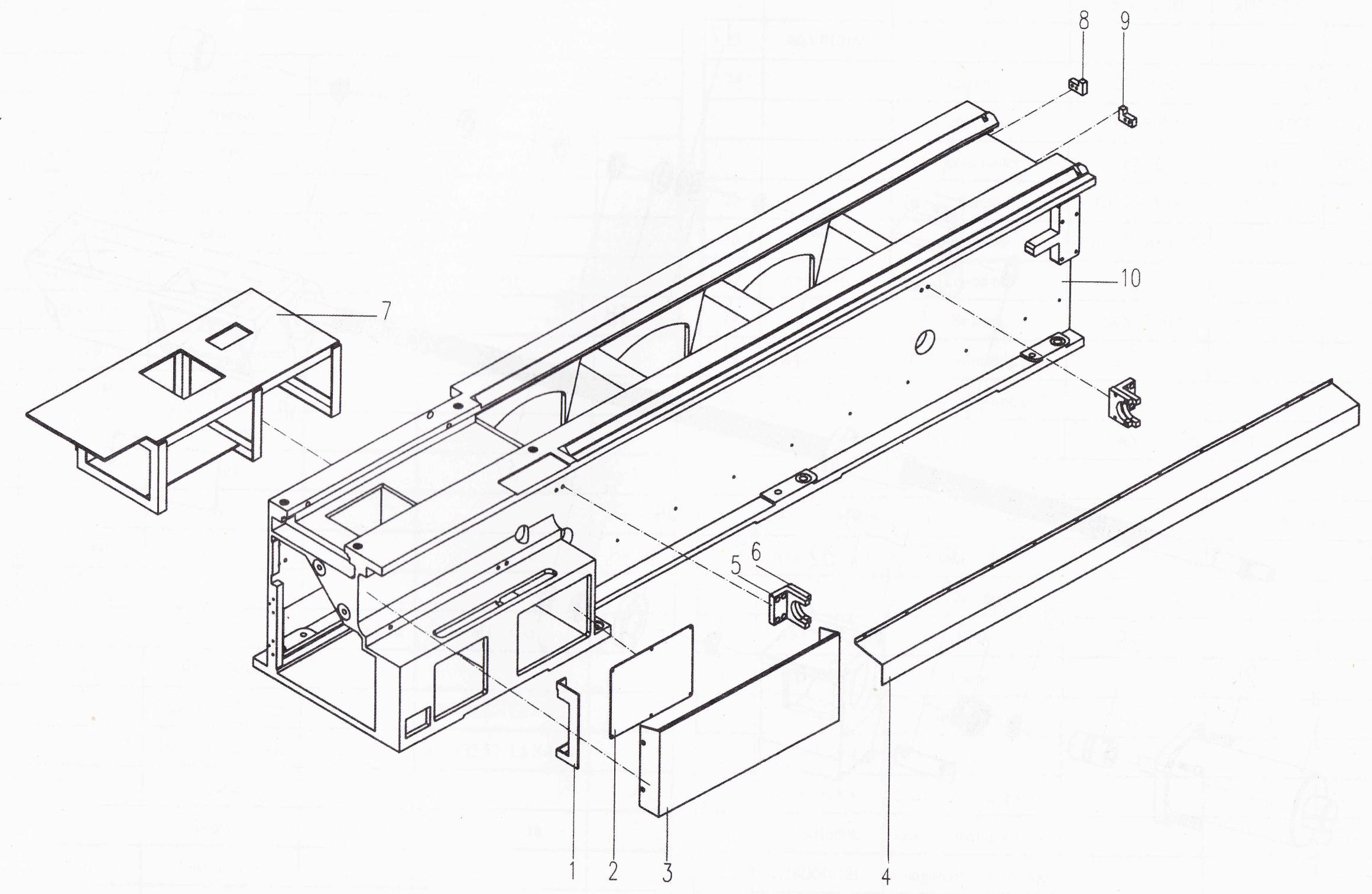

Bed
No.Part No.NameTypeSpecificationRemarks
1 A18-01305LBracket
2 A18-01301LPlate
3 A18-01223LCover
4 A18-01222L2Protection cover
5 A18D01312LBracket
6 A18D01311LPad
7 A18-01302HBracket for cabinet
8 A18-01011LStop plate
9 A18-01010LStop plate
10 A18-01158LBedFor 1.5m
11 A18-01368LBedFor 3m
12 A18D01601LBedFor 5m
13 A63-01109LCover
12 ScrewGB/T70.1-00M12×35
13 A63-0111ILRear bracket
16 Dish-shaped springQ81-463×32.5×1.8×4.15
17 Dish-shaped springQ81-563×32.5×1.8×4.16
18 A63-01014LSpacer
19 Bearing51206 30×52×16
20 A63-01013LSliding bush
21 A63-01015LBear bush
22 NutGB/T812-00M30×1.5
23 A63-01016LPlug

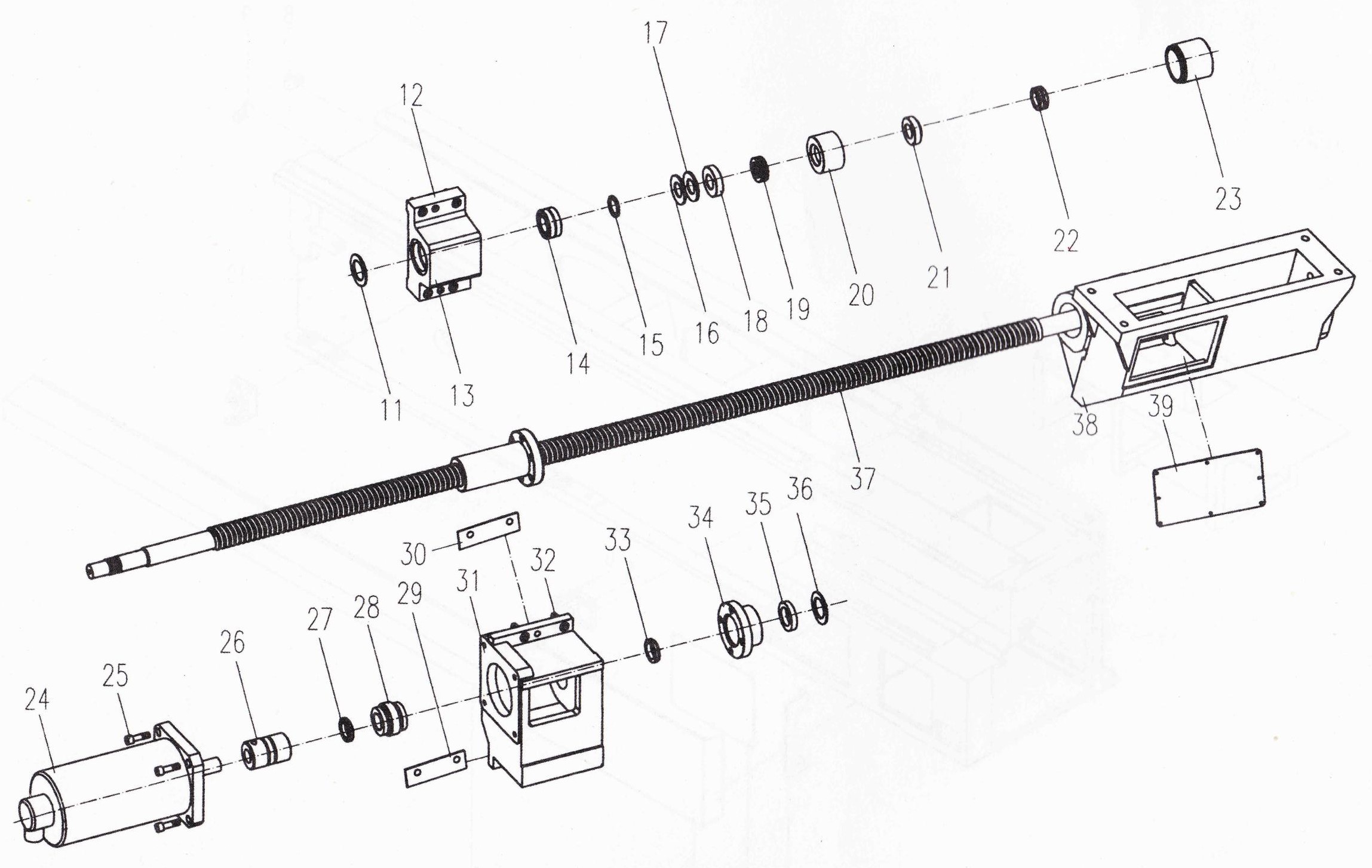

24 Servo motorβ22/2000iSFANUC 0i-mate
Servo motorHF353SSMTCL-NC100
Servo motor1FK7101-5AF71-1EG0SIEMENS
25 ScrewGB/T70.1-00M12×35
26 CouplingEK2/150/A/30/35
27 A63-01761HRound nut
28 BearingZARN3570TN35×70×54
29 A63-01764LUpperadjusting pad
30 A63-01765LLower adjustingpad
31 A63-01761LFeed box bodyFANUC 0i-mate/SMTCL-NC1001.5m
A18-01311LFeed box bodyFor 3m
A63C01001LFeed box bodySIEMENS/1.5m
A18D01601L1Feed box bodyFor 5m
32 ScrewGB/T70.1-00M12×35
33 A63-01007LBush
34 A63-01108LFlange
35 Sealing ringG51-440×62
36 A63-01109LCover
37 A63-01150LLongitudinal screw rodFor 1.5m
A18-01369LLongitudinal screw rodFor 3m
A18D01618LLongitudinal screw rodFor 5m
38 A63-0610ILApronbox
A63B06311L2Apron boxFor 3m
A18D05601LApron boxFor 3m
39 A63-06105LCover

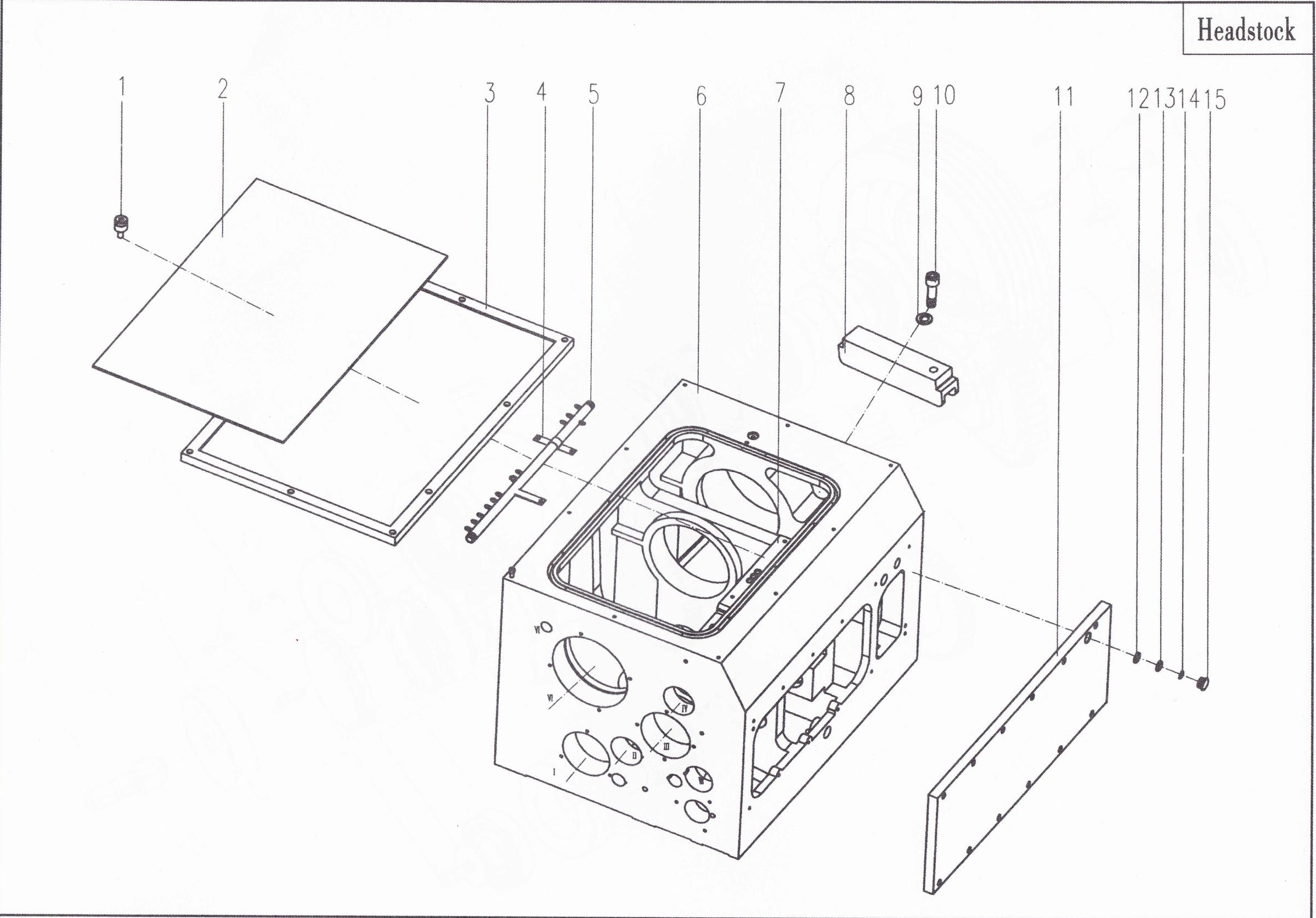

Headstock
No.Part No.NameTypeSpecificationRemarks
1 16C02Z01Deflationvalve
2 A18-02014LRubberpad
3 18B02031Cover for headstock
4 Double-face single pipe type pipe clipG31-223
5 A63-02101HOildistributor
6 A18-02201LCover for headstock
7 A63-02102HBracket
8 18B02015Compressed plate
9 Flat washerGB/T97.1-8520
10 Angle-head boltGB/T5782-00M20×70
11 A63-02185LFrontcover
12 O-type rubber sealing ringG51-940×3.1
13 O-type rubber sealing ringG51-1025×2.4
14 16C02166Oil leveler
15 16C02165Oil window
16 ScrewGB/T70.1-00M8×16
17 A63-02150LBelt pulley
18 A63-02149LSeat for belt pulley
19 A15-02008LNut
20 BearingE11155×90×18
21 A15-02012ISpacer
22 BearingE11155×90×18
23 A15-02013LSpacer
24 BearingE30840×90×23
25 ScrewGB/T70.1-00M8×25
26 A63-02151LBearing seat
27 A63-02152LFlange
28 A63-02153LThrower
29 ScrewGB/T70.1-00M6×20
30 A63-02154LGear

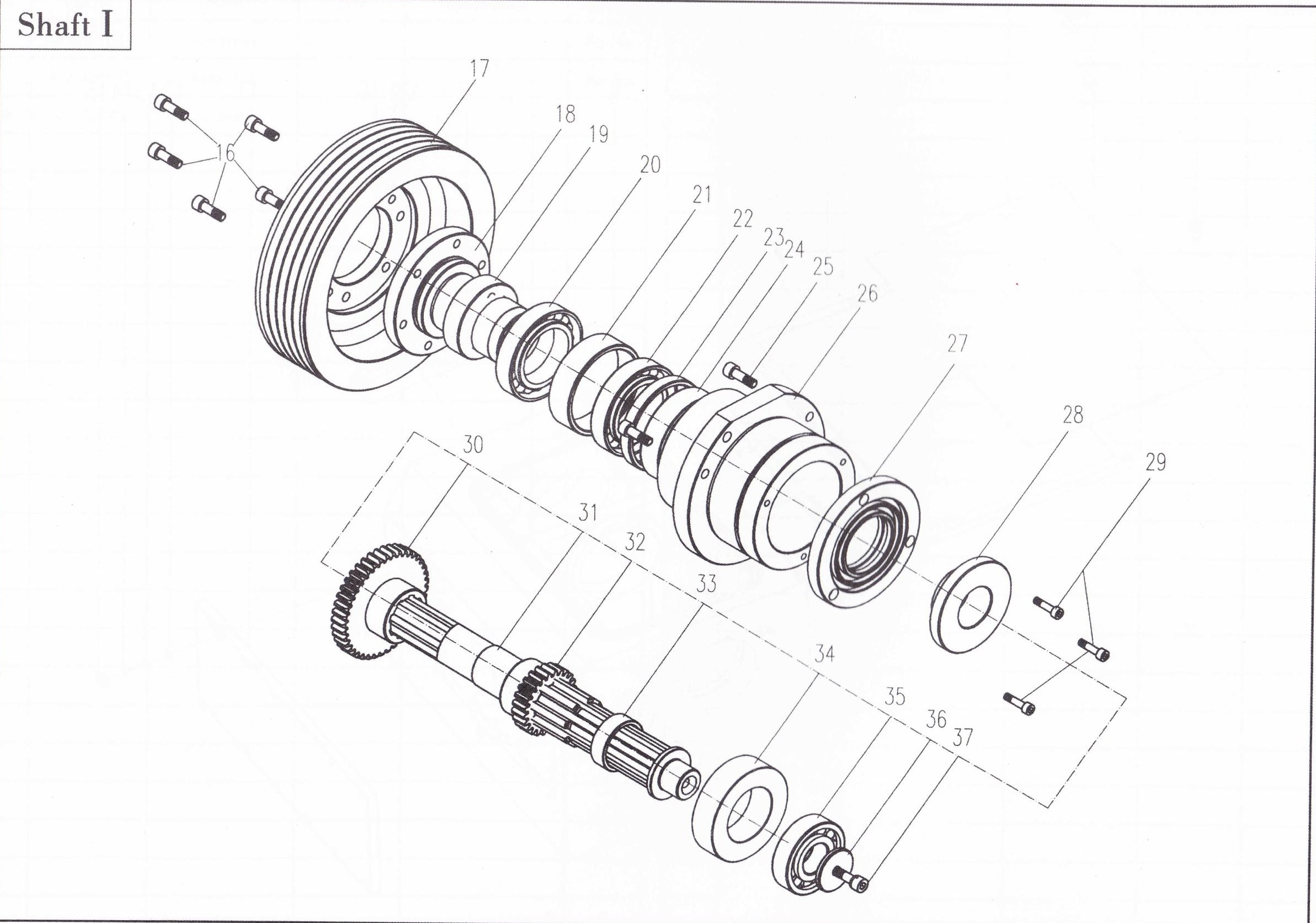

31 A63-02148LShaft I
32 A63-02155LGear
33 SpacerQ43-1HT150-42×50×16
34 A63-02165LBearing seat
35 BearingE30630×72×19
36 A63-02166LShield ring
37 BoltGB/T5783-00M8×25
WasherGB/T93-878
38 ScrewGB/T77-00M16×35
NutGB/T6172.1-00M16
39 A63-02146LPlug
40 A63-02145LOilsealing plug
41 O-type rubber sealing ringG51-980×3.1 I-2
42 BearingE30735×80×21
43 A63-02168LGear
44 Common flat keyGB/T1096-7910X30
45 A63-02169LGear
46 BearingE20840×80×18
47 A63-02170L1Gear
48 SpacerQ43-1HT150-40×48×10

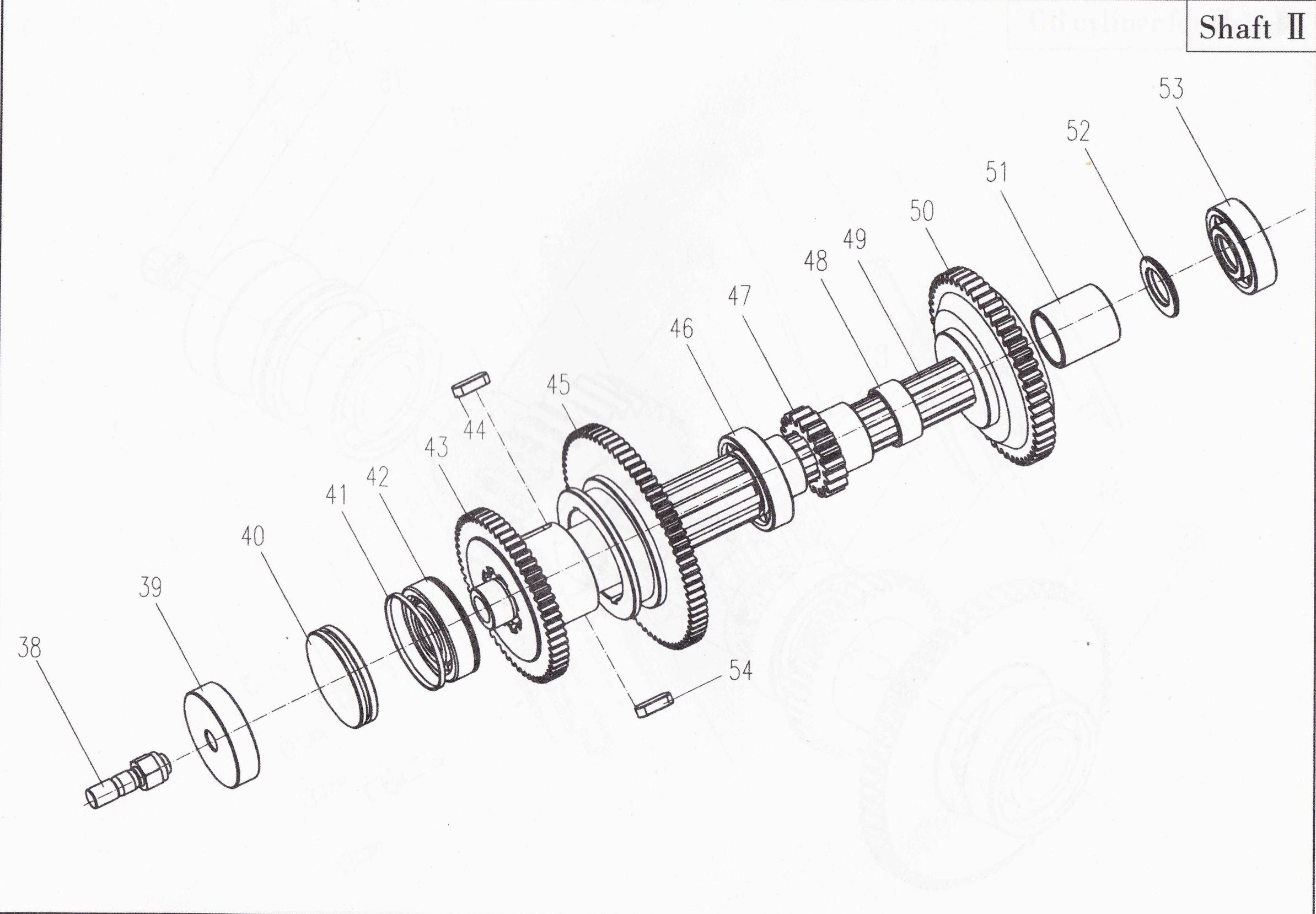

49 A63-02147LShaft Ⅱ
50 A63-02171LGear
51 SpacerQ43-1HT150-40×48×55
52 A63-02167LWasher
53 BearingE30630×72×19
54 Common keyGB/T1096-7910×30
55 ScrewGB/T70.1-00M8×30
56 NutGB/T6172.1-00M16
57 ScrewGB/T77-00M12X40

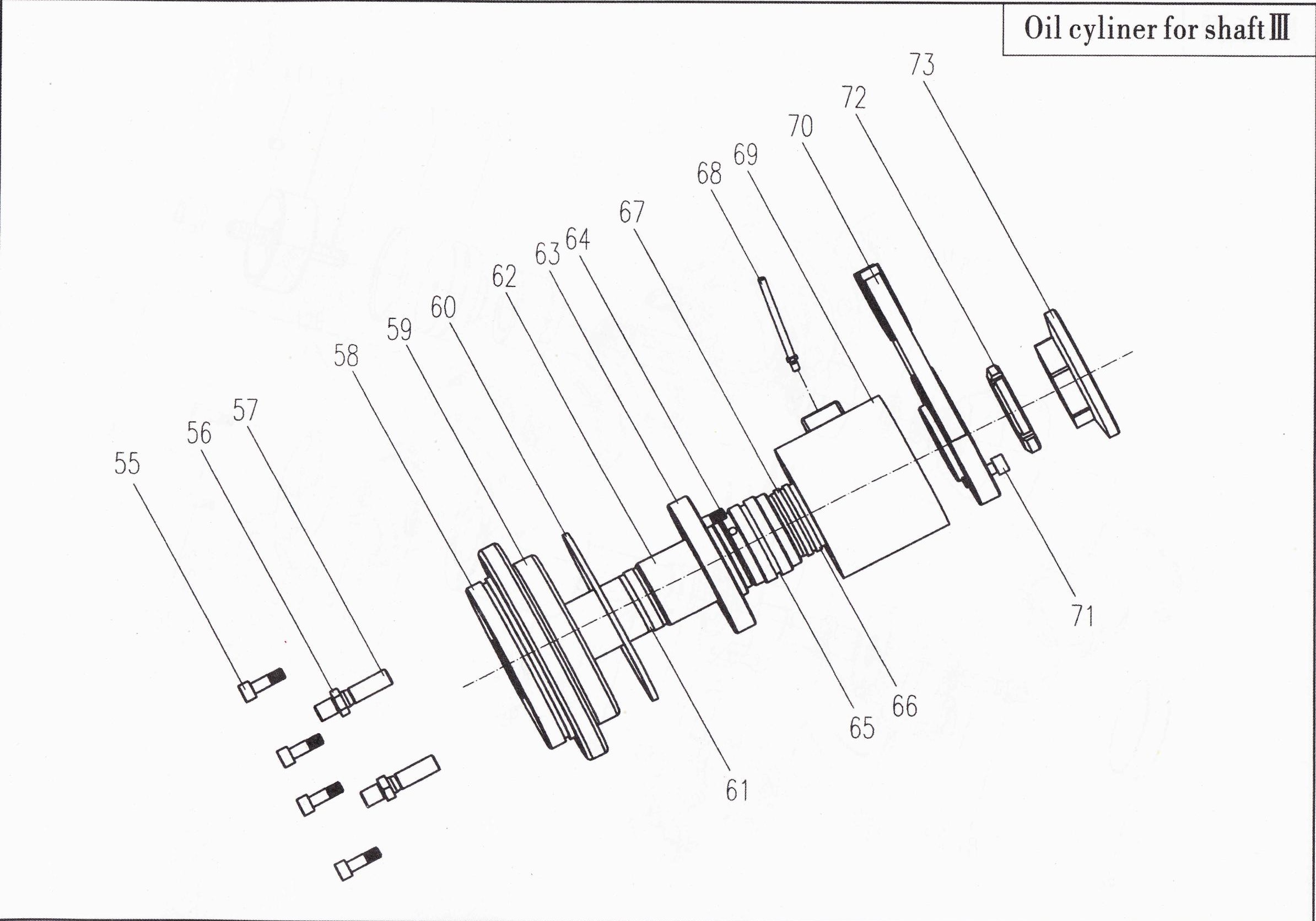

58 A63-02142LOil sealing ring
59 A18-02203LFlange
60 0-type rubber sealing ringG51-9130×3.1I-2
61 0-type rubber sealing ringG51-945×3.1I-2
62 A63-143L1Piston for shaft Ⅲ
63 A63-02183LFlange
64 ScrewGB/T70.1-00M8×25
65 Squire ring for holeGSF0600
66 Leading ringGST5856-d50
67 Leading ringGST5856-d50
68 A18-02205LSignal block
69 A63-02182LOil cylinder
70 A63-02181LDriving fork
71 ScrewGB/T70.1-00M8×25
72 Round nutJ14-6GM45×1.5
73 A63-02184LAdjusting seat
74 NutGB/T6172.1-00M16
75 A63-02189LScrew
76 A63-02028LPlug
77 A63-02085LPlug
78 BearingE4630945×100×25

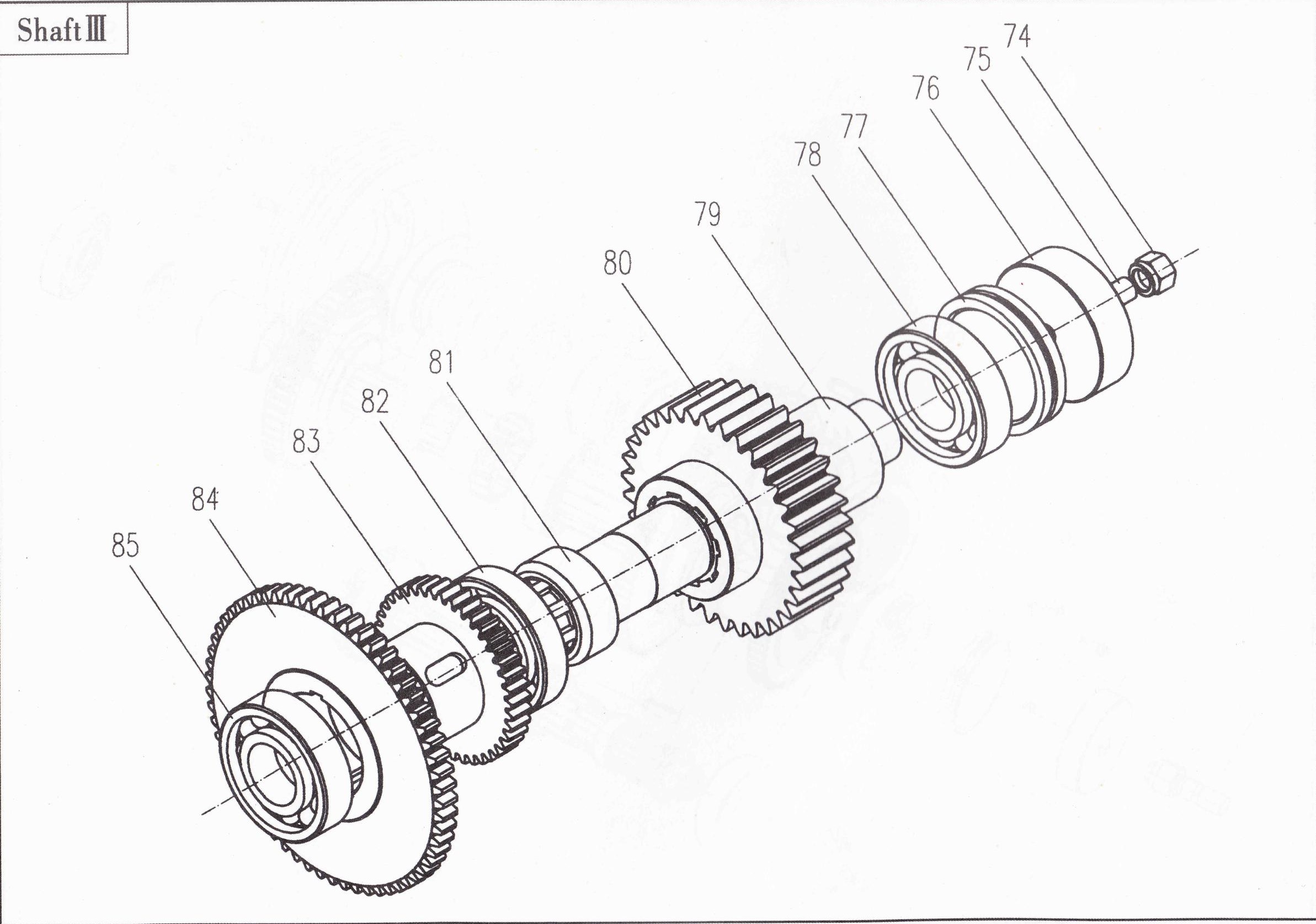

79 A63-02174LShaft Ⅲ
80 A18-02207LGear
81 A63-02176LSpacer
82 BearingE4621155×100×21
83 A63-02173LGear
84 A63-02172L1Gear
85 BearingE4630945×100X25
86 PlugQ56-1B-80K6
87 NutGB/T6172.1-00M12
88 ScrewGB/T77-00M12×35
89 Combined sealing ringG52-212
90 A63-02156IOilcylinder
91 Leading ringGST5854-d25
92 Stage ring for shaftGSJ0250
93 Stage ring for shaftGSJ0250
94 ScrewGB/T70.1-00M8×25
95 A18-02206LSignal block
96 A63-02158LShifting fork
97 Square-head ring for holeGSF0480
98 A63-02157LPiston
99 A63-02159LOil cylinder
100 Leading ringGST5856-d38
101 Stage ring for shaftGSJ0380
102 A63-02160LFlange
103 ScrewGB/T70.1-00M8×25
104 A63-02161LOil cylinder
105 Leading ringGST5856-d38
106 Ladder ring for shaftGSJ0380
107 A63-02162LSeat

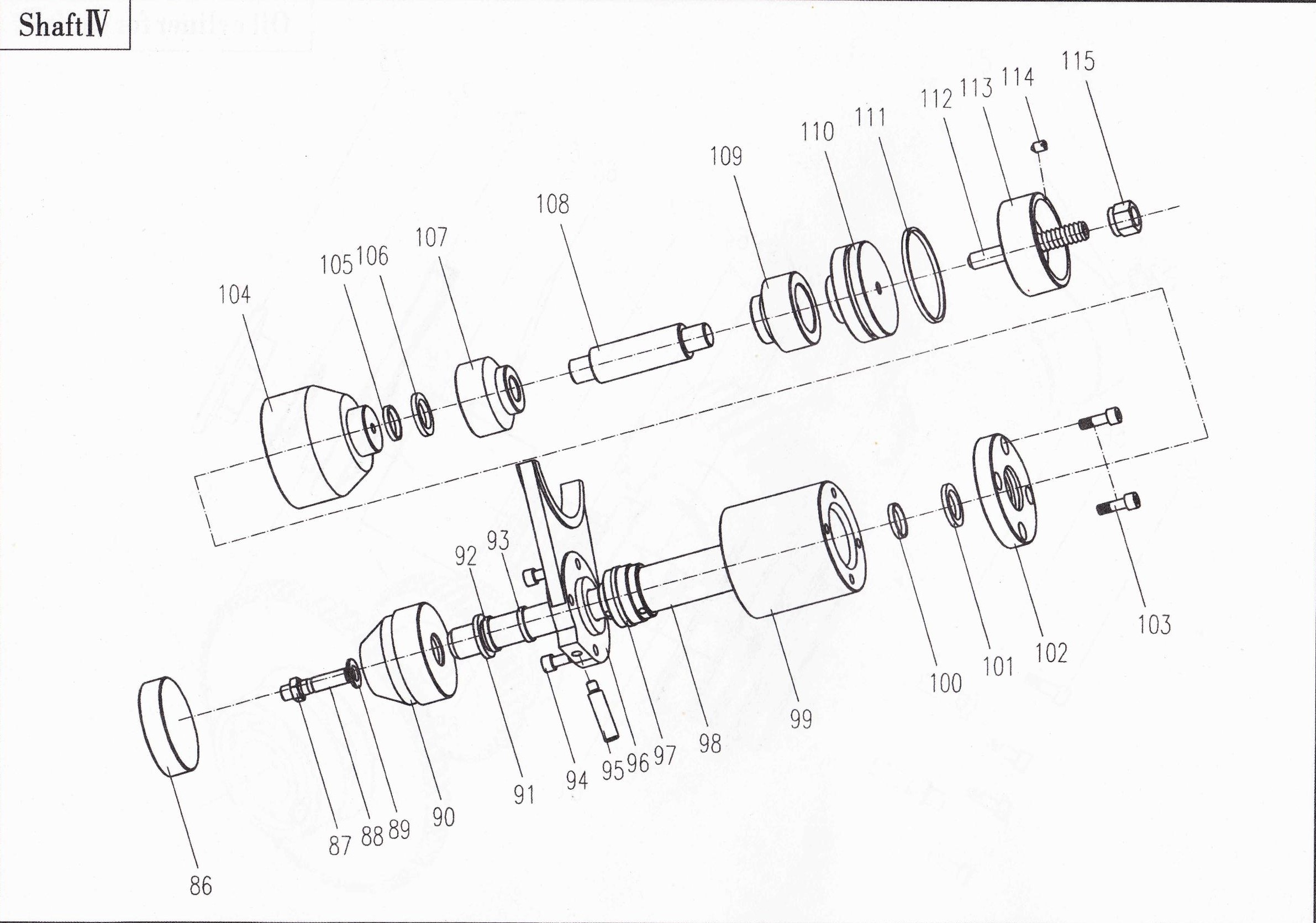

108 A63-02163LRod
109 A63-02162LSeat
110 A63-02164LPlug
111 0-type rubber sealingringG51-980×3.1 I-2
112 A63-02189LScrew
113 A63-02013LPlug
114 Tightening screwGB/T71-85M8×12
115 NutGB/T6172.1-00M16

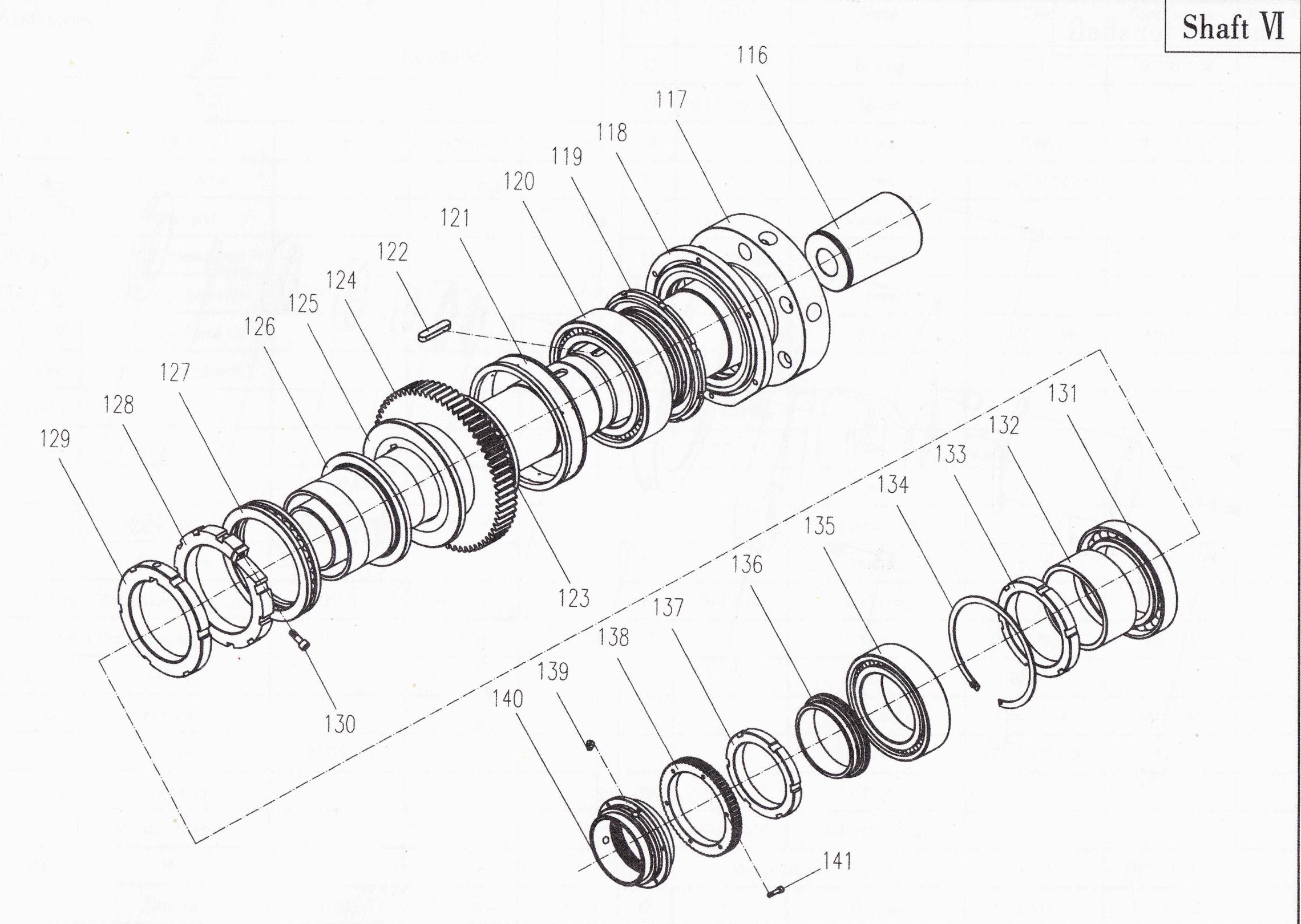

116 16C02090Center sleeve
117 16C02089Spindle
118 A63-02179LFront flange
119 A63-02178LNut
120 BearingC3182132160×240×60
121 16C02095Spacer
122 Flat keyGB/T1096-7916×70
123 BearingD8134170×215×34
124 A18-02208LBig helix gear
125 16C02092Pad
126 16C02091Bearingbush
127 BearingD8134170×215×34
128 16C02085Nut
129 16C02084Nut
130 ScrewGB/T70.1-00M10×30
131 BearingE128140×210×33
132 A63-02042ISpacer
133 Round nutJ4-6GM140×2
134 16C02077Elastic baffling ring
135 BearingD3182126130×200×52
136 16C02079Spacer
137 Round nutJ14-6GM125×2
138 A63-02080LTiming belt
139 ScrewGB/T79-00M12×16
140 A63-02079LConnectionpanel
141 ScrewGB/T70.1-00M6×25
142 ScrewGB/T818-00M5×12

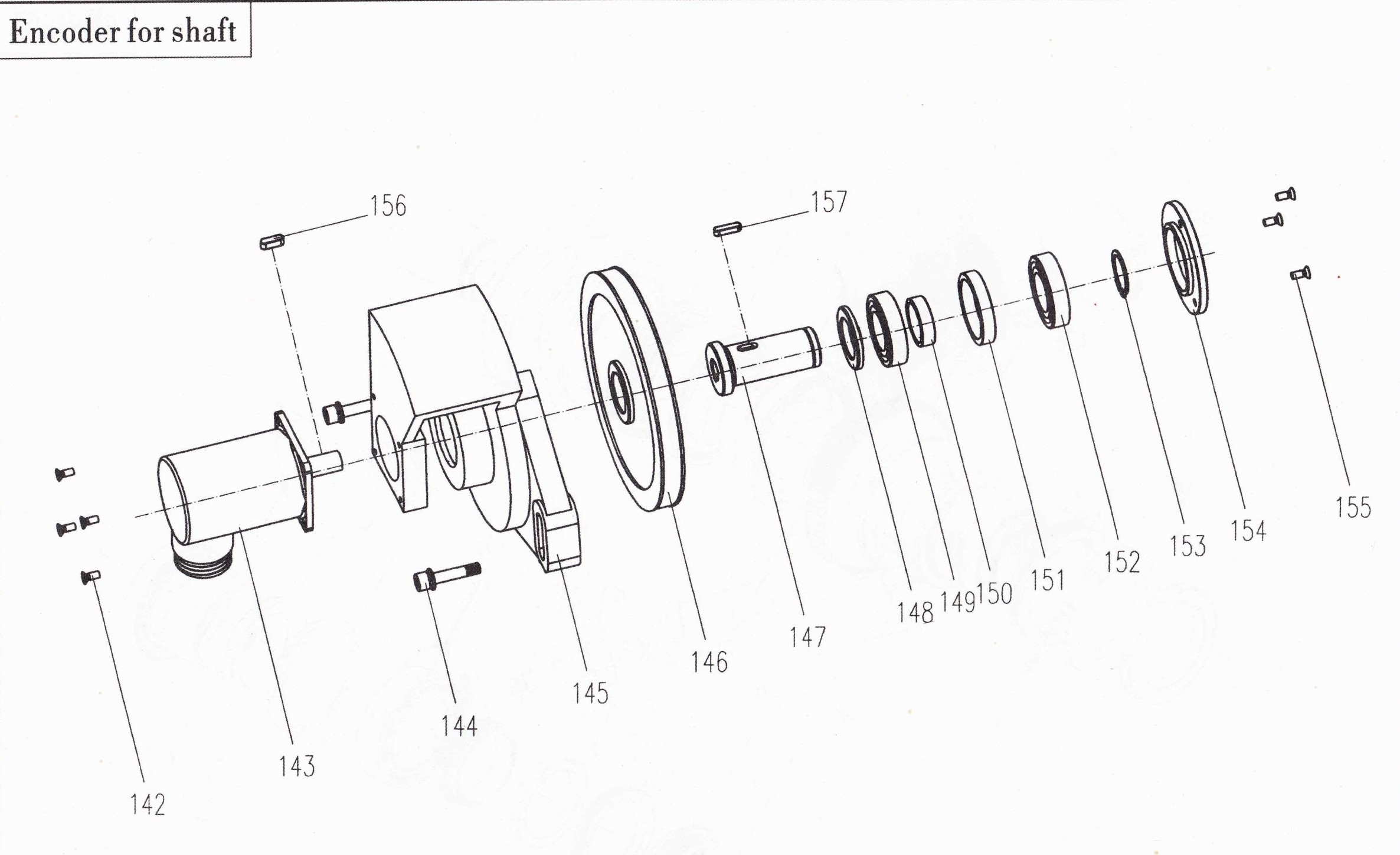

143 EncoderA86L-0027-0001102
144 ScrewGB/T70.1-00M8×40
145 A63-02191LSupport
146 A63-02074LTiming bel
147 A63-02075LSmall shaft
148 A63-02076LSpacer
149 Bearing106 30×55×13
150 SpacerQ43-130×37×10
151 SpacerQ43-145×55×10
152 Bearing106 30×55×13
153 ScrewGB/T894.1-8630
154 A63-02078LCompressed plate
155 ScrewGB/T819.1-00M5×12
156 Fat keyGB/T1096-796×18
157 Flat keyGB/T1096-795×20

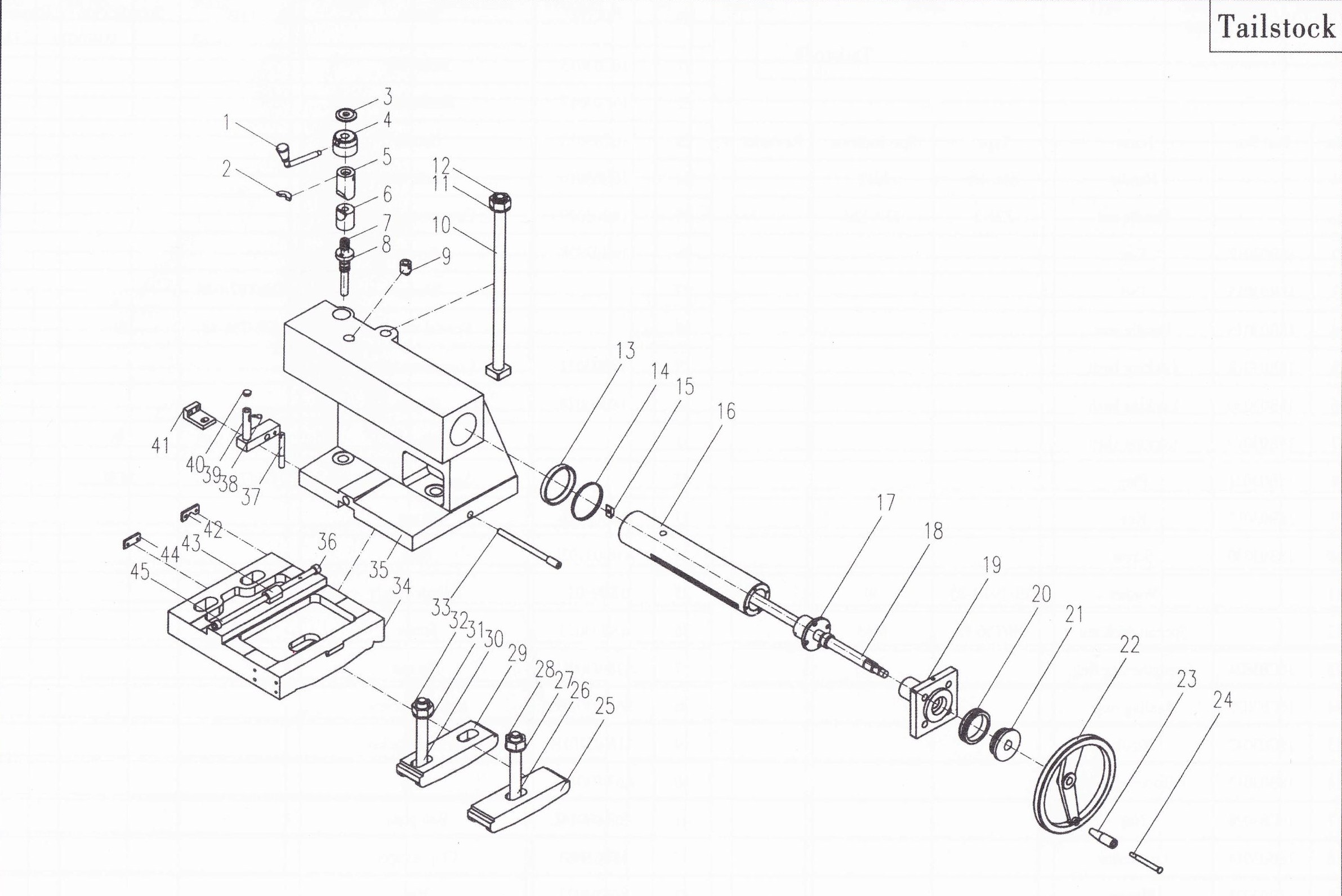

Tailstock
No.Part No.NameTypeSpecificationRemarks
1 HandleZ16-4AM12
Handle rodZ21-212×120
2 18B03017Key
3 18B03015Pad
4 18B03016Handle seat
5 18B03018Locking bush
6 18B03020Locking bush
7 18B03019Locking shaft
8 18B03021Plug
9 18B03012Key
10 18B03030Screw
11 WasherGB/T97.1-8530
12 Special thick nutGB/T56-88M30
13 16C03024Strengthening ring
14 16C03025Sealing ring
15 16C03042Block
16 18B03013Tailstock spindle
17 16C03028Nut
18 18B03014Leadscrew
19 18B03025Flange
20 16C03014Outer ring
21 16C03013Inner ring
22 16C03017Handwheel
23 16C03015Handle
24 16C03016Handle core
25 18B03029Compressed plate
26 18B03028Screw
27 WasherGB/T97.1-8530
28 Special thick nutGB/T56-88M30
29 18B03031Compressed plate
30 18B03028Screw
31 WasherGB/T97.1-8530
32 Special thick nutGB/T56-88M30
33 18B03026Screw
34 A18-03102LBase
35 18B03011Tailstock body
36 18B03023Screw
37 A18-0300ILPin rod
38 A63-03012LKnurling screw
39 A18-03101HWelded bracket
40 A63-03013LPlug
41 A63-03014LBelt plate
42 18B03H01Chip scraper
43 16C03023Nut
44 18B03H02Chip scraper
45 18B03022Screw

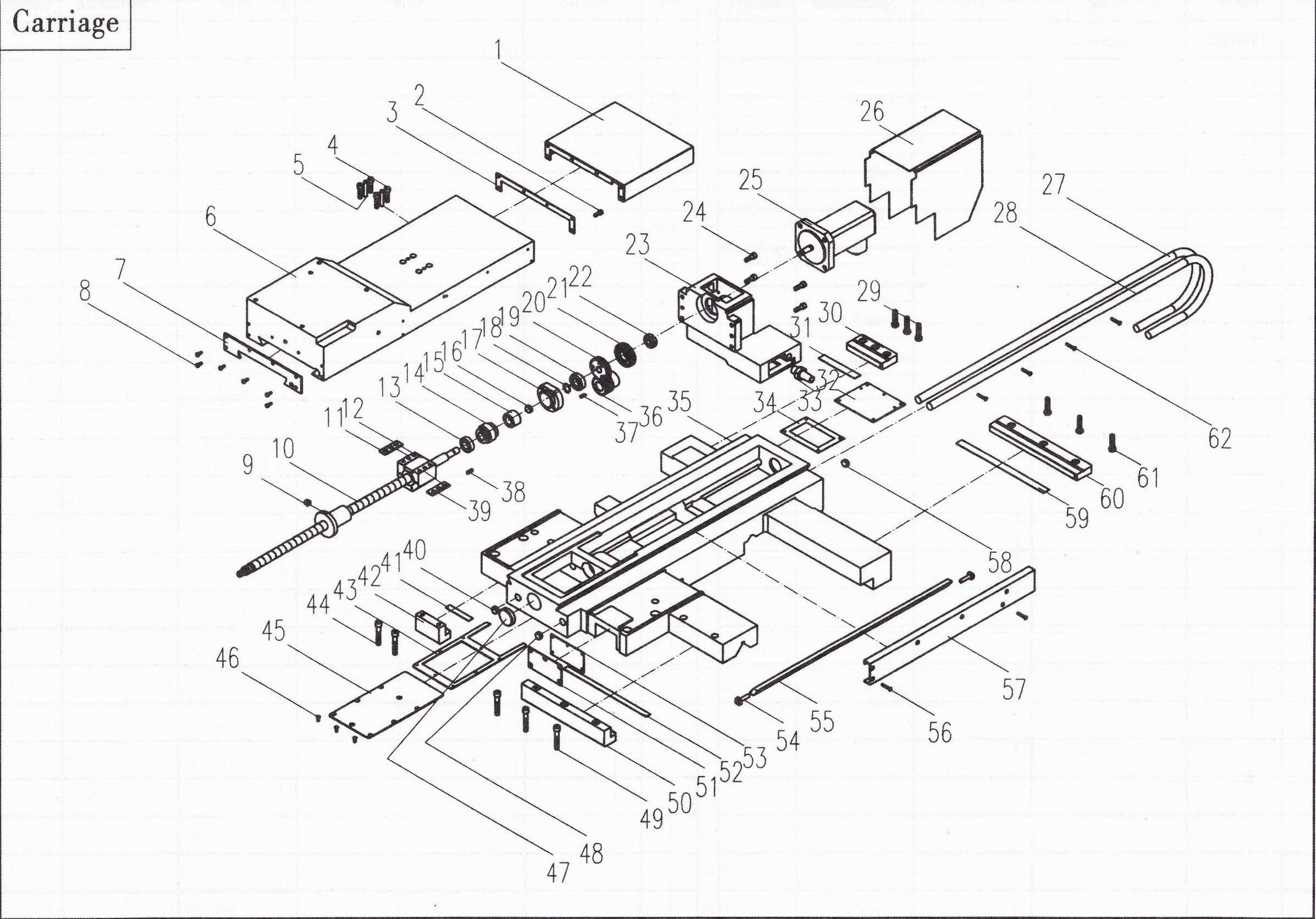

Saddle
No.Part No.NameTypeSpecificationRemarks
1 A18-05012HProtection cover
2 ScrewGB/T70.1-00M8×20
3 A18-05111LSealing pad
4 ScrewGB/T70.1-00M10×40
5 Cone pinGB/T118-00M10×55
6 A18-05102L1Slide
7 A18-05119LChip scraper
8 BoltGB/T5783-00M6×16-Zn。D
9 A63-05093LOil pipe union
10 A18-05010LLeadscrew forX-axis
11 A18-05026LAdjusting pad
12 A18-05009LNut body
13 A18-05012LSpacer
14 Combined bearingZARN2557TN
15 A18-05013LSpacer
16 PlugQ56-122n6
17 A18-05015LFlange
18 Baffling ring for shaftGB/T894.1-8625
19 Bearing205 25×52×15
20 A63-05028LGear
21 A63-05029LGear
22 A63-05007ZRound nut
23 A18D05051LGear box
A18C05301LGear boxSIEMENS
24 ScrewGB/T70.1-00M10×30
25 Motorβ12/2000is(Plane shaft)
26 A18-05003HProtection cover
27 Assembly of rubber pipeG74-119
28 Assemblyof rubber pipeG74-220
29 BoltGB/T5782-00M12×50
30 A63-05108LCompressed plate
31 A63-05047LGuideway plate
32 A63-05031LCover
33 Pipe jointG72-116
34 A63-05032LSealing pad
35 A18-05101LSaddle
36 A63-05005LGearFANUC 0i-mate
A63-05103LGearSMTCL-NC100
A18C05302LGearSIEMENS
37 A63-05030LBumper pin
38 Flat pinGB/T1096-796×25
39 A18-05026LAdjusting pad
40 PlugQ56-122n6
41 A18-05017LGuideway plate
42 A18-05116LPressure plate
43 A18-05008LRubber pad
44 ScrewGB/T70.1-00M12×70
45 A18-05107LCover plate
46 ScrewGB/T819.1-00M6×16
47 PlugQ56-1B-55K6
48 PlugQ56-122n6
49 ScrewGB/T70.1-00M12×70
50 A63-05114LCompressed plate
51 A18-05105LCover plate
52 A63-05049IGuideway plate
53 A18-05006LSealing ring
54 Gib screwJ21-11M10×40
55 A18-05027L1Gib
56 ScrewGB/T819.1-00M6×35
57 A18-05054IProtection cover
58 PlugQ56-122n6
59 A63-05046LGuideway plate
60 A63-05107LCompressed plate
61 BoltGB/T5782-00M12×50
62 ScrewGB/T819.1-00M6×35

Resources & Downloads

SMTCL CAK Series Economic CNC Lathe Catalog

File size: 8.15 MB
Created: 29-06-2024
Updated: 29-06-2024
Hits: 199
Download Preview

CAK80 Series INSTRUCTION BOOK For Mechanical Unit

File size: 2.62 MB
Created: 29-09-2024
Updated: 29-09-2024
Hits: 29
Download Preview
Recommended Related Products
If needed, please contact us for further selection

Recommended Related Products

Load More
Need help finding a machine?
We will gladly assist you in making the right decision to achieve your business goals
Get a free Consultation
