CW80/110 Series Wearing Parts

INSPECTION AND MAINTENANCE OF THE MACHINE

Maintenance of the machine is necessary day-to-day work that keeps to the machine under. Good working status prolong serving life and increasing production efficiency of the machine.


Routine Inspection

After the 500-hour operation, it is necessary to carry out the regular check and maintenance for the machine. In most cases, give priority to operators to carry out the process, and the inspector and maintainer cooperate. While checking, it is necessary to switch of the power supply.


Periodic Inspection

After a certain time of working of the machine, owing to there is wear between the parts touching each other, working performance of them can be gradually affected, it is necessary to check them regularly to guarantee the accuracy of the machine, in general case, operator of the machine should take charge of this job by coaching of inspector and maintainer.

Please enable JavaScript in your browser to complete this form.
Name
Please contact me by
Consultation details
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Contact

Wide Product Portfolio

We supply a diverse range of conventional and CNC metalworking machines loaded with features

Professional Consultation

Trusted consultation and in house demonstrations to provide the best solutions for your business needs

Outstanding Service

Full time, skilled service team employees available for start-up, maintenance and repair of your SMTCL machine

Contact us

Please enable JavaScript in your browser to complete this form.
Name
Please contact me by
Consultation details
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Have any Questions?

Check our frequently asled question hope you get answer.

If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Check out our FAQ page for answers to common questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Check out our FAQ page for answers to common questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Check out our FAQ section for more information on how we can help
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Check out our FAQ page for answers to common questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Part No.Fig. No. Part NameMaterialHeat TreatmentQty.Weight per piece(kg) Remarks

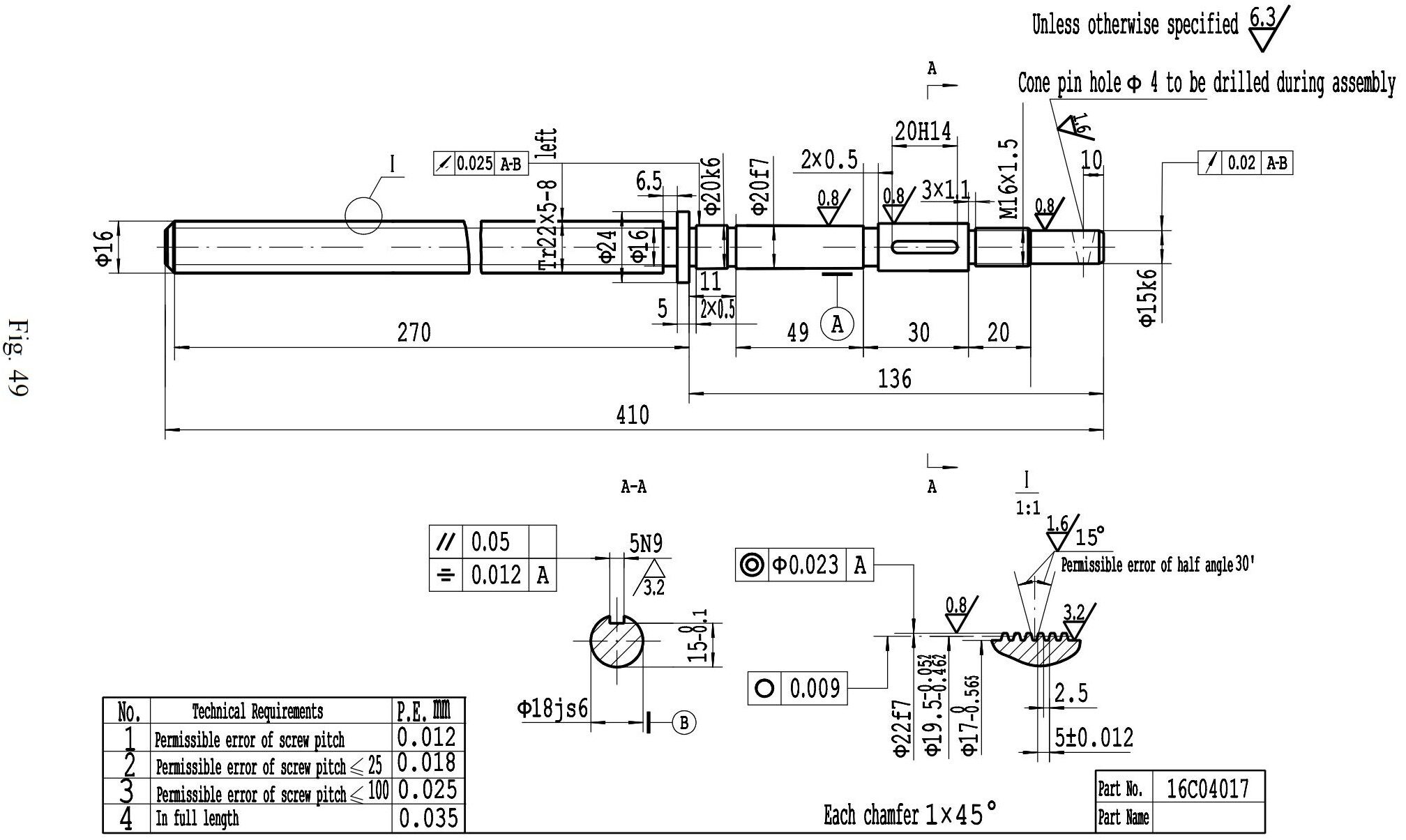

16C0401754LeadscrewY40Mn10.88For the machines with Metric system

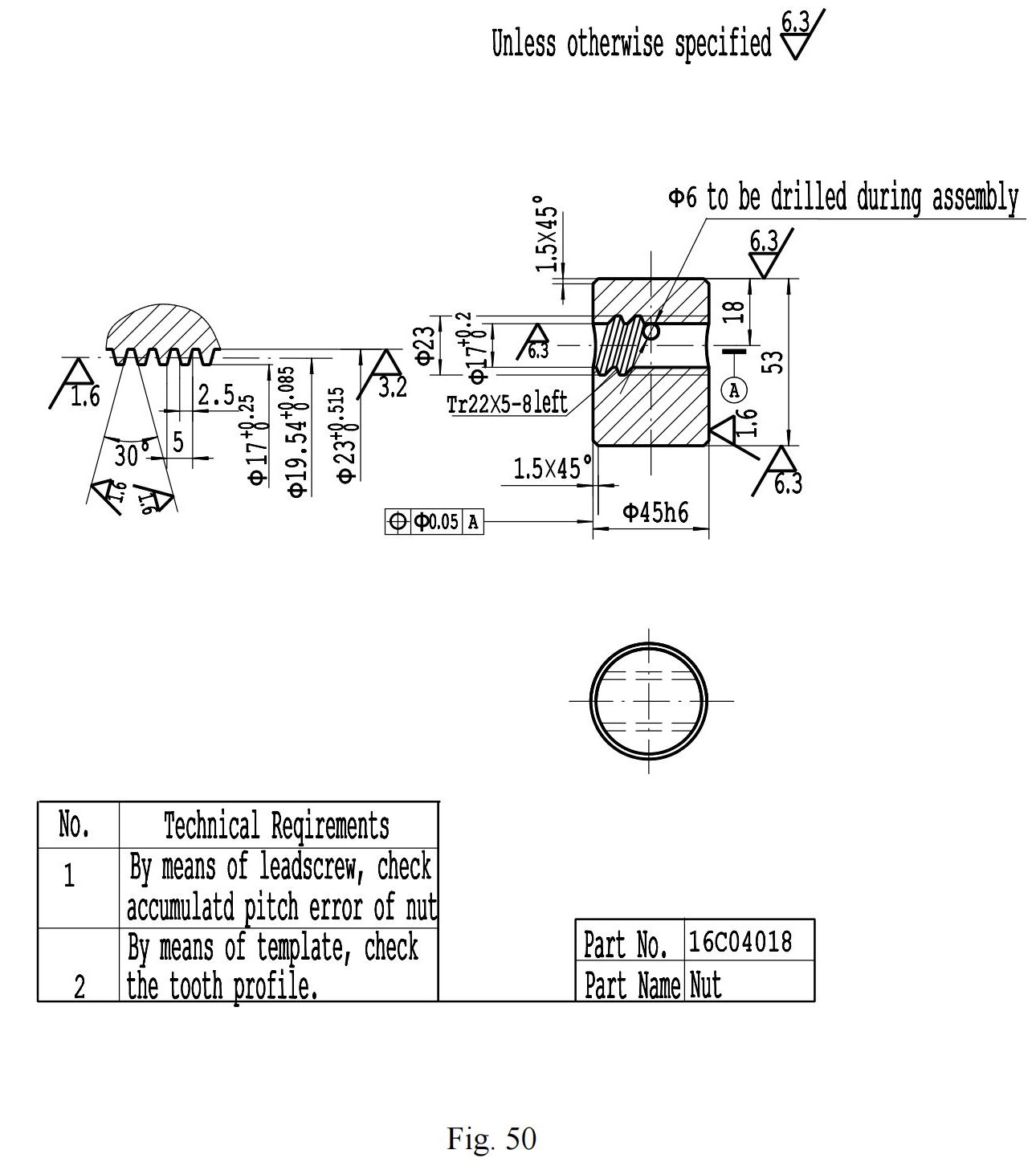

16C0401855Nut HT20010.5

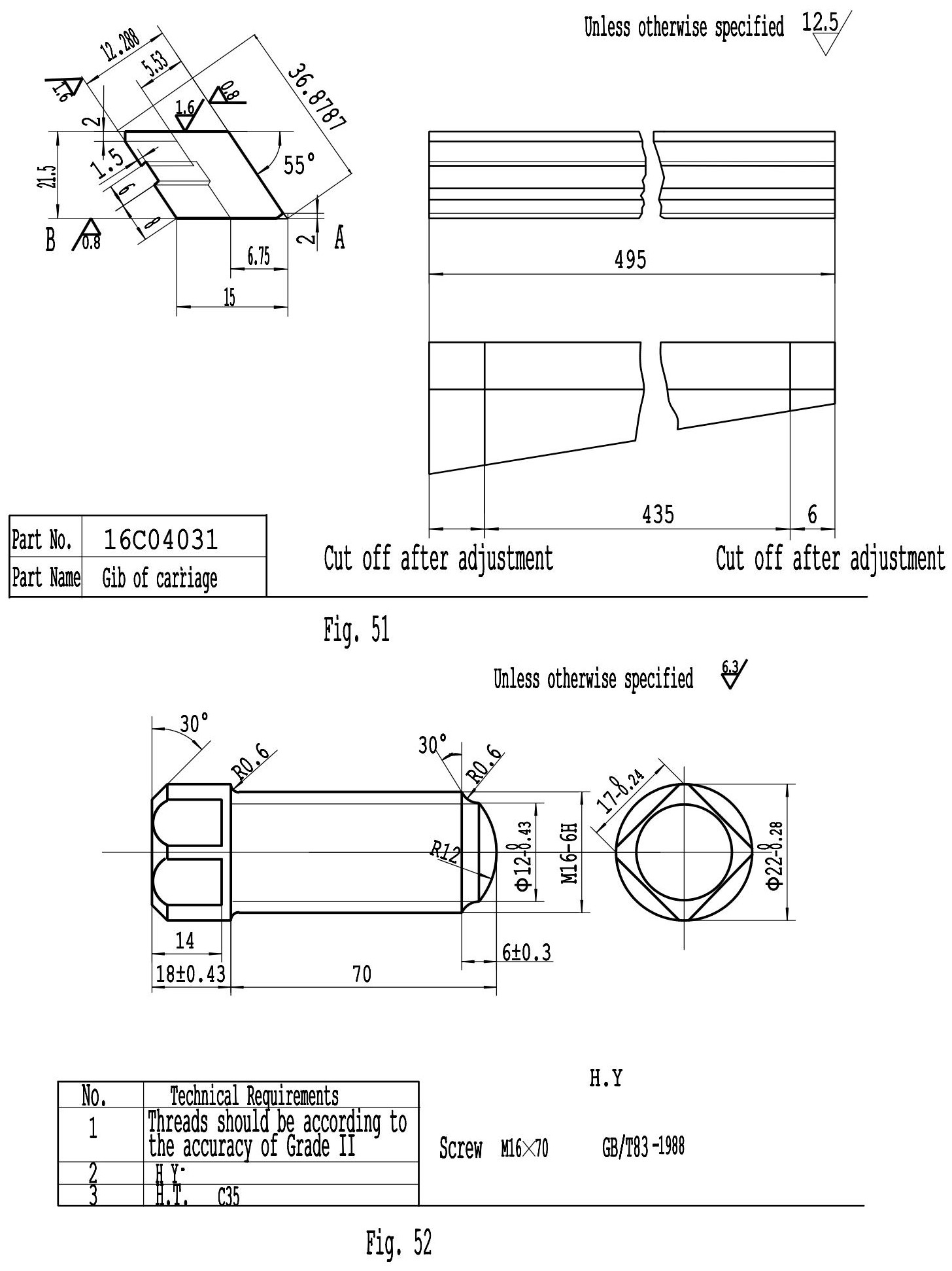

16C0403156Gib of carringe HT15010.8
M16×70
GB83-76
57Screw 45C35 HY12
16C0505058Leadscrew Y40MnD12.8For the machines with Metric system

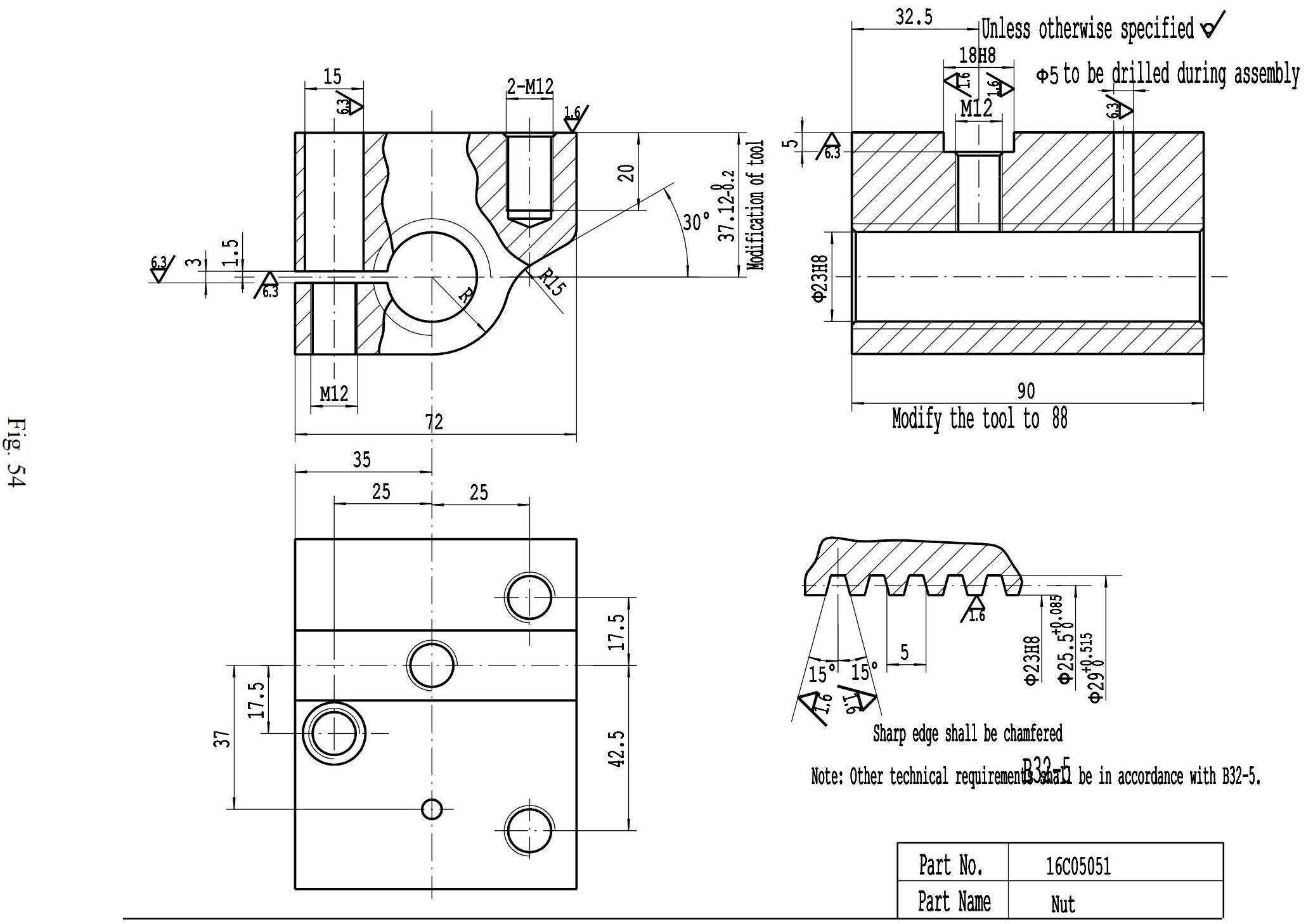

16C0505159Nut 12.25

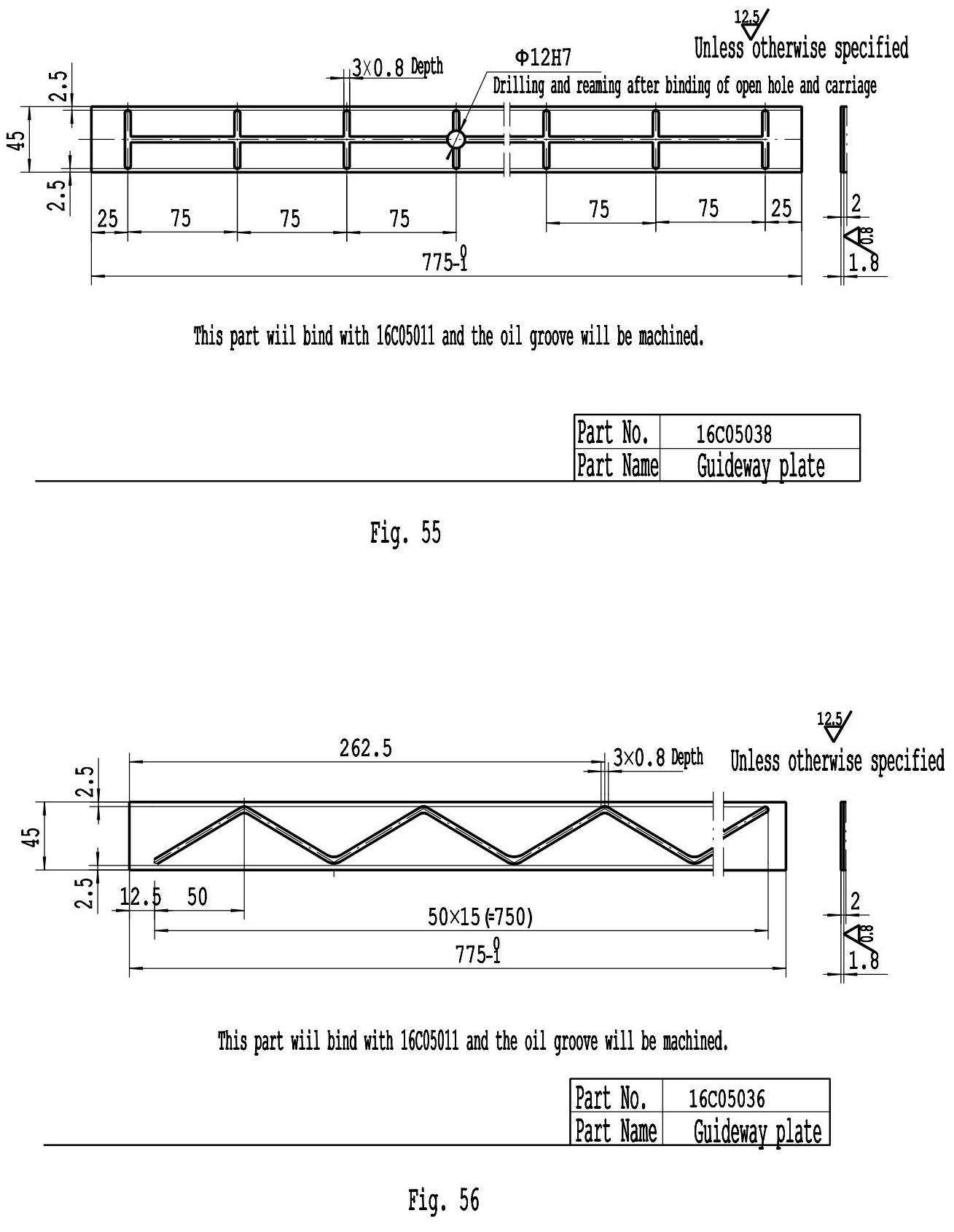

16C0503860Guideway plateTSF1
16C0503661Guideway plateTSF1

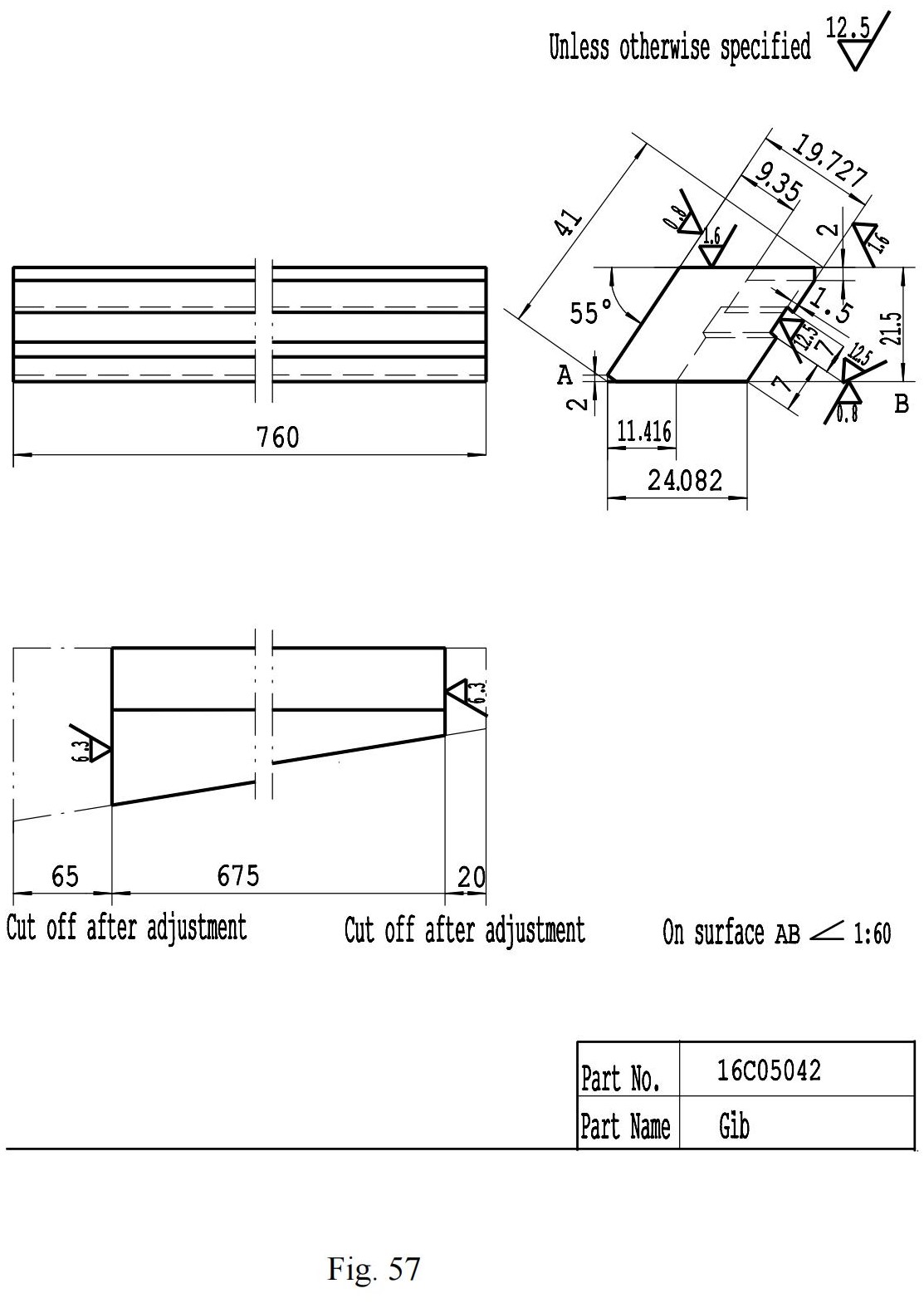

16C0504262Gib HT15011.6

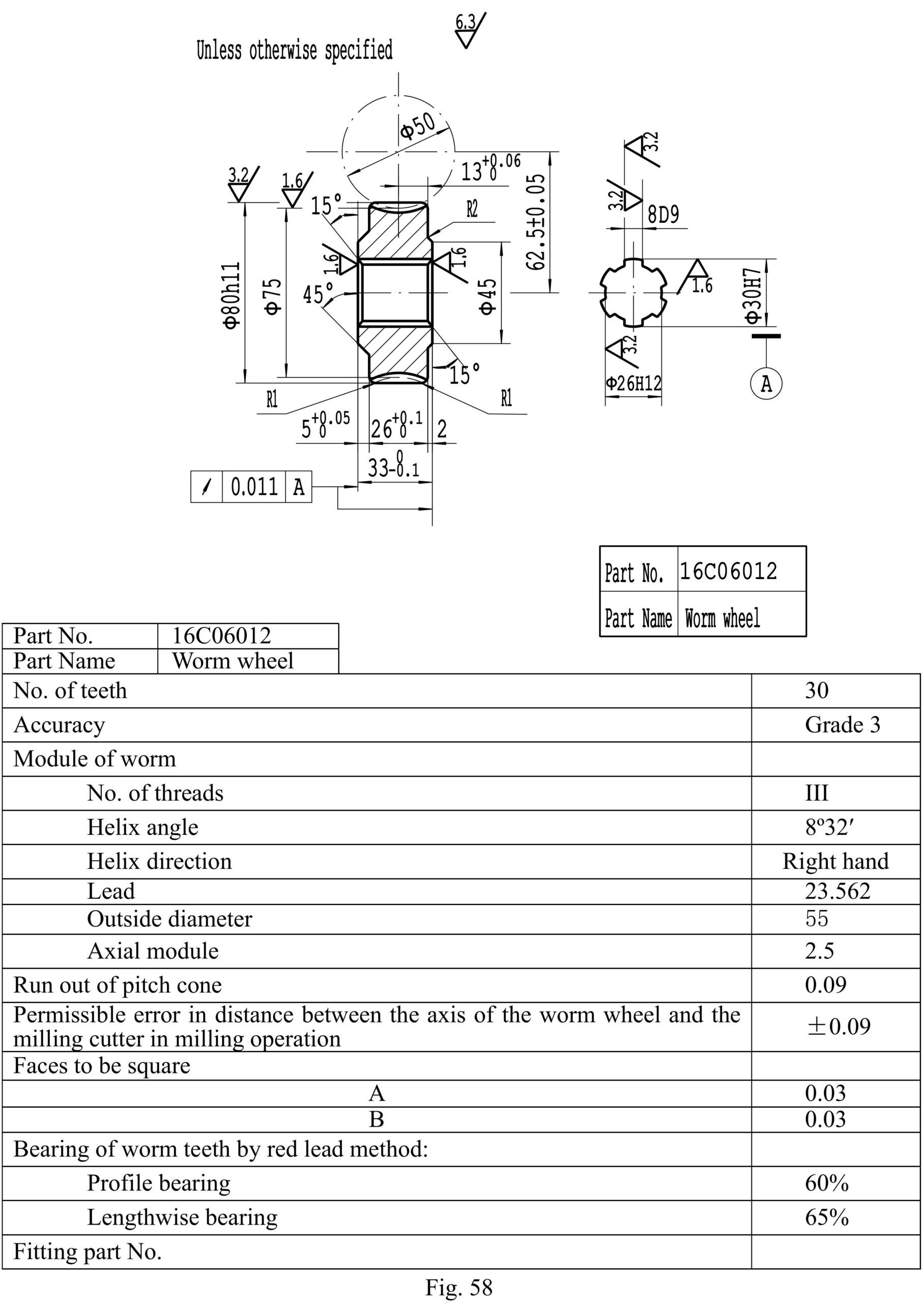

16C0601263Worm wheelHT10011.2

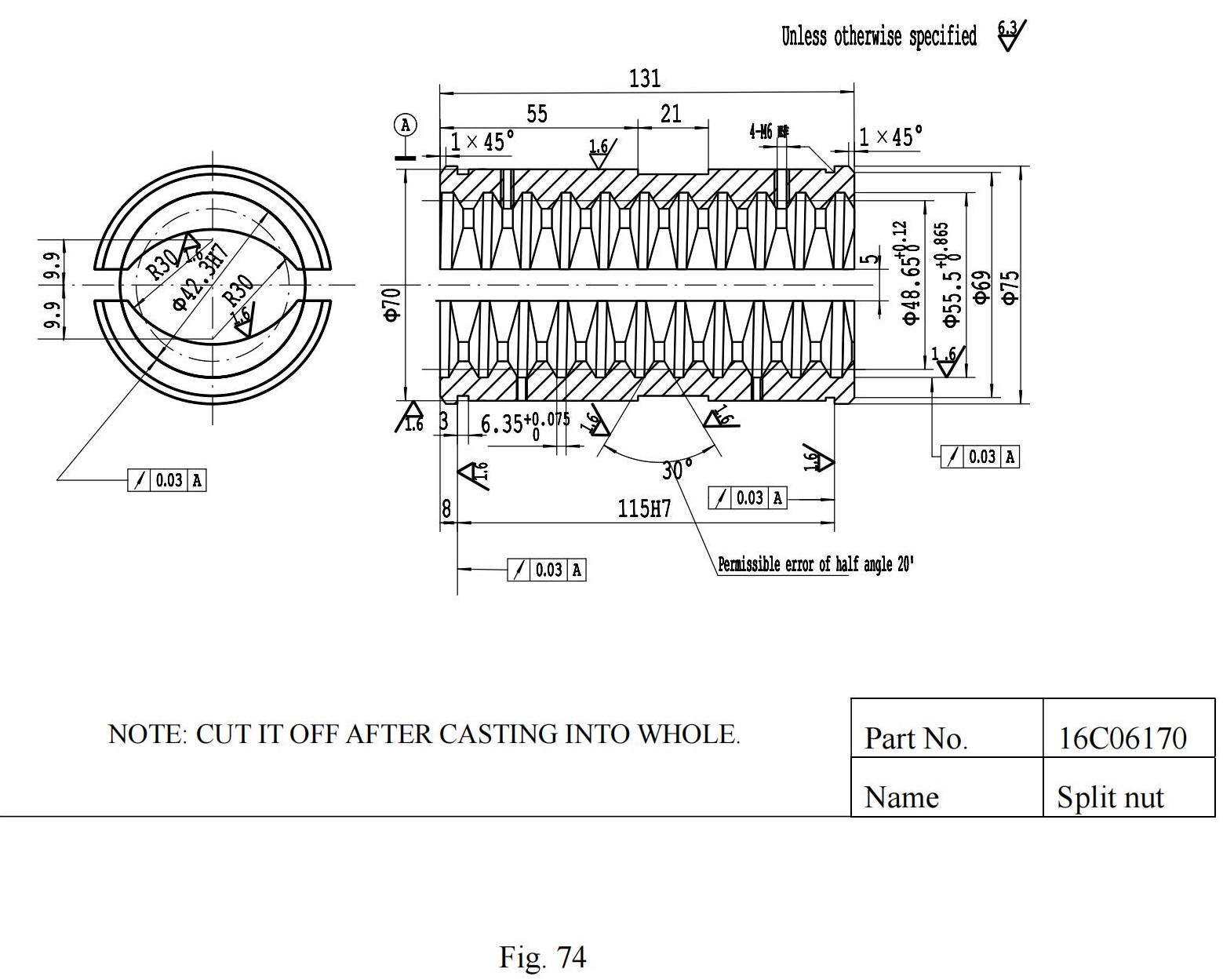

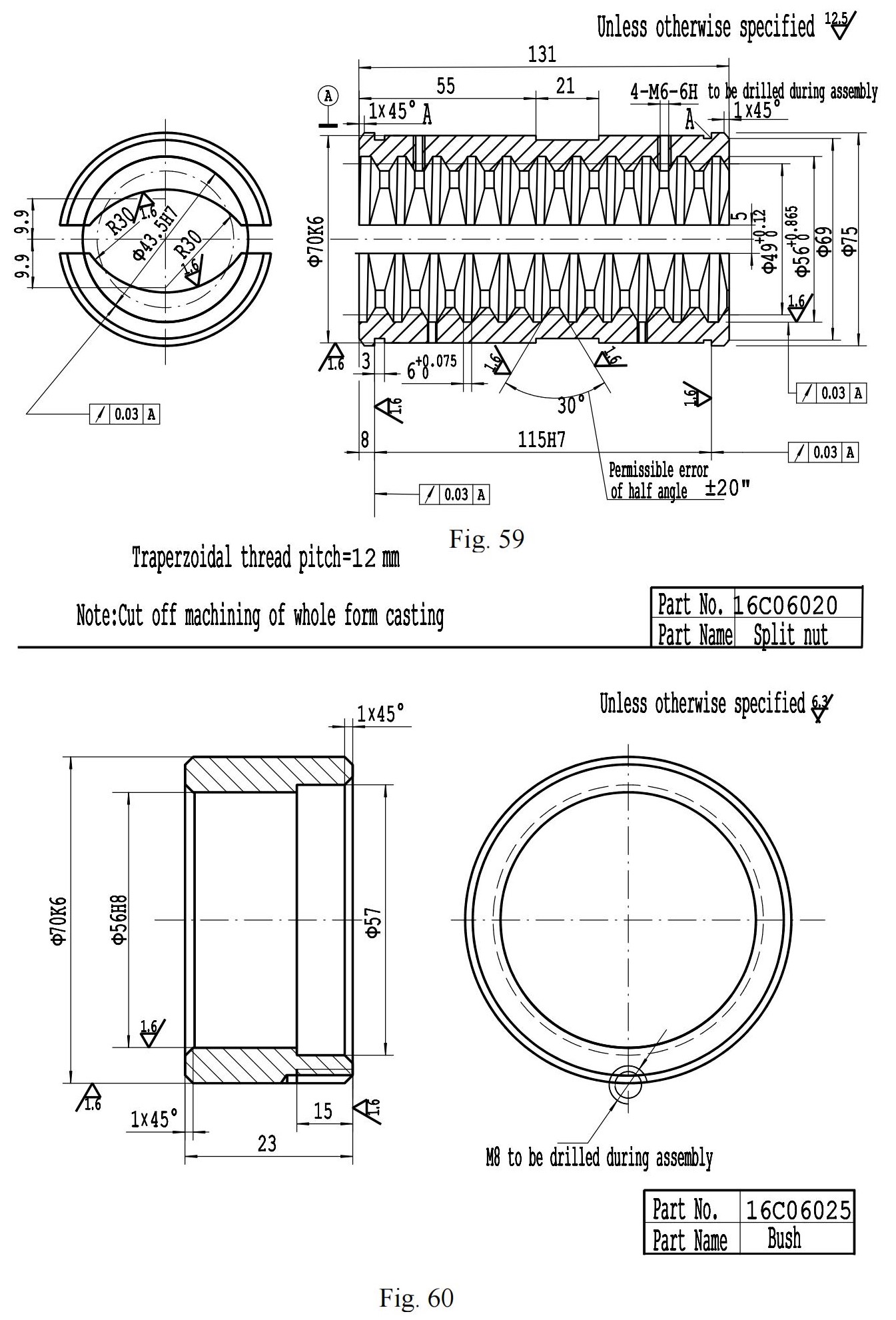

16C0602064Split nut 12For the machines with Metric system
16C0602565Bush MITI10.13

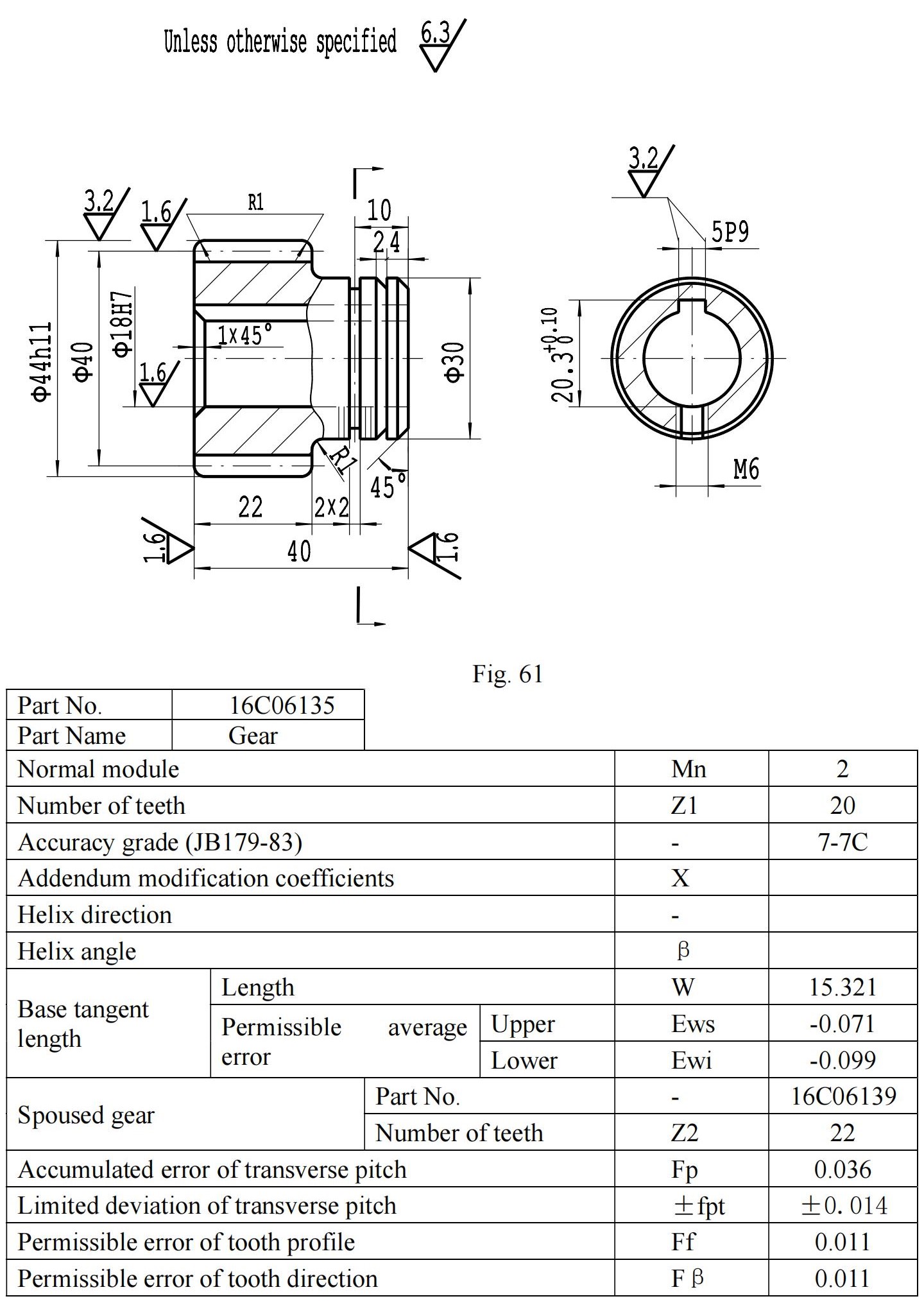

16C0613567Gear 10.24

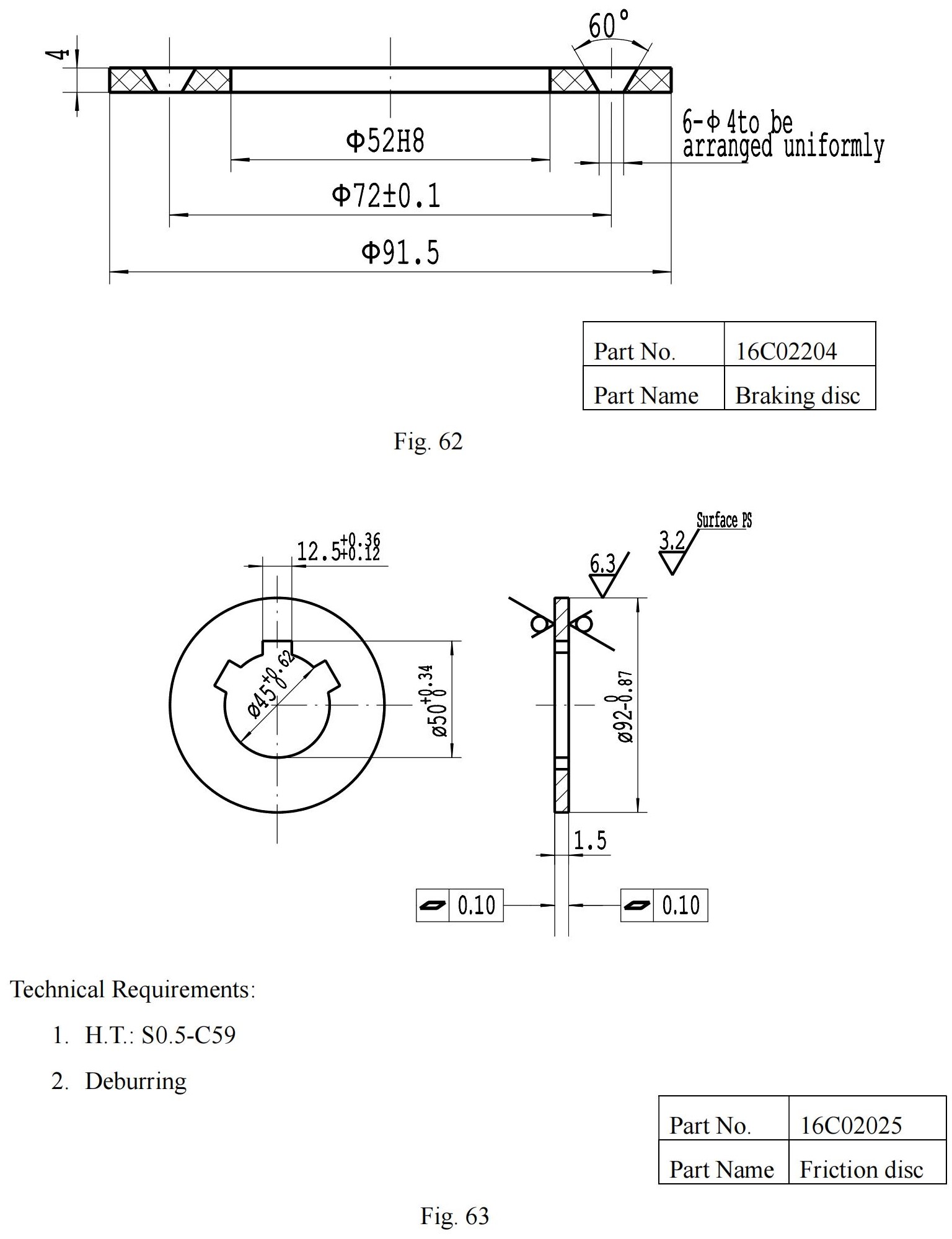

16C0220466Braking discBraking band of asbestos resin140.052
16C0202568Friction disc15S0.5-C59150.16

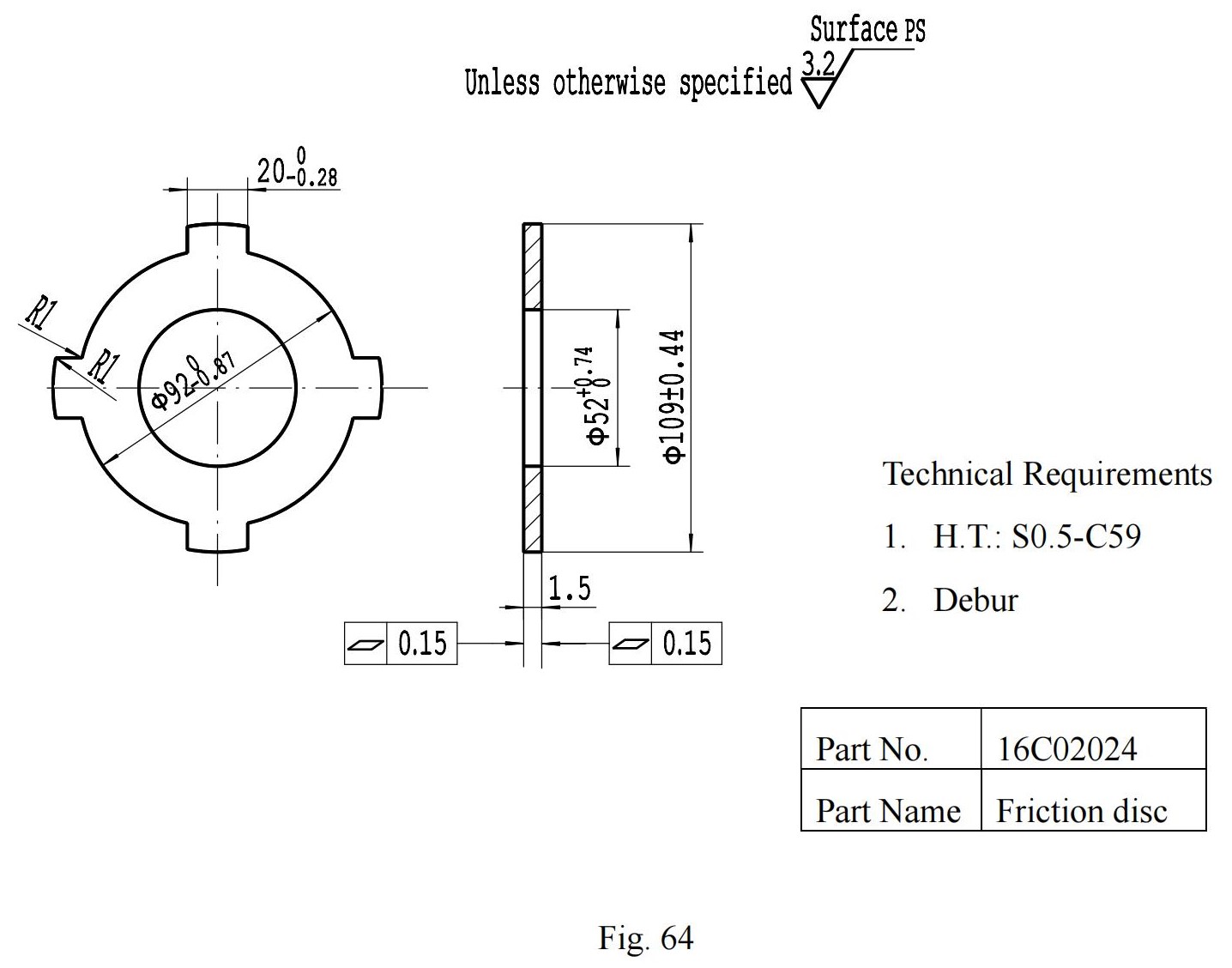

16C0202469Friction disc15S0.5-C592

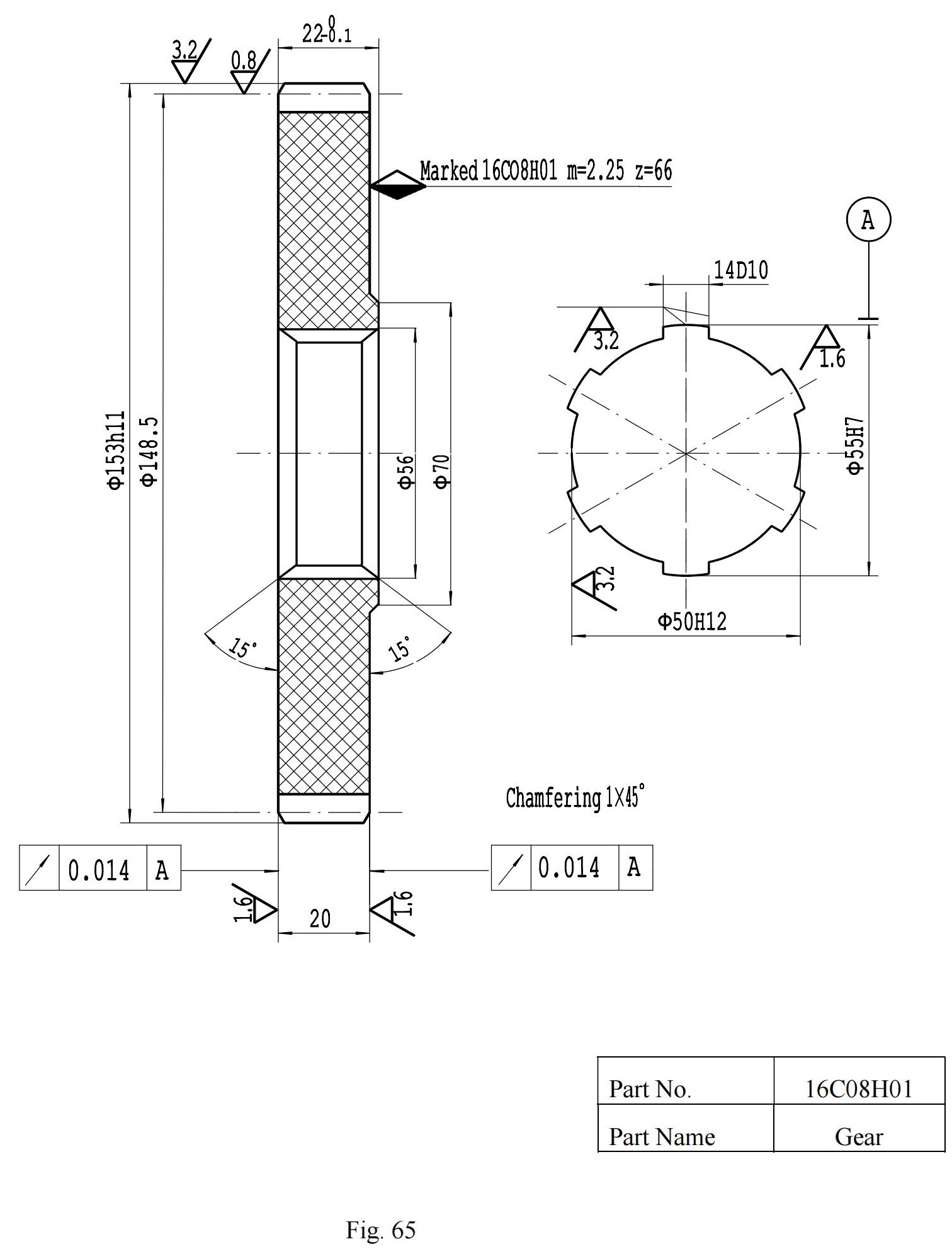

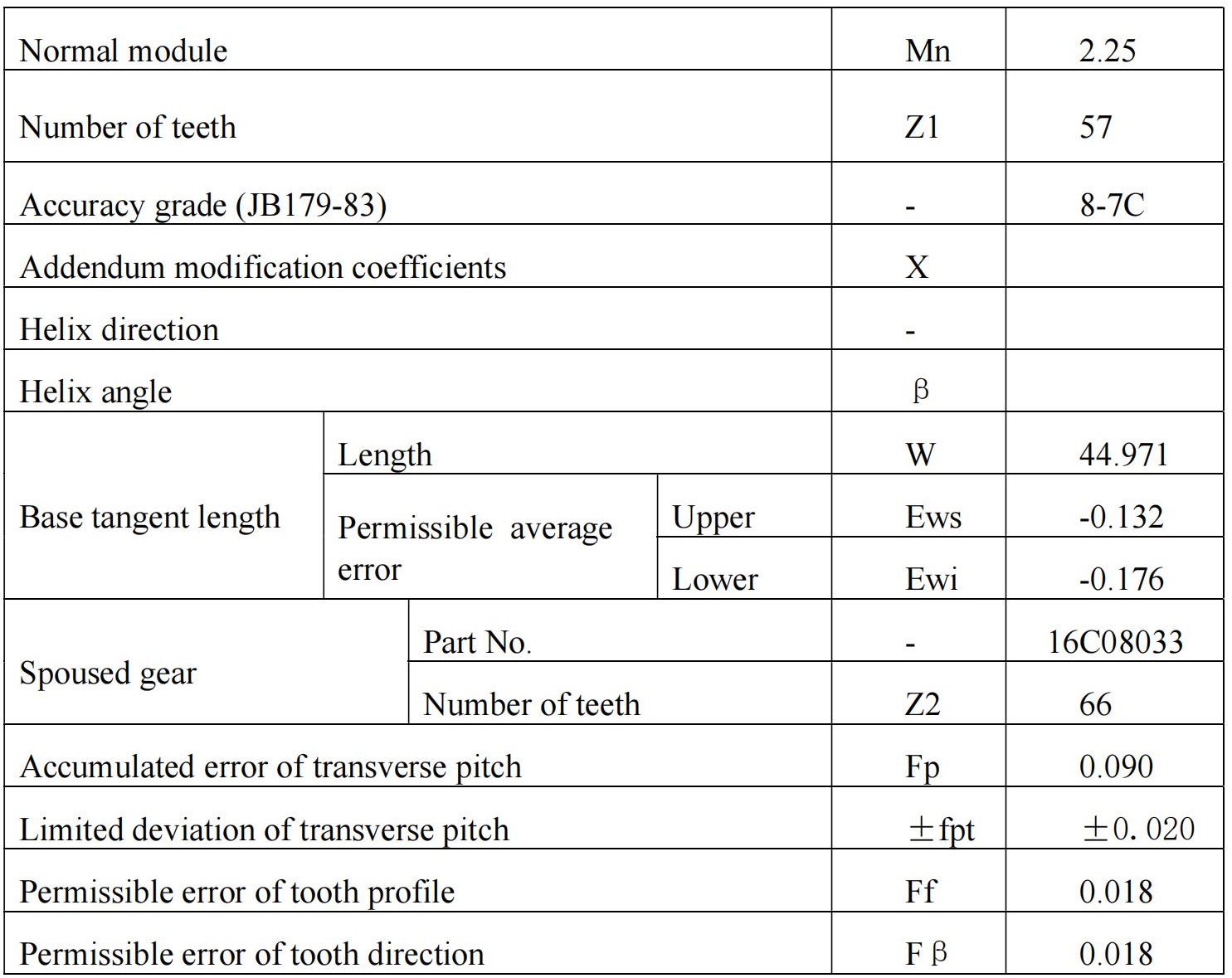

16C08H0170GearCloth phenolics plate10.33

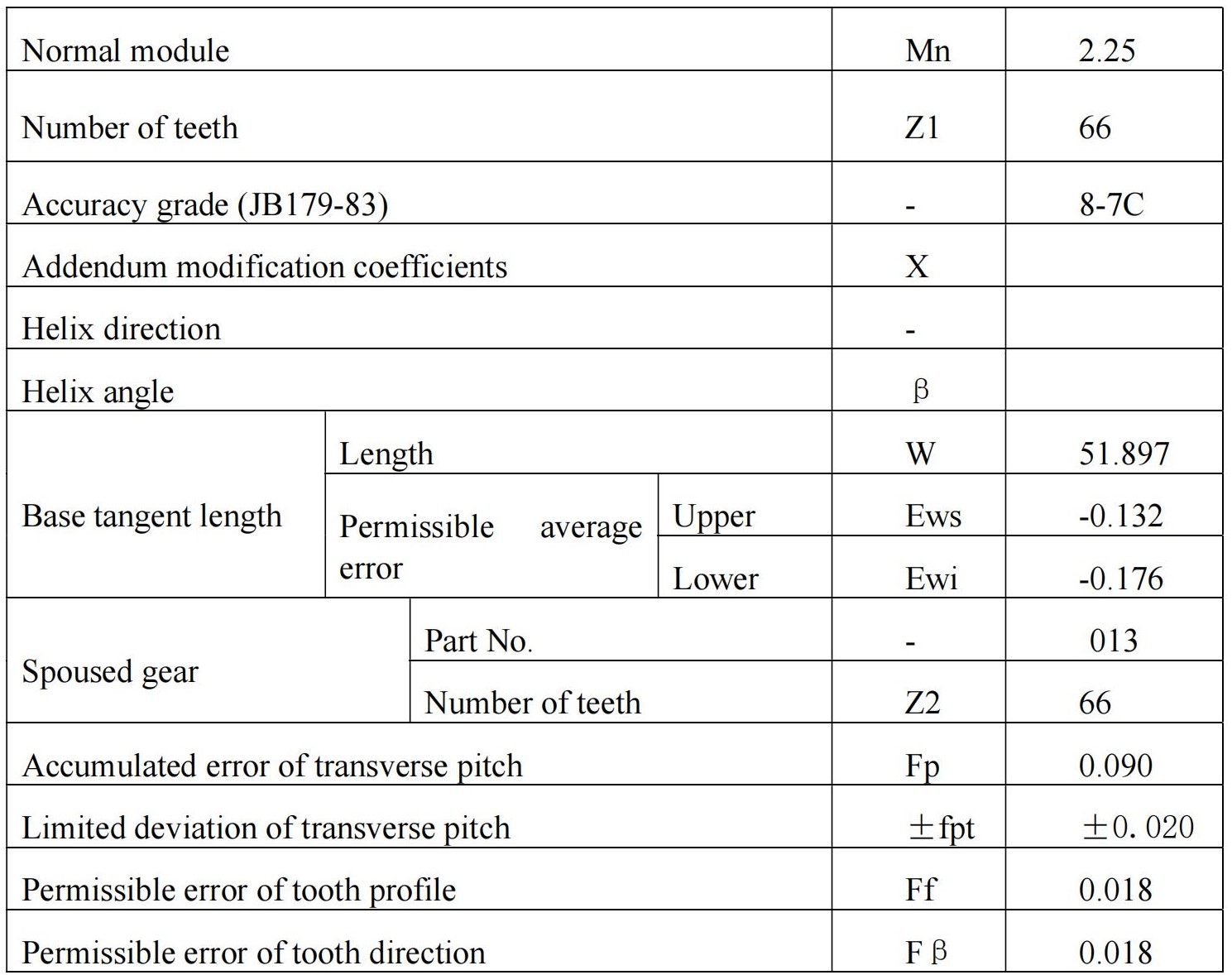

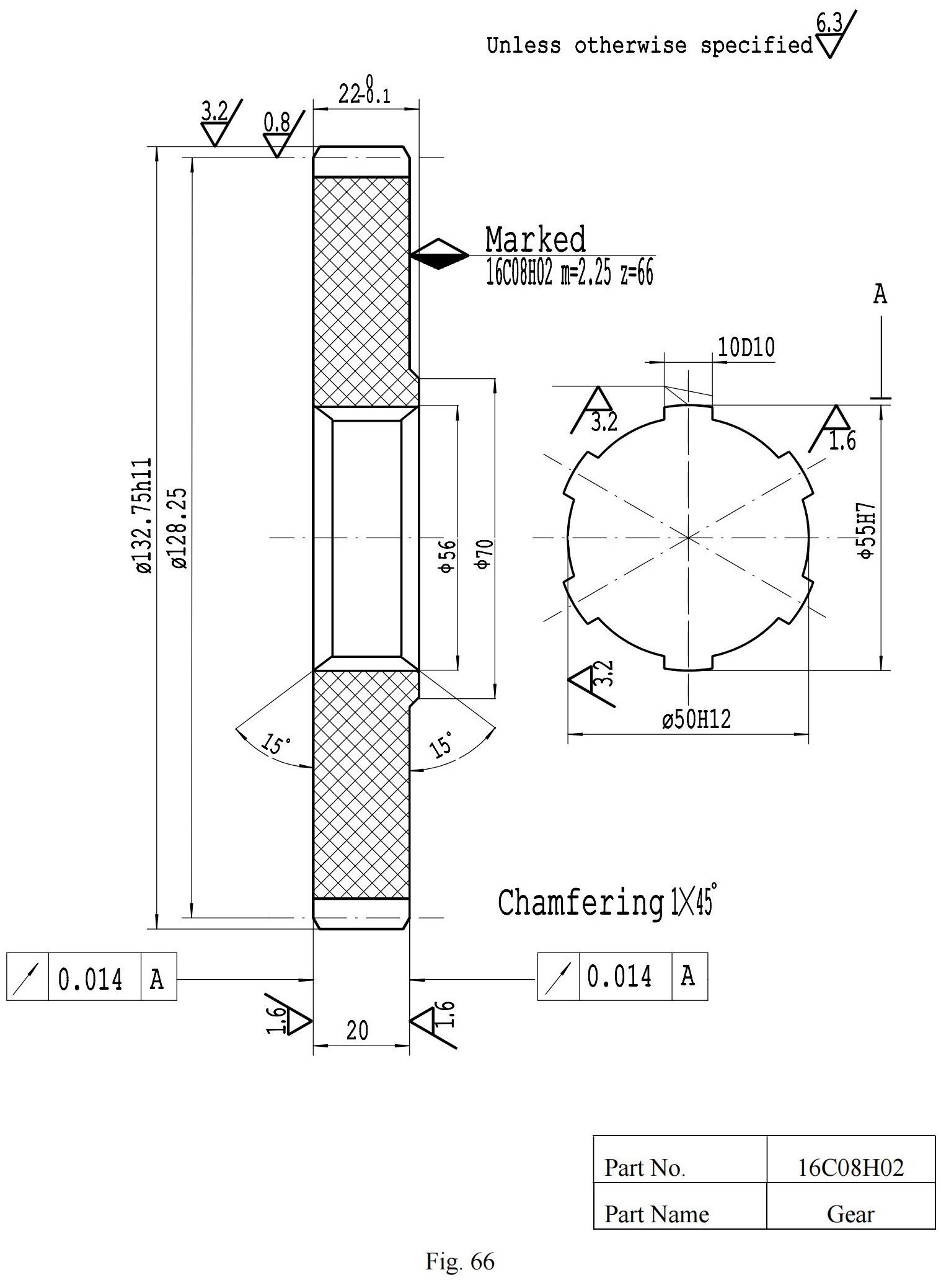

16C08H0271Gear Cloth phenolics plate10.23

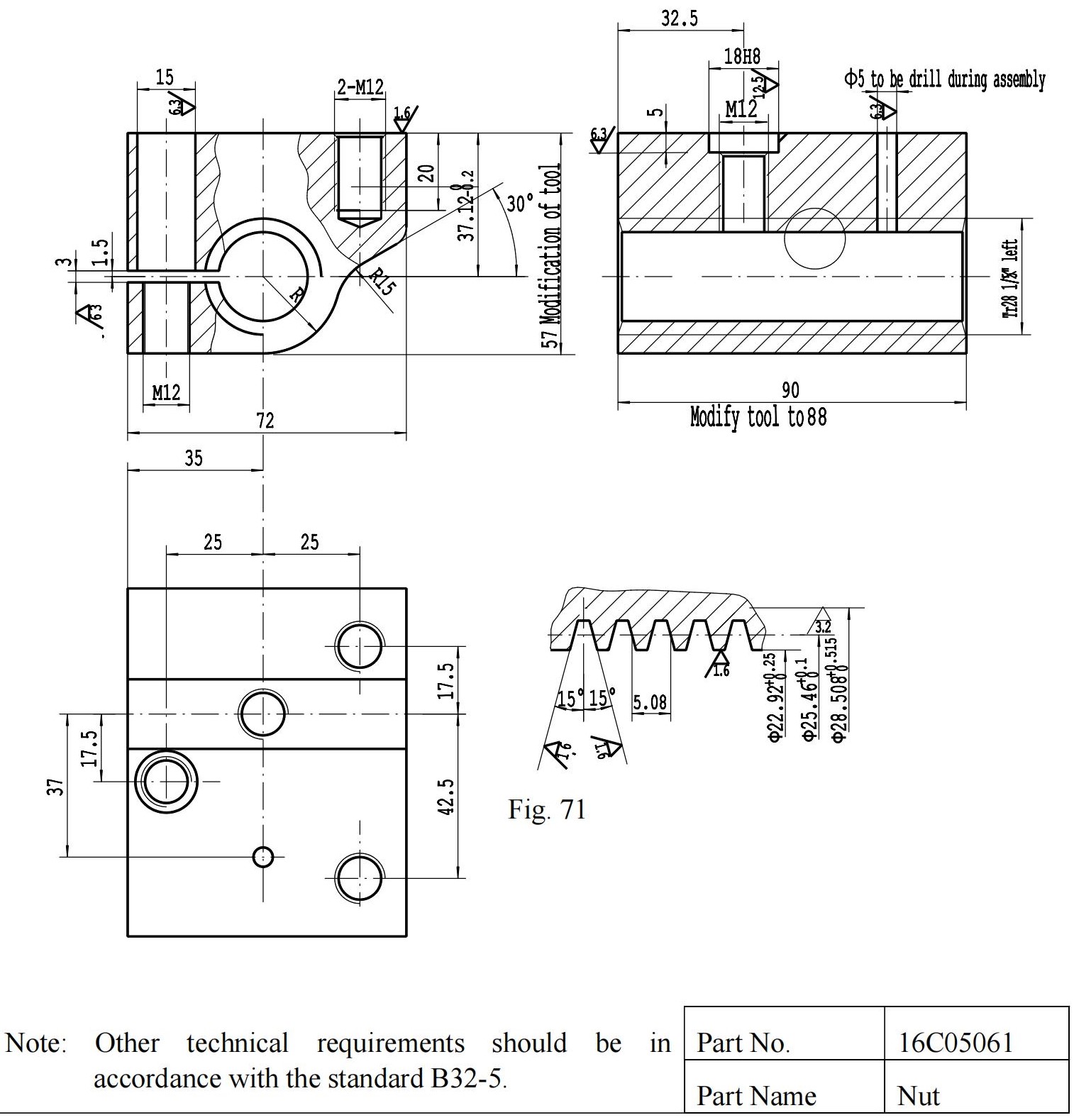

16C0617072Split nut 11.6For the machines with Inch system

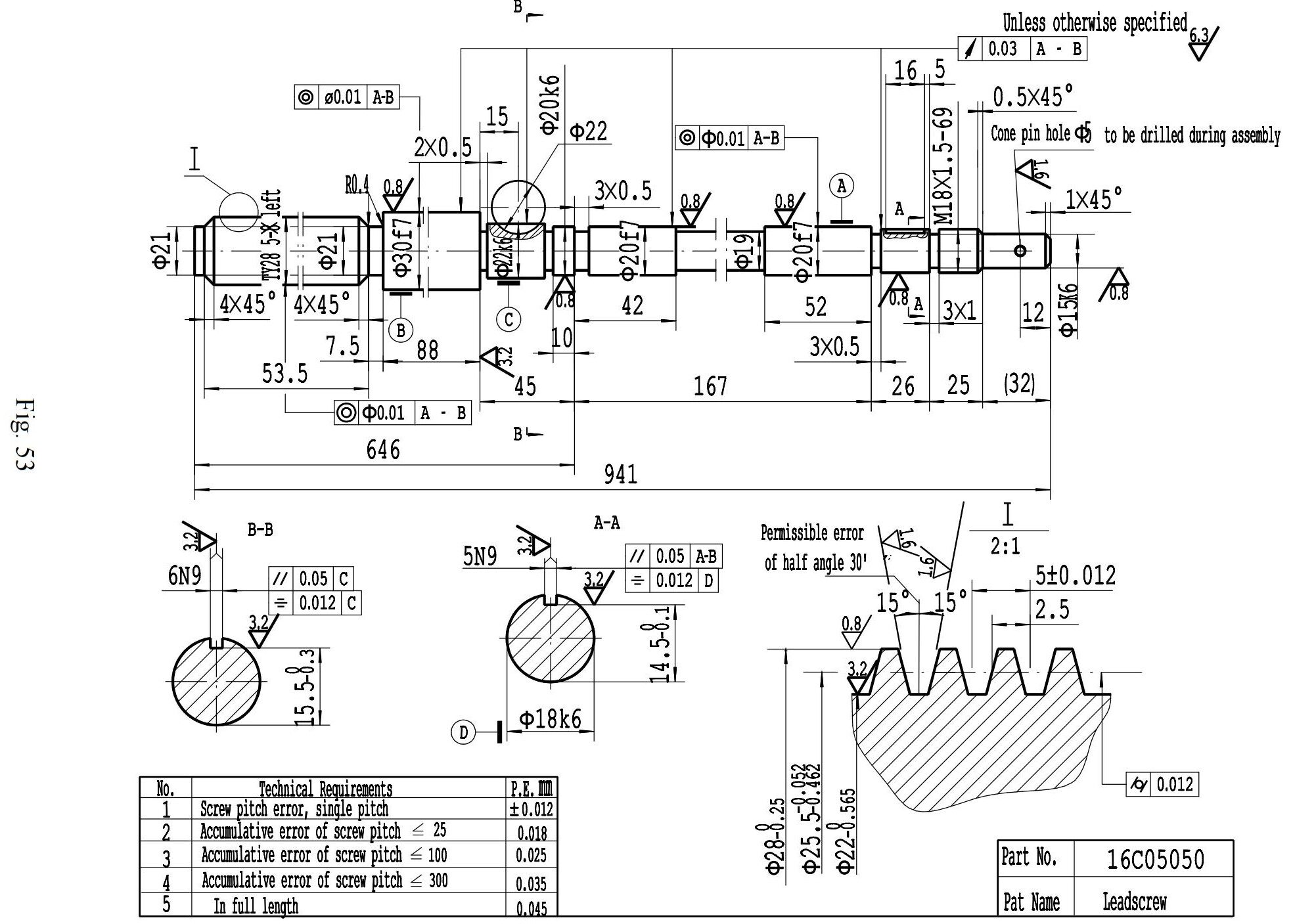

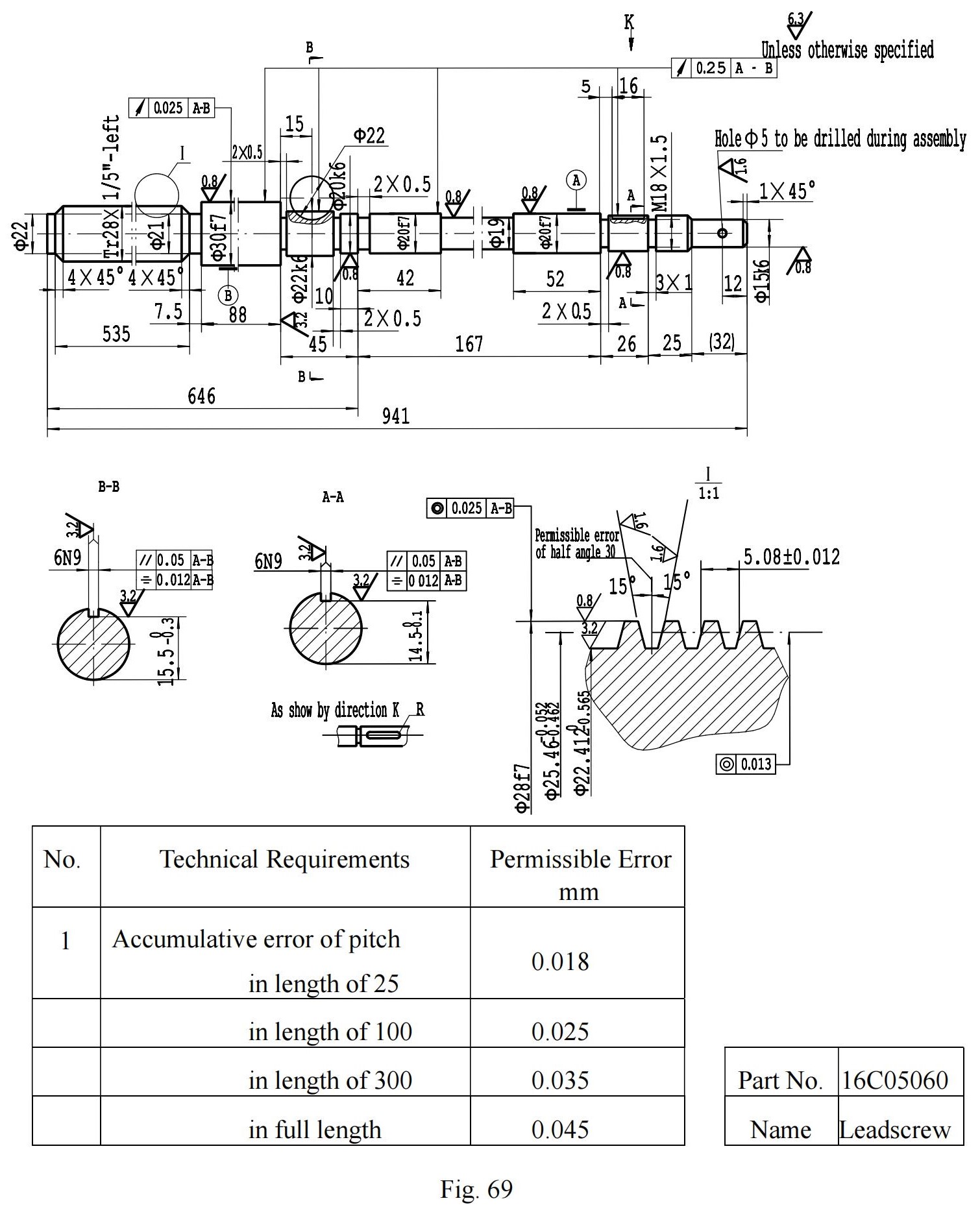

16C0506073Leadscrew Y40Mn12.8

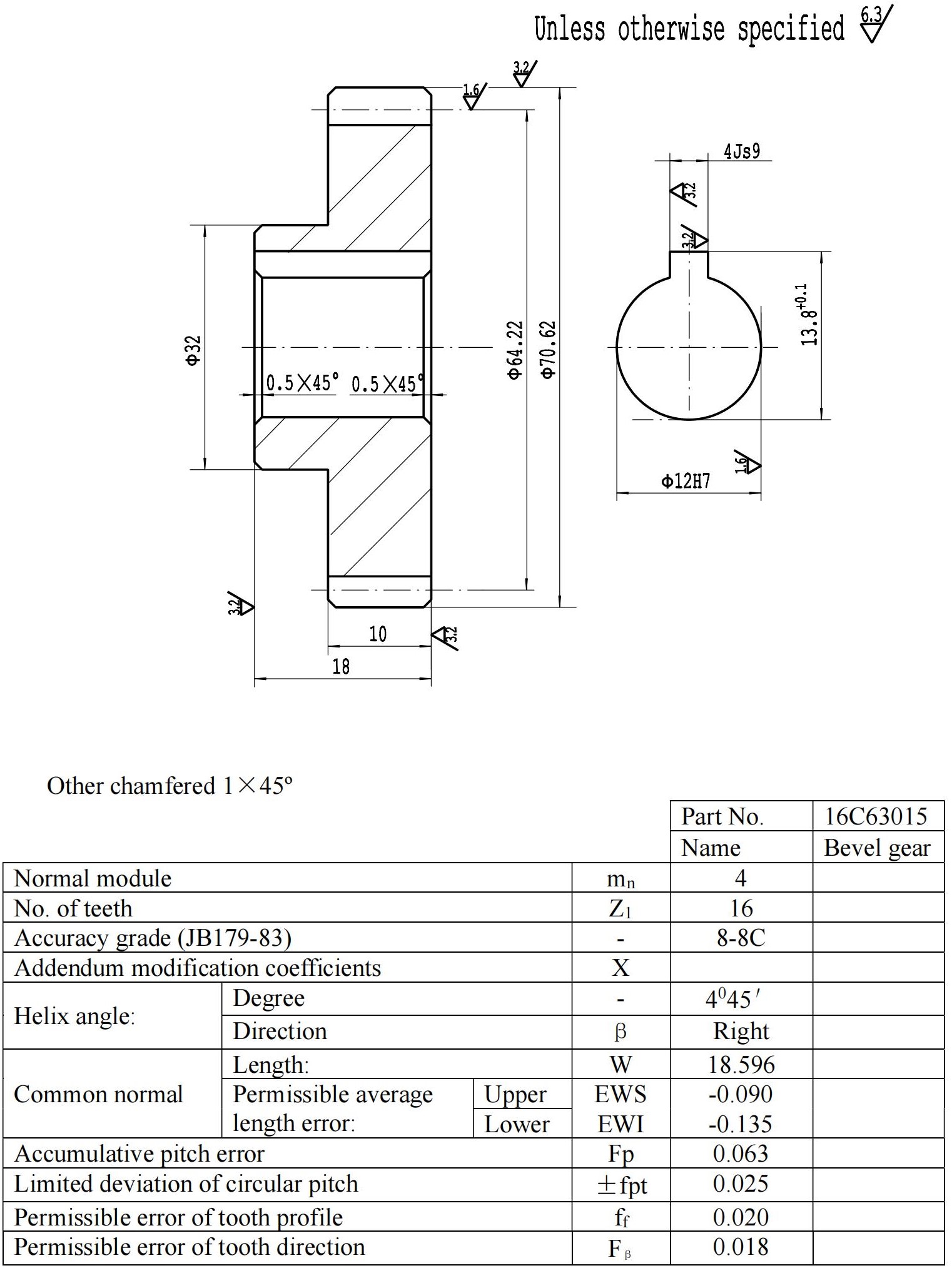

16C6301574Helical gear ZQSn6-6-310.09
16C0506175Nut 12.25

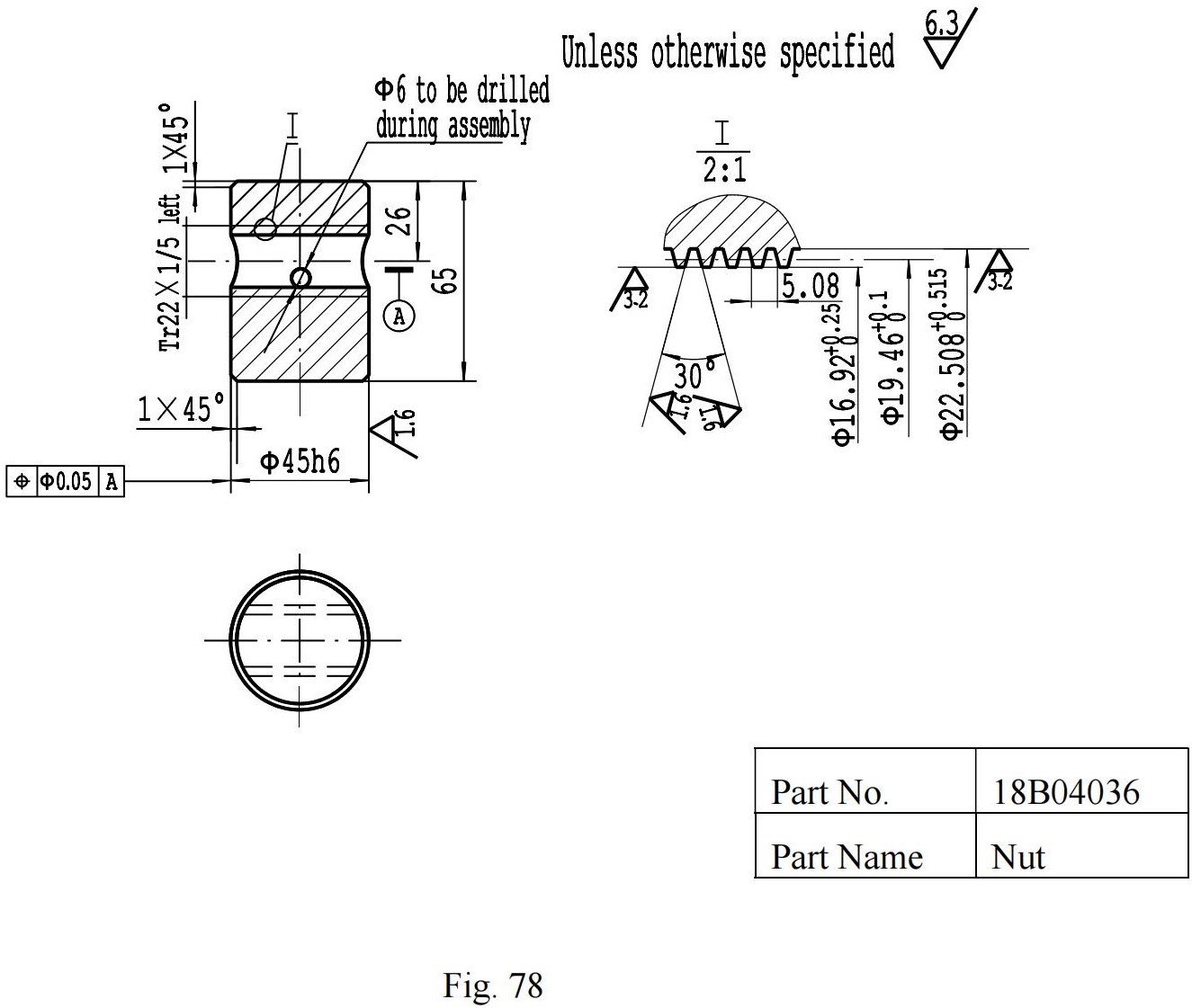

18B0403676NutHT200

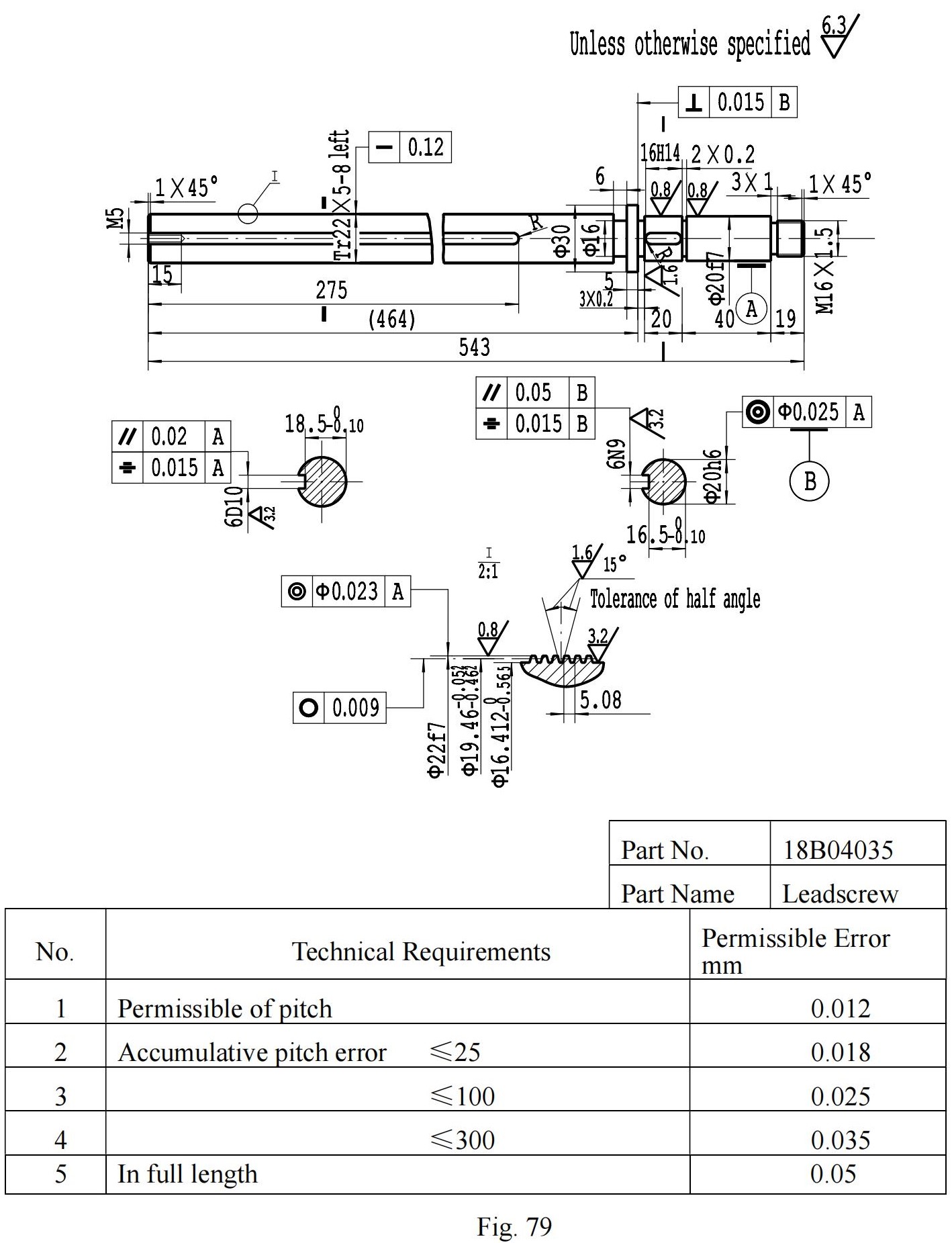

18B0403577LeadscrewY40Mn
