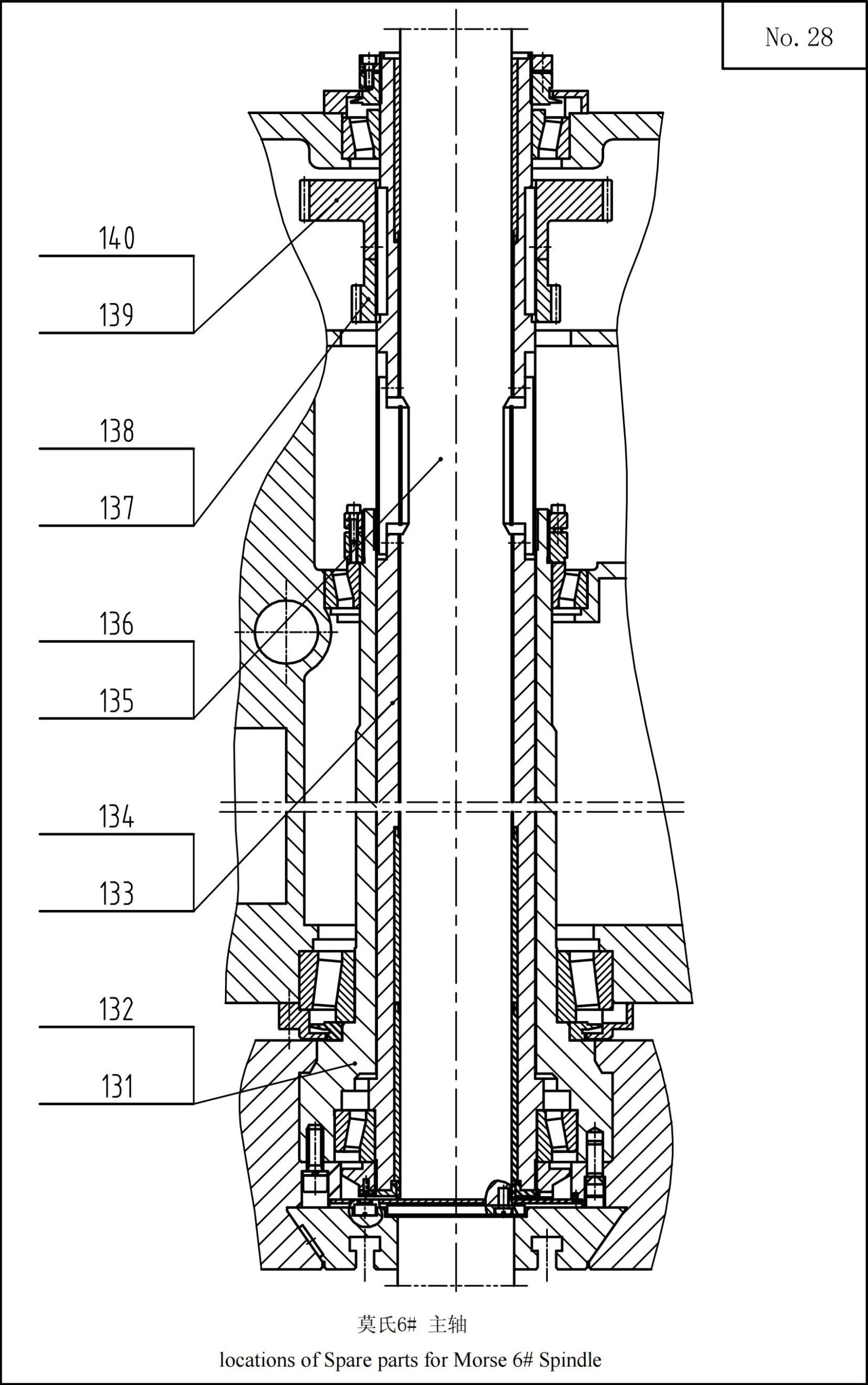

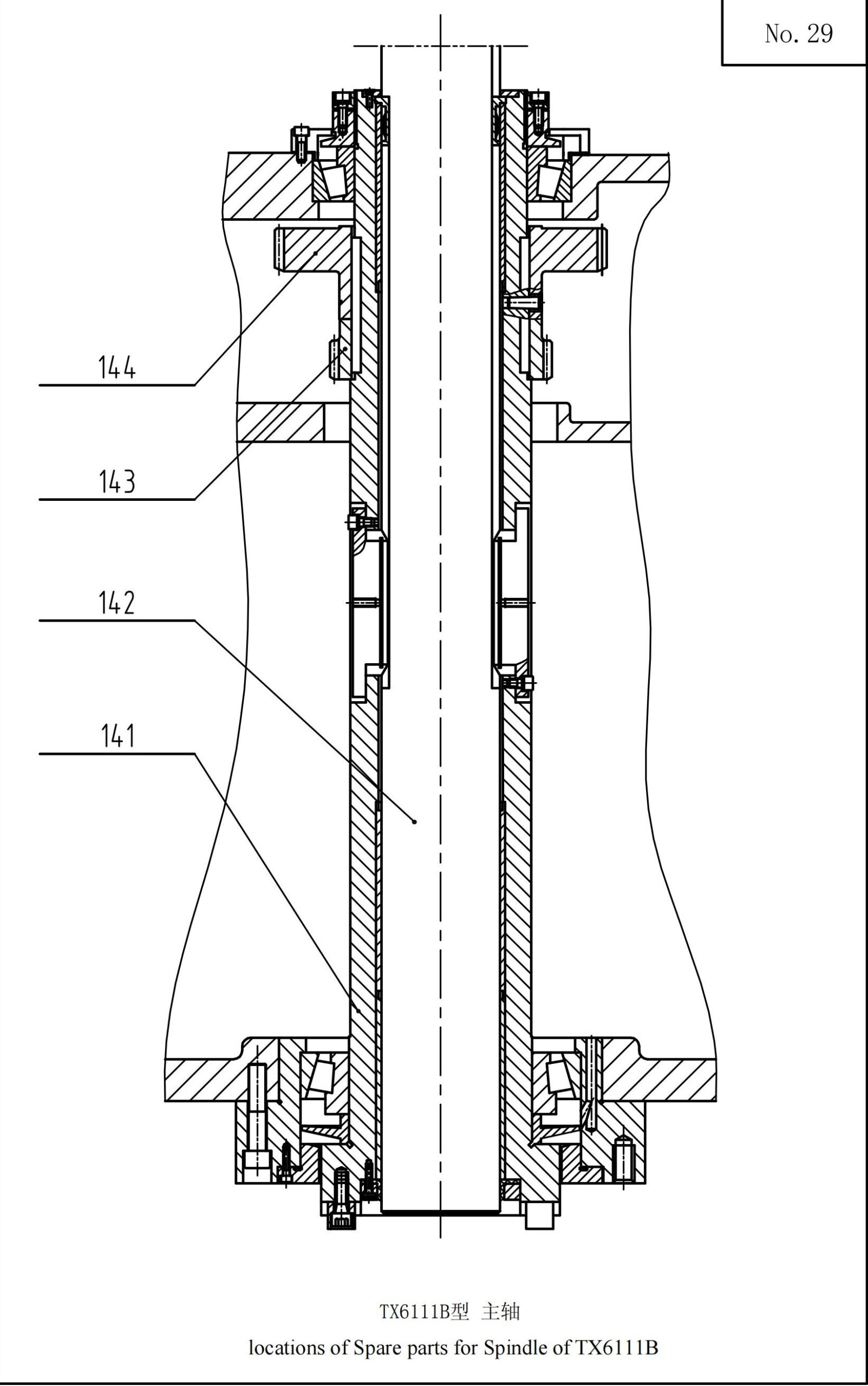

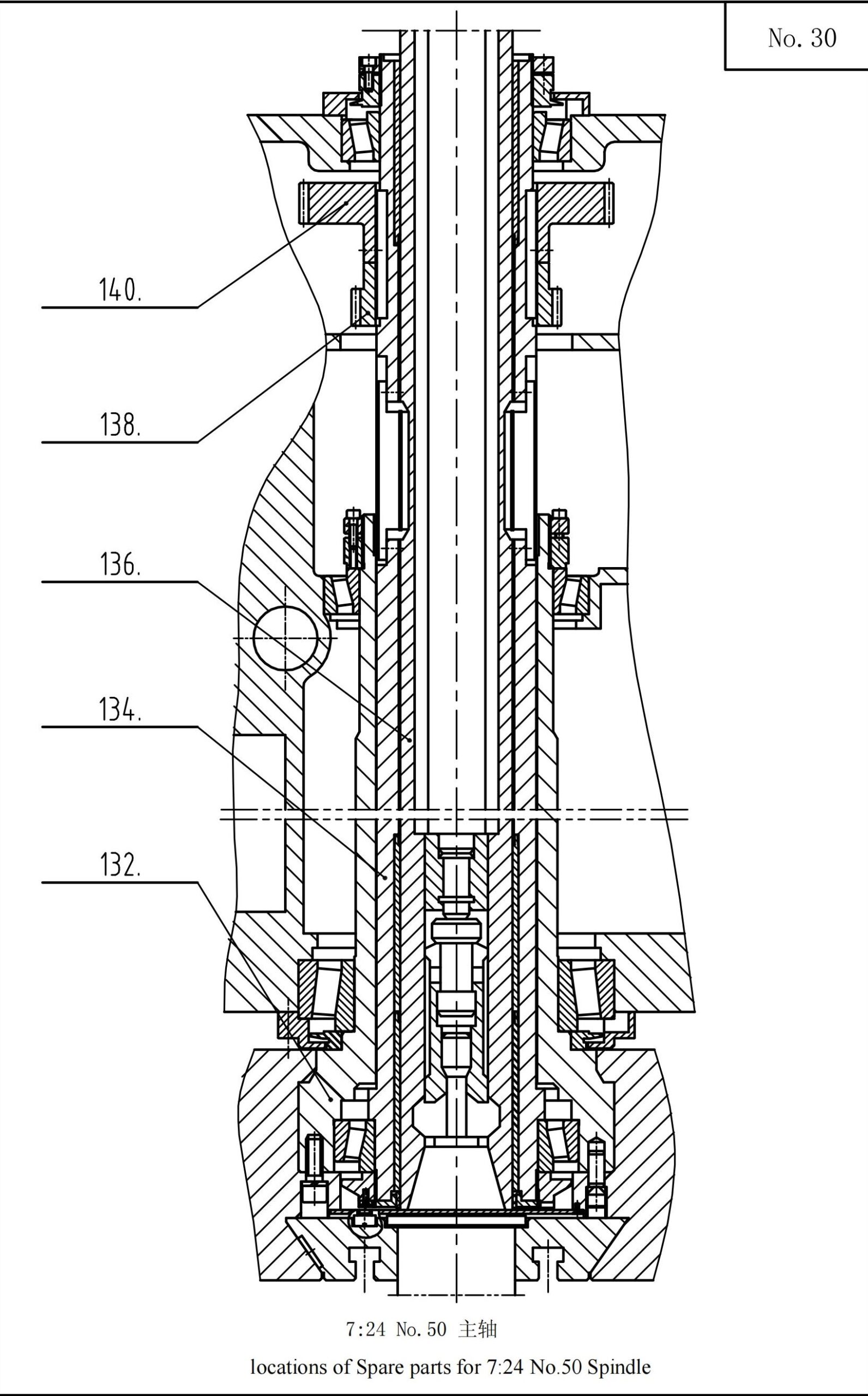

•Spindle taper is 7：24 No.50. This machine is equipped with automatic clamping/umclamping device which shorten auxilary time of clamping/umclamping tool and intensity of labor is reduced. The spindle features with good accuracy for a long time.

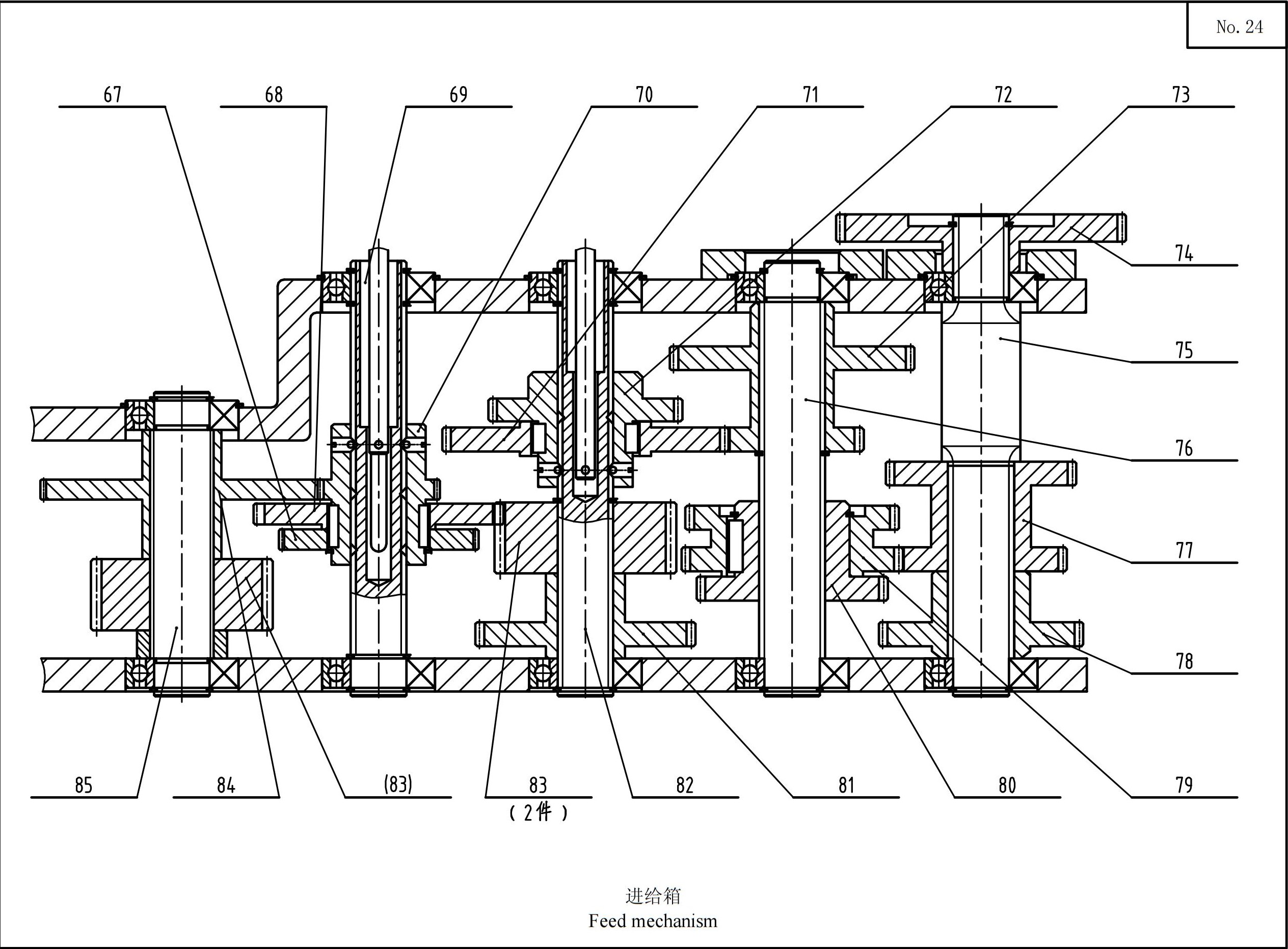

•Each coordinate axis moveing such as spindle, facing head slide, spindle box, longitudinal and cross movement of worktable and worktable rotation are all drove by AC servo motor mounted on bed. The feed stepless is set and the feed speed value is showed by setting buttons through gearbox, eletromagnitic clutch.



•The vertical axis is spindle box moving up and down, the traverse axis is worktable moving in cross direction and longitudinal axis is worktable moving in longitudinal direction which can be equipped with new type digital display meter with memory function. The machine features with full function and high accuracy.
