TPX6113 List of Spare Parts

, , , ,

PRODUCT FEATURES

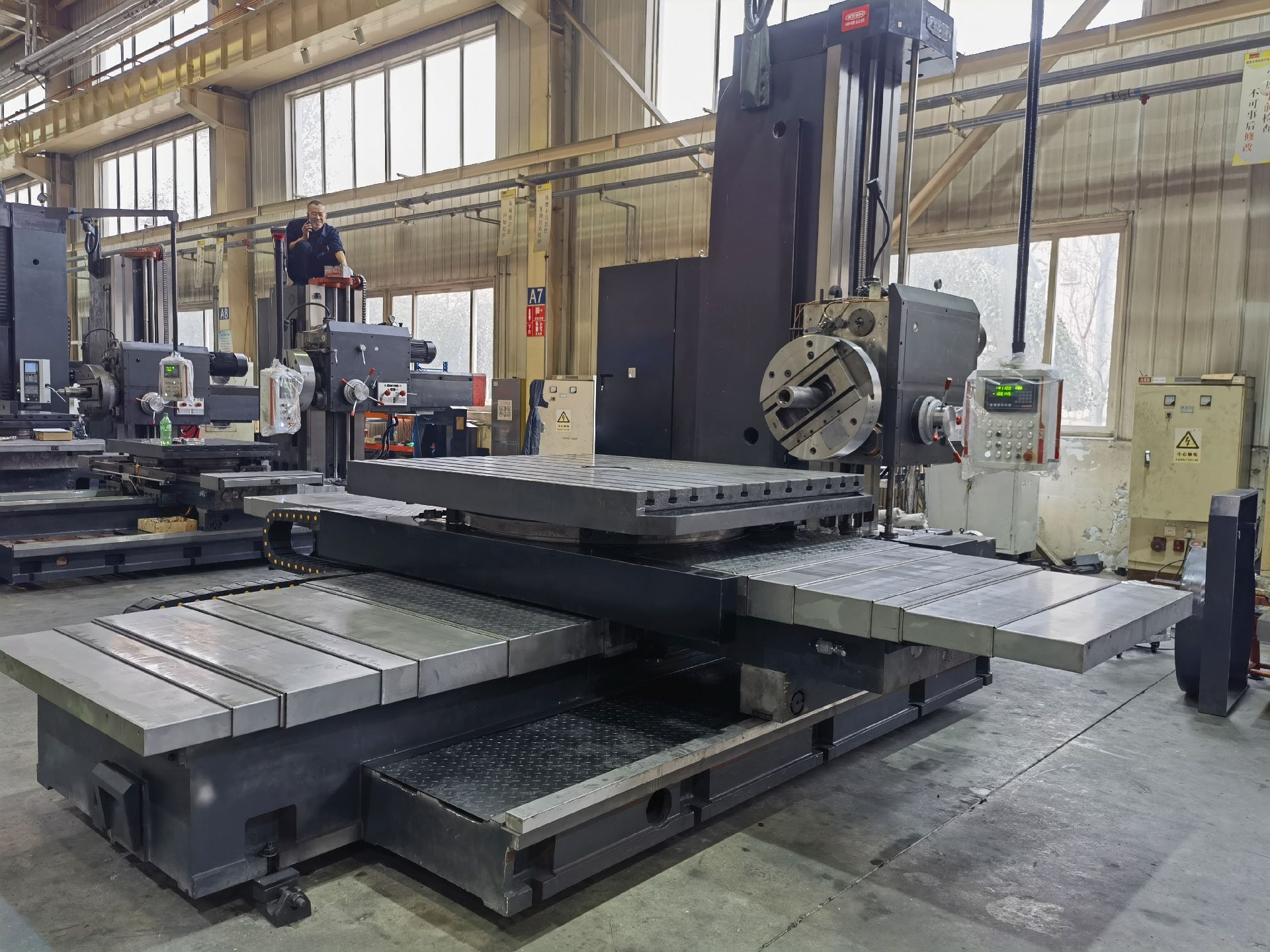

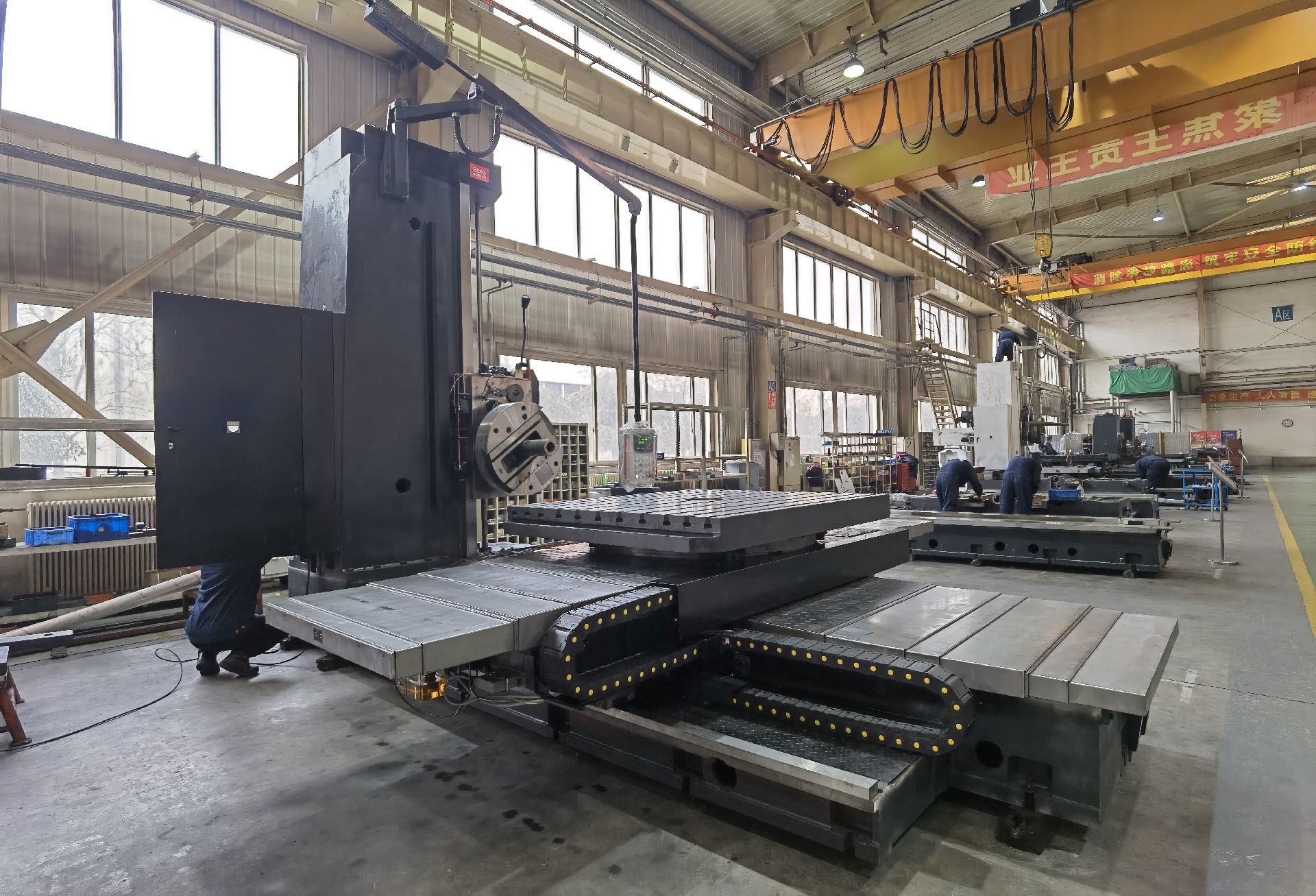

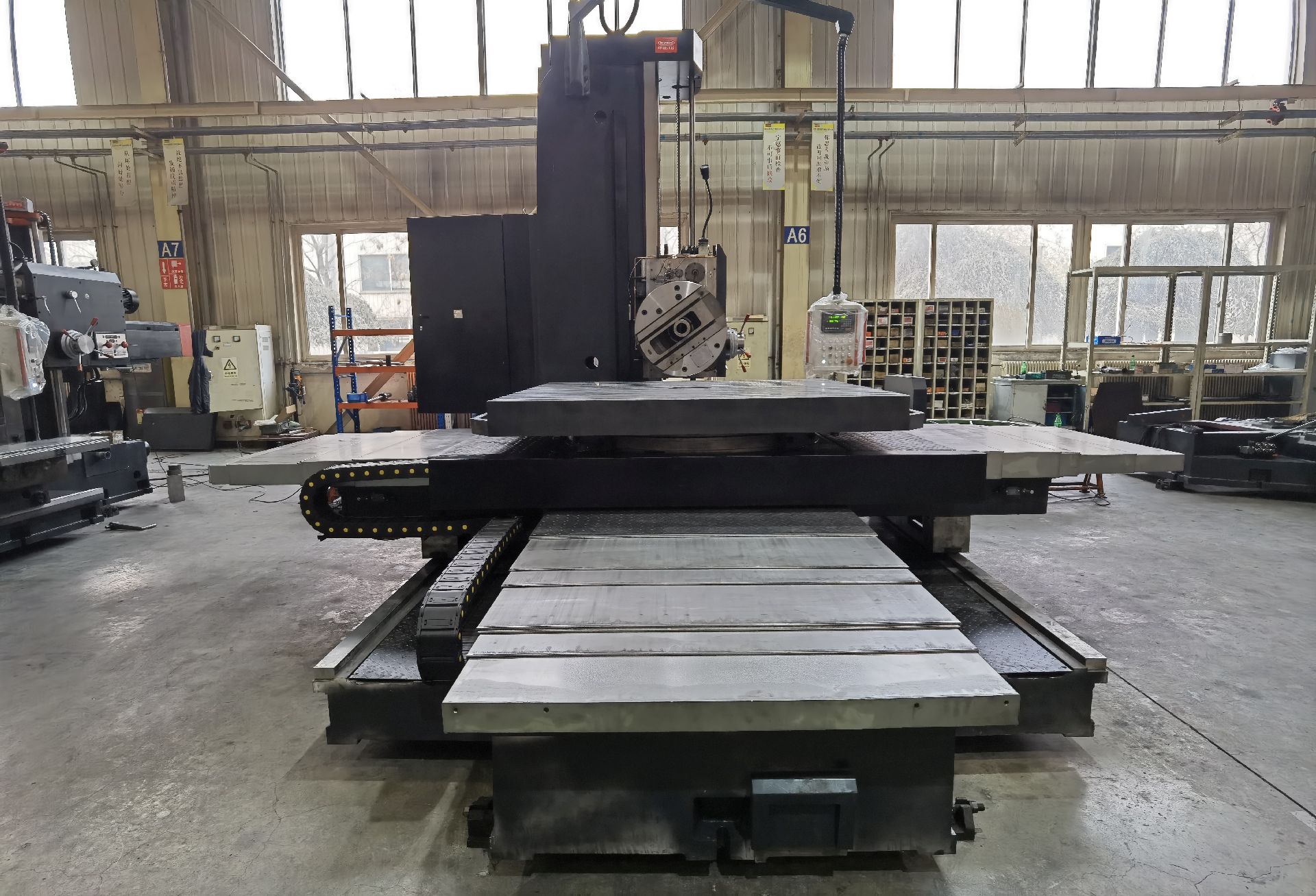

The TPX series horizontal milling and boring machines are based ona classic design, suitable for rough and finished boring, capable ofmilling large and box type components. They excel at inner hold boringcylindrical turning and grooving by radial feed of facing plate. A 4x90optical positioning device allows for machining accuracy when turninglarge pieces. The precision digital read out measurement systemsensures accuracy of coordinates and lineation.



* Machine bed with larger specifications is added with integral auxiliary guideway

* Spindle system consists of three-layer structure, facing head spindle, hollow spindle and boring spindle

* The spindle with disk spring clamping and hydraulic unclamping makes tool handling easy

Request a Quote
Please enable JavaScript in your browser to complete this form.
Name
Please contact me by
Consultation details
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Contact

Wide Product Portfolio

We supply a diverse range of conventional and CNC metalworking machines loaded with features

Watch It

Professional Consultation

Trusted consultation and in house demonstrations to provide the best solutions for your business needs

Get Support

Outstanding Service

Full time, skilled service team employees available for start-up, maintenance and repair of your SMTCL machine

Details

Contact us

Please enable JavaScript in your browser to complete this form.
Name
Please contact me by
Consultation details
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Have any Questions?

Check our frequently asled question hope you get answer.

If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Check out our FAQ page for answers to common questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Check out our FAQ page for answers to common questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Check out our FAQ section for more information on how we can help
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Check out our FAQ page for answers to common questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

配件目录
List of Spare Parts		No.1
序号
Serial No.		件号或规格型号
Parts No.or Specification Type No.		配件名称
Name of Parts		每台数量
pcs. per set		备注
Remarks

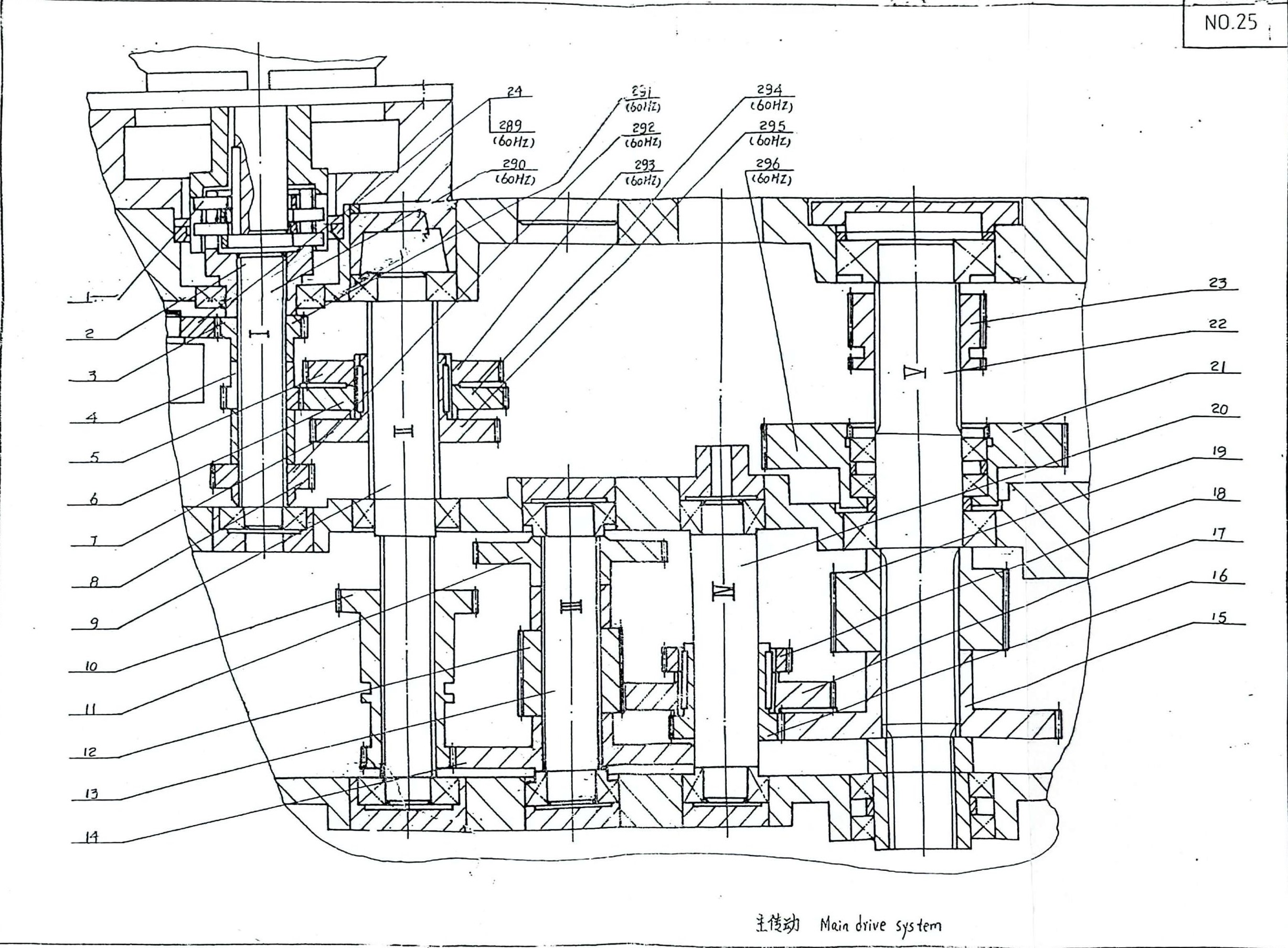

1T6113-21326弹性圈
elastic ring		4
2T6113-21321I轴
shaft I		1
3T6113-21324齿轮
gear		1
4T6113-21323齿轮
gear		1
5T6113-21301齿轮
gear		1
6T6113-21302齿轮
gear		1
7T6113-21303齿轮
gear		1
8T6113-21322齿轮
gear		1
9T6113-21319II轴
shaft II		1
10T6113-21320A齿轮
gear		1
11T6113-21318A齿轮
gear		1
12T6113-21317A齿轮
gear		1
13T6113-21315III轴
shaft III		1
14T6113-21316齿轮
gear		1
15T6113-21309齿轮
gear		1
16T6113-21312A齿轮
gear		1
17T6113-21313B齿轮
gear		1
18T6113-21314B齿轮
gear		1
19T6113-21308A齿轮
gear		1
20T6113-21311AIV轴
shaft IV		1
21T6113-21306齿轮
gear		1
22T6113-21304V轴
shaft V		1
23T6113-21305齿轮
gear		1
24T6113-28901齿轮
gear		1

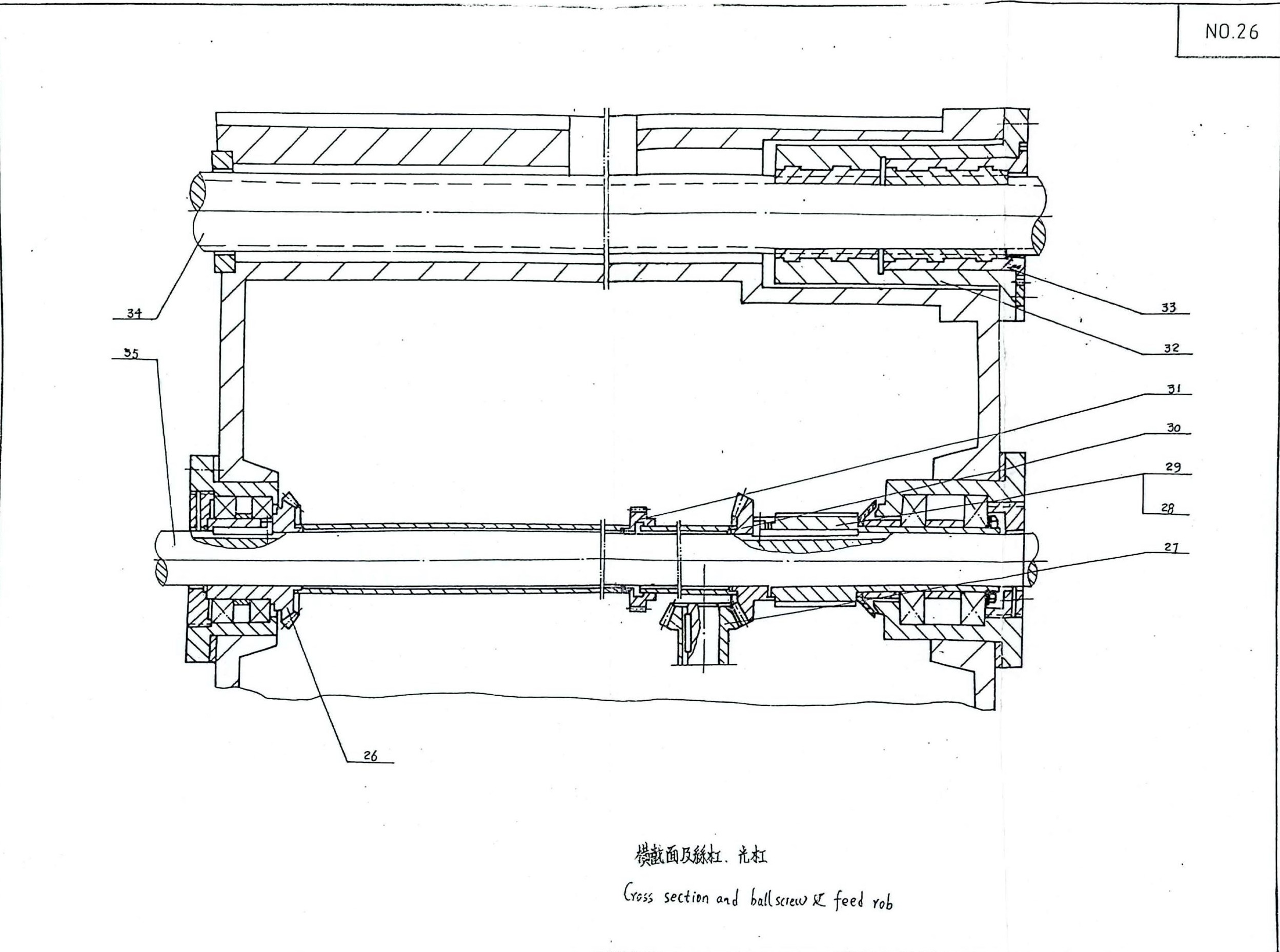

26T6113-21350伞齿轮
bevel gear		1
27T6113-27328伞齿轮
bevel gear		1
28T6113-21341蜗杆
worm		1
29TP6113-21402蜗杆
worm		1
30T6113-21340伞齿轮
bevel gear		1
31T6113-21345调节螺母
control nut		1
32T6113-21337丝母
nut		1
33T6113-21338调节丝母
control nut		1
34T6113-10302垂直丝杠
vertical lead screw		1
TPX6113/2-10303TPX6113／2，TPX6113／4专用
35T6113-10301垂直光杠
vertical feed rod		1
TPX6113/2-10302TPX6113／2，TPX6113／4专用

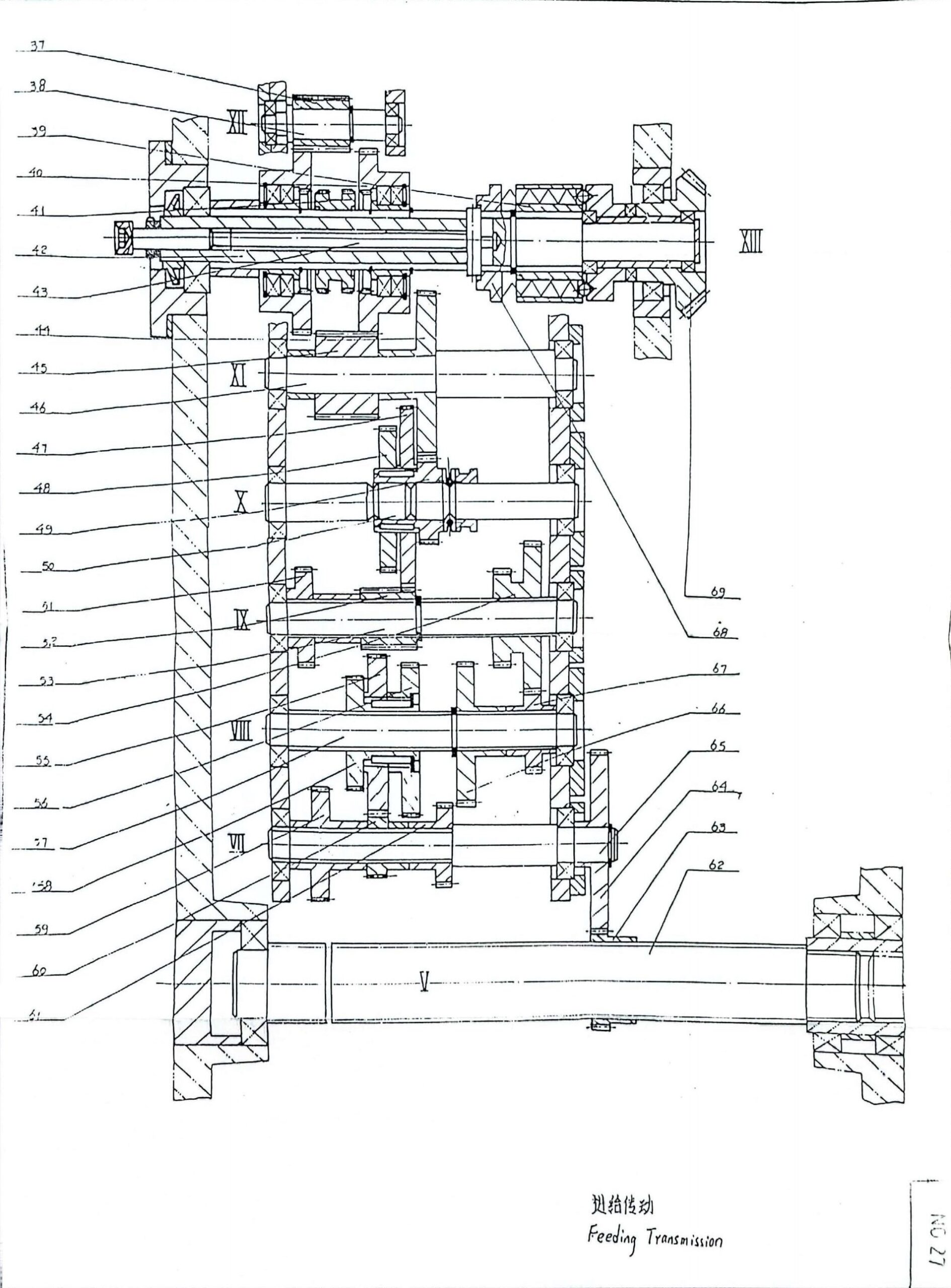

37T6113-22326齿轮
gear		1
38T6113-22327短轴
short shaft		1
39T6113-22324结合子套
clutch sleeve		1
40T6113-22330内齿轮
inner gear		2
41T6113-22329双联齿轮
double cluster gear		1
42T6113-22322结合子轴
clutch shaft		1
43T6113-22328螺杆
screw rod		1
44T6113-22319齿轮
gear		1
45T6113-21318齿轮
gear		1
46T6113-22320花键轴
splined shaft		1
47T6113-22317齿轮
gear		1
48T6113-22314齿轮
gear		1
49T6113-22316齿轮
gear		1
50T6113-22315光轴
shaft		1
51T6113-22332齿轮
gear		1
52T6113-22311齿轮
gear		1
53T6113-22312花键轴
splined shaft		1
54T6113-22313双联齿轮
double cluster gear		1
55T6113-22333齿轮
gear		1
56T6113-22305齿轮
gear		1
57T6113-22308花键轴
splined shaft		1
58T6113-22306齿轮
gear		1
59T6113-22334齿轮
gear		1
60T6113-22335齿轮
gear		1
61T6113-22303齿轮
gear		1
62T6113-22301花键轴
splined shaft		1
63T6113-22302齿轮
gear		1
64T6113-22307齿轮
gear		1
65T6113-22308花键轴
splined shaft		1
66T6113-22310齿轮
gear		1
67T6113-22309齿轮
gear		1
68T6113-22325结合子压盖
clutch pressure cover		1
69T6113-22323伞齿轮
bevel gear		1

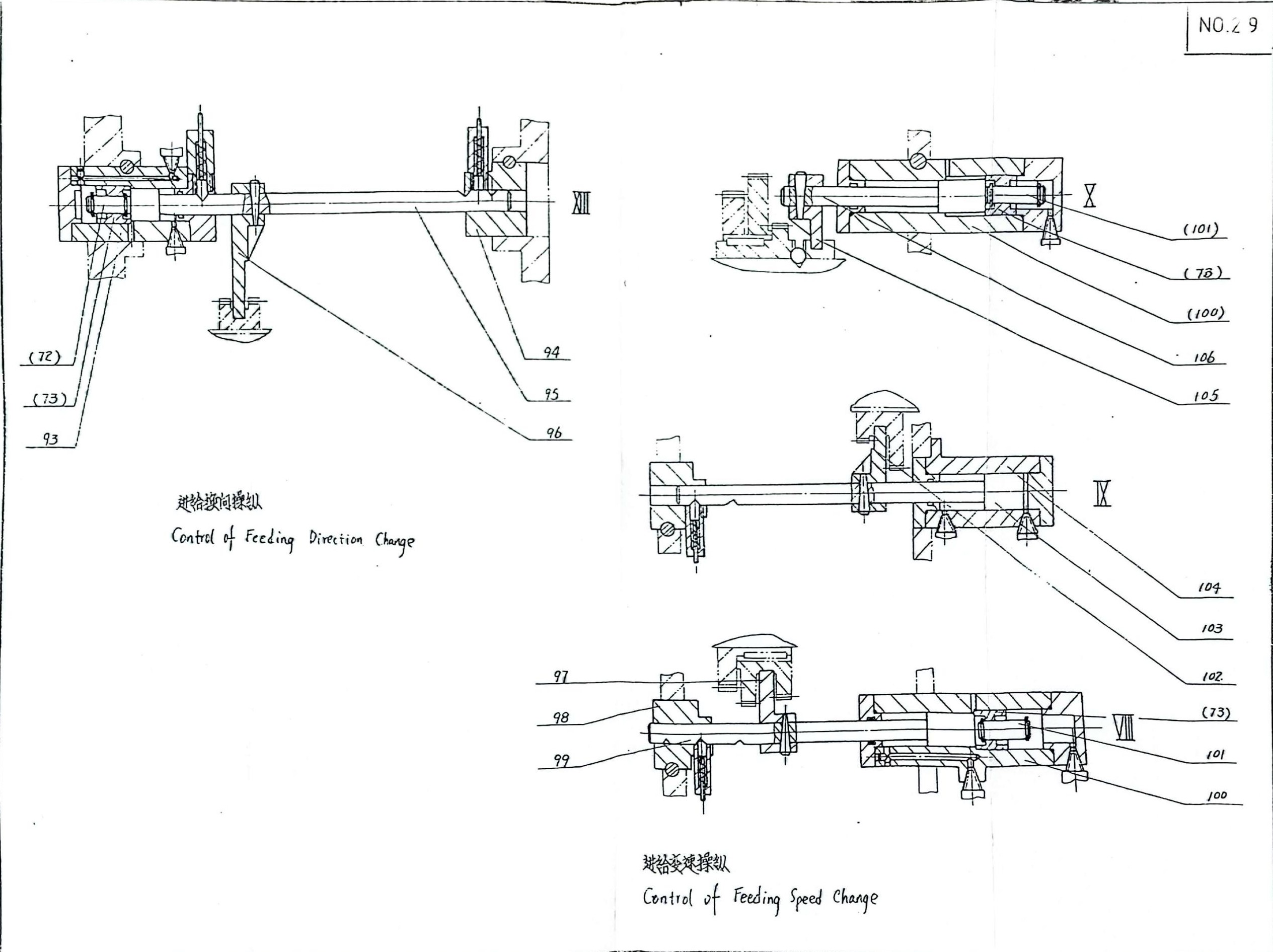

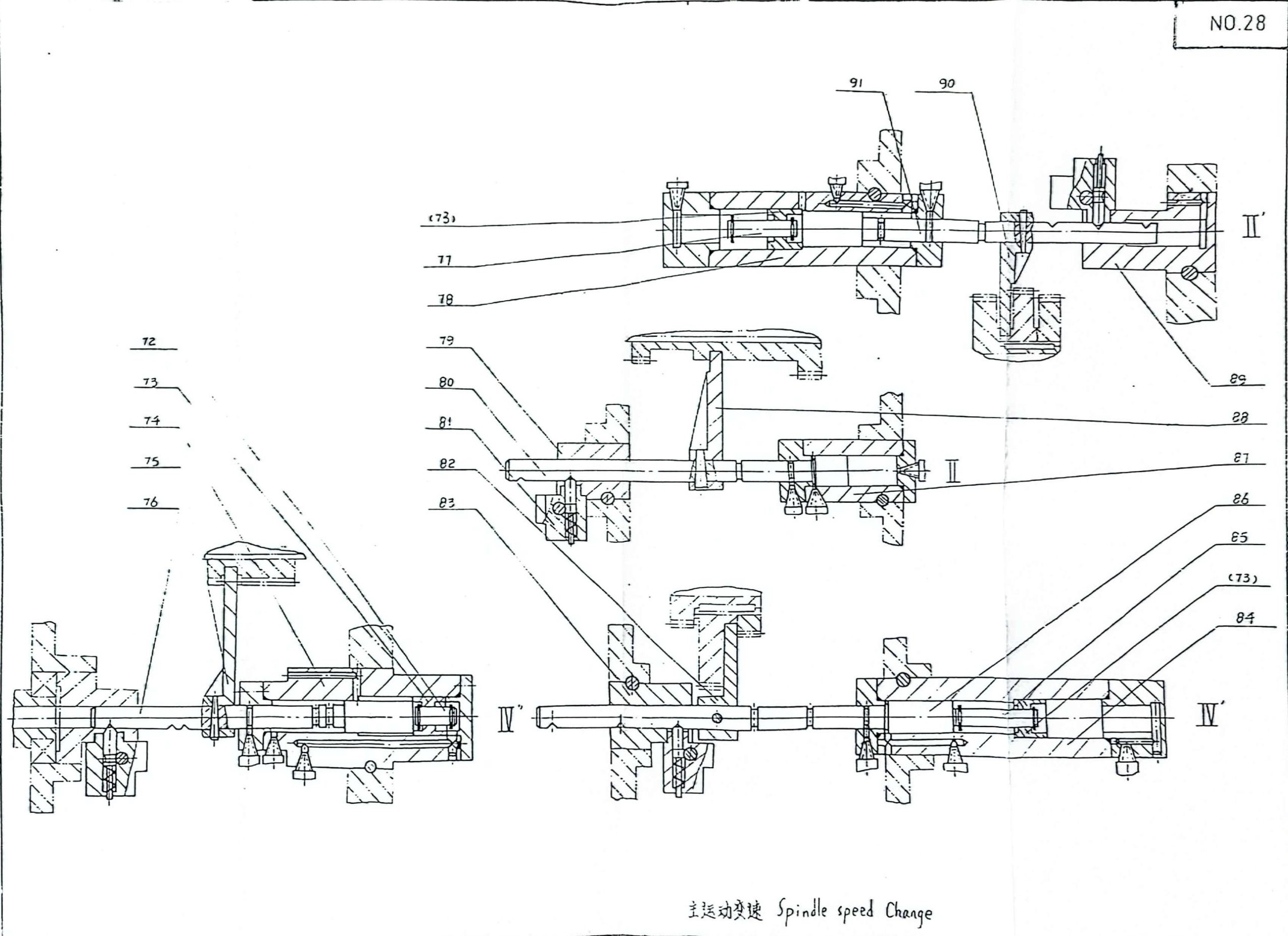

72T6113-22311活塞
piston		2
73T6113-24304A差动套
difference sleeve		6
74T6113-24123A油缸
oil cylinder		1
75T6113-24124拨叉
shifting fork		1
76T6113-24312A活塞杆
piston rod		1
77T6113-24303A活塞
piston		1
78T6113-24111A油缸
oil cylinder		1
79T6113-24113支承套
bearing sleeve		1
80T6113-24306活塞杆
piston rod		1
81T6113-24006定位装置
positioning device		4
82T6113-24116拨叉
shifting fork		1
83T6113-24117支承套
bearing sleeve		1
84T6113-24120A油缸
oil cylinder		1
85T6113-24310A活塞
piston		1
86T6113-24309A活塞杆
piston rod		1
87T6113-24115A油缸
oil cylinder		1
88T6113-24112拨叉
shifting fork		1
89T6113-24108支承套
bearing sleeve		1
90T6113-24109拨叉
shifting fork		1
91T6113-24305A活塞杆
piston rod		1
93T6113-24136A油缸
oil cylinder		1
94T6113-24139支承套
bearing sleeve		1
95T6113-24317A活塞杆
piston rod		1
96T6113-24135拨叉
shifting fork		1
97T6113-24133拨叉
shifting fork		1
98T6113-24134支承套
bearing sleeve		1
99T6113-24316A活塞杆
piston rod		1
100T6113-24125A油缸
oil cylinder		2
101T6113-24314A活塞
piston		2
102T6113-24129拨叉
shifting fork		1
103T6113-24135活塞杆
piston rod		1
104T6113-24130油缸
oil cylinder		1
105T6113-24127拨叉
shifting fork		1
106T6113-24313A活塞杆
piston rod		1

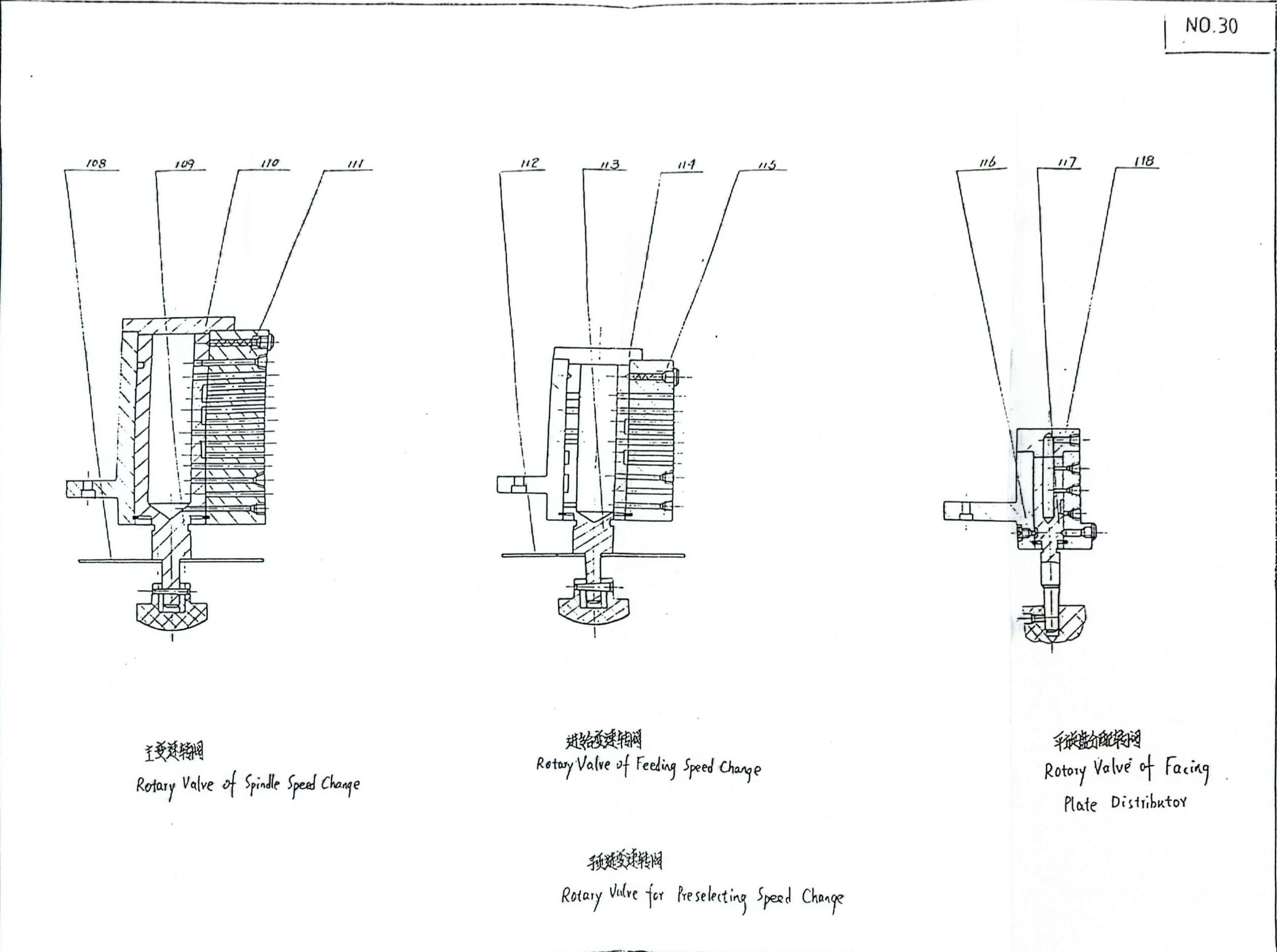

108TP6113-24851主变速标示牌
main speed change indicating plate		1
109T6113-24301主变速转阀芯
main speed change rotary valve core		1
110T6113-24101压盖
pressure cover		1
111T6113-24102主变速转阀体
main speed change rotary valve body		1
112TP6113-24853进给量标示牌
feed rate indicating plate		1
113T6113-24302进给量转阀芯
feed rate rotary valve core		1
114T6113-24105压盖
pressure cover		1
115T6113-24106进给量转阀体
feed rate rotary valve body		1
116TP6113-24202转阀体
rotary valve body		1
117TP6113-24401分配转阀芯
distributing rotary valve core		1
118TP6113-24203压盖
pressure cover		1

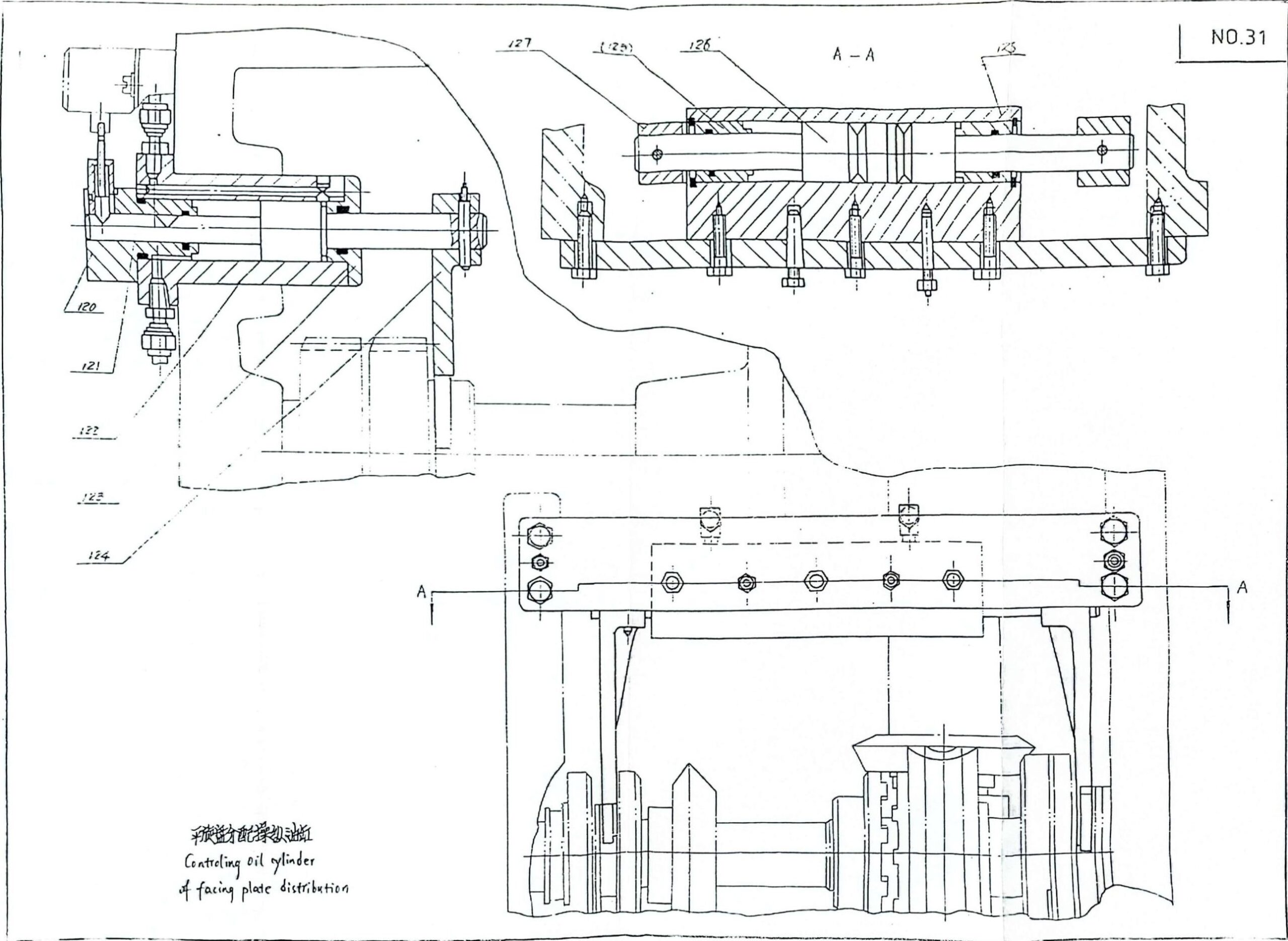

120TP6113-24207压盖
pressure cover		1
121TP6113-24403活塞杆
piston rod		1
122TP6113-24205油缸
oil cylinder		1
123TP6113-24206压盖
pressure cover		3
124TP6113-24204拨叉
shifting fork		1
125TP6113-24208油缸
oil cylinder		1
126TP6113-24404活塞杆
piston rod		1
127TP6113-24209拨叉
shifting fork		2

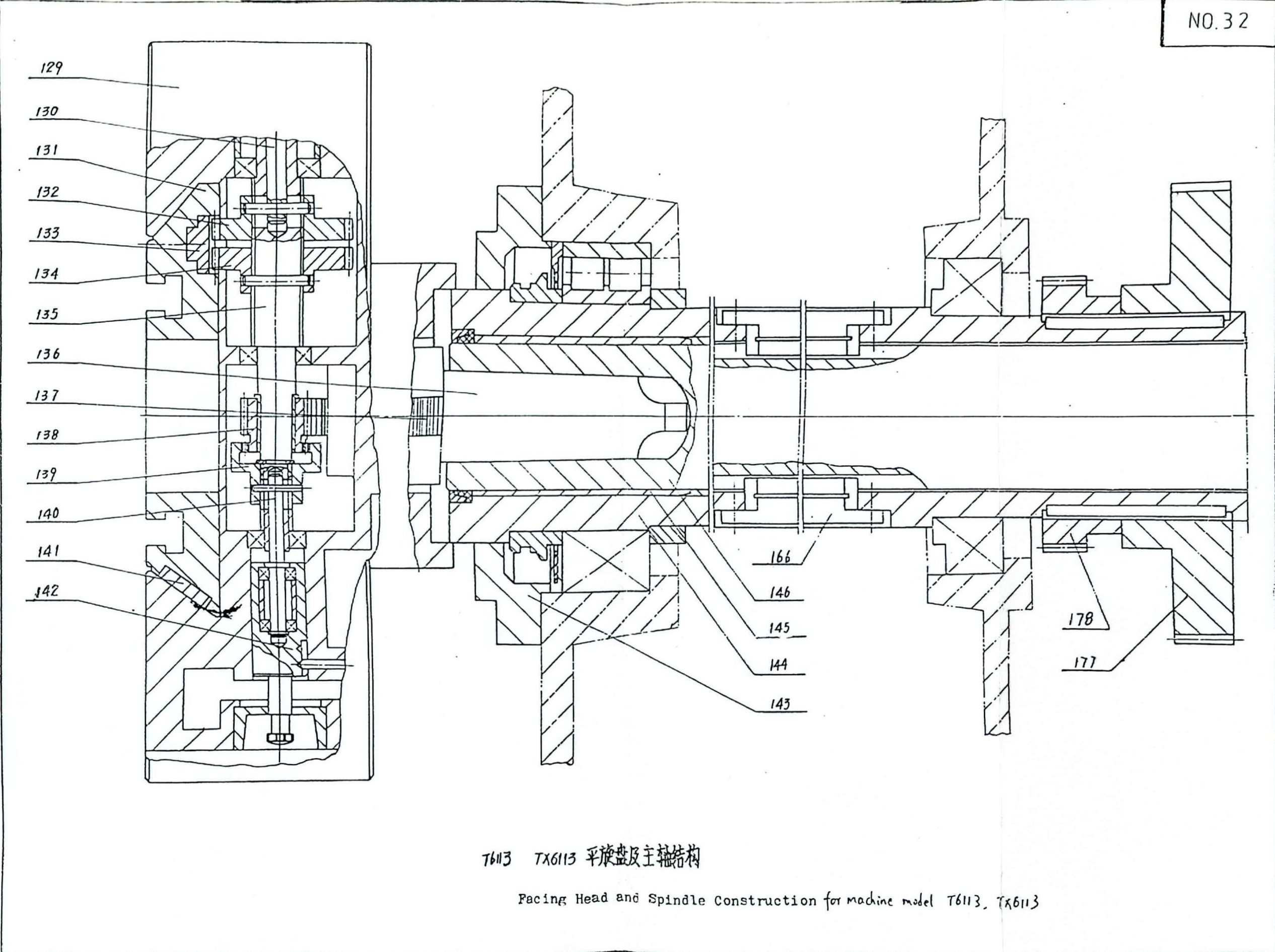

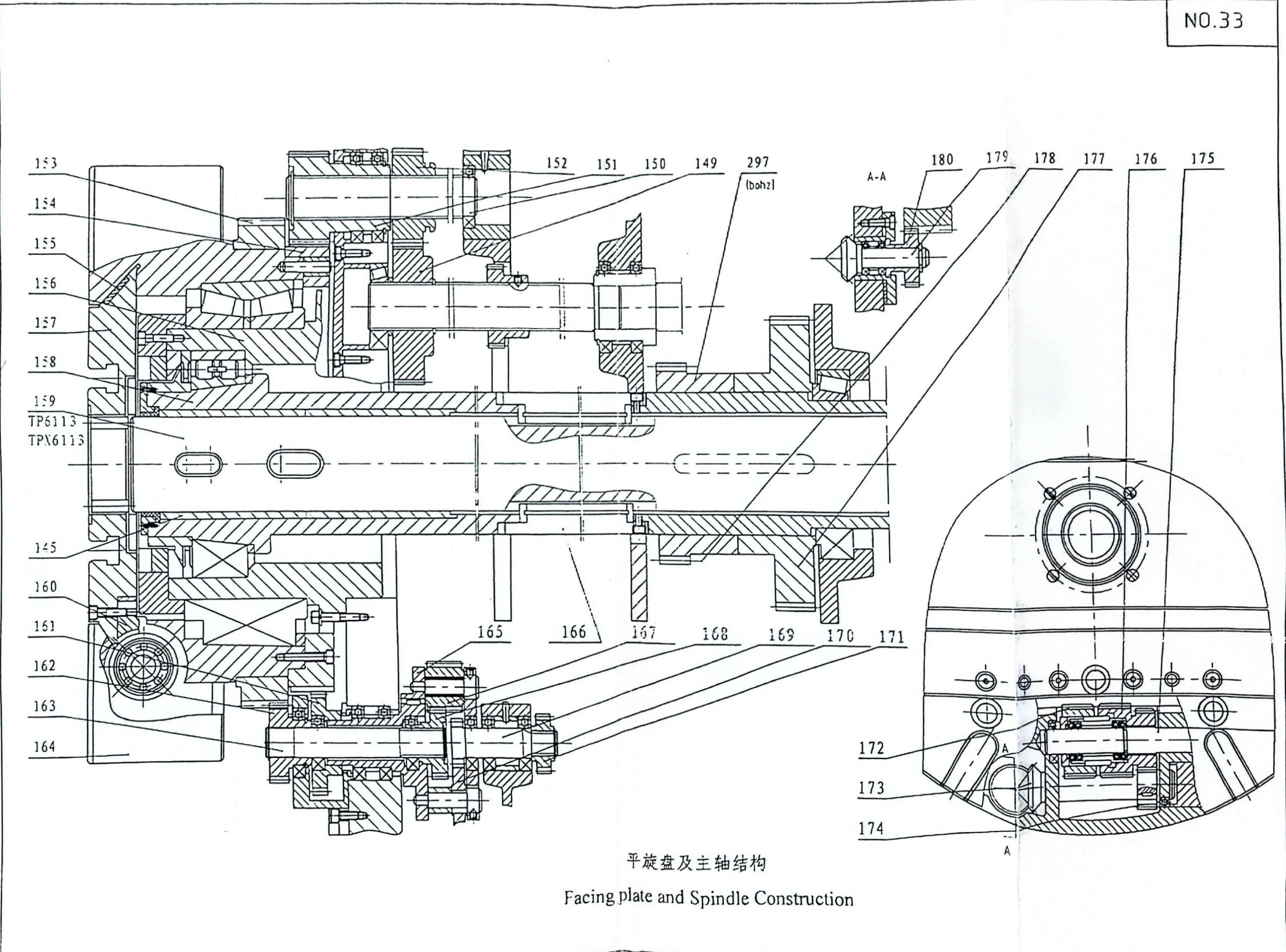

129T6113-26101平旋盘
face head		1
130T6113-26308推杆
push rod		1
131T6113-26102滑块
sliding block		1
132T6113-26310齿轮
gear		1
133T6113-26305齿条
rack		1
134T6113-26311齿轮
gear		1
135T6113-26312轴
shaft		1
136T6113-26321传动杆
traverse rod		1
137T6113-26322齿条
Rack		1
138T6113-26313齿轮
gear		1
139T6113-26315内齿轮
inner gear		1
140T6113-26316轴
shaft		1
141T6113-26103镶条
wedge gid		1
142T6113-26317定位轴
positioning shaft		1
143T6113-25304大法兰
big flange		1
144T6113-25302空心主轴
hollow spindle		1
145T6113-25309衬套
bush		3
146T6113-25301镗杆
boring bar		1

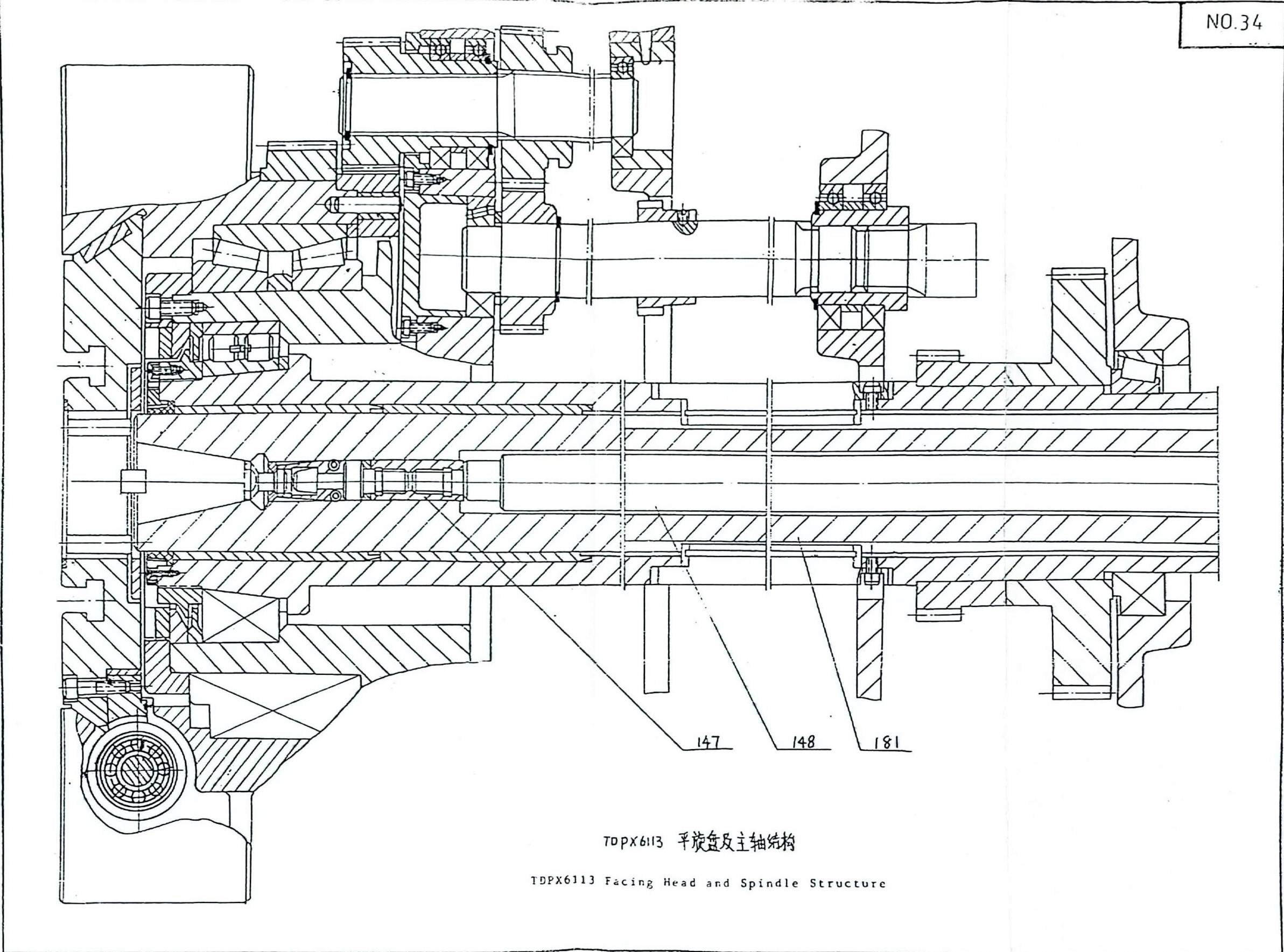

147TDPX6111B-25605联接套
clutch sleeve		1
148TDPX6113-29323拉刀杆
tool draw bar		1
149TP6113-26423齿轮
gear		6
150TP6113-26420轴
shaft		2
151TP6113-26419齿轮
gear		6
152TP6113-26422齿轮
gear		1
153TP6113-26417齿轮
gear		1
154TP6113-26418齿轮
gear		1
155TP6113-26852镶条
wedge gid		1
156TP6113-26401法兰
flange		1
157TP6113-26202滑块
sliding block		1
158TP6113-26402空心主轴
hollow spindle		1
159TP6113-25401镗杆
boring bar		1
TDPX6113-25411TPX6113/2
TP6113/4-25401TPX6113/4
160TP6113-26851螺母条
nut rack		1
161TP6113-26402齿轮
gear		1
162TP6113-26403齿轮
gear		1
163TP6113-26405轴
shaft		1
164TP6113-26201平旋盘体
face head body		1
165TP6113-26428转臂
rotary arm		1
166T6113-25310键
key		2
167TP6113-26426齿轮
gear		1
168TP6113-26431齿轮
gear		1
169TP6113-26433齿轮轴
gear shaft		1
170TP6113-26435齿轮
gear		1
171TP6113-26434齿轮
gear		1
172TP6113-26444螺杆
screw rod		1
173TP6113-26438圆锥齿轮
bevel gear		1
174TP6113-26446齿轮
gear		1
175TP6113-26453轴
shaft		1
176TP6113-26445齿轴螺杆
gear shaft screw rod		1
177T6113-25314齿轮
gear		1
178T6113-65317斜齿轮
helical gear		1
179TP6113-26454圆锥齿轮轴
bevel gear shaft		1
180TP6113-26459齿轮
gear		1
181TDPX6113-25411镗杆
boring bar		1
182T6113-27320齿轮
gear		1
183TP6113-27403滑移齿轮
sliding gear		1
184T6113-27317蜗轮
worm gear		1
185T6113-27802轴套
shaft sleeve		1
186T6113-27318滑移齿轮
sliding gear		1
187T6113-27313伞齿轮
bevel gear		1
188TP6113-27401滑移齿轮
sliding gear		1
189T6113-27312蜗轮轴
worm gear shaft		1
190T6113-27314伞齿轮
bevel gear		1
191T6113-27311A轴
shaft		1
192T6113-27307A齿轮
gear		1
193T6113-27309A齿轮
gear		1
194T6113-27303分配花键轴
distrbuting splined
shaft		1
195T6113-27306齿轮轴
gear shaft		1
196T6113-27308齿轮
gear		1
197T6113-27104手轮体
handwheel body		1
198T6113-27102套
sleeve		1
199T6113-27107大刻度盘
big dial		1
200T6113-27105罩
shroud		1
201T6113-27106微动刻度盘
fine adjustment dial		1
202T6113-27304手柄杆
lever rod		4
203T6113-27305内齿轮
inner gear		1
204T6113-27301双联齿轮
double cluster gear		1
205T6113-27327齿轮
gear		1
206T6113-27329轴
shaft		1
207T6113-27316小轴
small shaft		1
208T6113-27323活塞
piston		1
209T6113-27315拉杆
pull rod		1
210T6113-27117套
sleeve		1
211T6113-27115油缸体
oil cylinder body		1
212T6113-27319齿轮
gear		1
213TP6113-27402齿轮
gear		1
214T6113-27321轴
shaft		1

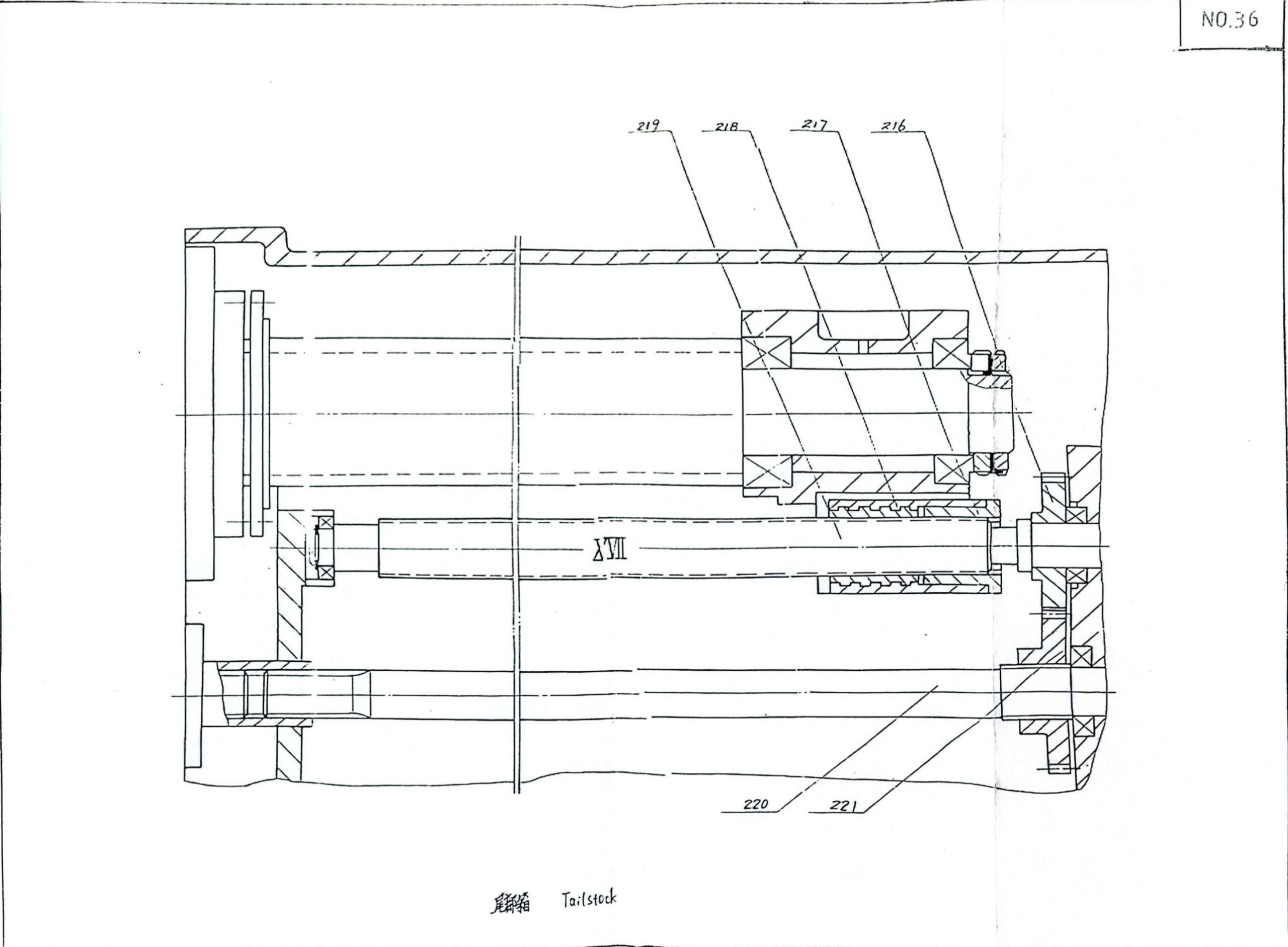

216T6113-29306齿轮
gear		1
217T6113-29803螺母
nut		1
218T6113-29305螺母
nut		1
219T6113-29301丝杠
lead screw		1
220T6113-29302光杠
feed rod		1
221T6113-29316齿轮
gear		1

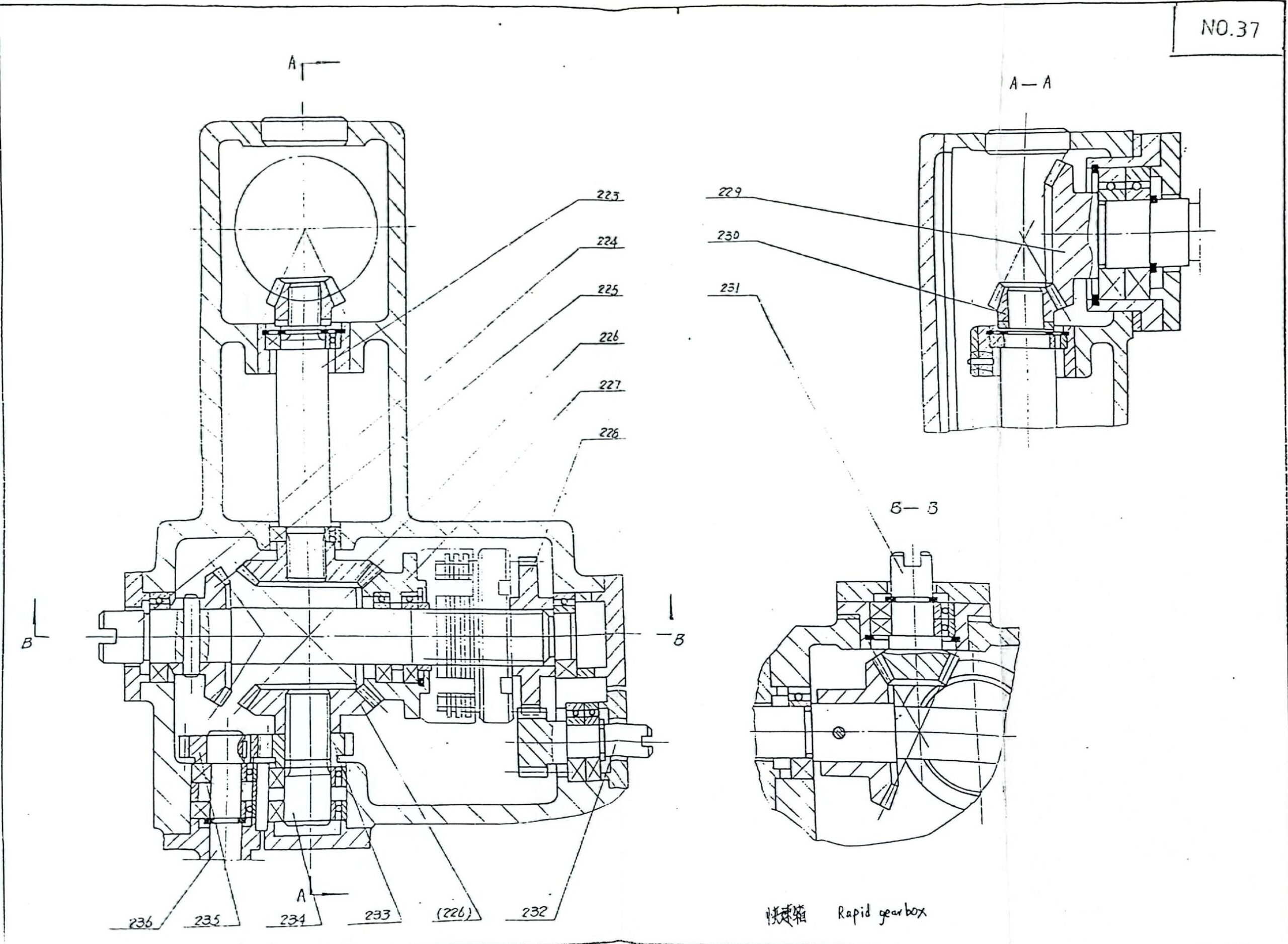

223T6113-10347轴
shaft		1
224T6113-10360轴
shaft		1
225T6113-10364圆锥齿轮
bevel gear		1
226T6113-10348圆锥齿轮
bevel gear		2
227T6113-10361圆锥齿轮
bevel gear		1
228T6113-10354齿轮
gear		1
229T6113-10343圆锥齿轮
bevel gear		1
230T6113-10344圆锥齿轮
bevel gear		1
231T6113-10365圆锥齿轮
bevel gear		1
232T6113-10355齿轮轴
gear shaft		1
233T6113-10349齿轮
gear		1
234TP6113-10350轴
shaft		1
235T6113-10378齿轮
gear		1
236T6113-10368轴
shaft		1
239T6113-10381齿轮
gear		1
240T6113-10380轴
shaft		1

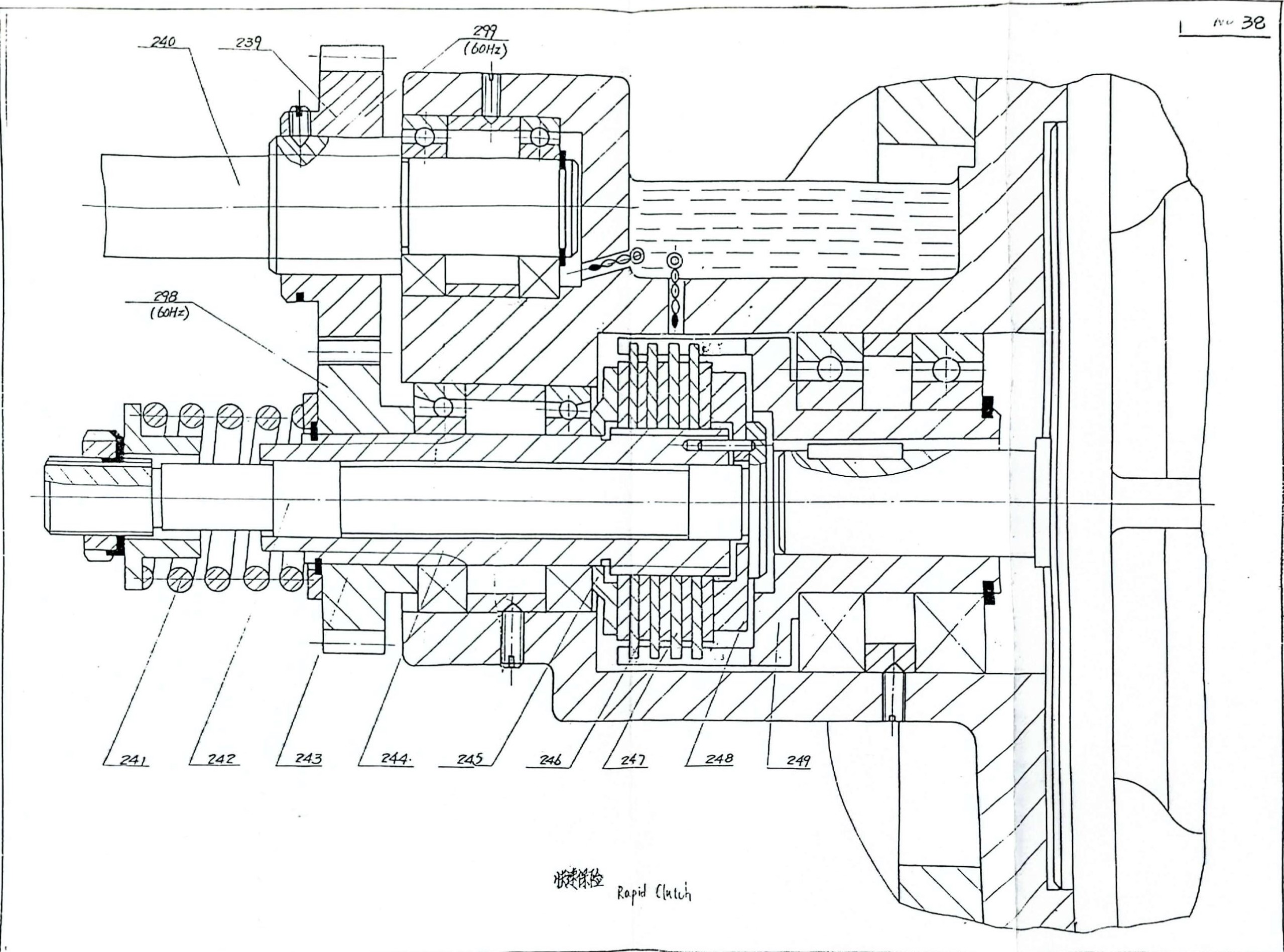

2418x55x75;Q81-1弹簧
spring		1
242T6113-10394轴
shaft		1
243T6113-10392齿轮
gear		1
244T6113-10391空心套
hollow sleeve		1
245T6113-10387压盖
pressure cover		1
24687;SZSC31-2内片
inner friction disc		5
247100;SZSC31-1外片
outer friction disc		4
248T6113-10386压盖
pressure cover		1
249T6113-10385外壳
outer housing		1

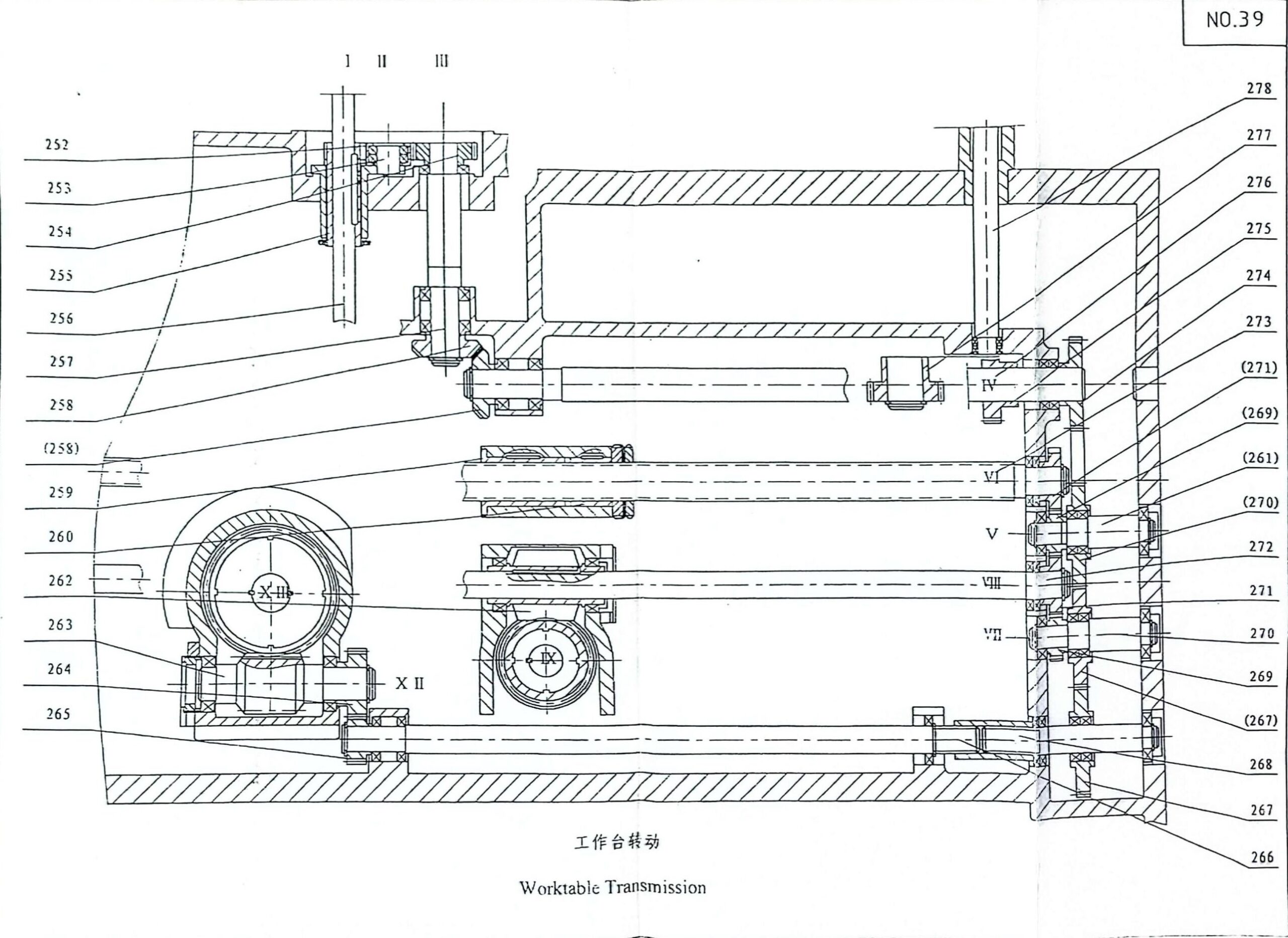

252T6113-30308齿轮
gear		1
253T6113-30309短轴
short shaft		1
254T6113-30311齿轮
gear		1
255T6113-30305齿轮套
gear sleeve		1
256T6113-10313水平光杠
horizontal feed rod		1
TPX6113/4-10303TPX6113/2 TPX6113/4
257T6113-30310轴
shaft		1
258T6113-30313圆锥齿轮
bevel gear		2
259T6113-30801B丝母
nut		1
260T6113-30802B可调丝母
adjustable nut		1
261T6113-30315丝母体
nut body		1
262T6113-30334蜗杆
worm		1
263T6113-30340蜗杆
worm		1
264T6113-30339齿轮
gear		1
265T6113-30338齿轮
gear		1
266TP6113-30330轴
shaft		1
TPX6113(X=2000)-30504TPX6113/4
267T6113-30324齿轮
gear		3
268T6113-30328轴
shaft		1
269T6113-30326齿轮
gear		2
270T6113-30325轴
shaft		2
271T6113-30322齿轮
gear		2
272T6113-30327传动杆
traverse rod		1
TPX6113(X=2000)-30503TPX6113/4
273T6113-30314丝杠
lead screw		1
TPX6113/2-30301TPX6113/2 TPX6113/4
274T6113-30321齿轮
gear		1
275T6113-30319螺旋齿轮
spiral gear		1
276TPX6113-30320轴
shaft		1
TPX6113(X=2000)-30502TPX6113/2 TPX6113/4
277T6113-30317螺旋齿轮
spiral gear		1
278T6113-30318轴
shaft		1

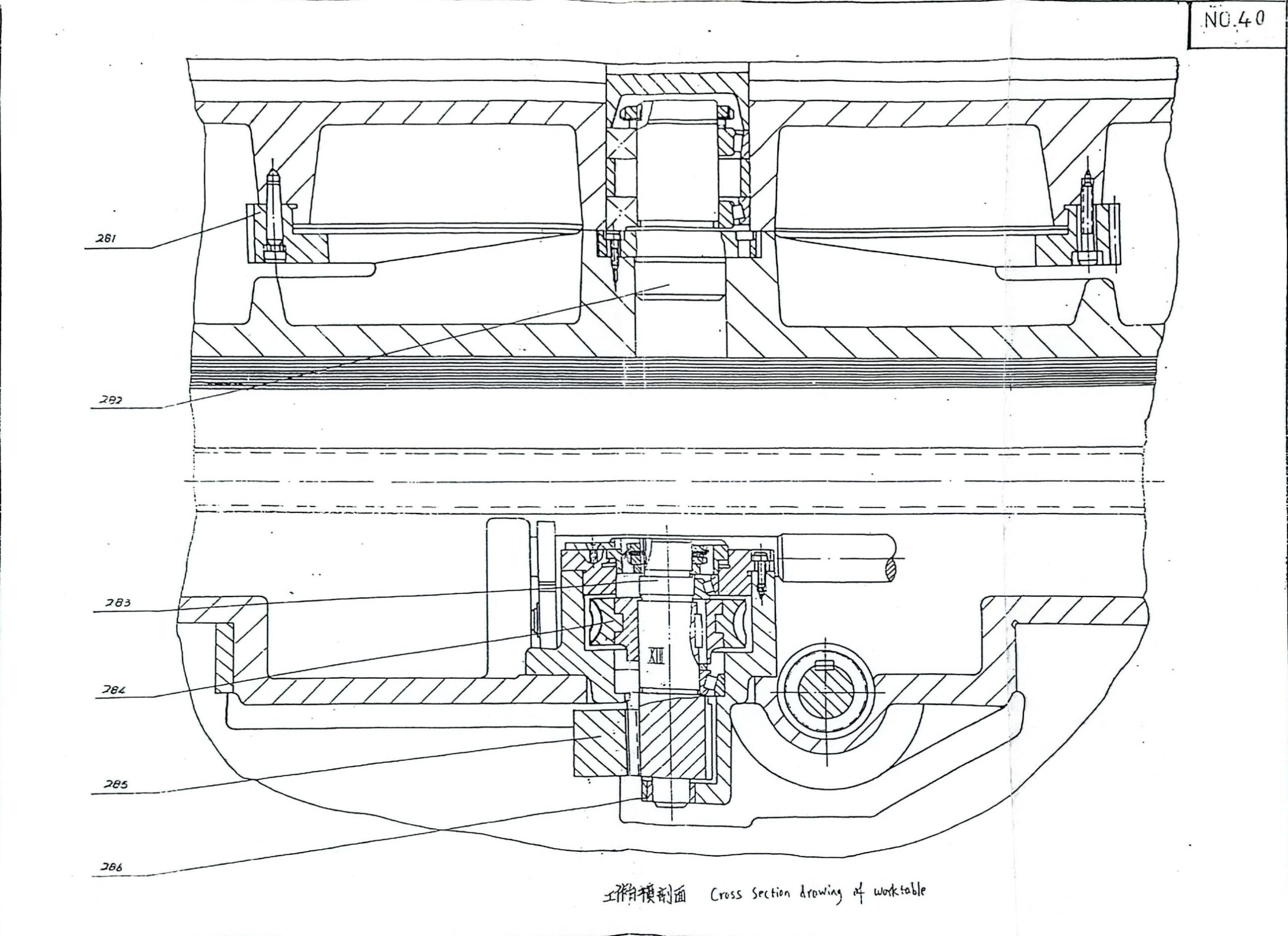

281T6113-30357大齿套
big sleeve with teeth		1
282TP6113-30356定心轴
centering shaft		1
TPX6113/2-30304TPX6113/2
283T6113-30366齿轮轴
gear shaft		1
284T6113-30365蜗轮
worm		1
285T6113-10332齿条
rack		1
286T6113-30803套
sleeve		1

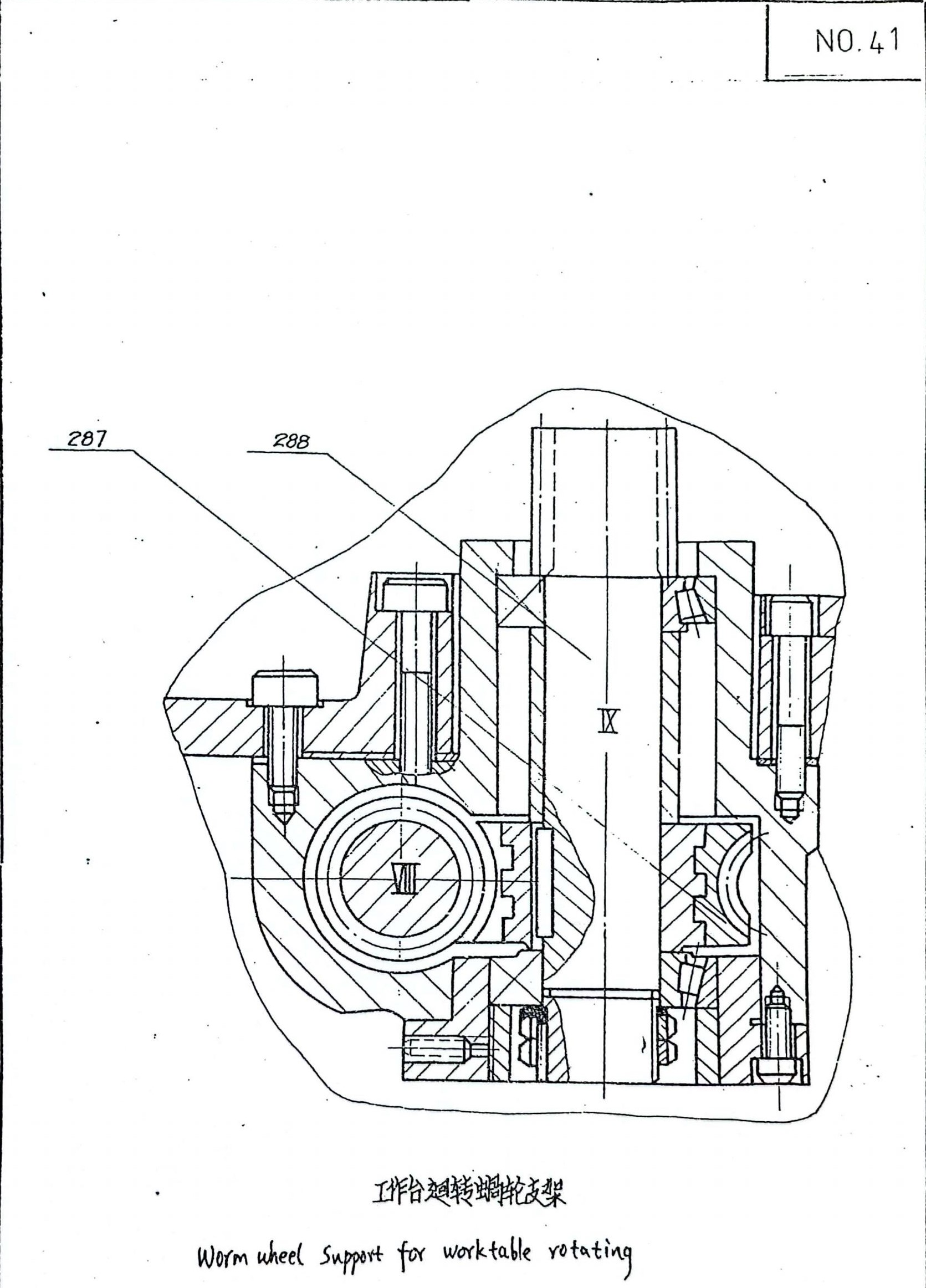

287T6113-30351蜗轮
worm gear		1
288T6113-30349齿轮轴
gear shaft		1
289T6113-28910齿轮
gear		1（60HZ用）
for 60HZ
290TPX6113-21505齿轮轴
gear shaft		1（60HZ用）
for 60HZ
291TPX6113-21506齿轮
gear		1（60HZ用）
for 60HZ
292TPX6113-21504齿轮
gear		1（60HZ用）
for 60HZ
293TPX6113-21501齿轮
gear		1（60HZ用）
for 60HZ
294TPX6113-21502齿轮
gear		1（60HZ用）
for 60HZ
295TPX6113-21503齿轮
gear		1（60HZ用）
for 60HZ
296TPX6113-21508齿轮
gear		1（60HZ用）
for 60HZ
297TPX6113-25501斜齿轮
helical gear		1（60HZ用）
for 60HZ
298TPX6113-10501齿轮
gear		1（60HZ用）
for 60HZ
299TPX6113-10502齿轮
gear		1（60HZ用）
for 60HZ

配件目录
List of Spare Parts		No.1
序号
Serial No.		件号或规格型号
Parts No.or Specification Type No.		配件名称
Name of Parts		每台数量
pcs. per set		备注
Remarks
1T6113-21326弹性圈
elastic ring		4
2T6113-21321I轴
shaft I		1
3T6113-21324齿轮
gear		1
4T6113-21323齿轮
gear		1
5T6113-21301齿轮
gear		1
6T6113-21302齿轮
gear		1
7T6113-21303齿轮
gear		1
8T6113-21322齿轮
gear		1
9T6113-21319II轴
shaft II		1
10T6113-21320A齿轮
gear		1
11T6113-21318A齿轮
gear		1
12T6113-21317A齿轮
gear		1
13T6113-21315III轴
shaft III		1
14T6113-21316齿轮
gear		1
15T6113-21309齿轮
gear		1
16T6113-21312A齿轮
gear		1
17T6113-21313B齿轮
gear		1
18T6113-21314B齿轮
gear		1
19T6113-21308A齿轮
gear		1
20T6113-21311AIV轴
shaft IV		1
21T6113-21306齿轮
gear		1
22T6113-21304V轴
shaft V		1
23T6113-21305齿轮
gear		1
24T6113-28901齿轮
gear		1

配件目录
List of Spare Parts		No.2
序号
Serial No.		件号或规格型号
Parts No.or Specification Type No.		配件名称
Name of Parts		每台数量
pcs. per set		备注
Remarks
26T6113-21350伞齿轮
bevel gear		1
27T6113-27328伞齿轮
bevel gear		1
28T6113-21341蜗杆
worm		1
29TP6113-21402蜗杆
worm		1
30T6113-21340伞齿轮
bevel gear		1
31T6113-21345调节螺母
control nut		1
32T6113-21337丝母
nut		1
33T6113-21338调节丝母
control nut		1
34T6113-10302垂直丝杠
vertical lead screw		1
TPX6113/2-10303TPX6113／2，TPX6113／4专用
35T6113-10301垂直光杠
vertical feed rod		1
TPX6113/2-10302TPX6113／2，TPX6113／4专用

配件目录
List of Spare Parts		No.3
序号
Serial No.		件号或规格型号
Parts No.or Specification Type No.		配件名称
Name of Parts		每台数量
pcs. per set		备注
Remarks
37T6113-22326齿轮
gear		1
38T6113-22327短轴
short shaft		1
39T6113-22324结合子套
clutch sleeve		1
40T6113-22330内齿轮
inner gear		2
41T6113-22329双联齿轮
double cluster gear		1
42T6113-22322结合子轴
clutch shaft		1
43T6113-22328螺杆
screw rod		1
44T6113-22319齿轮
gear		1
45T6113-21318齿轮
gear		1
46T6113-22320花键轴
splined shaft		1
47T6113-22317齿轮
gear		1
48T6113-22314齿轮
gear		1
49T6113-22316齿轮
gear		1
50T6113-22315光轴
shaft		1
51T6113-22332齿轮
gear		1
52T6113-22311齿轮
gear		1
53T6113-22312花键轴
splined shaft		1
54T6113-22313双联齿轮
double cluster gear		1
55T6113-22333齿轮
gear		1
56T6113-22305齿轮
gear		1
57T6113-22308花键轴
splined shaft		1
58T6113-22306齿轮
gear		1
59T6113-22334齿轮
gear		1
60T6113-22335齿轮
gear		1
61T6113-22303齿轮
gear		1
62T6113-22301花键轴
splined shaft		1
63T6113-22302齿轮
gear		1
64T6113-22307齿轮
gear		1
65T6113-22308花键轴
splined shaft		1
66T6113-22310齿轮
gear		1
67T6113-22309齿轮
gear		1
68T6113-22325结合子压盖
clutch pressure cover		1
69T6113-22323伞齿轮
bevel gear		1

配件目录
List of Spare Parts		No.4
序号
Serial No.		件号或规格型号
Parts No.or Specification Type No.		配件名称
Name of Parts		每台数量
pcs. per set		备注
Remarks
72T6113-22311活塞
piston		2
73T6113-24304A差动套
difference sleeve		6
74T6113-24123A油缸
oil cylinder		1
75T6113-24124拨叉
shifting fork		1
76T6113-24312A活塞杆
piston rod		1
77T6113-24303A活塞
piston		1
78T6113-24111A油缸
oil cylinder		1
79T6113-24113支承套
bearing sleeve		1
80T6113-24306活塞杆
piston rod		1
81T6113-24006定位装置
positioning device		4
82T6113-24116拨叉
shifting fork		1
83T6113-24117支承套
bearing sleeve		1
84T6113-24120A油缸
oil cylinder		1
85T6113-24310A活塞
piston		1
86T6113-24309A活塞杆
piston rod		1
87T6113-24115A油缸
oil cylinder		1
88T6113-24112拨叉
shifting fork		1
89T6113-24108支承套
bearing sleeve		1
90T6113-24109拨叉
shifting fork		1
91T6113-24305A活塞杆
piston rod		1

配件目录
List of Spare Parts		No.5
序号
Serial No.		件号或规格型号
Parts No.or Specification Type No.		配件名称
Name of Parts		每台数量
pcs. per set		备注
Remarks
93T6113-24136A油缸
oil cylinder		1
94T6113-24139支承套
bearing sleeve		1
95T6113-24317A活塞杆
piston rod		1
96T6113-24135拨叉
shifting fork		1
97T6113-24133拨叉
shifting fork		1
98T6113-24134支承套
bearing sleeve		1
99T6113-24316A活塞杆
piston rod		1
100T6113-24125A油缸
oil cylinder		2
101T6113-24314A活塞
piston		2
102T6113-24129拨叉
shifting fork		1
103T6113-24135活塞杆
piston rod		1
104T6113-24130油缸
oil cylinder		1
105T6113-24127拨叉
shifting fork		1
106T6113-24313A活塞杆
piston rod		1

配件目录
List of Spare Parts		No.6
序号
Serial No.		件号或规格型号
Parts No.or Specification Type No.		配件名称
Name of Parts		每台数量
pcs. per set		备注
Remarks
108TP6113-24851主变速标示牌
main speed change indicating plate		1
109T6113-24301主变速转阀芯
main speed change rotary valve core		1
110T6113-24101压盖
pressure cover		1
111T6113-24102主变速转阀体
main speed change rotary valve body		1
112TP6113-24853进给量标示牌
feed rate indicating plate		1
113T6113-24302进给量转阀芯
feed rate rotary valve core		1
114T6113-24105压盖
pressure cover		1
115T6113-24106进给量转阀体
feed rate rotary valve body		1
116TP6113-24202转阀体
rotary valve body		1
117TP6113-24401分配转阀芯
distributing rotary valve core		1
118TP6113-24203压盖
pressure cover		1

配件目录
List of Spare Parts		No.7
序号
Serial No.		件号或规格型号
Parts No.or Specification Type No.		配件名称
Name of Parts		每台数量
pcs. per set		备注
Remarks
120TP6113-24207压盖
pressure cover		1
121TP6113-24403活塞杆
piston rod		1
122TP6113-24205油缸
oil cylinder		1
123TP6113-24206压盖
pressure cover		3
124TP6113-24204拨叉
shifting fork		1
125TP6113-24208油缸
oil cylinder		1
126TP6113-24404活塞杆
piston rod		1
127TP6113-24209拨叉
shifting fork		2

配件目录
List of Spare Parts		No.9
序号
Serial No.		件号或规格型号
Parts No.or Specification Type No.		配件名称
Name of Parts		每台数量
pcs. per set		备注
Remarks
129T6113-26101平旋盘
face head		1
130T6113-26308推杆
push rod		1
131T6113-26102滑块
sliding block		1
132T6113-26310齿轮
gear		1
133T6113-26305齿条
rack		1
134T6113-26311齿轮
gear		1
135T6113-26312轴
shaft		1
136T6113-26321传动杆
traverse rod		1
137T6113-26322齿条
Rack		1
138T6113-26313齿轮
gear		1
139T6113-26315内齿轮
inner gear		1
140T6113-26316轴
shaft		1
141T6113-26103镶条
wedge gid		1
142T6113-26317定位轴
positioning shaft		1
143T6113-25304大法兰
big flange		1
144T6113-25302空心主轴
hollow spindle		1
145T6113-25309衬套
bush		3
146T6113-25301镗杆
boring bar		1
166T6113-25310键
key		2
177T6113-25314齿轮
gear		1
178T6113-65317斜齿轮
helical gear		1

配件目录
List of Spare Parts		No.9
序号
Serial No.		件号或规格型号
Parts No.or Specification Type No.		配件名称
Name of Parts		每台数量
pcs. per set		备注
Remarks
145T6113-25309衬套
bush		3
146T6113-25301镗杆
boring bar		1
147TDPX6111B-25605联接套
clutch sleeve		1
148TDPX6113-29323拉刀杆
tool draw bar		1
149TP6113-26423齿轮
gear		6
150TP6113-26420轴
shaft		2
151TP6113-26419齿轮
gear		6
152TP6113-26422齿轮
gear		1
153TP6113-26417齿轮
gear		1
154TP6113-26418齿轮
gear		1
155TP6113-26852镶条
wedge gid		1
156TP6113-26401法兰
flange		1
157TP6113-26202滑块
sliding block		1
158TP6113-26402空心主轴
hollow spindle		1
159TP6113-25401镗杆
boring bar		1
TDPX6113-25411TPX6113/2
TP6113/4-25401TPX6113/4
160TP6113-26851螺母条
nut rack		1
161TP6113-26402齿轮
gear		1
162TP6113-26403齿轮
gear		1
163TP6113-26405轴
shaft		1
164TP6113-26201平旋盘体
face head body		1
165TP6113-26428转臂
rotary arm		1
166T6113-25310键
key		2
167TP6113-26426齿轮
gear		1
168TP6113-26431齿轮
gear		1
169TP6113-26433齿轮轴
gear shaft		1
170TP6113-26435齿轮
gear		1
171TP6113-26434齿轮
gear		1
172TP6113-26444螺杆
screw rod		1
173TP6113-26438圆锥齿轮
bevel gear		1
174TP6113-26446齿轮
gear		1
175TP6113-26453轴
shaft		1
176TP6113-26445齿轴螺杆
gear shaft screw rod		1
177T6113-25314齿轮
gear		1
178T6113-65317斜齿轮
helical gear		1
179TP6113-26454圆锥齿轮轴
bevel gear shaft		1
180TP6113-26459齿轮
gear		1
297TPX6113-25501斜齿轮
helical gear		1（60HZ用）
for 60HZ

配件目录
List of Spare Parts		No.10
序号
Serial No.		件号或规格型号
Parts No.or Specification Type No.		配件名称
Name of Parts		每台数量
pcs. per set		备注
Remarks
147TDPX6111B-25605联接套
clutch sleeve		1
148TDPX6113-29323拉刀杆
tool draw bar		1
181TDPX6113-25411镗杆
boring bar		1

配件目录
List of Spare Parts		No.11
序号
Serial No.		件号或规格型号
Parts No.or Specification Type No.		配件名称
Name of Parts		每台数量
pcs. per set		备注
Remarks
216T6113-29306齿轮
gear		1
217T6113-29803螺母
nut		1
218T6113-29305螺母
nut		1
219T6113-29301丝杠
lead screw		1
220T6113-29302光杠
feed rod		1
221T6113-29316齿轮
gear		1

配件目录
List of Spare Parts		No.12
序号
Serial No.		件号或规格型号
Parts No.or Specification Type No.		配件名称
Name of Parts		每台数量
pcs. per set		备注
Remarks
223T6113-10347轴
shaft		1
224T6113-10360轴
shaft		1
225T6113-10364圆锥齿轮
bevel gear		1
226T6113-10348圆锥齿轮
bevel gear		2
227T6113-10361圆锥齿轮
bevel gear		1
228T6113-10354齿轮
gear		1
229T6113-10343圆锥齿轮
bevel gear		1
230T6113-10344圆锥齿轮
bevel gear		1
231T6113-10365圆锥齿轮
bevel gear		1
232T6113-10355齿轮轴
gear shaft		1
233T6113-10349齿轮
gear		1
234TP6113-10350轴
shaft		1
235T6113-10378齿轮
gear		1
236T6113-10368轴
shaft		1

配件目录
List of Spare Parts		No.13
序号
Serial No.		件号或规格型号
Parts No.or Specification Type No.		配件名称
Name of Parts		每台数量
pcs. per set		备注
Remarks
239T6113-10381齿轮
gear		1
240T6113-10380轴
shaft		1
2418x55x75;Q81-1弹簧
spring		1
242T6113-10394轴
shaft		1
243T6113-10392齿轮
gear		1
244T6113-10391空心套
hollow sleeve		1
245T6113-10387压盖
pressure cover		1
24687;SZSC31-2内片
inner friction disc		5
247100;SZSC31-1外片
outer friction disc		4
248T6113-10386压盖
pressure cover		1
249T6113-10385外壳
outer housing		1
298TPX6113-10501齿轮
gear		1（60HZ用）
for 60HZ
299TPX6113-10502齿轮
gear		1（60HZ用）
for 60HZ

配件目录
List of Spare Parts		No.14
序号
Serial No.		件号或规格型号
Parts No.or Specification Type No.		配件名称
Name of Parts		每台数量
pcs. per set		备注
Remarks
252T6113-30308齿轮
gear		1
253T6113-30309短轴
short shaft		1
254T6113-30311齿轮
gear		1
255T6113-30305齿轮套
gear sleeve		1
256T6113-10313水平光杠
horizontal feed rod		1
TPX6113/4-10303TPX6113/2 TPX6113/4
257T6113-30310轴
shaft		1
258T6113-30313圆锥齿轮
bevel gear		2
259T6113-30801B丝母
nut		1
260T6113-30802B可调丝母
adjustable nut		1
261T6113-30315丝母体
nut body		1
262T6113-30334蜗杆
worm		1
263T6113-30340蜗杆
worm		1
264T6113-30339齿轮
gear		1
265T6113-30338齿轮
gear		1
266TP6113-30330轴
shaft		1
TPX6113(X=2000)-30504TPX6113/4
267T6113-30324齿轮
gear		3
268T6113-30328轴
shaft		1
269T6113-30326齿轮
gear		2
270T6113-30325轴
shaft		2
271T6113-30322齿轮
gear		2
272T6113-30327传动杆
traverse rod		1
TPX6113(X=2000)-30503TPX6113/4
273T6113-30314丝杠
lead screw		1
TPX6113/2-30301TPX6113/2 TPX6113/4
274T6113-30321齿轮
gear		1
275T6113-30319螺旋齿轮
spiral gear		1
276TPX6113-30320轴
shaft		1
TPX6113(X=2000)-30502TPX6113/2 TPX6113/4
277T6113-30317螺旋齿轮
spiral gear		1
278T6113-30318轴
shaft		1

配件目录
List of Spare Parts		No.15
序号
Serial No.		件号或规格型号
Parts No.or Specification Type No.		配件名称
Name of Parts		每台数量
pcs. per set		备注
Remarks
281T6113-30357大齿套
big sleeve with teeth		1
282TP6113-30356定心轴
centering shaft		1
TPX6113/2-30304TPX6113/2
283T6113-30366齿轮轴
gear shaft		1
284T6113-30365蜗轮
worm		1
285T6113-10332齿条
rack		1
286T6113-30803套
sleeve		1

配件目录
List of Spare Parts		No.16
序号
Serial No.		件号或规格型号
Parts No.or Specification Type No.		配件名称
Name of Parts		每台数量
pcs. per set		备注
Remarks
287T6113-30351蜗轮
worm gear		1
288T6113-30349齿轮轴
gear shaft		1

Resources & Downloads

TPX6113 List of Spare Parts

File size: 13.55 MB
Created: 30-08-2024
Updated: 30-08-2024
Hits: 96
Download Preview

SMTCL TPX Series Horizontal Boring and Milling Machine Catalog

File size: 1.90 MB
Created: 04-07-2024
Updated: 04-07-2024
Hits: 351
Download Preview
Recommended Related Products
If needed, please contact us for further selection

Recommended Related Products

Load More
Need help finding a machine?
We will gladly assist you in making the right decision to achieve your business goals
Get a free Consultation
