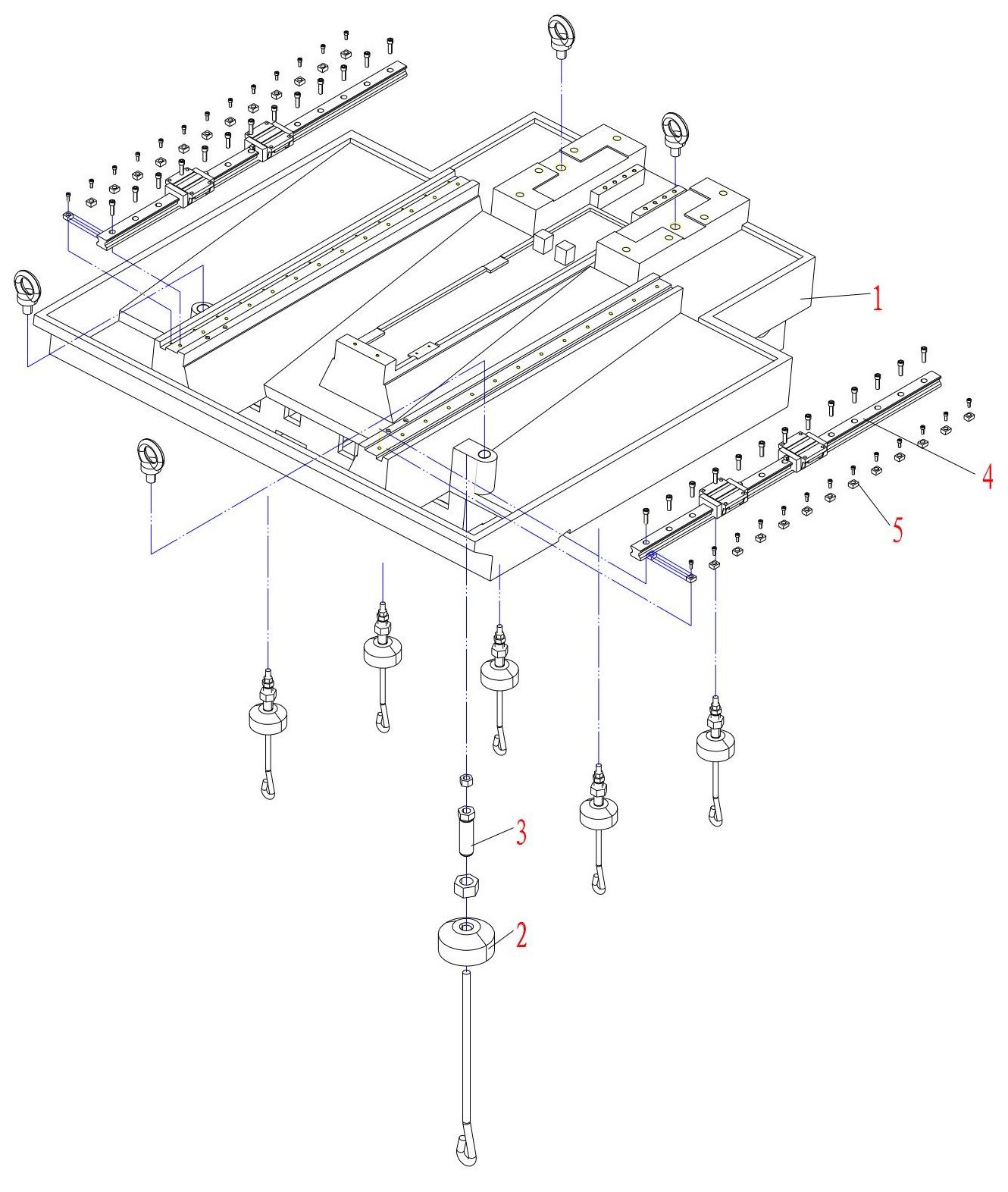

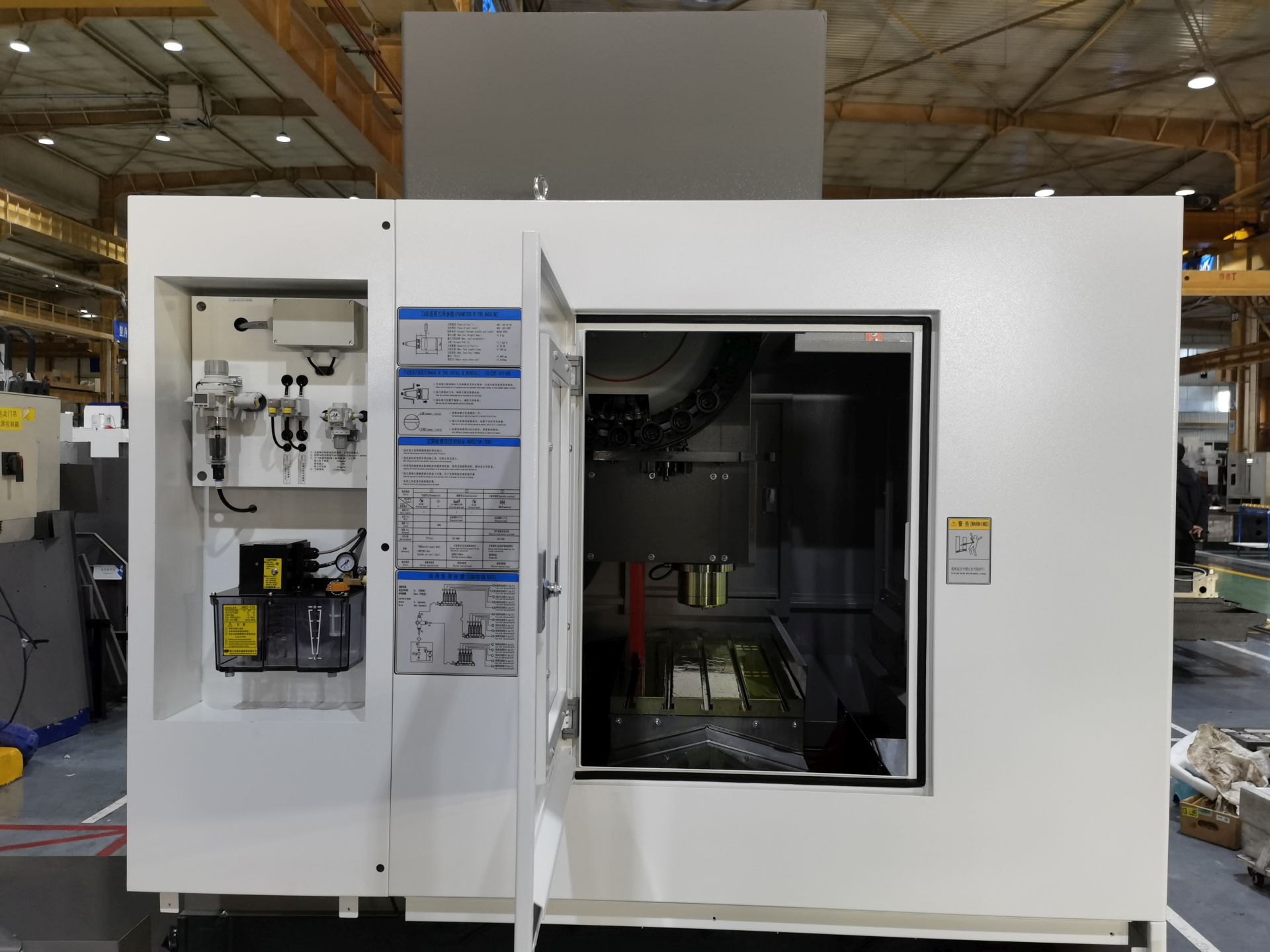

床 身 装 配
Bed assembly
图上序号
Position No		件 号
Part No		名 称
Description		数 量
Q’ty		备 注
Remarks
1 71011 床 身
Bed		1
2 VMC850-71012地脚垫
Base pad		6
3 VMC850-71301空心螺钉
Hollow screw		6
4 VMC850-371302直线导轨
Linear guideway		1
5VMC850-41301压块
Hold-down		26

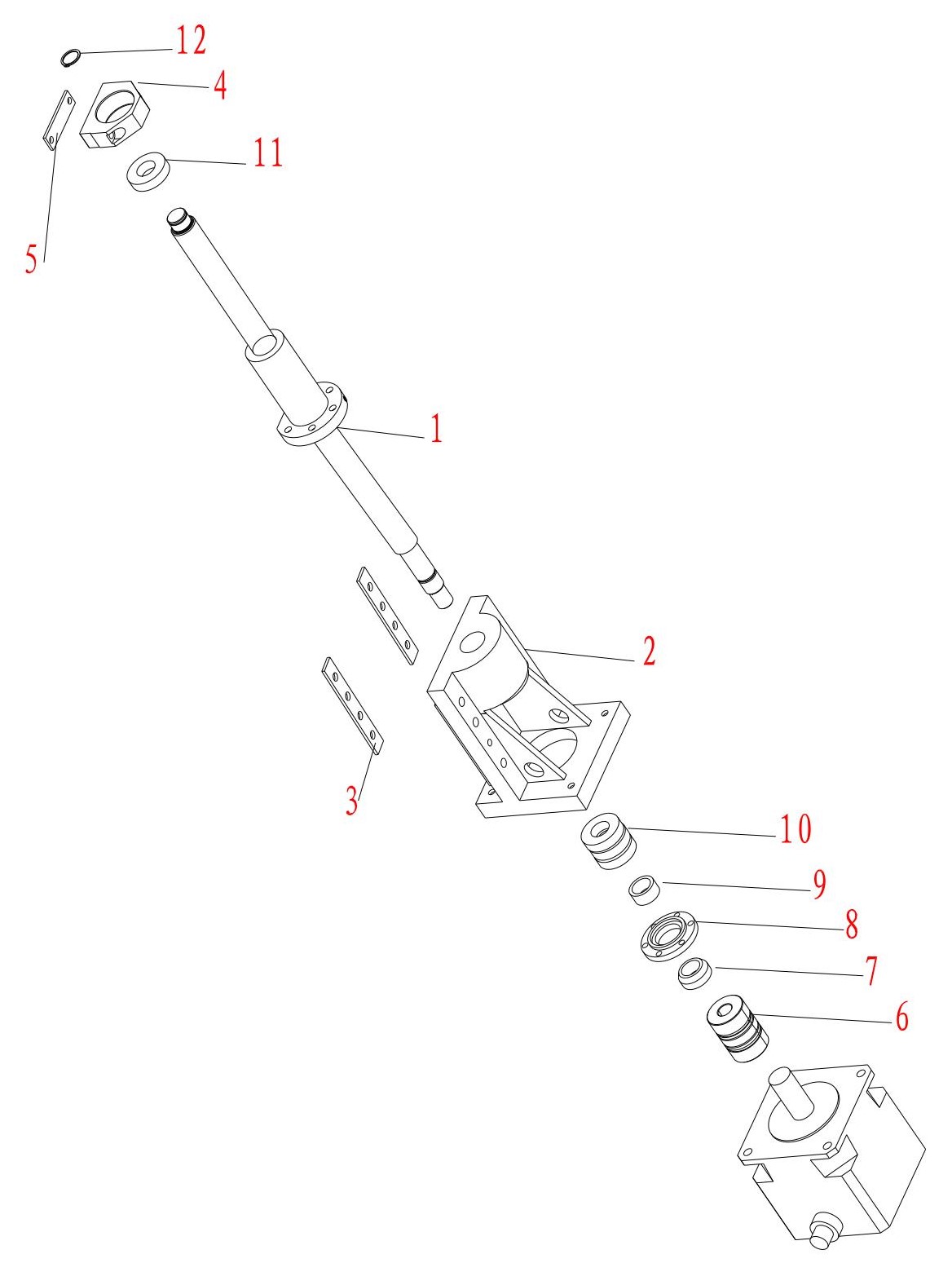

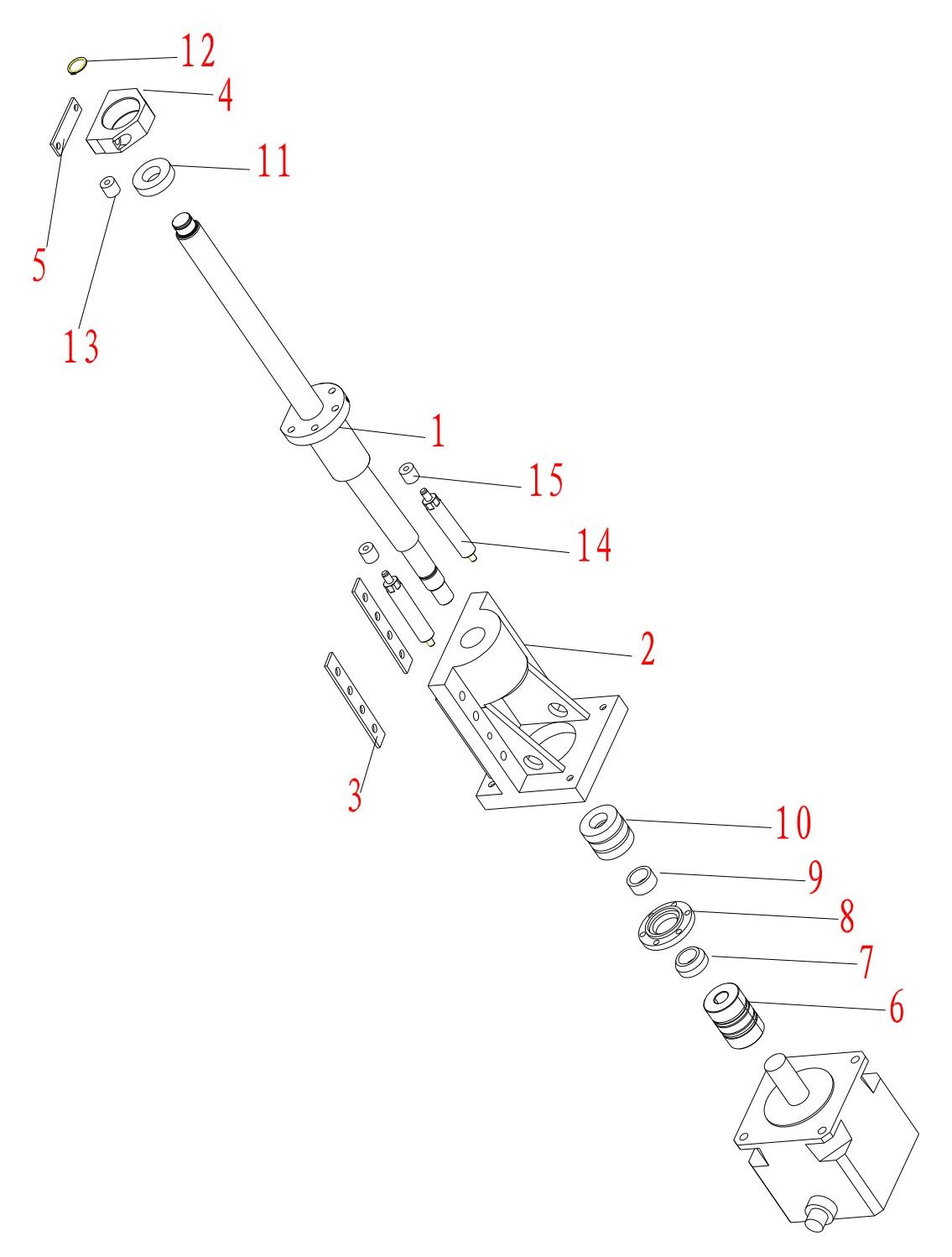

Y 轴 拖 动 装 配
Y axis driven assembly
图上序号
Position No		件号
Part No		名 称
Description		数 量
Q’ty		备 注
Remarks
1 72301A丝 杠
Ball screw		1 PMI
2 VMC850E-72011A电 机 座
Motor seat		1
3 VMC850E-42304调 整 垫
Adjusting pad		2
4 VMC850-42012轴 承 座
Bearing seat		1
5 VMC850-42307调 整 垫
Adjusting pad		1
6 RJ/28/28/90(D25-D35)联 轴 器
coupling		1
7 SWLN06-M30X1.5螺 帽
Screw cap		1 YHB
8 VMC850E-42302压 盖
gland		1
9 VMC850E-42303套
sleeve		1
10 BST30X62-1BP4高精度径向推力球轴承
High precision angular ball bearing		3 NTN
11 6206ZZCM单列深沟球轴承
Single row ball bearing		1 NTN
12 GB/T894.1-1986 30轴用弹性挡圈-A 型
Axial elastic baffle ring		1

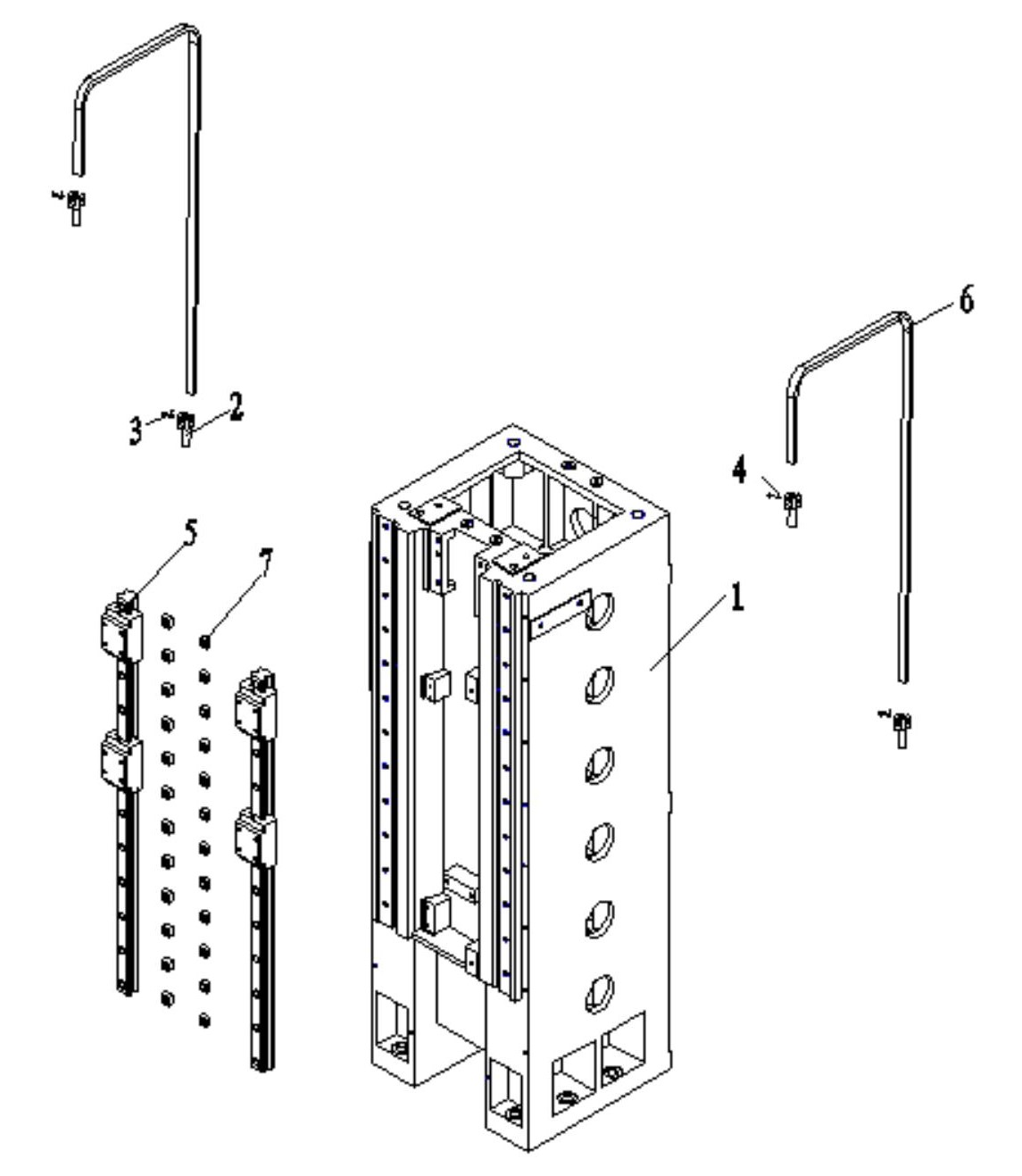

立 柱 装 配
Column assembly
图上序号
Position No		件号
Part No		名 称
Description		数 量
Q’ty		备 注
Remarks
1 51011B立 柱
column		1
2 VMC850-54304链夹
Fixing part of chain		4
3 GB/T882-1986
B-6X40		销轴
Pivot		4
4 GB/T91-2000
3.2X16		开口销
Cotter pin		1
5 51301 直线导轨
Linear guide way		1
6 RLBL444-115多板起重链
Hoisting chain		2
7VMC850-41301压块
Hold-down		24

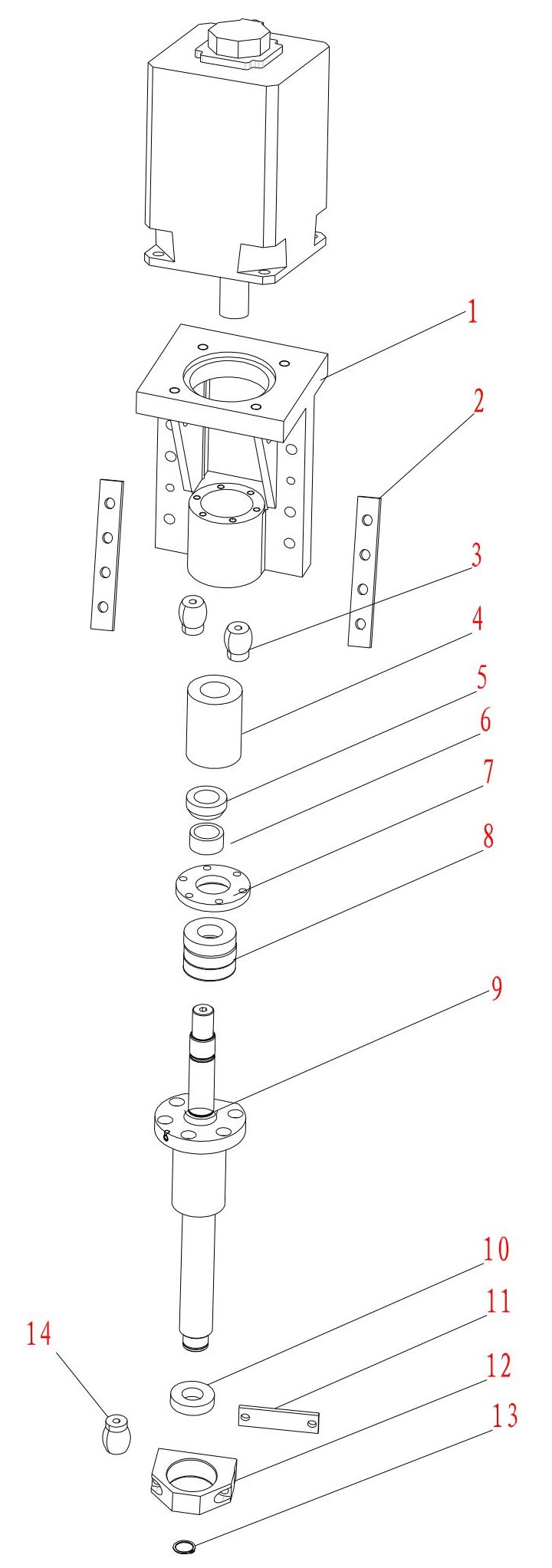

Z 轴 拖 动 装 配
Z axis driven assembly
图上序号
Position No		件号
Part No		名 称
Description		数 量
Q’ty		备 注
Remarks
1 VMC850E-72011A电 机 座
Motor seat		1
2 VMC850E-42304调整垫
Adjusting pad		2
3 VMC850E-41902撞 块
stopper		2
4 RJ/28/28/90(D25-D35)联 轴 器
coupling		1
5 SWLN06-M30X1.5螺 帽
Screw cap		1 YHB
6 VMC850E-42303套
sleeve		1
7 VMC850E-42302压 盖
Gland		1
8 BST30X62-1BP4推力球轴承
High precision angular ball bearing		3 NTN
9 52301A丝 杠
Ball screw		1 PMI
10 6206ZZCM单列深沟球轴承
Single row ball bearing		1
11 VMC850-42307调整垫
Adjusting pad		1
12 VMC850-42012轴承座
Bearing seat		1
13 GB/T894.1-1986
30		轴用弹性挡圈-A 型
Axial elastic baffle ring		1
14 VMC1100-A52901撞 块
stopper		1

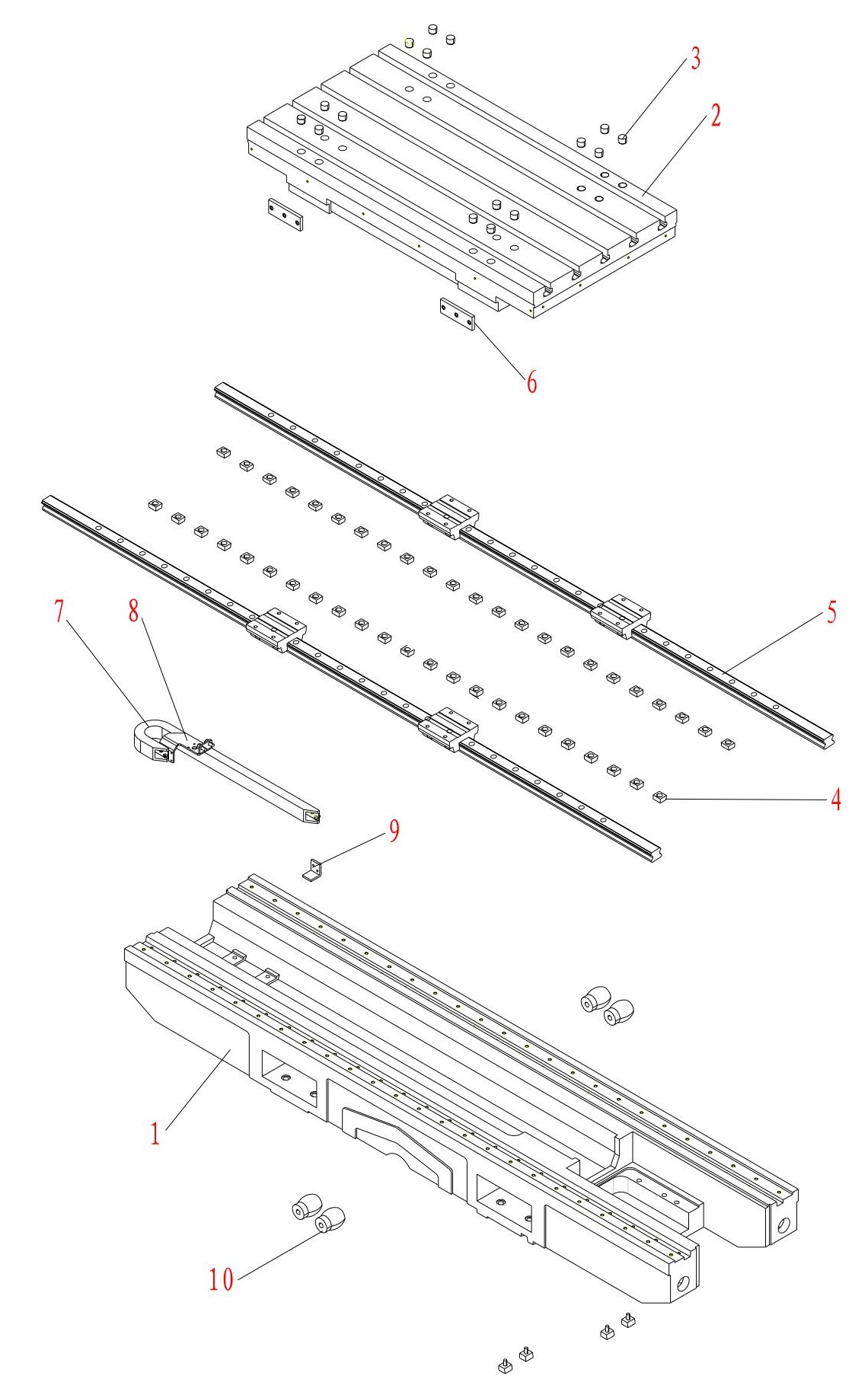

工 作 台 及 滑 座 装 配
Table and slide assembly
图上序号
Position No		件号
Part No		名 称
Description		数 量
Q’ty		备 注
Remarks
1341011滑座
Slide		1
2VMC850B-341012工作台
Table		1VMC850B
VMC1000B-341012工作台
Table		1VMC1000B
VMC1100B-341012工作台
Table		1VMC1100B
3FCG-20防尘盖
Dust Shield		16
4VMC850-41301压块
Hold-down		50
5VMC850B-41301直线导轨
Linear Guideway		1VMC850B
VMC1000B-41301直线导轨
Linear Guideway		1VMC1000B
VMC1100B
6VMC850-41305压板
Press Plate		2
7JL15.25R38-1000 (30 节)拖链
Cable Carrier		1
884302AX 轴拖链支架 2
X Axis Cable Carrier Holder 2		1
984303BX 轴拖链支架 1
X Axis Cable Carrier Holder 1		1
10VMC850E-41901撞块
Stopper		4

X 轴 拖 动 装 配
X axis driven assembly
图上序号
Position No		 件号
Part No		名 称
Description		数 量
Q’ty		备 注
Remarks
1 VMC850B-42301A丝 杠
Ball screw		1 VMC850B
VMC1000B-42301A丝 杠
Ball screw		1 VMC1000B
VMC1100B
2 VMC850E-72011A电 机 座
Motor seat		1
3 VMC850E-42304调整垫
Adjusting pad		2
4 VMC850-42012轴承座
Bearing seat		1
5 VMC850-42307调整垫
Adjusting pad		1
6 RJ/28/28/90(D25-D35)联 轴 器
coupling		1
7 SWLN06-M30X1.5螺 帽
Screw cap		1 YHB
8 VMC850E-42302压 盖
Gland		1
9 VMC850E-42303套
sleeve		1
10 BST30X62-1BP4推力球轴承
High precision angular ball bearing		3 NTN
11 6206ZZCM单列深沟球轴承
Single row ball bearing		1 NTN
12 GB/T894.1-1986 30轴用弹性挡圈-A 型
Axial elastic baffle ring		1
13 VMC850E-41902撞 块
stopper		1
14 VMC850B-342301
VMC1000B-342301		撞 块 座
Stopper seat		2 VMC850B
VMC1000B
15 VMC850-42901
VMC850E-41902		撞 块
stopper		2 VMC850B
VMC1000B
VMC1100B

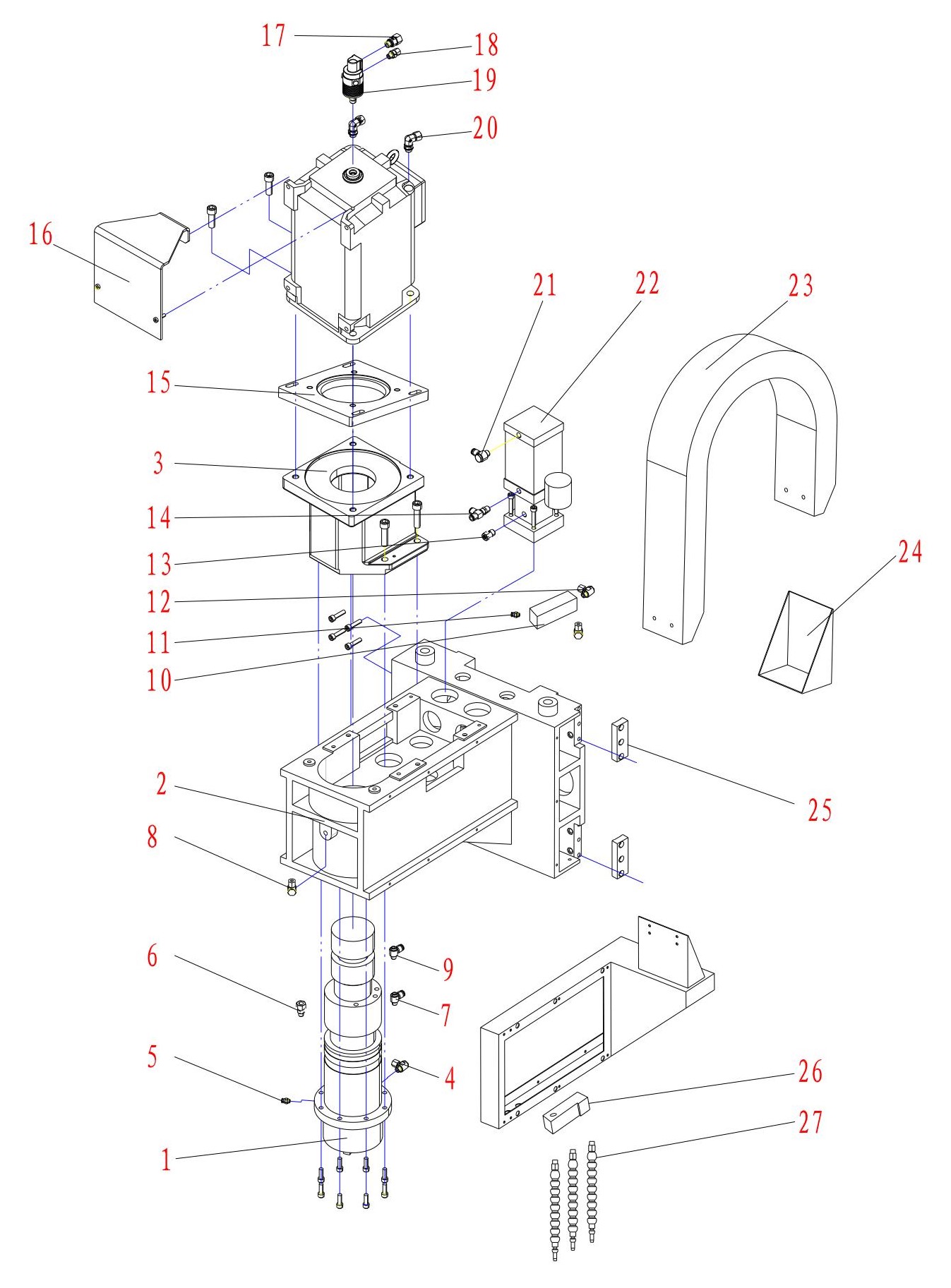

主 轴 箱 装 配（内冷直联）
Spindle box assembly (inner cooling and directly connection)
图上序号
Position No		 件号
Part No		名 称
Description		数 量
Q’ty		备 注
Remarks
1VMC850-13301


VMC850-313301


VMC850-14301


VMC850-314301		主 轴 (12000rpm)
Spindle (12000rpm)

主 轴 (12000rpm)
Spindle(12000rpm)

主 轴 (15000rpm)
Spindle(15000rpm)

主 轴(15000rpm)
Spindle(15000rpm)		<br /> 1<br /> <br /> <br /> 1<br /> <br /> <br /> 1<br /> <br /> <br /> 1<br /> inner cooling<br /> <br /> <br /> inner cooling
2 13011 主 轴 箱
Spindle box		1
3 VMC850-13013电 机 座
Motor seat		1
4 MJL10-8T直角铰接接头
Right adjusting fitting		1 CKD
5 KQ2L08-01S弯 头
Angle head		1 SMC
6 VMC850-65305接 头
Joint		1
7 KQ2L08-02S弯 头
Angle head		1 SMC
8 MJL10-8T直角铰接接头
Right adjustable fitting		1 CKD
9 KQ2L10-02S弯 头
Angle head		1 SMC
10 VR1220-02梭动阀
Shuttle valve		1 SMC
11 KQH10-02S直通接头
Straight joint		1 SMC
12 VMC850-161304接 头
Joint		2
13 VMC850-65305接 头
Joint		1
14 KQ2Y10-03S三通弯头
3-way angle head		1 SMC
15 VMC850-13303法兰盘
Flange plate		1
16 VMC850-413302连接板
Connecting plate		1
17 VMC850-161307接 头
Joint		1
18 VMC850-161305接 头
Joint		1
<br /> 19902-120-188


1109-120-188		旋转 接 头
Rotating joint

旋转 接 头
Rotating joint		1


1		DUBOLIN
12000rpm

DUBOLIN
15000rpm
20 H10-03S直 通 接 头
Straight joint		2 SMC
21 KQ2L10-03S弯 头
Angle head		1 SMC
22 W1000-6.25 倍X120CC增压缸
Boost cylinder		1
23 JL78F.075R200-1467(22 节)拖链
Cable carrier		1
24 84304 Z 轴拖链支架
Z ax is cable carrier Holder		1
25 VMC850-11306压块
Hold-down		2
26 VMC850-61333分水块
Division piece		1
27 G3/8″KZ83A 长200；L31-5可调塑料冷却管
Adjustable plastic cooling pipe		3

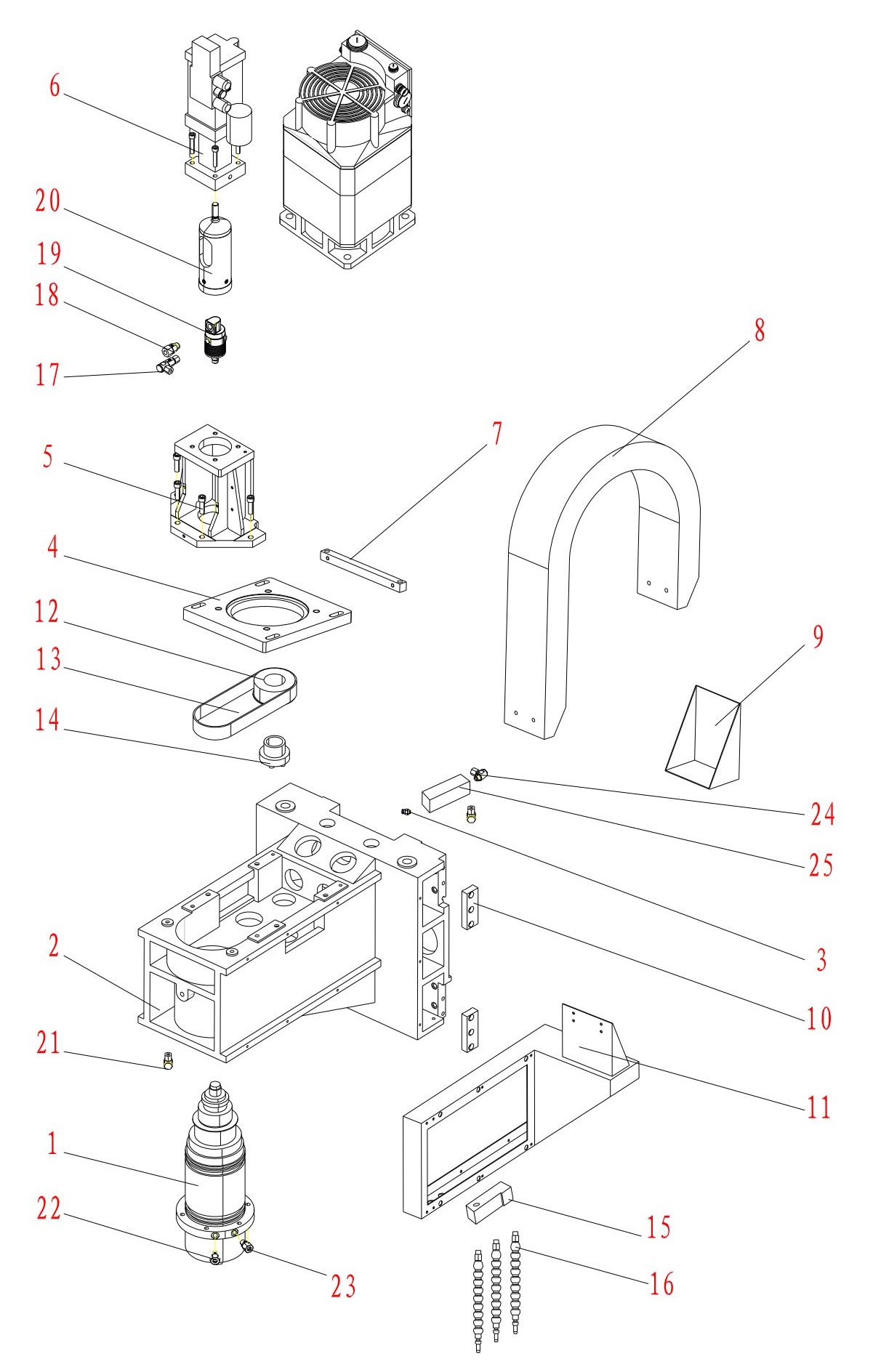

主 轴 箱 装 配（齿形带传动内冷）
Spindle box assembly (gear belt transmission)
图上序号
Position No		件号
Part No		名 称
Description		数 量
Q’ty		备 注
Remarks
1VMC850-311301


VMC850-312301


315301		主轴(8000rpm)
Spindle(8000rpm)

主轴(10000rpm)
Spindle(10000rpm)

主轴(6000rpm)
Spindle(6000rpm)		1


1


1		BT40


BT40


BT50
211011A


15011A		主轴箱
Spindle box

主轴箱
Spindle box		1


1		BT40


BT50
3 KQH10-02S直通接头
Straight joint		1 SMC
4 11306 电机连接板
Motor connection		1
board
打刀缸座
5 VMC850E-13011Tool unclamping
cylinder seat
打刀缸座		1 BT40
315303ATool unclamping
cylinder seat		1 BT50
6全配备
G4000-3.5TX13L

全配备
G4000-6TX15L		增压缸
Boost cylinder

增压缸
Boost cylinder		1


1		BT40


BT50
7 VMC850E-11308调 整 块
Set piece		1
8 JL78F.075R200-1467(22 节)拖链
Cable carrier		1
9 84304 Z 轴拖链支架
Z ax is cable carrier
Holder		1
10 VMC850-11306压块
Hold-down		2
11 11302A机头侧架
Ram head side bearer		1
12<br /> VMC850-11302<br /> <br /> <br /> VMC850-12302<br /> <br /> <br /> 15302带轮
Belt wheel

带轮
Belt wheel

带轮
Belt wheel		<br /> 1<br /> <br /> <br /> 1<br /> <br /> <br /> 1BT40
8000rpm

BT40
10000rpm

BT50
6000rpm
13864-8YU-40


775-5GT-40


864-8YU-65		齿形带
Gear belt

齿形带
Gear belt

齿形带
Gear belt		<br /> 1<br /> <br /> <br /> 1<br /> <br /> <br /> 1BT40
8000rpm

BT40
10000rpm

BT50
6000rpm
14 JB-48X62涨紧套
Expanded sleeve		1
15 VMC850-61333分水块
Division piece		1
16 G3/8″KZ83A 长
200；L31-5		可调塑料冷却管
Adjustable plastic cooling pipe		3
17 VMC850-161307接 头
Joint		1
18 VMC850-161306接 头
Joint		1
19 902-120-188旋转接头
Rotating joint		1 DUBOLIN
20 VMC850-311302卸刀杆
Tool unclamping bar		1 BT40
315302 卸刀杆
Tool unclamping bar		1 BT50
21 MJL10-8T直角铰接接头
Right adjusting fitting		1 CKD
22 MJL10-8T直角铰接接头
Right adjusting fitting		1 CKD
23 KQ2L08-01S弯 头
Angle head		1 SMC
24 VMC850-161304接 头
Joint		2
25VR1220-02

VMC850-261303		梭动阀
Shuttle valve

分配块
Distribution piece		1


1		10 Bar inner cooling

20 Bar inner cooling

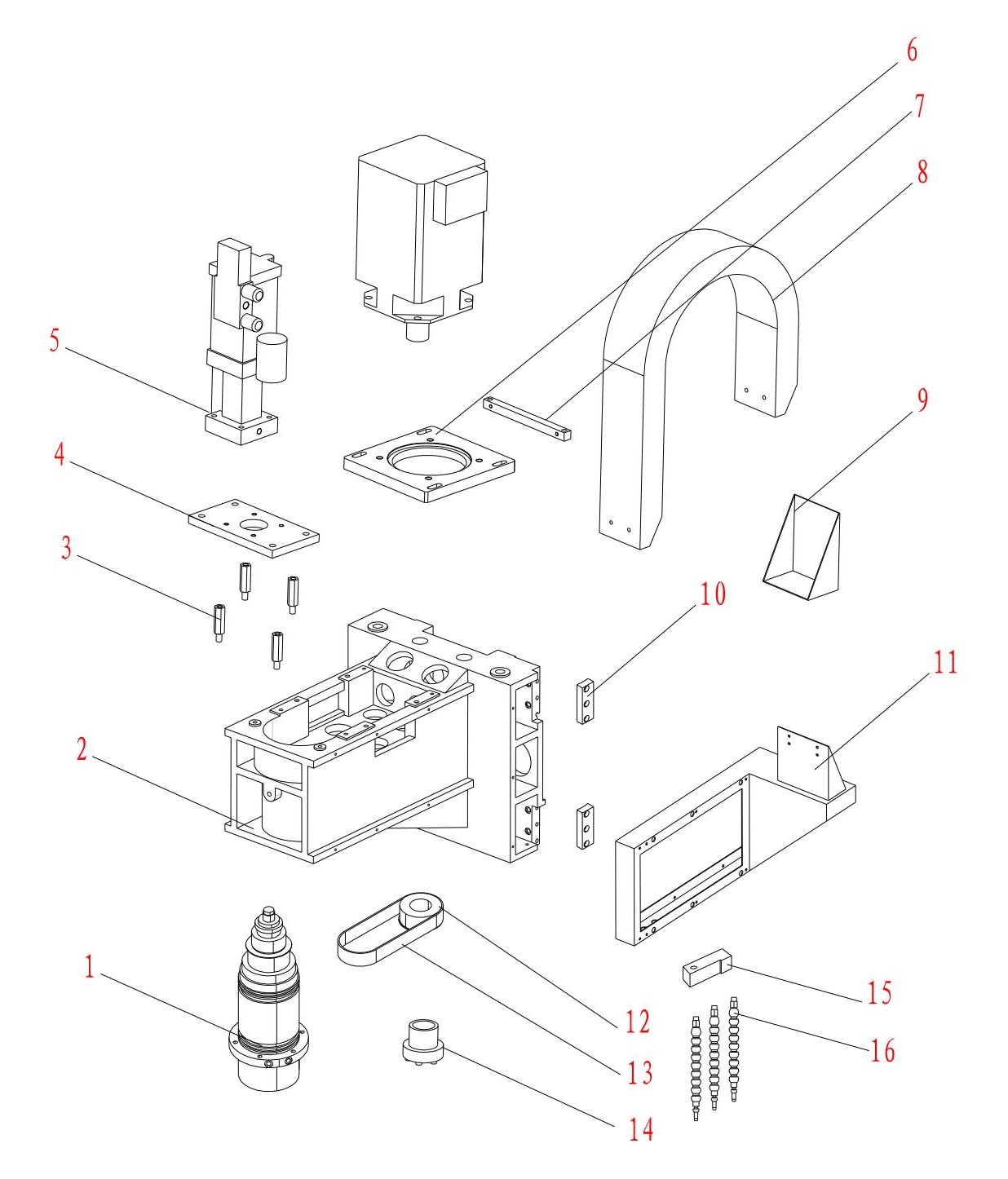

主 轴 箱 装 配（齿形带传动）
Spindle box assembly (gear belt transmission)
图上序号
Position No		件号
Part No		名 称
Description		数 量
Q’ty		备 注
Remarks
1VMC850-11301


VMC850-12301


15301		主轴(8000rpm)
Spindle(8000rpm)

主轴(10000rpm)
Spindle(10000rpm)

主轴(6000rpm)
Spindle(6000rpm)		1


1


1		BT40


BT40


BT50
211011A


15011A		主轴箱
Spindle box

主轴箱
Spindle box		1


1		BT40


BT50
3VMC850E-11304A


15303A		杆
Post

杆
Post		4


4		BT40


BT50
4 VMC850E-11305气缸座
cylinder seat		1
5 全配备
G4000-3.5TX13L		增压缸
Boost cylinder		1 BT40
6全配备
G4000-6.0TX15L

11306		增压缸
Boost cylinder
电机连接板
Motor connection board		1


1		<br /> BT50
7 VMC850E-11308调 整 块
Set piece		1
8 JL78F.075R200-1467(22 节)拖链
Cable carrier		1
9 84304 Z 轴拖链支架
Z ax is cable carrier Holder		1
10 VMC850-11306压块
Hold-down		2
11 11302A机头侧架
Ram head side bearer		1
12VMC850-11302


VMC850-12302


15302		带轮
Belt wheel

带轮
Belt wheel

带轮
Belt wheel		<br /> 1<br /> <br /> <br /> 1<br /> <br /> <br /> 1BT40

8000rpm
BT40

10000rpm
BT50

6000rpm
13864-8YU-40


775-5GT-40


864-8YU-65		齿形带
Gear belt

齿形带
Gear belt

齿形带
Gear belt		<br /> 1<br /> <br /> <br /> 1<br /> <br /> <br /> 1BT40

8000rpm
BT40

10000rpm
BT50

6000rpm
14 JB-48X62涨紧套
Expanded sleeve		1
15 VMC850-61333分水块
Division piece		1
16G3/8″KZ83A 长200；L31-5可调塑料冷却管
Adjustable plastic cooling pipe		3

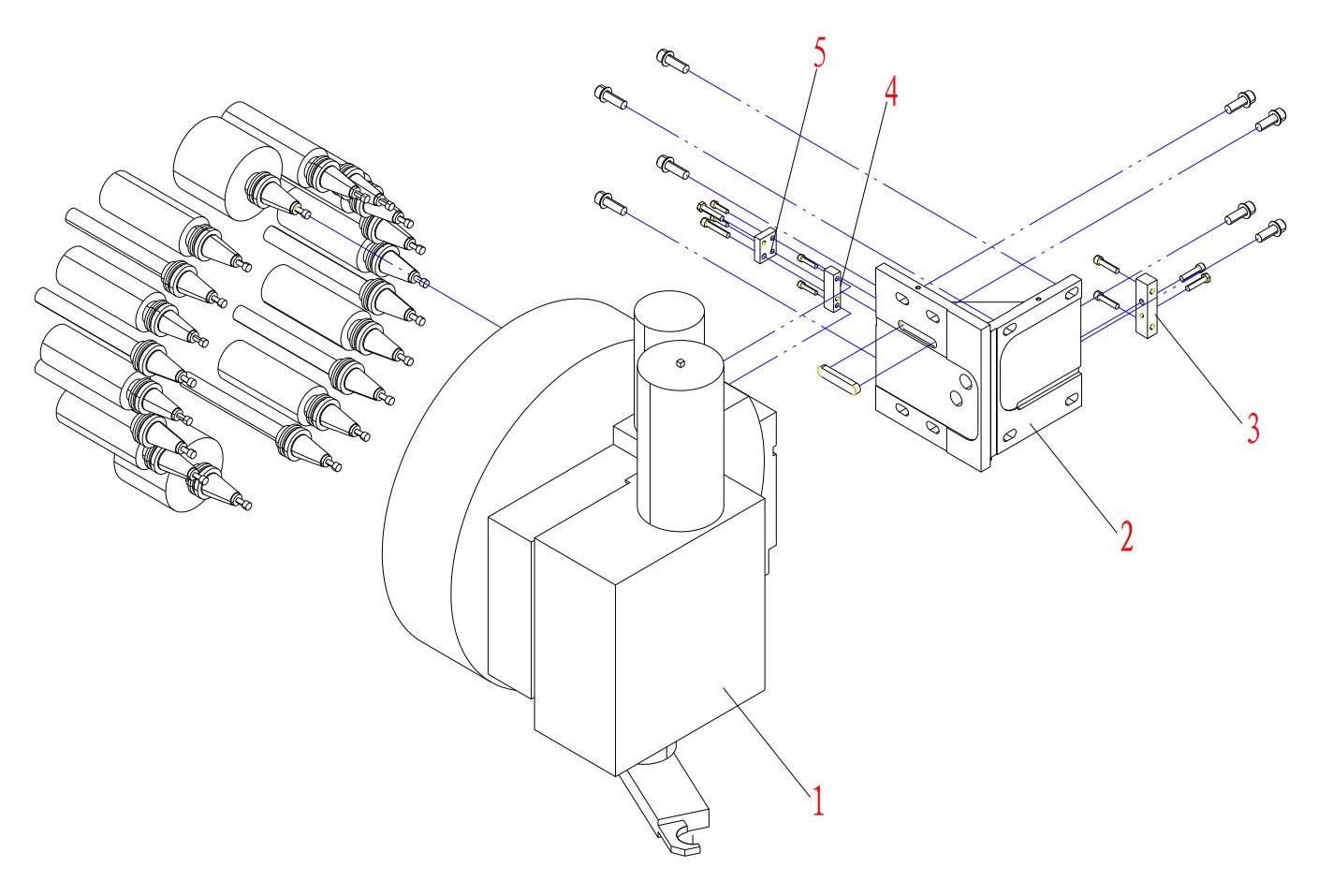

刀 库 装 配（机械手式）
Tool magazine assembly (ATC)
图上序号
Position No		件号
Part No		名 称
Description		数 量
Q’ty		备 注
Remarks
1VMC850-22301

VMC850-122301

VMC1100-24301		刀库
Tool magazine
刀库
Tool magazine
刀库
Tool magazine		1

1

1		BT40,24

BT40,24 inner cooling

BT50,20
2 VMC850-22011A

124301		刀库支架
Tool magazine bracket
刀库支架
Tool magazine bracket		1

1		BT40,24

BT50,20
3 VMC850-21303A调整块
Adjusting block		1 BT40,24
4 VMC850-22304调整块
Adjusting block		1
5VMC850-22303

VMC1100-22302		调整块
Adjusting block
调整块
Adjusting block		1

1		BT40,24

BT50,20

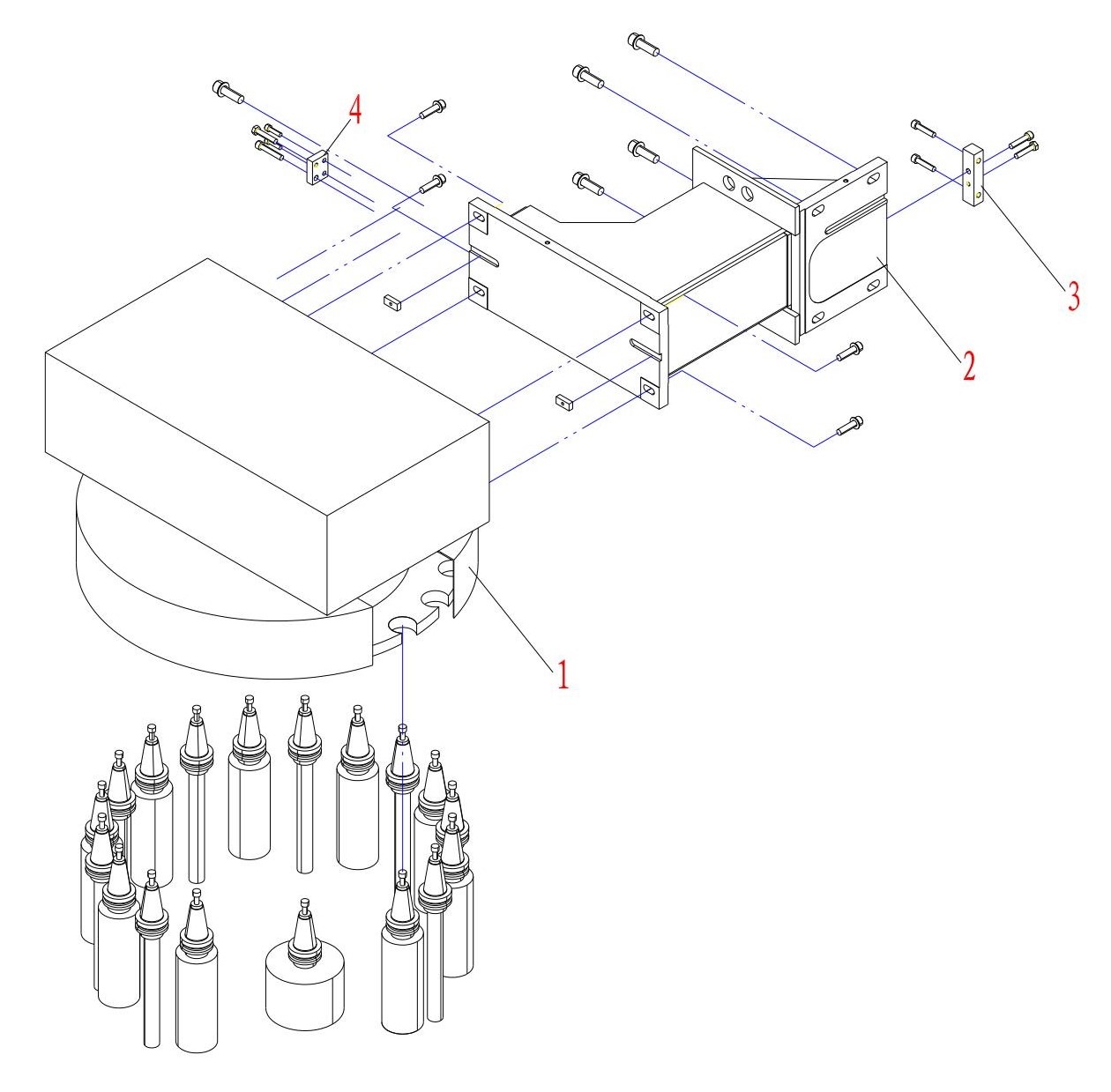

刀 库 装 配（斗笠式）
Tool magazine assembly (armless )
图上序号
Position No		件号
Part No		名 称
Description		数 量
Q’ty		备 注
Remarks
1VMC850-21301

VMC1100-23301		刀库
Tool magazine
刀库
Tool magazine		1

1		BT40,20

BT50,16
2 VMC1100-25301

VMC850-21011A

123301

125301		刀库
Tool magazine
刀库支架
Tool magazine bracket
刀库支架
Tool magazine bracket
刀库支架
Tool magazine bracket		1

1

1

1		BT50,20

BT40,20

BT50,16

BT50,20
3 VMC850-21303A调整块
Adjusting block		1
4VMC850-21304调整块
Adjusting block		1

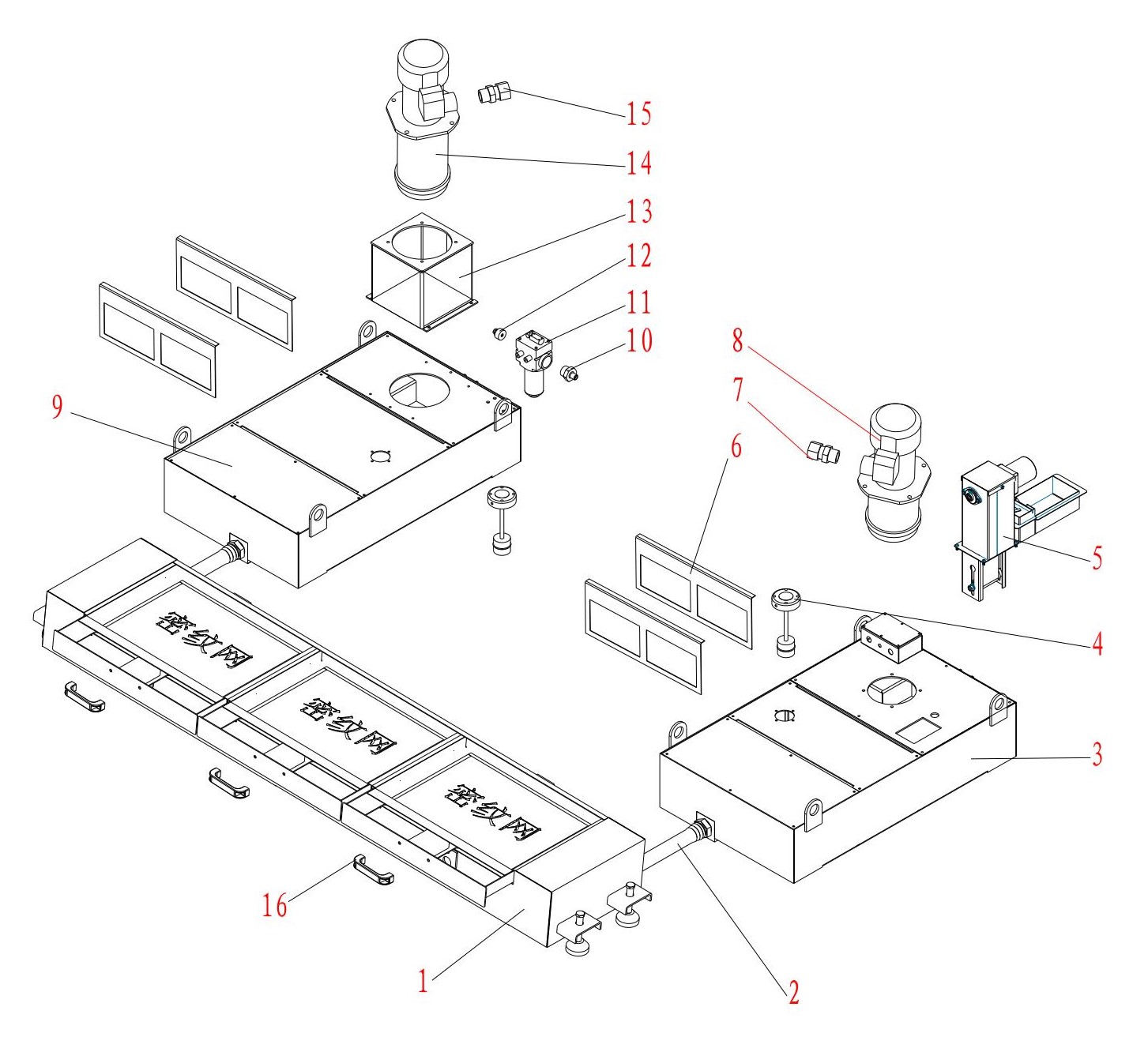

水 箱 冷 却 系 统 装 配
Water tank cooling system assembly
图上序号
Position No		 件号
Part No		 名 称
Description		数 量
Q’ty		备 注
Remarks
1 161331 水箱
Tank		1
2 管
pump		1
3 VMC850-61332 冷却水箱
Cooling tank		1
4 低液位报警
liquid level alarm		2
5 油水分离器
Oil and water separator		1
680 目插拔式过滤网
Knock-down screen		4
7 VMC850E-61301管接头
pipe connection		1
8 HCP-900MSF冷却泵
Cooling pump		1
9 VMC850-261331冷却水箱
Cooling tank		1 inner cooling
10 VMC850-261335变径接头
Reducer union		1 inner cooling
11 PLFBH-C110X20WP压力管路过滤器
Pressure filter		1 inner cooling
12 VMC850-261334变径接头
Reducer union		1 inner cooling
13VMC850-261332水泵座
Water pump seat		120 Bar inner cooling
14 HCP-4000HMF280-C冷却泵
Cooling pump		1 20 Bar inner cooling
15 1DB-24-12WD/RN变径接头
Reducer union		1 inner cooling
16把手
gripe		3

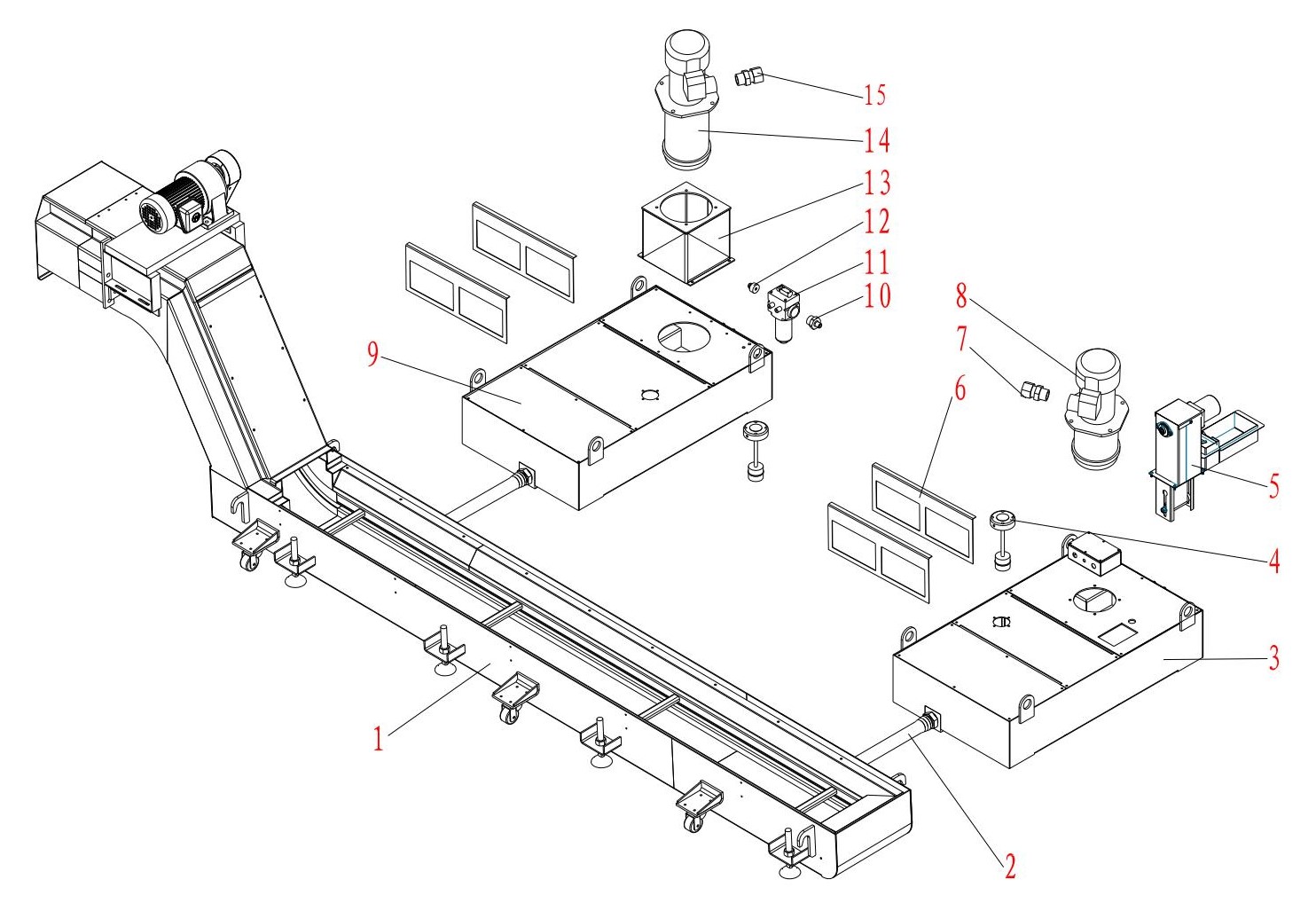

链 式 排 屑 器 冷 却 系 统 装 配
Chain conveyor cooling system assembly
图上序号
Position No		 件号
Part No		 名 称
Description		数 量
Q’ty		备 注
Remarks
1 162331 链式排屑器
Chain chip conveyor		1
2 管
Pipe		1
3 VMC850-61332 冷却水箱
Cooling pump		1
4 低液位报警
liquid level alarm		2
5 油水分离器
Oil and water separator		1
680 目插拔式过滤网
Knock-down screen		4
7 VMC850E-61301管接头
pipe connection		1
8 HCP-900MSF冷却泵
Cooling pump		1
9 VMC850-261331冷却水箱
Cooling tank		1 inner cooling
10 VMC850-261335变径接头
Reducer union		1 inner cooling
11 PLFBH-C110X20WP压力管路过滤器
Pressure filter		1 inner cooling
12 VMC850-261334变径接头
Reducer union		1 inner cooling
13VMC850-261332水泵座
Water pump seat		120 Bar inner cooling

Resources & Downloads

SMTCL VMC Q B H Series Vertical Machining Center Catalog

File size: 31.61 MB
Created: 06-07-2024
Updated: 06-07-2024
Hits: 298
Download Preview

VMC850B VMC1000B VMC1100B Maintenance parts content

File size: 1.19 MB
Created: 30-09-2024
Updated: 30-09-2024
Hits: 60
Download Preview
Recommended Related Products
If needed, please contact us for further selection

Recommended Related Products

Load More
Need help finding a machine?
We will gladly assist you in making the right decision to achieve your business goals
Get a free Consultation
