Z3040 Z3050 List of Spare Parts
1. **Versatile Application**: This model of equipment finds wide applications in drilling, reaming, tapping, countersinking, and thread cutting tasks.
2. **Hydraulic Preselection with Variable Speed**: The equipment features hydraulic preselection with variable speed control, offering flexibility in operations.
3. **Hydraulic Power for Clamping**: Hydraulic power is utilized to achieve clamping in various machine components.
4. **Centralized Control**: Machine, electrical, and hydraulic controls are centralized on the spindle box, making operations convenient and efficient.
5. **Single-Hand Control for Forward and Reverse**: One-handed operation for both forward and reverse movements, simplifying control.
6. **Dual-Column Structure**: The machine is designed with a dual-column structure for added stability and precision.
Home » Products » ACCESSORIES » Machine Tool Spare Parts » Z3040 Z3050 List of Spare Parts
Contact
Wide Product Portfolio
We supply a diverse range of conventional and CNC metalworking machines loaded with features
Professional Consultation
Trusted consultation and in house demonstrations to provide the best solutions for your business needs
Outstanding Service
Full time, skilled service team employees available for start-up, maintenance and repair of your SMTCL machine
Contact us
Have any Questions?
Check our frequently asled question hope you get answer.
If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Check out our FAQ page for answers to common questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Check out our FAQ page for answers to common questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Check out our FAQ section for more information on how we can help
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Check out our FAQ page for answers to common questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Optional Accessories
Explore the range of compatible accessories in stock
Optional Accessories
Export to Excel
| 部别 GROUP | 01 | 主轴变速 | ||||
|---|---|---|---|---|---|---|

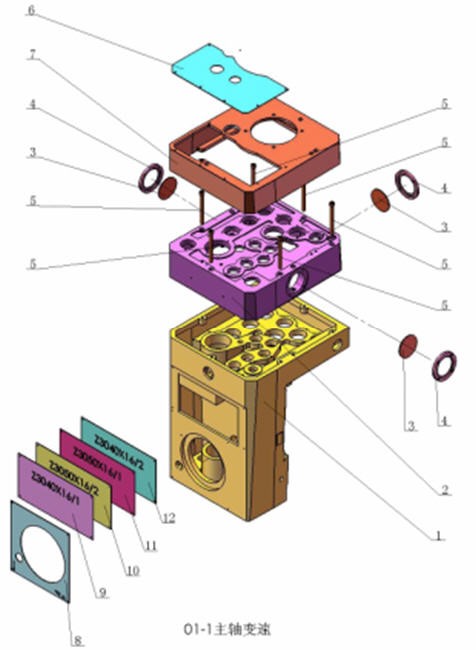

| 插图号 FIG No | 01-01 | SPINDLE SPEED CHANGE MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 41011ASB | 主轴箱体 SPINDLE HEAD BODY | 1 | |||
| 2 | 41012ASB | 主轴箱盖 COVER OF SPINDLE HEAD | 1 | |||
| 3 | 41903 | 盖 COVER | 3 | |||
| 4 | 41350 | 压圈 PRESSURING RINGS | 3 | |||
| 5 | 41328 | 螺钉 SCREWS | 6 | |||
| 6 | 41335A | 盖板 COVER | 1 | |||
| 7 | 41013ASB | 电机座 MOTOR FRAME | 1 | |||
| 8 | 41812A | 标牌 MARK PLATE | 1 | |||
| 9 | 41827A | 标牌 MARK PLATE | 1 | Z3040x16/1 | ||
| 10 | 41827B | 标牌 MARK PLATE | 1 | Z3040X16/2 | ||
| 11 | 51827A | 标牌 MARK PLATE | 1 | Z3050X16/1 | ||
| 12 | 51827B | 标牌 MARK PLATE | 1 | Z3050X16/2 | ||
| 部别 GROUP | 01 | 主轴变速 | ||||

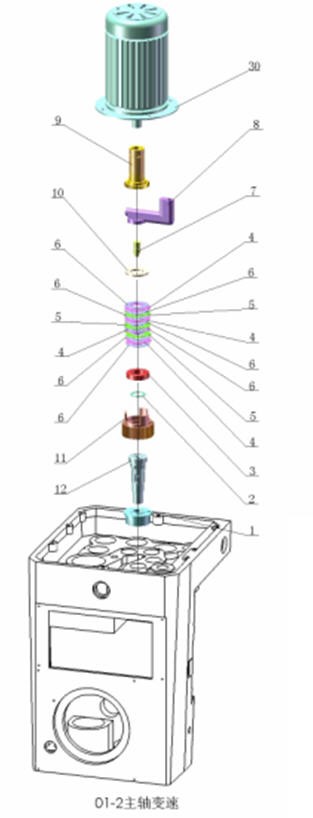

| 插图号 FIG No | 01-02 | SPINDLE SPEED CHANGE MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 41016 | 支承座 SUPPORTING BRACKET | 1 | |||
| 2 | 41353 | 垫 GASKET | 1 | |||
| 3 | 41310 | 压垫 PUSH PAD | 1 | |||
| 4 | 80; SZSC31-1 | 外摩擦片 OUTER FRICTION DISCS | 4 | |||
| 5 | 80; SZSC31-3 | 外摩擦片 OUTER FRICTION DISCS | 3 | |||
| 6 | 70; SZSC31-2 | 内摩擦片 INNER FRICTION DISCS | 8 | |||
| 7 | 41308 | 活塞 PISTON | 1 | |||
| 8 | 41017 | 接油器 OIL CONTAINER | 1 | |||

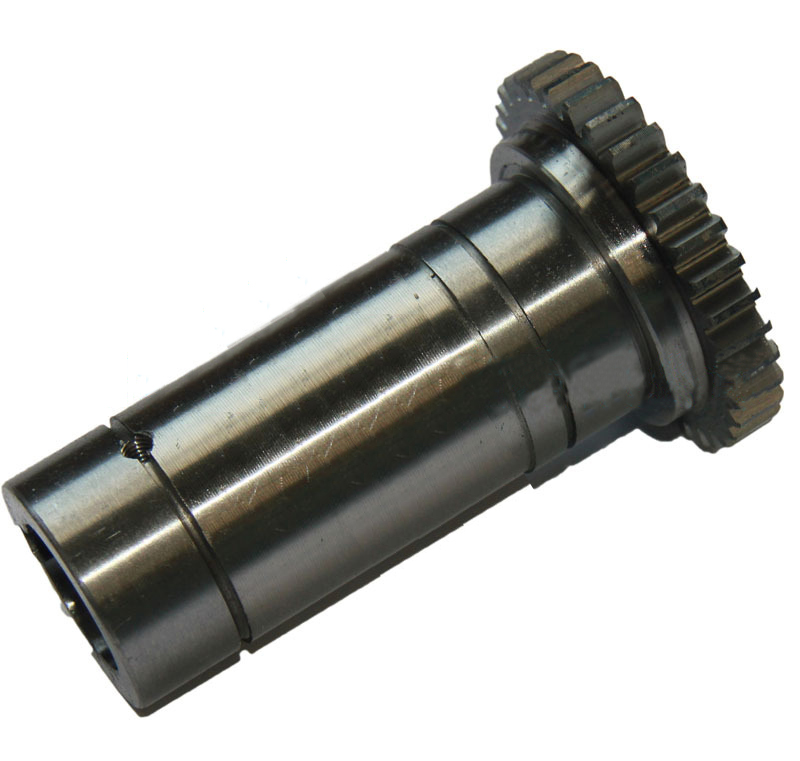

| 9 | 41345 | 齿轮 GEAR | 1 | |||
| 10 | 41312 | 垫 GASKET | 1 | |||
| 11 | 41311 | 齿轮 GEAR | 1 | |||

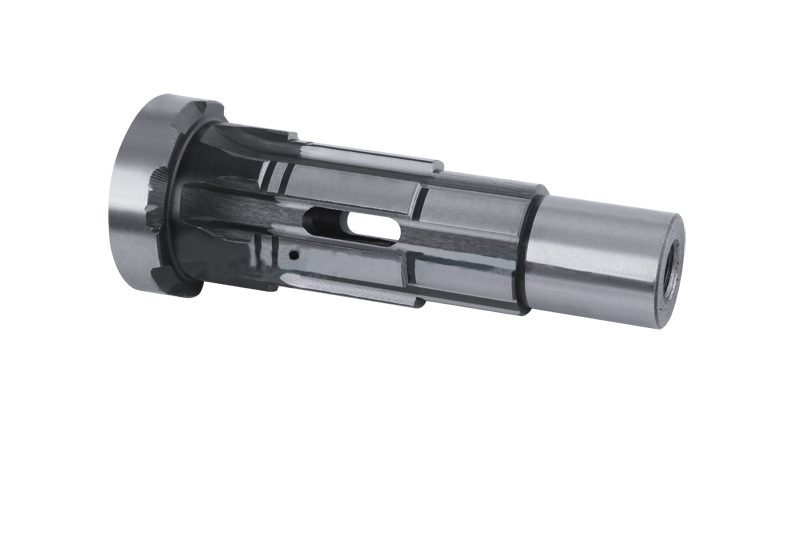

| 12 | 41309 | 轴 SHAFT | 1 | |||
| 13 | 电机 Y100L2-4 | 电机 ELECTRIC MOTOR | 1 | 3kW Z3040x16/1、2 | ||
| 13 | 电机 Y112M-4 | 电机 ELECTRIC MOTOR | 1 | 4kW Z3050x16/1、2 | ||
| 部别 GROUP | 01 | 主轴变速 | ||||

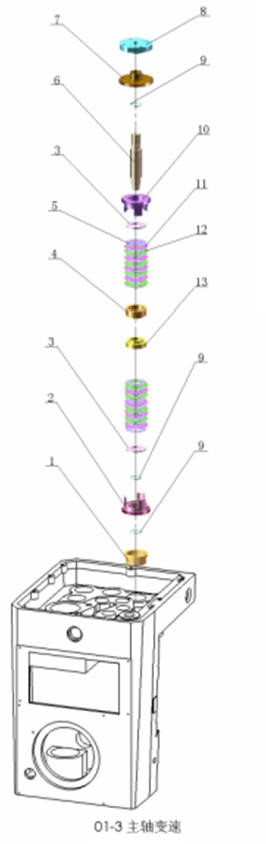

| 插图号 FIG No | 01-03 | SPINDLE SPEED CHANGE MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 41015 | 轴承座 BEARING SEAT | 1 | |||

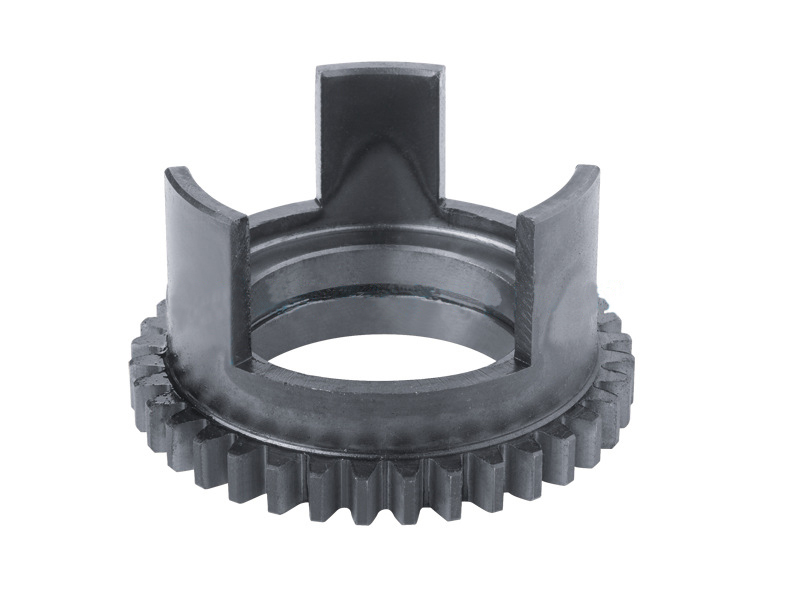

| 2 | 41307 | 齿轮 GEAR | 1 | |||
| 3 | 41305 | 垫 GASKET | 2 | |||
| 4 | 41357 | 压片套 FRICTION SLEEVES | 1 | |||
| 5 | 70; SZSC31-2 | 内摩擦片 INNER FRICTION DISCS | 18 | |||
| 6 | 41304 | 轴 SHAFT | 1 | |||
| 7 | 41348 | 齿轮 GEAR | 1 | |||
| 8 | 41030 | 轴承座 BEARING SEAT | 1 | |||
| 9 | 41306 | 垫 GASKET | 3 | |||
| 10 | 41347 | 齿轮 GEAR | 1 | |||
| 11 | 80; SZSC31-1 | 外摩擦片 OUTER FRICTION DISCS | 8 | |||
| 12 | 80; SZSC31-3 | 外摩擦片 OUTER FRICTION DISCS | 8 | |||
| 13 | 41346 | 压片套 FRICTION SLEEVES | 1 | |||
| 部别 GROUP | 01 | 主轴变速 | ||||

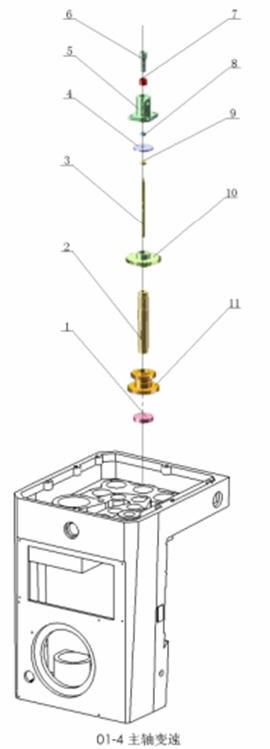

| 插图号 FIG No | 01-04 | SPINDLE SPEED CHANGE MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 41018 | 堵 PLUG | 1 | |||
| 2 | 41315 | 轴 SHAFT | 1 | |||
| 3 | 41322 | 拉杆 LINK | 1 | |||
| 4 | 41023 | 垫 GASKET | 1 | |||
| 5 | 41029 | 油缸体 OIL CYLINDER | 1 | |||
| 6 | 41343 | 活塞 PISTON | 1 | |||
| 7 | 41028 | 套 SLEEVE | 1 | |||
| 8 | 41024 | 支承 SUPPORT | 1 | |||
| 9 | 41336 | 堵 PLUG | 1 | |||
| 10 | 41344 | 齿轮 GEAR | 1 | |||

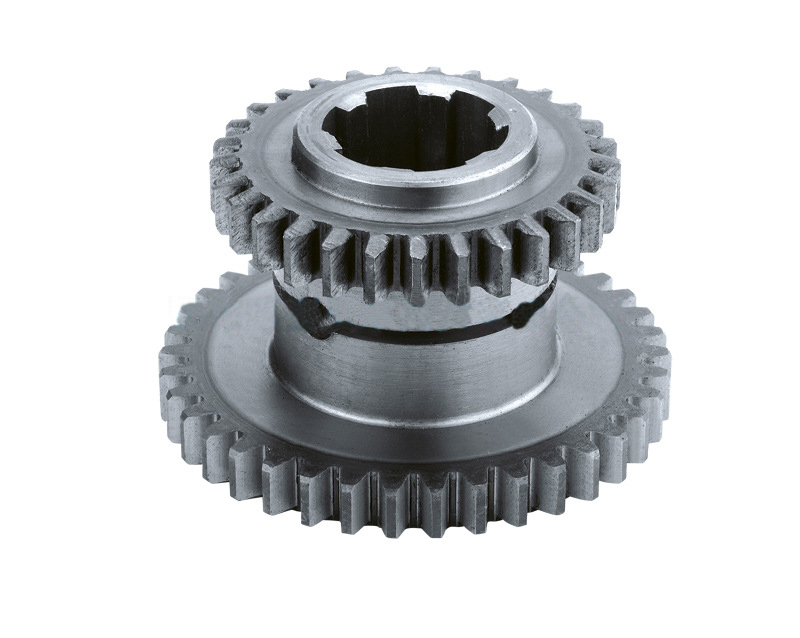

| 11 | 41313 | 齿轮 GEAR | 1 | |||
| 部别 GROUP | 01 | 主轴变速 | ||||

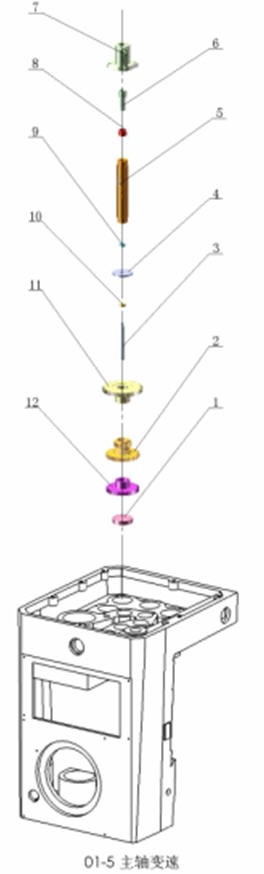

| 插图号 FIG No | 01-05 | SPINDLE SPEED CHANGE MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 41018 | 堵 PLUG | 1 | |||
| 2 | 41319 | 齿轮 GEAR | 1 | |||
| 3 | 41342 | 拉杆 LINK | 1 | |||
| 4 | 41023 | 垫 GASKET | 1 | |||
| 5 | 41318 | 轴 SHAFT | 1 | |||
| 6 | 41343 | 活塞 PISTON | 1 | |||
| 7 | 41029(2) | 油缸 OIL CYLINDER | 1 | |||
| 8 | 41028 | 套 SLEEVE | 1 | |||
| 9 | 41024 | 支承 SUPPORT | 1 | |||
| 10 | 41336 | 堵 PLUG | 1 | |||
| 11 | 41316 | 齿轮 GEAR | 1 | |||

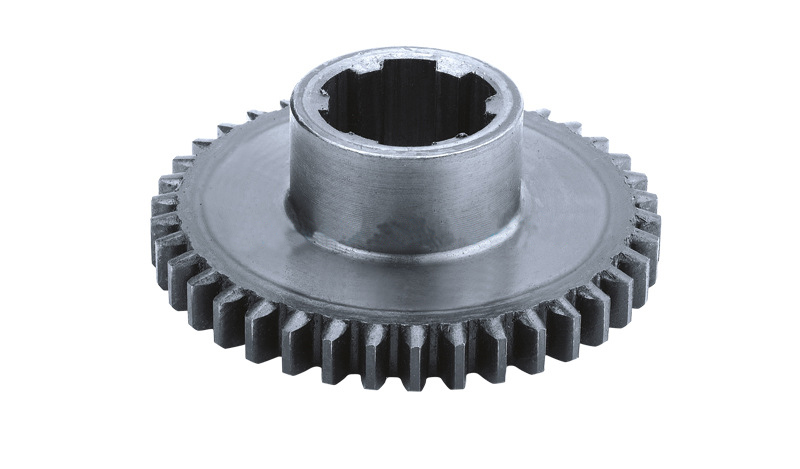

| 12 | 41317 | 齿轮 GEAR | 1 | |||
| 部别 GROUP | 01 | 主轴变速 | ||||

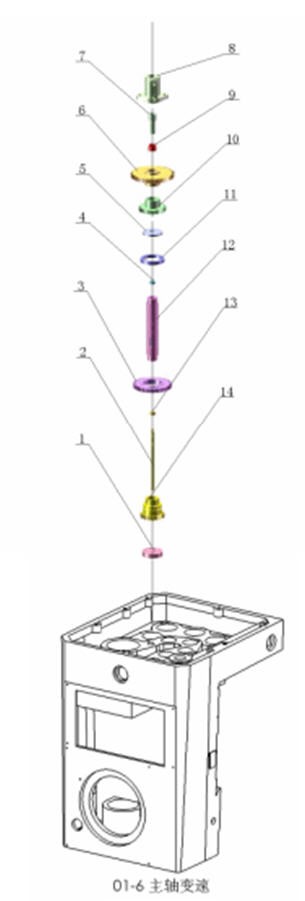

| 插图号 FIG No | 01-06 | SPINDLE SPEED CHANGE MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 41018 | 堵 PLUG | 1 | |||
| 2 | 41322 | 拉杆 LINK | 1 | |||

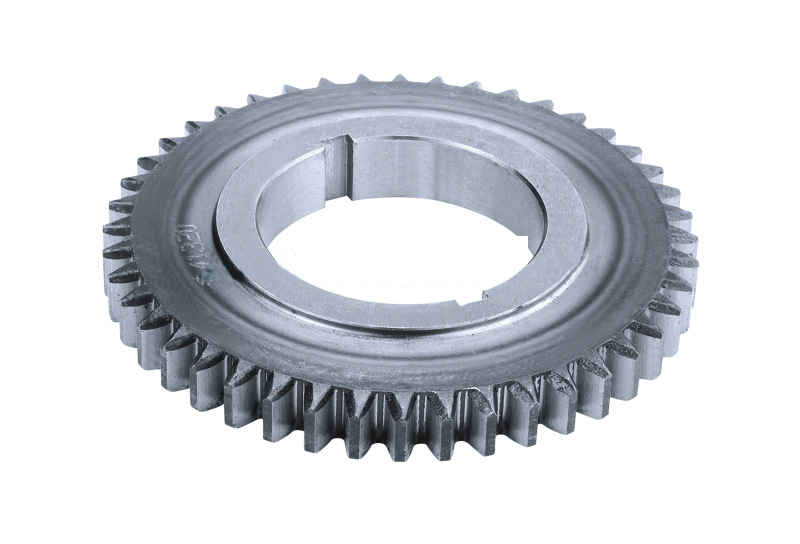

| 3 | 41320 | 齿轮 GEAR | 1 | |||
| 4 | 41024 | 支承 SUPPORT | 1 | |||
| 5 | 41023 | 垫 GASKET | 1 | |||
| 6 | 41341 | 齿轮 GEAR | 1 | |||
| 7 | 41343 | 活塞 PISTON | 1 | |||
| 8 | 41029(2) | 油缸 OIL CYLINDER | 1 | |||
| 9 | 41028 | 套 SLEEVE | 1 | |||
| 10 | 41340 | 齿轮 GEAR | 1 | |||
| 11 | 41314 | 垫 GASKET | 1 | |||
| 12 | 41323 | 轴 SHAFT | 1 | |||
| 13 | 41336 | 堵 PLUG | 1 | |||

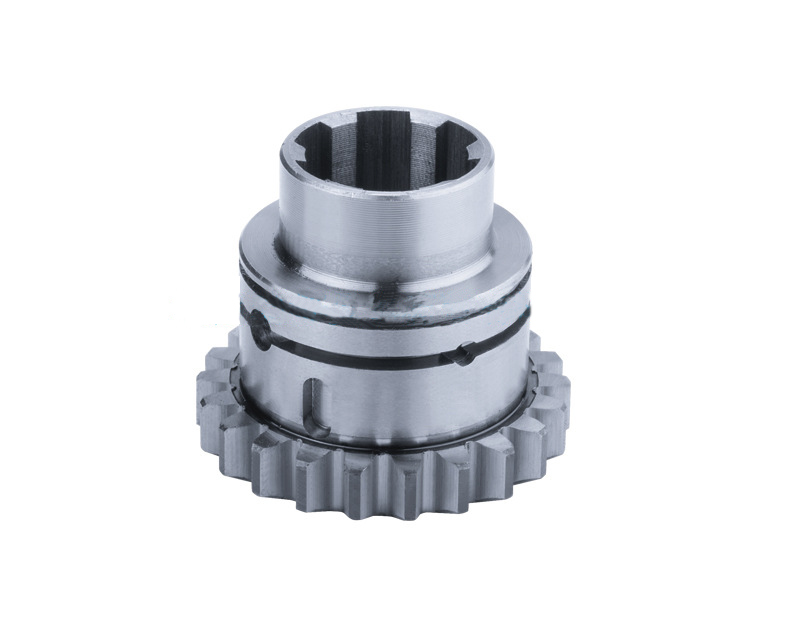

| 14 | 41321S | 齿轮 GEAR | 1 | |||
| 部别 GROUP | 01 | 主轴变速 | ||||

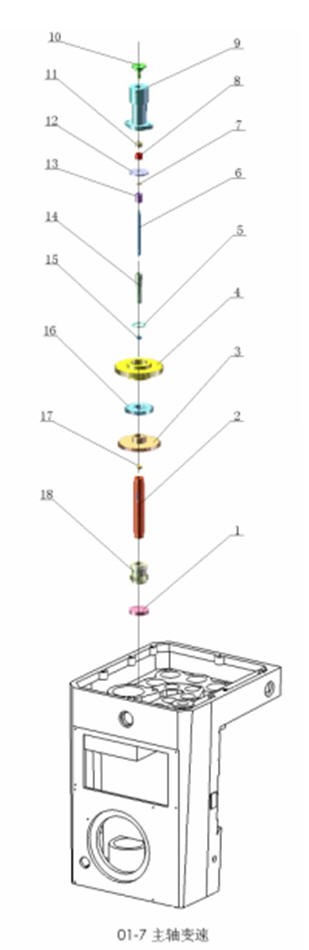

| 插图号 FIG No | 01-07 | SPINDLE SPEED CHANGE MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 41018 | 堵 PLUG | 1 | |||
| 2 | 41326 | 轴 SHAFT | 1 | |||

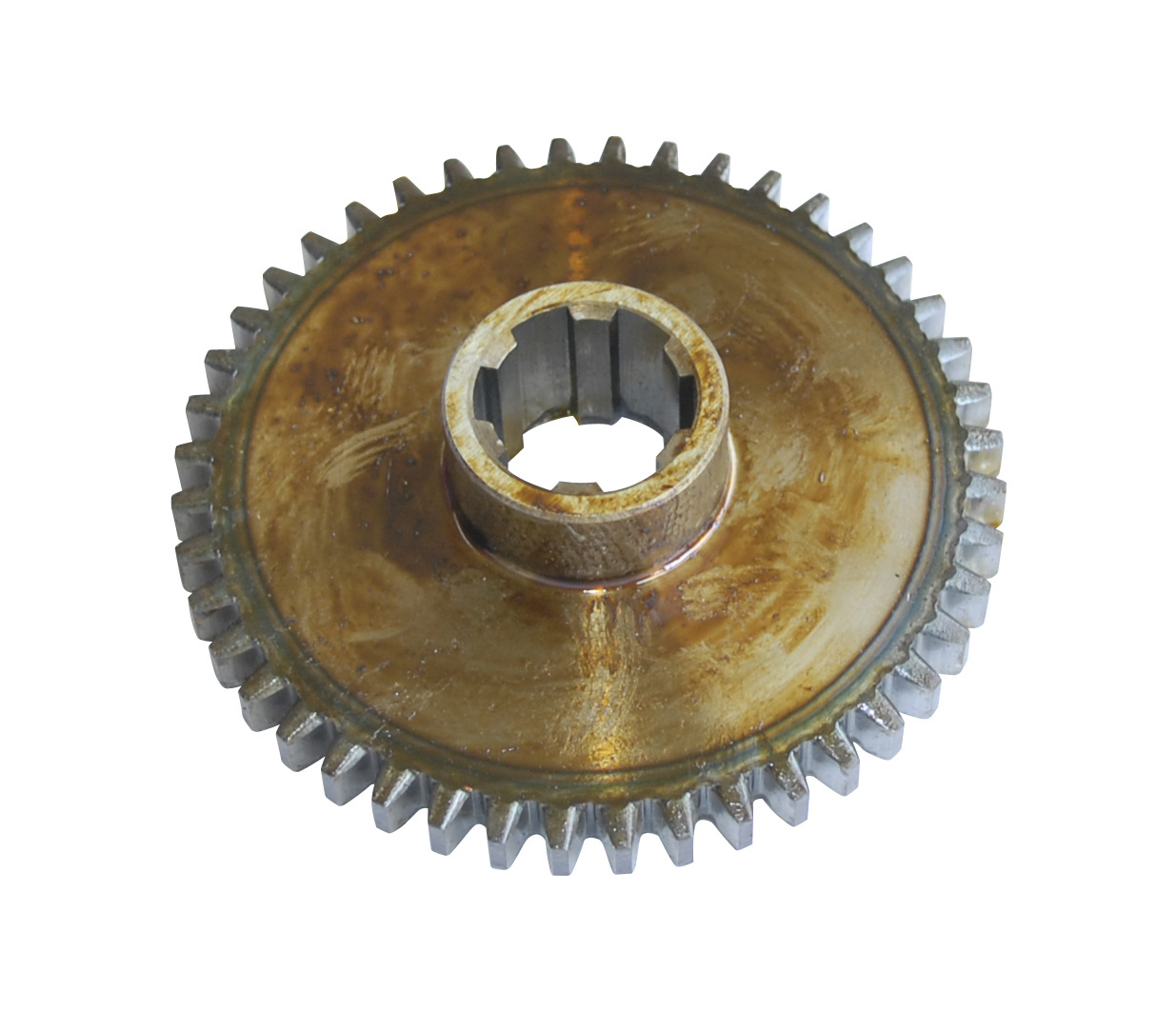

| 3 | 41324S | 齿轮 GEAR | 1 | |||
| 4 | 41327AS | 齿轮 GEAR | 1 | |||
| 5 | 41353 | 垫 GASKET | 1 | |||
| 6 | 41337 | 拉杆 LINK | 1 | |||
| 7 | 41351 | 挡板 BACK PLATE | 1 | |||
| 8 | 41028 | 套 SLEEVE | 1 | |||
| 9 | 41026 | 油缸 OIL CYLINDER | 1 | |||
| 10 | 41352 | 堵 PLUG | 1 | |||
| 11 | 41025 | 套 SLEEVE | 1 | |||
| 12 | 41023 | 垫 GASKET | 1 | |||
| 13 | 41339 | 滑阀 SLIDING VALVE | 1 | |||
| 14 | 41338 | 活塞 PISTON | 1 | |||
| 15 | 41024 | 支承 SUPPORT | 1 | |||
| 16 | 41325 | 齿轮 GEAR | 1 | |||
| 17 | 41336 | 堵 PLUG | 1 | |||
| 18 | 41333 | 齿轮 GEAR | 1 | |||
| 部别 GROUP | 01 | 主轴变速 | ||||

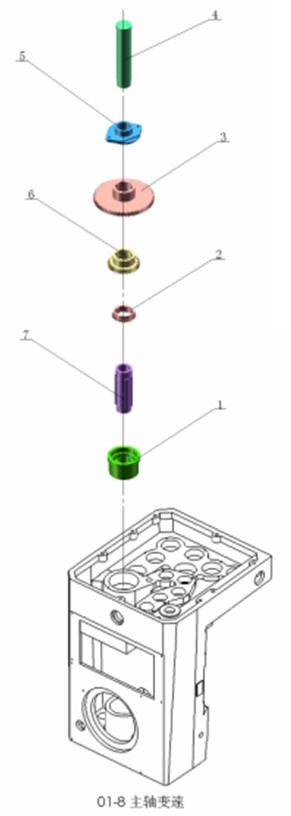

| 插图号 FIG No | 01-08 | SPINDLE SPEED CHANGE MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 41020 | 轴承座 BEARING SEAT | 1 | |||
| 2 | 41329 | 齿轮 GEAR | 1 | |||
| 3 | 41331 | 齿轮 GEAR | 1 | |||
| 4 | 41902A | 主轴罩 SPINDLE COVER | 1 | |||
| 5 | 41022 | 轴承座 BEARING SEAT | 1 | |||
| 6 | 41330AS | 齿轮 GEAR | 1 | |||
| 7 | 41021 | 花键套 SPLINE SLEEVE | 1 | |||
| 部别 GROUP | 01 | 主轴变速 | ||||

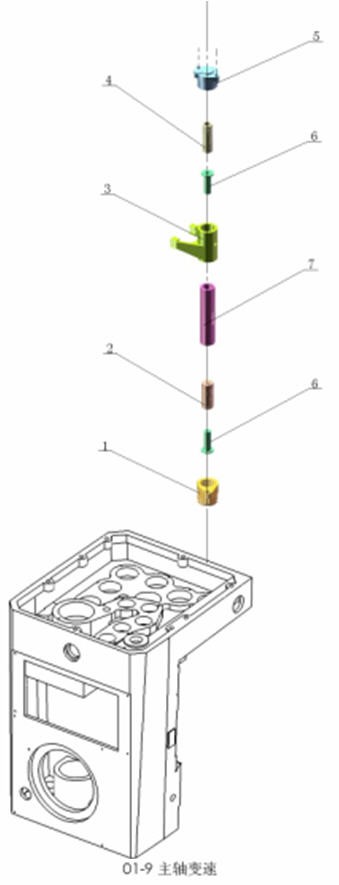

| 插图号 FIG No | 01-09 | SPINDLE SPEED CHANGE MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 41014 | 支承座 SUPPORING BRACKET | 1 | |||
| 2 | 41303 | 阀芯 VALVE CORE | 1 | |||

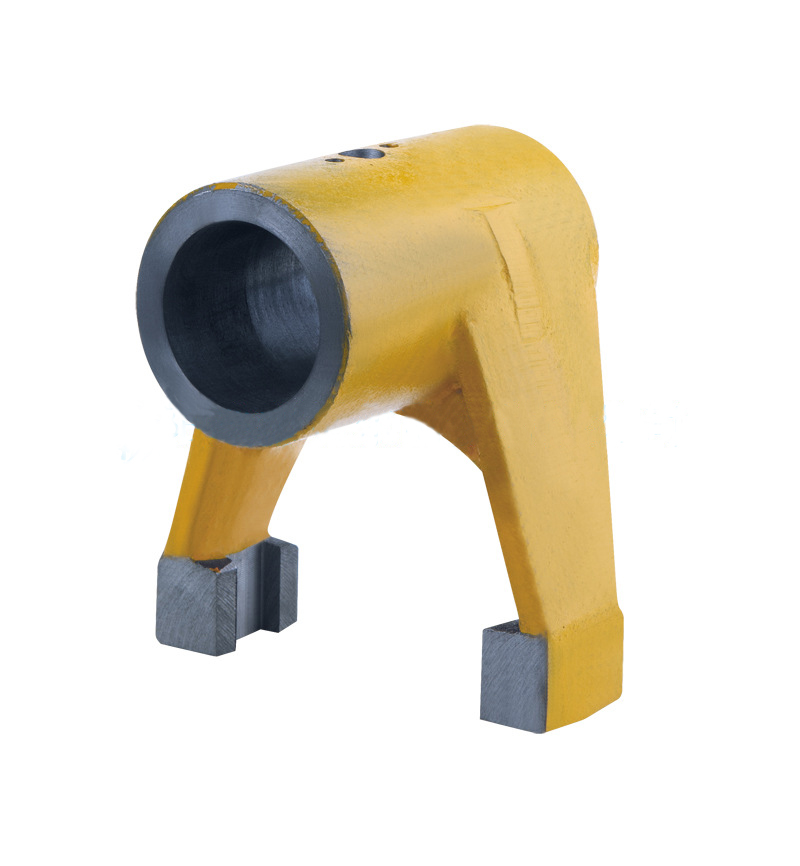

| 3 | 41032 | 拨叉 SHIFING FORK | 1 | |||
| 4 | 41301 | 阀芯 VALVE CORE | 1 | |||
| 5 | 41031 | 轴座 BEARING SEAT | 1 | |||
| 6 | 41349 | 套 SLEEVES | 2 | |||
| 7 | 41302 | 支承套 BEARING SLEEVE | 1 | |||
| 部别 GROUP | 02 | 进给变速 | ||||

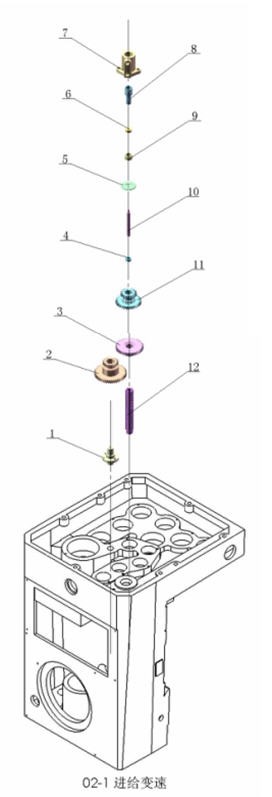

| 插图号 FIG No | 02-01 | FEED CHANGE MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 42307 | 轴 SHAFT | 1 | |||
| 2 | 42306 | 齿轮 GEAR | 1 | |||
| 3 | 42305 | 齿轮 GEAR | 1 | |||
| 4 | 41024 | 支承 SUPPORT | 1 | |||
| 5 | 42326 | 垫 GASKET | 1 | |||
| 6 | 41336 | 堵 PLUG | 1 | |||
| 7 | 42011 | 油缸 OIL CYLINDER | 1 | |||
| 8 | 42327 | 活塞 PISTON | 1 | |||
| 9 | 41025 | 套 SLEEVE | 1 | |||
| 10 | 42312 | 拉杆 LINK | 1 | |||
| 11 | 42304 | 齿轮 GEAR | 1 | |||

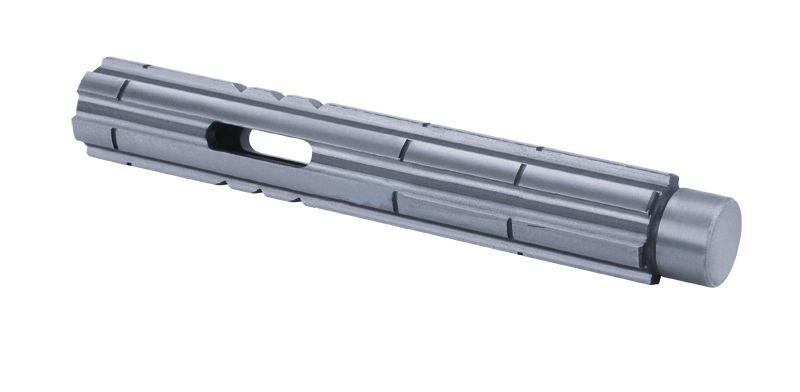

| 12 | 42308 | 轴 SHAFT | 1 | |||
| 部别 GROUP | 02 | 进给变速 | ||||

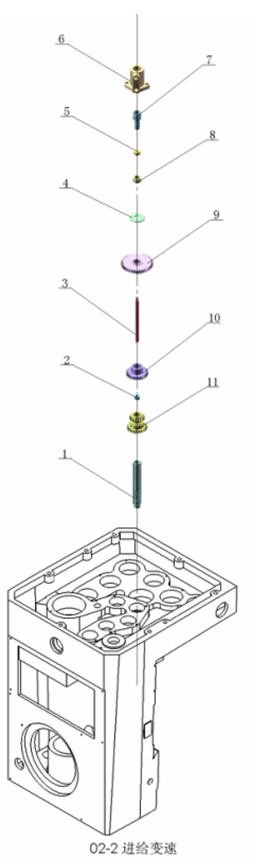

| 插图号 FIG No | 02-02 | FEED CHANGE MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 42311 | 轴 SHAFT | 1 | |||
| 2 | 41024 | 支承 SUPPORT | 1 | |||
| 3 | 42310 | 拉杆 LINK | 1 | |||
| 4 | 42326 | 垫 GASKET | 1 | |||
| 5 | 41336 | 堵 PLUG | 1 | |||
| 6 | 42011 | 油缸 OIL CYLINDER | 1 | |||
| 7 | 42327 | 活塞 PISTON | 1 | |||
| 8 | 41025 | 套 SLEEVE | 1 | |||
| 9 | 42301 | 齿轮 GEAR | 1 | |||
| 10 | 42303 | 齿轮 GEAR | 1 | |||
| 11 | 42309 | 齿轮 GEAR | 1 | |||
| 部别 GROUP | 02 | 进给变速 | ||||

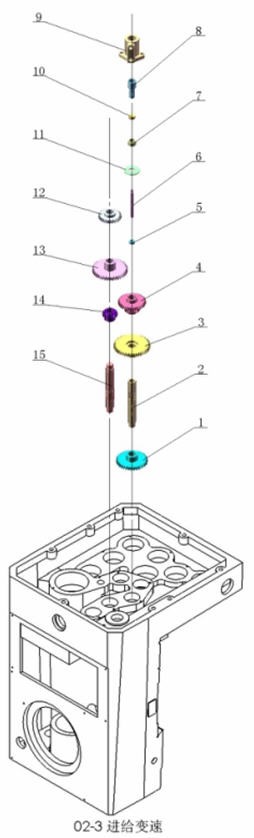

| 插图号 FIG No | 02-03 | FEED CHANGE MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 42314 | 齿轮 GEAR | 1 | |||
| 2 | 42313 | 轴 SHAFT | 1 | |||
| 3 | 42321 | 齿轮 GEAR | 1 | |||
| 4 | 42302 | 齿轮 GEAR | 1 | |||
| 5 | 41024 | 支承 SUPPORT | 1 | |||
| 6 | 42312 | 拉杆 LINK | 1 | |||
| 7 | 41025 | 套 SLEEVE | 1 | |||
| 8 | 42327 | 活塞 PISTON | 1 | |||
| 9 | 42011 | 油缸 OIL CYLINDER | 1 | |||
| 10 | 41336 | 堵 PLUG | 1 | |||
| 11 | 42326 | 垫 GASKET | 1 | |||
| 12 | 42325 | 齿轮 GEAR | 1 | |||
| 13 | 42322 | 齿轮 GEAR | 1 | |||
| 14 | 42315 | 齿轮 GEAR | 1 | |||
| 15 | 42316 | 轴 SHAFT | 1 | |||
| 部别 GROUP | 02 | 进给变速 | ||||

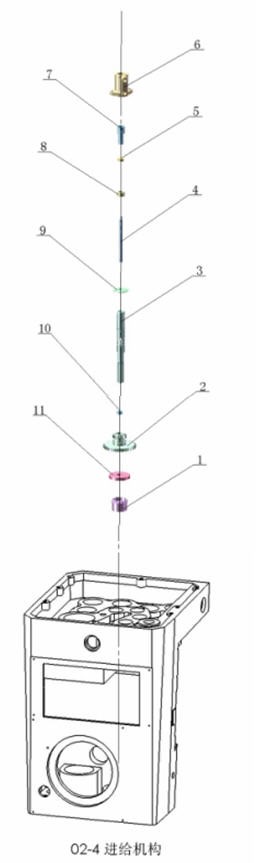

| 插图号 FIG No | 02-04 | FEED CHANGE MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 42317 | 轴承座 BEARING SEAT | 1 | |||
| 2 | 42320 | 齿轮 GEAR | 1 | |||
| 3 | 42323 | 轴 SHAFT | 1 | |||
| 4 | 42324 | 拉杆 LINK | 1 | |||
| 5 | 41336 | 堵 PLUG | 1 | |||
| 6 | 42011 | 油缸 OIL CYLIMDER | 1 | |||
| 7 | 42327 | 活塞 PISTON | 1 | |||
| 8 | 41025 | 套 SLEEVE | 1 | |||
| 9 | 42326 | 垫 GASKET | 1 | |||
| 10 | 41024 | 支承 SUPPORT | 1 | |||
| 11 | 42318 | 挡油垫 OIL SEAL | 1 | |||
| 部别 GROUP | 03 | 进给机构 | ||||

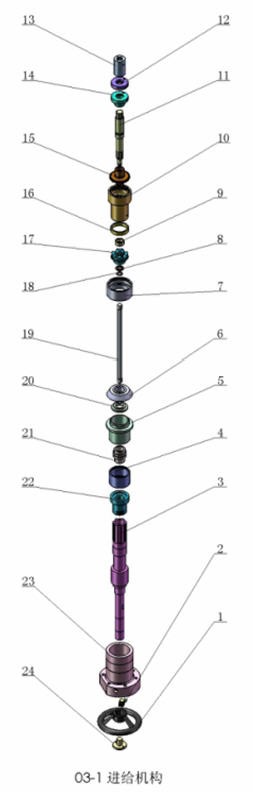

| 插图号 FIG No | 03-01 | FEEDING MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||

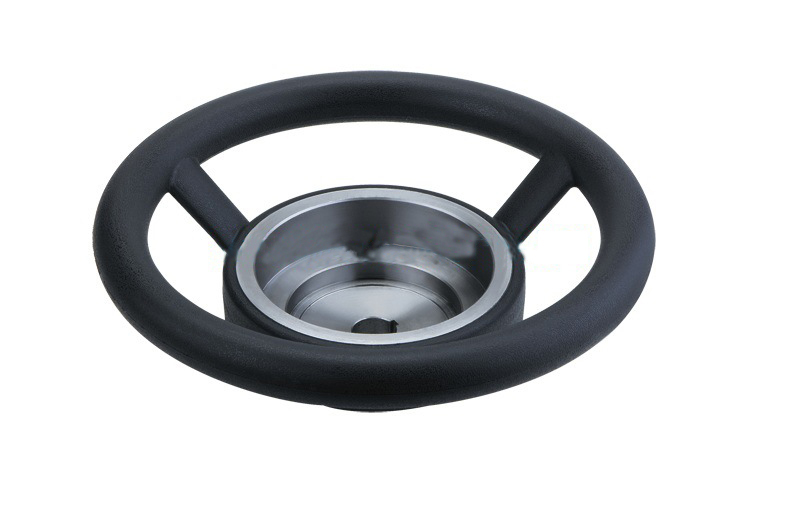

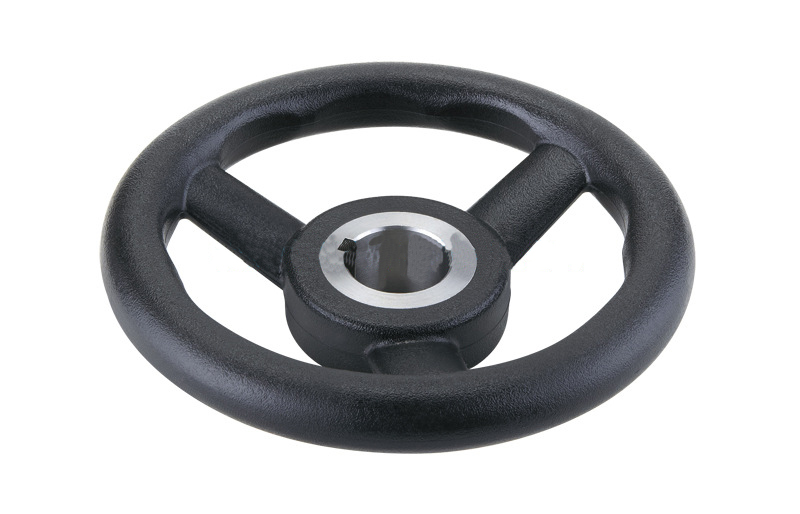

| 1 | 43901A | 手轮 HAND WHEEL | 1 | |||
| 2 | 43301A | 手轮 HAND WHEEL | 1 | |||

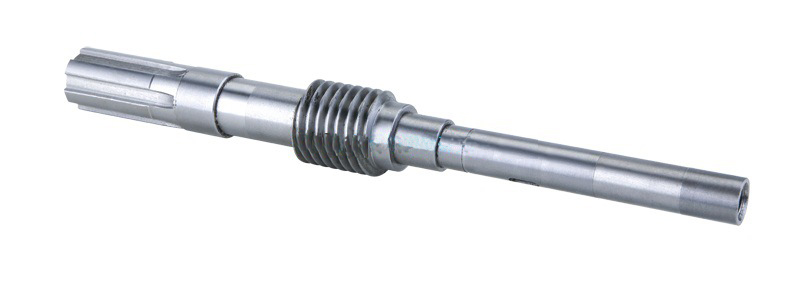

| 3 | 43308 | 蜗杆轴 WORM SHAFT | 1 | |||
| 4 | 43348 | 套 SLEEVE | 1 | |||
| 5 | 43336 | 轴承座 BEARING SEAT | 1 | |||
| 6 | 43307 | 支承盖 REST COVER | 1 | |||
| 7 | 43014 | 套 SLEEVE | 1 | |||
| 8 | 43310 | 垫 GASXET | 1 | |||
| 9 | 43313 | 套 SLEEVE | 1 | |||
| 10 | 43309 | 内齿套 INTERNAL GEAR SLEEVE | 1 | |||
| 11 | 43317 | 轴 SHAFT | 1 | |||
| 12 | 43316 | 螺母 NUT | 1 | |||
| 13 | 43015 | 花键套 SPLINE SLEEVE | 1 | |||
| 14 | 43315 | 螺母 NUT | 1 | |||
| 15 | 43314 | 离合器(上) UPPER CLUTCH | 1 | |||
| 16 | 43312 | 套 SLEEVE | 1 | |||
| 17 | 43311 | 离合器(下) LOWER CLUTCH | 1 | |||
| 18 | 43353 | 垫 GASXET | 1 | |||
| 19 | 43306 | 拉杆 LINK | 1 | |||
| 20 | 43305 | 垫 GASXET | 1 | |||
| 21 | 43304 | 滑动套 SLIDING BUSH | 1 | |||
| 22 | 43349 | 齿条套 RACX SLEEVE | 1 | |||

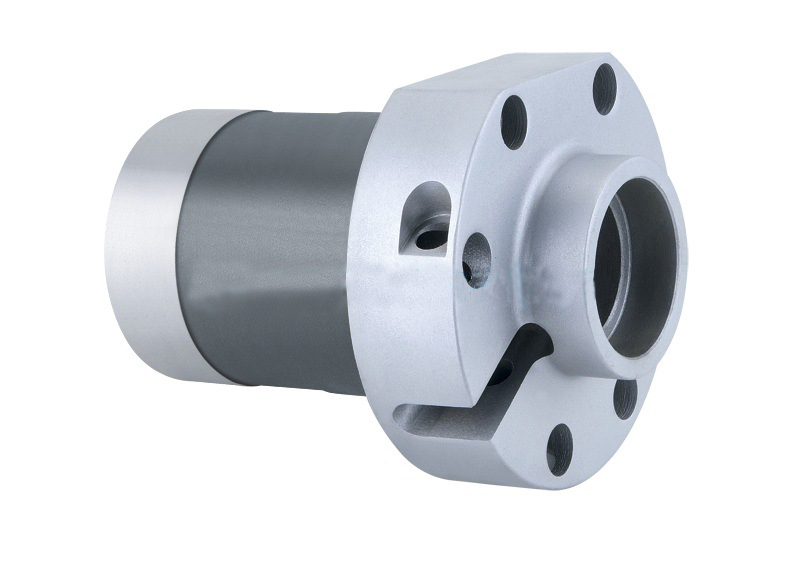

| 23 | 43011A | 轴承座 BEARING SEAT | 1 | |||
| 24 | 43302 | 螺钉 SCREW | 1 | |||
| 部别 GROUP | 03 | 进给机构 | ||||

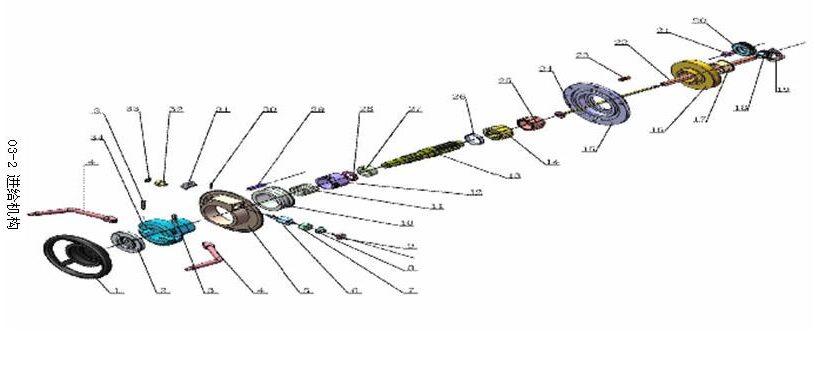

| 插图号 FIG No | 03-02 | FEEDING MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 43902 | 手轮 HAND WHEEL | 1 | |||
| 2 | 43021A | 盖 COVER | 1 | |||
| 3 | 43318 | 销轴 PINS | 2 | |||
| 4 | 43319A | 手柄 HANDLES | 2 | |||
| 5 | 43018A | 刻度盘 NDEXING DIAL | 1 | 公制 METRIC SYSTEI | ||
| 5 | 43018A 吋 | 刻度盘 NDEXING DIAL | 1 | 英制 BRITISH SYSTEM | ||
| 6 | 43334 | 蜗杆 WORM | 1 | |||
| 7 | 43013A | 支承套 BEARING SLEEVE | 1 | |||
| 8 | 43351A | 套 SLEEVE | 1 | |||
| 9 | 43352A | 螺钉 SCREW | 1 | |||
| 10 | 43320 | 蜗轮 WORM WHEEL | 1 | |||
| 11 | 43346 | 弹簧 SPRING | 1 | |||
| 12 | 43343 | 推套 PUSH SLEEVE | 1 | |||

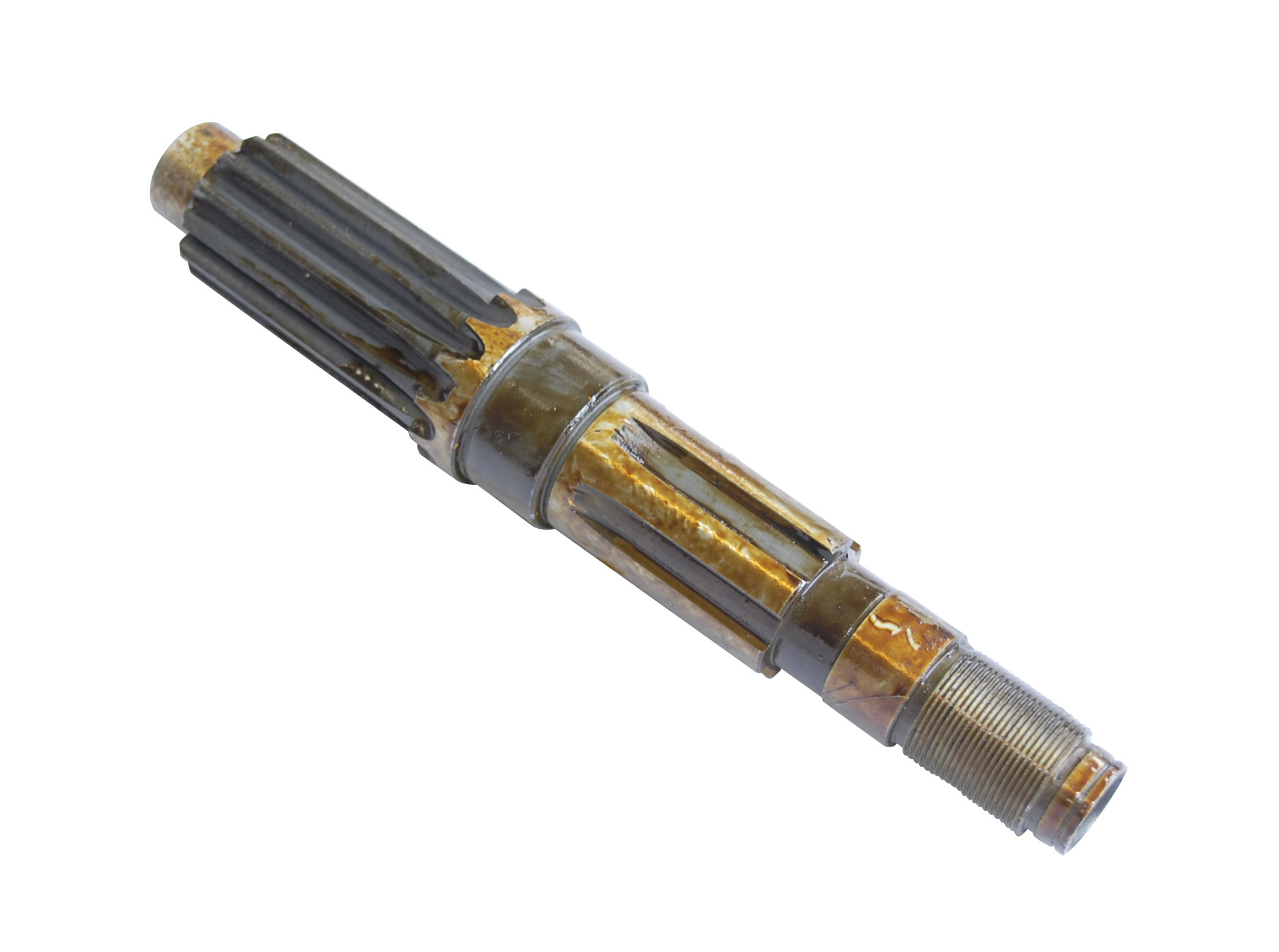

| 13 | 43332 | 轴 SHAFT | 1 | |||
| 14 | 43339 | 齿接合子 TEETH CLUTCH | 1 | |||
| 15 | 43019 | 支承套 BEARING SLEEVE | 1 | |||

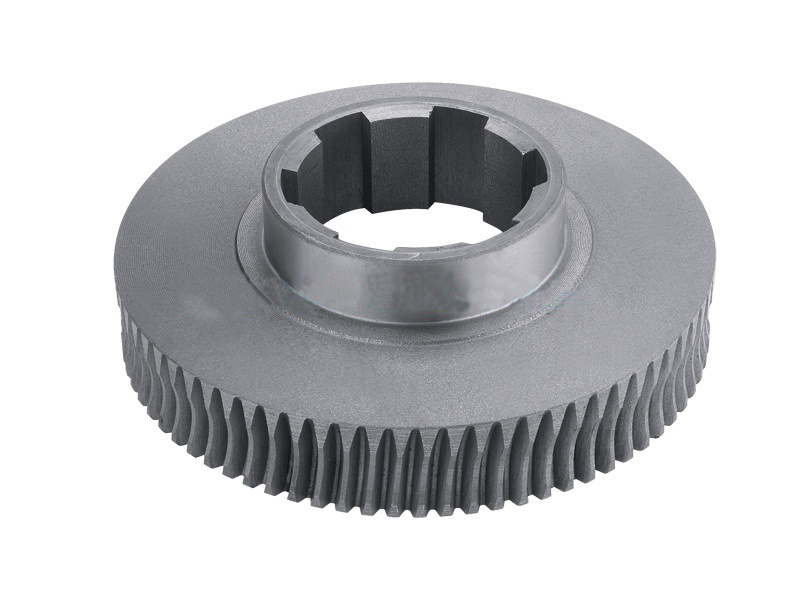

| 16 | 43020 | 蜗轮 WORM WHEEL | 1 | |||
| 17 | 43329 | 套 SLEEVE | 1 | |||
| 18 | 43326 | 齿轮 GEAR | 1 | |||
| 17 | 43329 | 套 SLEEVE | 1 | |||
| 18 | 43326 | 齿轮 GEAR | 1 | |||
| 19 | 43327 | 管夹 PIPE CLANP | 1 | |||
| 20 | 43325 | 齿轮 GEAR | 1 | |||
| 21 | 43324 | 套 SLEEVE | 1 | |||
| 22 | 43331 | 轴 SHAFT | 1 | |||
| 23 | 43321 | 撞块 DOG | 1 | |||
| 24 | 43330A | 套管 DRIVE-PIPE | 1 | |||

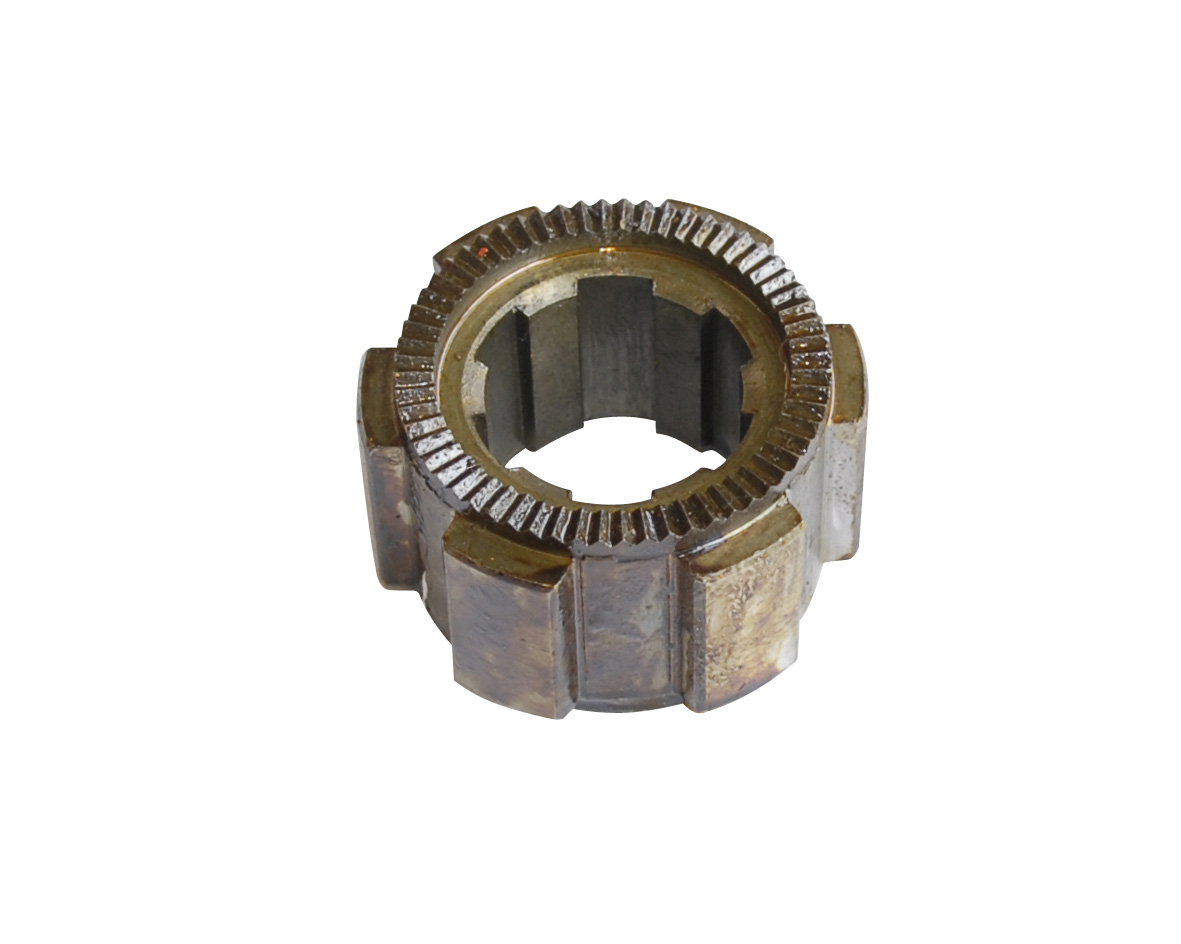

| 25 | 43338 | 齿结合子 TEETH CLUTCH | 1 | |||
| 26 | 43340 | 套 SLEEVE | 1 | |||
| 27 | 43345 | 螺母 NUT | 1 | |||
| 28 | 43350 | 螺母 MUT | 1 | |||
| 29 | 43333 | 撞轴 BUIPING PIN | 1 | |||
| 30 | 43344 | 销 PIN | 1 | |||
| 31 | 43328 | 副尺 SUB-SCALE | 1 | 公制 METRIC sYSTE | ||
| 31 | 43328A | 副尺 SUB-SCALE | 1 | 英制 BRITISH SYSTEM | ||
| 32 | 43337 | 捏手 KNOB | 1 | |||
| 33 | 43801A | 标示牌 MARK PLATE | 1 | |||
| 34 | 43017A | 支承套 BEARING SLEEVE | 1 | |||
| 部别 GROUP | 04 | 操纵机构 | ||||

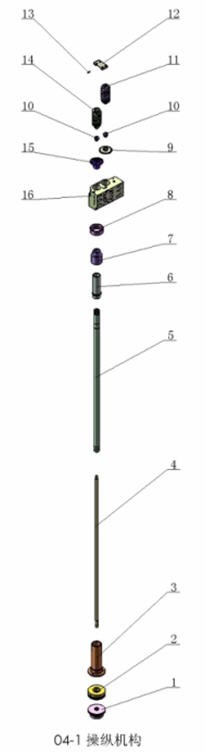

| 插图号 FIG No | 04-01 | OPERATING MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||

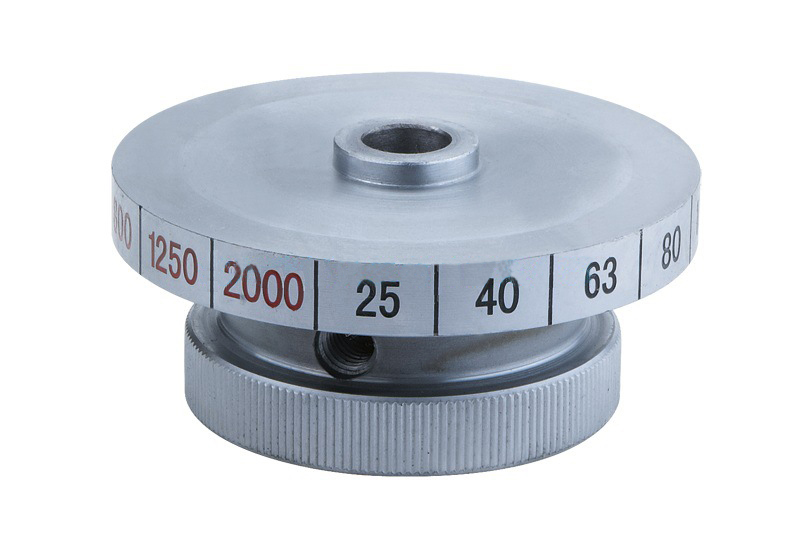

| 1 | 44324 | 变速旋钮 KNOB | 1 | |||

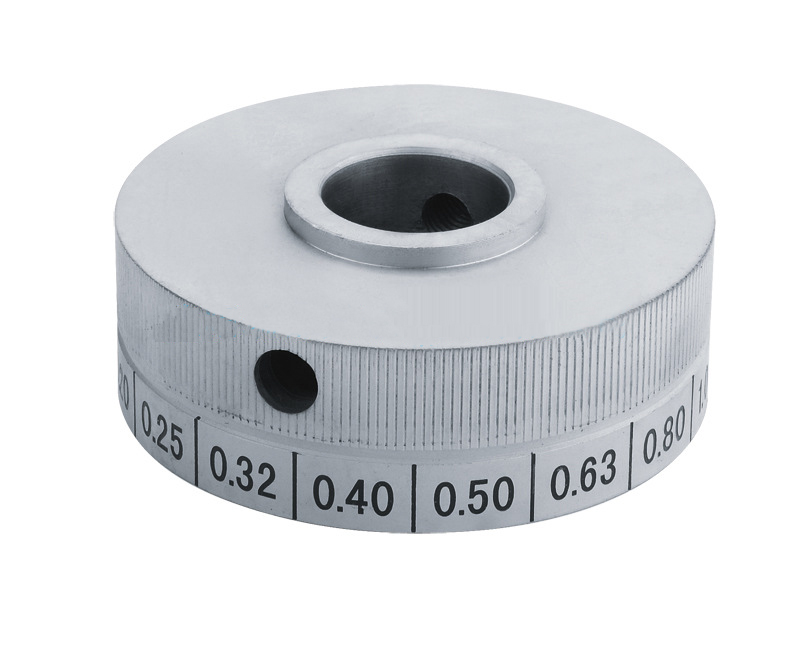

| 2 | 44322 | 变速旋钮 KNOB | 1 | |||
| 3 | 44013 | 套 SLEEVE | 1 | |||
| 4 | 44308 | 轴 SHAFT | 1 | |||
| 5 | 44309A | 套简 QUILL | 1 | |||
| 6 | 44012A | 衬套 BUSH | 1 | |||
| 7 | 44022 | 密封盖 SEAL OVER | 1 | |||
| 8 | 44025 | 套 SLEEVE | 1 | |||
| 9 | 44304 | 齿轮 GEAR | 1 | |||
| 10 | 44325 | 堵 PLUG | 2 | |||
| 11 | 44303 | 阀芯 VALVE CORE | 1 | |||
| 12 | 44318 | 挡板 BACK PLATE | 1 | |||
| 13 | 44302 | 销 PIN | 1 | |||
| 14 | 44301 | 阀芯 VALVE CORE | 1 | |||
| 15 | 44305 | 齿轮 GEAR | 1 | |||
| 16 | 44011 | 阀体 VALVE BODY | 1 | |||
| 部别 GROUP | 04 | 操纵机构 | ||||

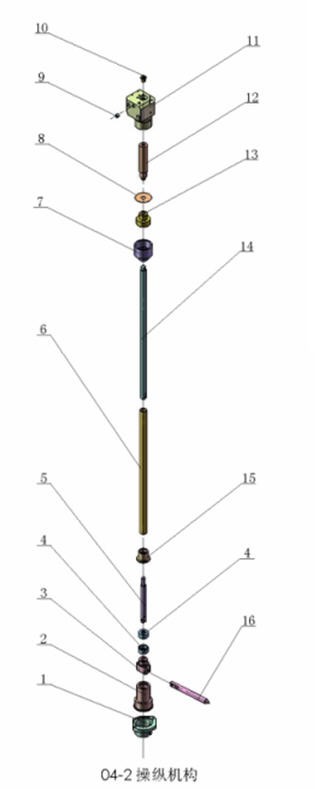

| 插图号 FIG No | 04-02 | OPERATING MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 44023A | 压盖 COVER | 1 | |||
| 2 | 44024 | 支承套 BEARING SLEEVE | 1 | |||
| 3 | 44015 | 支承座 SUPPORTING BRACKET | 1 | |||
| 4 | 44321 | 套 SLEEVE | 2 | |||
| 5 | 44342 | 拉杆 LINK | 1 | |||
| 6 | 44343 | 套管 QUILL | 1 | |||
| 7 | 44031 | 衬套 BUSH | 1 | |||
| 8 | 44327 | 垫 PAD | 1 | |||
| 9 | 44320 | 螺堵 PLUG | 1 | |||
| 10 | 44326 | 油塞 PLUG | 1 | |||
| 11 | 44020 | 阀体 VALVE BODY | 1 | |||
| 12 | 44316 | 阀芯 VALVE CORE | 1 | |||
| 13 | 44317 | 套 SLEEVE | 1 | |||
| 14 | 44341 | 连接杆 JOINT ROD | 1 | |||
| 15 | 44032 | 支承套 BEARING SLEEVE | 1 | |||
| 16 | 44307 | 手把 HANDLE | 1 | |||
| 部别 GROUP | 04 | 操纵机构 | ||||

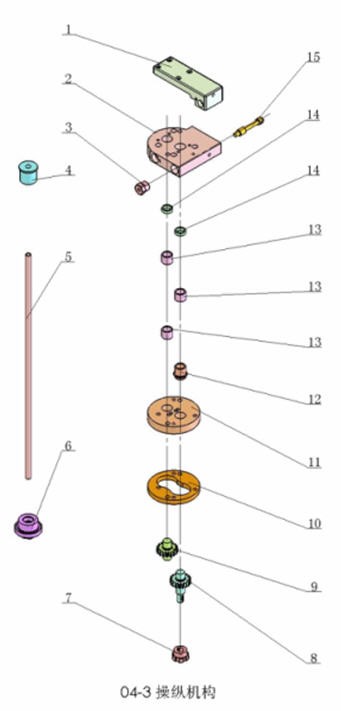

| 插图号 FIG No | 04-03 | OPERATING MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 44016 | 分油器 OIL DISTRIBUTOR | 1 | |||
| 2 | 44017 | 上泵体 UPPER PART OF PUMP BODY | 1 | |||
| 3 | 44315 | 螺塞 SCREV PLUG | 1 | |||
| 4 | 44026A | 堵 PLUG | 1 | |||
| 5 | 44901A | 放油管 DRAINING OIL PIPE | 1 | |||
| 6 | 44329A | 螺堵 SCREW PLUG | 1 | |||
| 7 | 44313 | 连接套 JOINT SLEEVE | 1 | |||
| 8 | 44312 | 齿轮 GEAR | 1 | |||
| 部别 GROUP | 04 | 操纵机构 | ||||

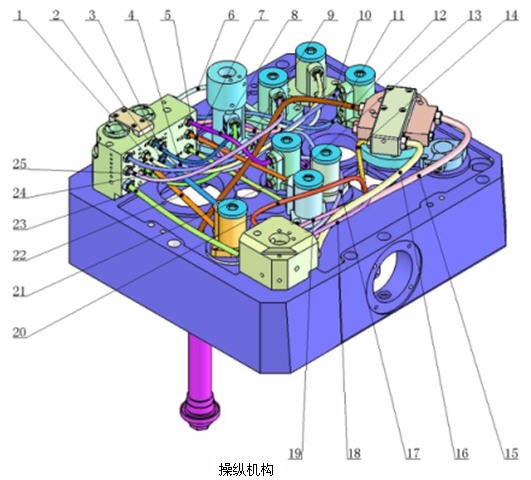

| 插图号 FIG No | 04-04 | OPERATING MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 44950 | 油管 OIL PIPE | 1 | |||
| 2 | 44963 | 油管 OIL PIPE | 1 | |||
| 3 | 44961 | 油管 OIL PIPE | 1 | |||
| 4 | 44957 | 油管 OIL PIPE | 1 | |||
| 5 | 44965 | 油管 OIL PIPE | 1 | |||
| 6 | 44951 | 油管 OIL PIPE | 1 | |||
| 7 | 44966 | 油管 OIL PIPE | 1 | |||
| 8 | 44960 | 油管 OIL PIPE | 1 | |||
| 9 | 44955 | 油管 OIL PIPE | 1 | |||
| 10 | 44952 | 油管 OIL PIPE | 1 | |||
| 11 | 44953 | 油管 OIL PIPE | 1 | |||
| 12 | 44964 | 油管 OIL PIPE | 1 | |||
| 13 | 44956 | 油管 OIL PIPE | 1 | |||
| 14 | 44967 | 油管 OIL PIPE | 1 | |||
| 15 | 44971 | 油管 OIL PIPE | 1 | |||
| 16 | 44973 | 油管 OIL PIPE | 1 | |||
| 17 | 44969 | 油管 OIL PIPE | 1 | |||
| 18 | 44972 | 油管 OIL PIPE | 1 | |||
| 19 | 44970 | 油管 OIL PIPE | 1 | |||
| 20 | 44968 | 油管 OIL PIPE | 1 | |||
| 21 | 44958 | 油管 OIL PIPE | 1 | |||
| 22 | 44962 | 油管 OIL PIPE | 1 | |||
| 23 | 44974 | 油管 OIL PIPE | 1 | |||
| 24 | 44959 | 油管 OIL PIPE | 1 | |||
| 25 | 44954 | 油管 OIL PIPE | 1 | |||
| 部别 GROUP | 05 | 液压及夹紧机构 | ||||

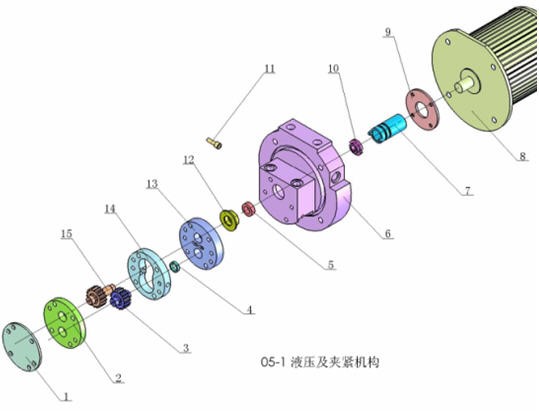

| 插图号 FIG No | 05-01 | HYDRAULIC AND CLAMPING MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 45018 | 油泵盖板 COVER PLATE FOR OIL PUMP | 1 | |||
| 2 | 45019 | 油泵体 BODY OF OIL PUMP | 1 | |||
| 3 | 45328 | 齿轮 GEARS | 1 | |||
| 4 | 45314 | 套 SLEEVE | 1 | |||
| 5 | 45904 | 密封圈 SEAL RING | 1 | |||
| 6 | 45022A | 油泵底座 SEAT OF OIL PUMP | 1 | |||
| 7 | 45326A | 接合套 JOINT SLEEVE | 1 | |||
| 8 | YSJ80-4 | 电机 ELECTRIC MOTOR | 1 | |||
| 9 | 45023 | 盖板 COVER | 1 | |||
| 10 | 45311 | 接合套 JOINT SLEEVE | 1 | |||
| 11 | 45309 | 轴 SHAFTS | 1 | |||
| 12 | 45317 | 定心套 CENTRING SLEEVE | 1 | |||
| 13 | 45021 | 油泵体 BODY OF OIL PUMP | 1 | |||
| 14 | 45020 | 油泵体 BODY OF OIL PUMP | 1 | |||
| 15 | 45327 | 齿轮 GEARS | 1 | |||
| 部别 GROUP | 05 | 液压及夹紧机构 | ||||

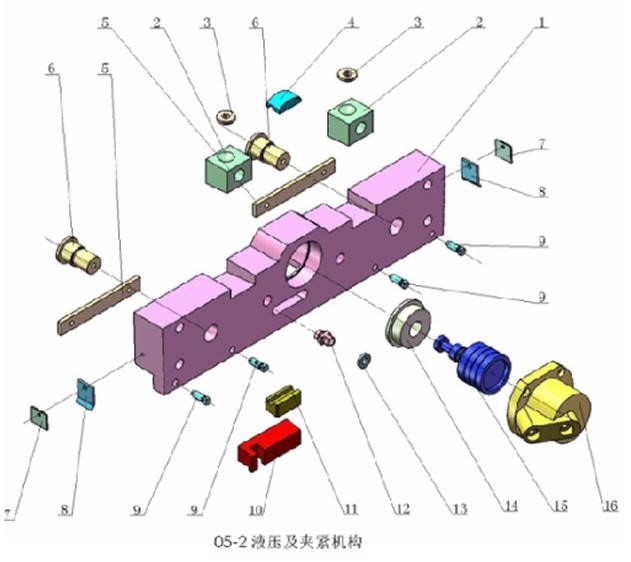

| 插图号 FIG No | 05-02 | HYDRAULIC AND CLAMPING MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||

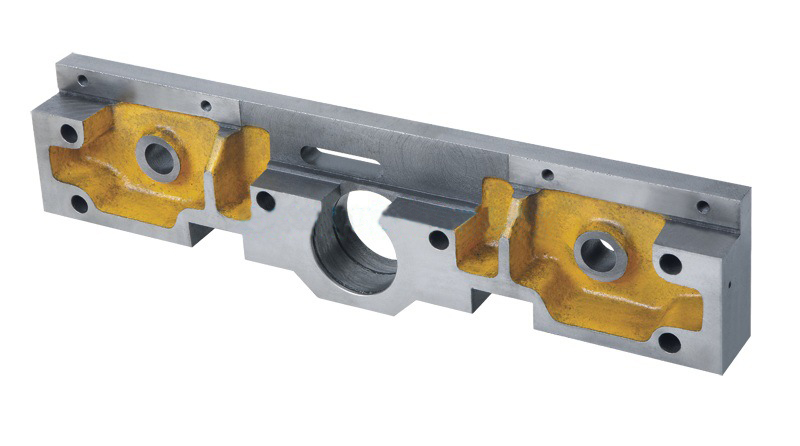

| 1 | 45011A | 制动架 BRAKE BRACKET | 1 | |||
| 2 | 45014 | 楔铁 WEDGES | 2 | |||
| 3 | 45325 | 垫国 WASHERS | 2 | |||
| 4 | 45305 | 顶块 EJECTOR BLOCK | 1 | |||
| 5 | 45304 | 垫块 BEARERS | 2 | |||
| 6 | 45301 | 支承轴 SUPPOR TING SHAFTS | 2 | |||
| 7 | 45321A | 垫 GASKETS | 2 | |||
| 8 | 45901 | 挡板 BACK PLATES | 2 | |||
| 9 | 45302 | 螺钉 SCREVS | 4 | |||
| 10 | 45303 | 夹紧块 CLAMP BLOCK | 1 | |||
| 11 | 45307 | 压块 PUSH BLOCK | 1 | |||
| 12 | 45318 | 拉紧块 CLAMP BLOCK | 1 | |||
| 13 | 45319 | 垫 GASKETS | 1 | |||
| 14 | 45013 | 套 SLEEVE | 1 | |||
| 15 | 45306 | 活塞 PISTON | 1 | |||
| 16 | 45012 | 油缸 OIL CYLINDER | 1 | |||
| 部别 GROUP | 05 | 液压及夹紧机构 | ||||

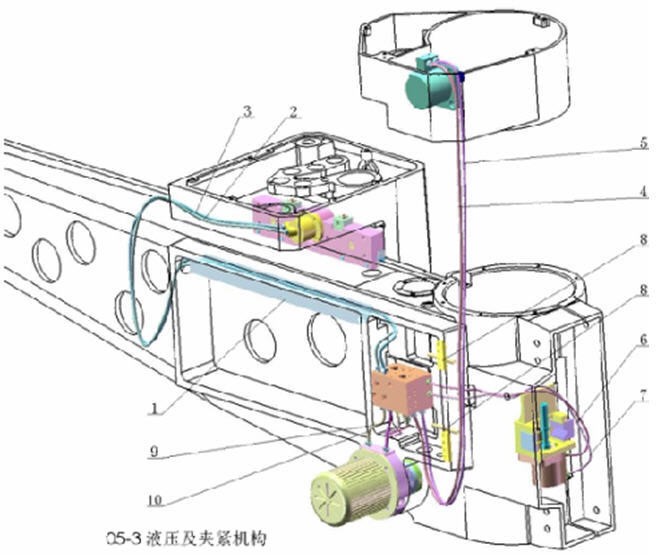

| 插图号 FIG No | 05-03 | HYDRAULIC AND CLAMPING MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 45324A | 挡板 BACK FLATES | 1 | |||
| 2 | 45951 | 油管 OIL PIPE | 2 | |||
| 3 | 45952 | 油管 OIL PIPE | 2 | |||
| 4 | 45953 | 油管 OIL PIPE | 1 | |||
| 5 | 45953-1 | 油管 OIL PIPE | 1 | |||
| 6 | 45956 | 油管 OIL PIPE | 2 | |||
| 7 | 45957A | 油管 OIL PIPE | 1 | |||
| 8 | 45958A | 油管 OIL PIPE | 1 | |||
| 部别 GROUP | 06 | 主轴及平衡机构 | ||||

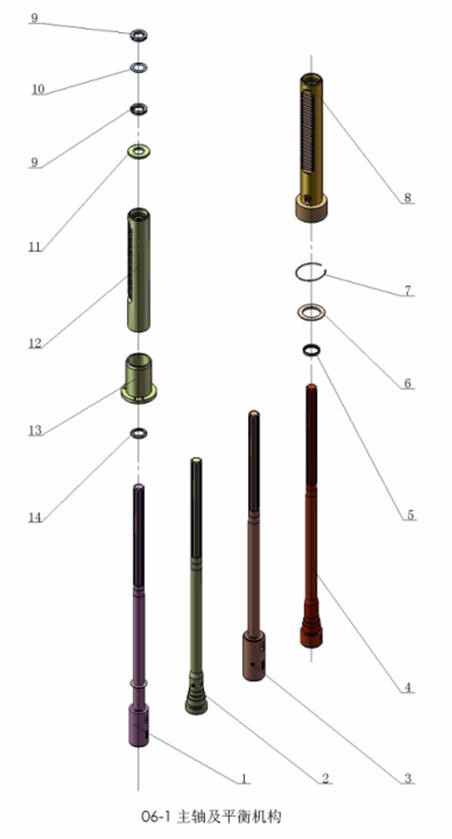

| 插图号 FIG No | 06-01 | SPINDLE AND ITS BALANCING MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 46301 | 主轴 SPINDLE | 1 Z3040x16/1 | 莫氏：4 MORSE TAPER:4 | ||
| 1′ | 46301B | 主轴 SPINDLE | 1 Z3040x16/2 | |||
| 1” | 56301 | 主轴 SPINDLE | 1 Z3050x16/1 | 莫氏：5 MORSE TAPER:5 | ||
| 1'” | 56301B | 主轴 SPINDLE | 1 Z3050x16/2 | |||
| 2 | 56902B | 密封围 SEAL RING | 1 | |||
| 3 | 56321B | 调整垫 ADJUSTING PAD | 1 | |||
| 4 | 56322B | 挡圈 SNAP RING | 1 | |||
| 5 | 46307 | 螺母 NUTS | 2 | |||
| 6 | 46306 | 垫圈 VASHER | 1 | |||
| 7 | 46305 | 盖 COVER | 1 | |||
| 8 | 46304 | 主轴套 QUILL | 1 | |||
| 8′ | 56304B | 主轴套 QUILL | 1 | |||
| 9 | 46011A | 导向套 GUIDING SLEEVE | 1 | |||
| 10 | 46302 | 垫圈 WASHER | 2 | |||
| 部别 GROUP | 06 | 主轴及平衡机构 | ||||

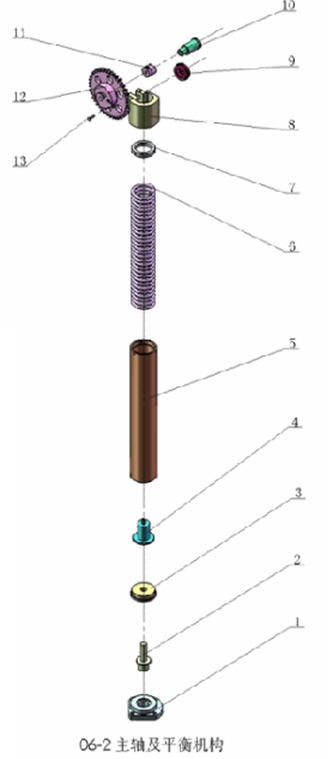

| 插图号 FIG No | 06-02 | SPINDLE AND ITS BALANCING MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 46013 | 支座 SUPPOUT BRACKET | 1 | |||
| 2 | 46312 | 调整螺杆 ADJUSTABLE LEADSCREW | 1 | |||
| 3 | 46313 | 螺座 SCREW BRACKET | 1 | |||
| 4 | 46311 | 支承座 SUPPOUT BRACKET | 1 | |||
| 5 | 46310 | 套筒 QILL | 1 | |||
| 6 | 46309 | 弹簧 SPRING | 1 | |||
| 7 | 46308 | 套 SLEEVE | 1 | |||
| 8 | 46012 | 支架 SUPPORT | 1 | |||
| 9 | 46314 | 链轮 CHAIN WHEEL | 1 | |||
| 10 | 46317 | 轴 SHAFT | 1 | |||
| 11 | 46318 | 轴套 SHAFT SLEEVE | 1 | |||
| 12 | 46316 | 凸轮 CAM | 1 | |||
| 13 | 46315 | 销钉 PINS | 1 | |||
| 部别 GROUP | 07 | 立柱、摇臂升降及冷却 | ||||

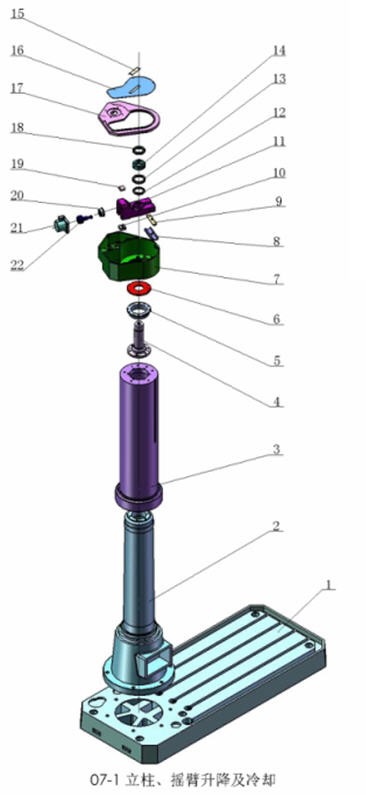

| 插图号 FIG No | 07-01 | COLUMN,ARM ELEVATING AND COOLING DEVICE | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 47011A | 底座 SEAT | 1 | |||
| 2 | 47012A | 内柱 INNER COLUMN | 1 | |||
| 3 | 47013A | 外柱 OUIER COLUMN | 1 | |||

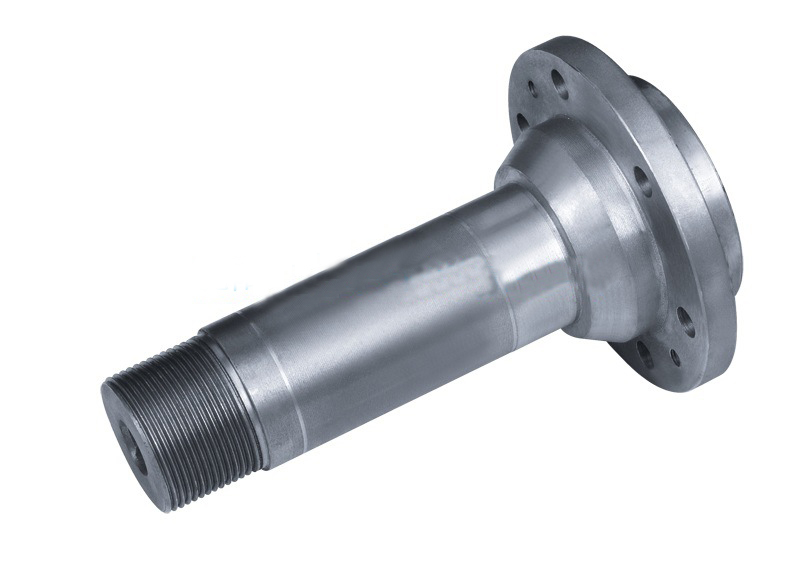

| 4 | 47020 | 柱顶 CAPITAL | 1 | |||
| 5 | 47019 | 偏心套 EOCENTRIC SEEVE | 1 | |||

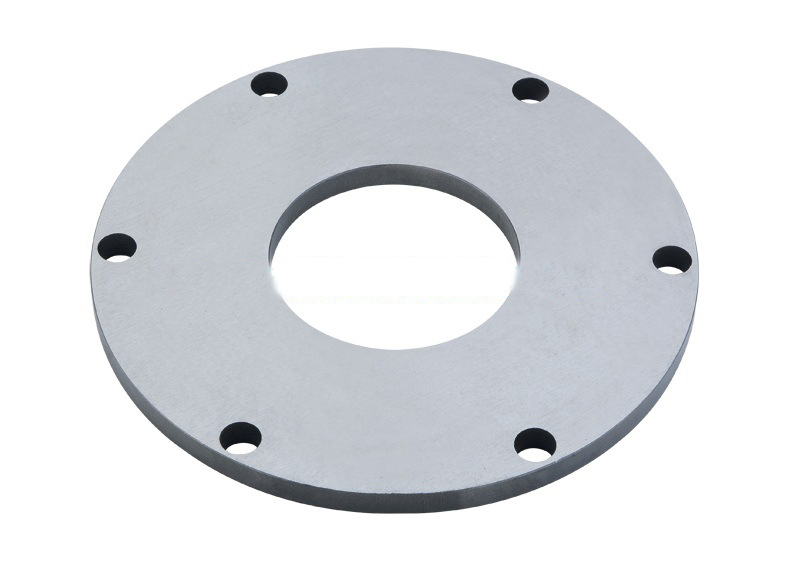

| 6 | 47311 | 圆板弹簧 DISC SPRING | 1 | |||
| 7 | 47014A | 体壳 SHELL | 1 | |||
| 8 | 47021 | 垫块 BEARER | 1 | |||
| 9 | 47301 | 浮动块 FLOATINGBLOCK | 1 | |||
| 10 | 47310 | 承压块 SUPPORTING BLOOX | 1 | |||

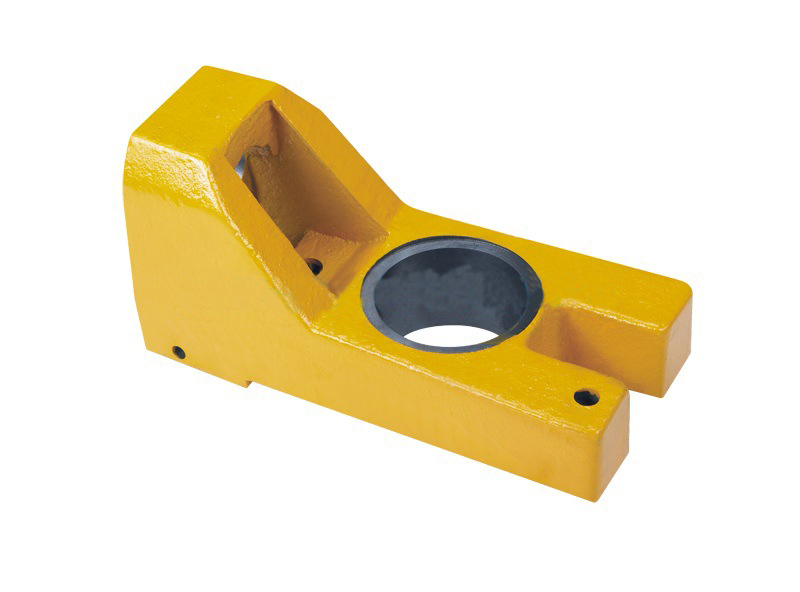

| 11 | 47015 | 杠杆 PRY BAR | 1 | |||

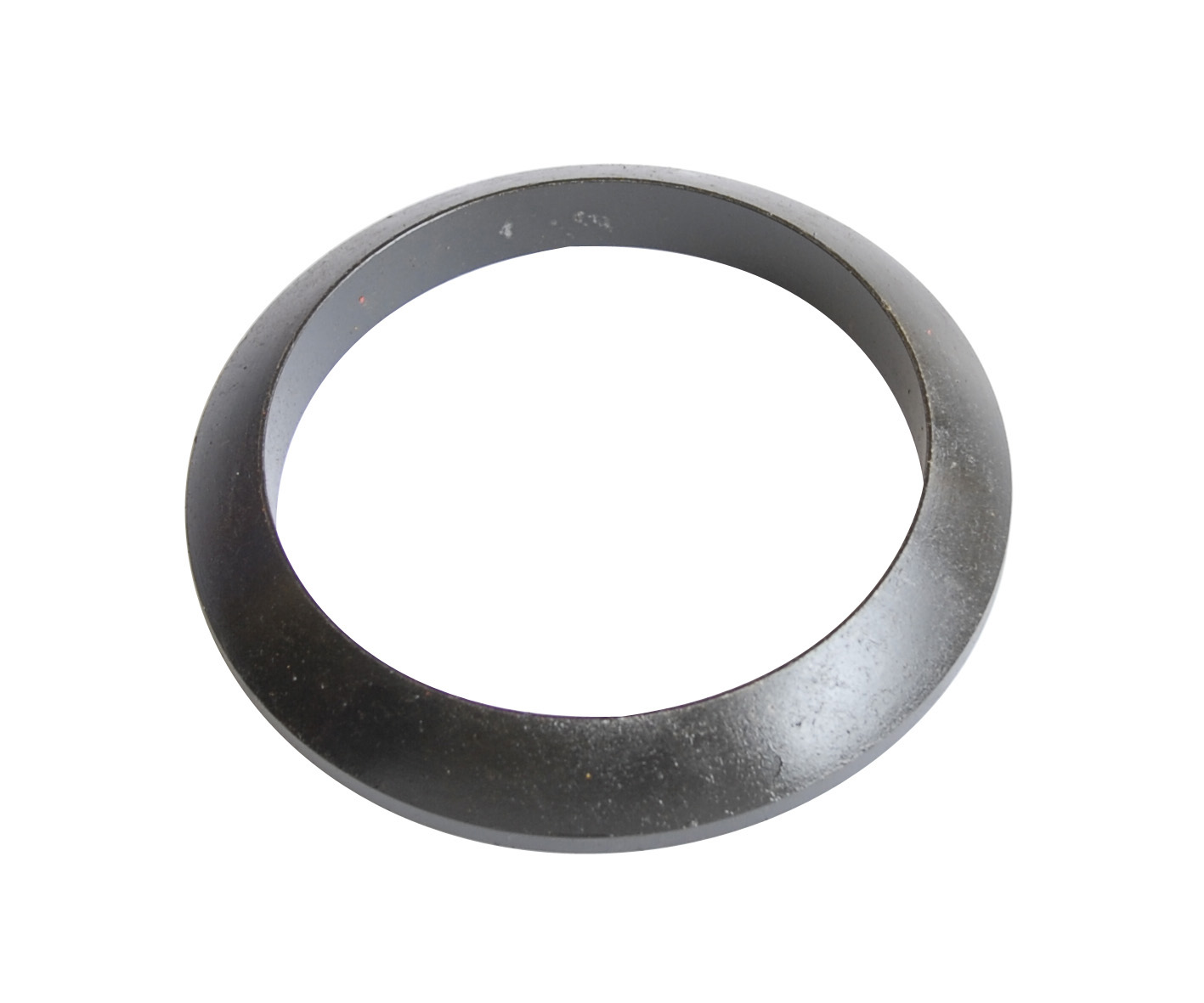

| 12 | 47303 | 下球面垫 (LOWER)SPHERICAL WASHER | 1 | |||

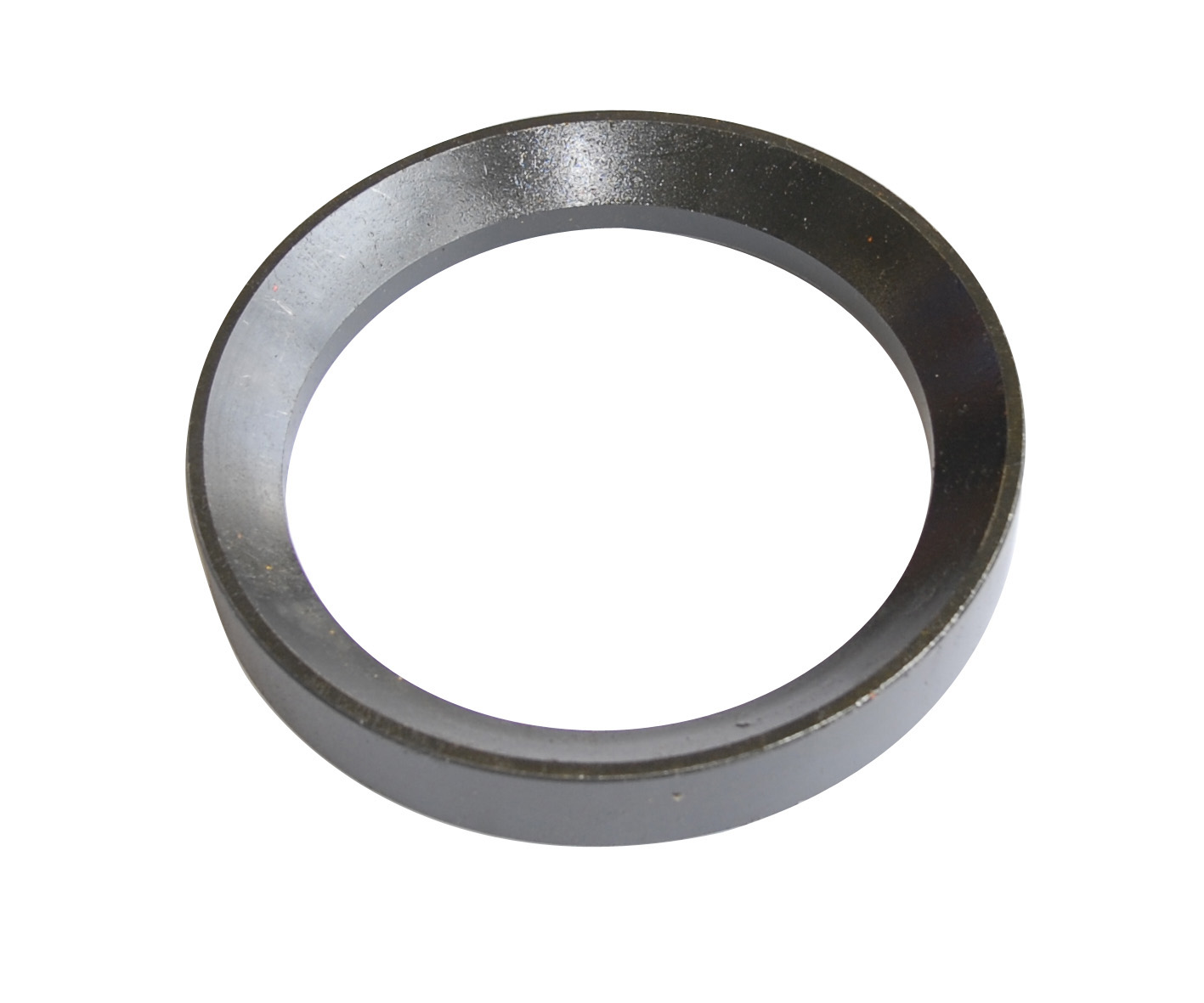

| 13 | 47302 | 上球面垫 (UPPER)SPHERICAL WASHER | 1 | |||
| 14 | 47326 | 螺母 NUT | 1 | |||
| 15 | 47313 | 盖 COVER | 1 | |||
| 16 | 47305 | 盖 COVER | 1 | |||
| 17 | 47030A | 盖 COVER | 1 | |||
| 18 | 47325 | 螺母 NUT | 1 | |||
| 19 | 47306 | 半圆快 ARCH BLOCK | 1 | |||
| 20 | 47017 | 套 SLEEVE | 1 | |||
| 21 | 47018 | 油缸 OIL CYLINDER | 1 | |||
| 22 | 47308 | 活塞 PISTON | 1 | |||
| 部别 GROUP | 07 | 立柱、摇臂升降及冷却 | ||||

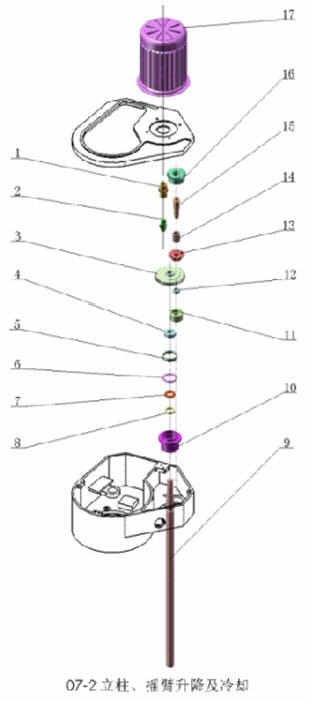

| 插图号 FIG No | 07-02 | COLUMN,ARM ELEVATING AND COOLING DEVICE | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||

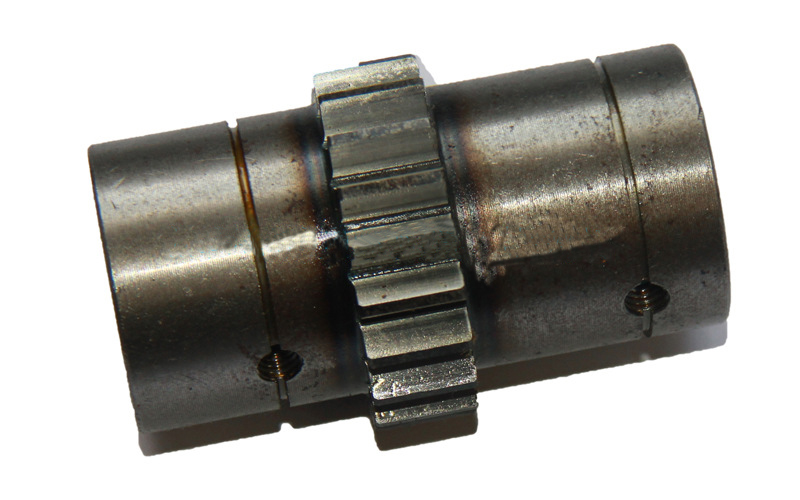

| 1 | 473388 | 齿轮 GEAR | 1 | |||
| 2 | 47031A | 飞溅器 SPLASHER | 1 | |||
| 3 | 47315 | 齿轮 GEAR | 1 | |||
| 4 | 47319 | 螺母 NUT | 1 | |||
| 5 | 47328 | 套 SLEEVE | 1 | |||
| 6 | 47327 | 垫 RAD | 1 | |||
| 7 | 47025 | 垫围 WASHER | 1 | |||
| 8 | 47323 | 垫国 WASHER | 1 | |||
| 9 | 47317 | 丝杠 LEAD SCREW | 1 | |||
| 10 | 47318 | 轴承座 BEARING SEAT | 1 | |||
| 11 | 47026 | 套 SLEEVE | 1 | |||
| 12 | 47324 | 垫圈 WASHER | 1 | |||
| 13 | 47309 | 齿轮离合器 GEAR CLUTCH | 1 | |||
| 14 | 47023 | 轴套 SHAFT SLEEVE | 1 | |||
| 15 | 47307 | 小轴 SALL SHAFT | 1 | |||
| 16 | 47314 | 齿轮 GEAR | 1 | |||
| 17 | y901-4 | 电机 ELECTRIC MOTOR | 1 | |||
| 部别 GROUP | 08 | 摇臂夹紧及润滑 | ||||

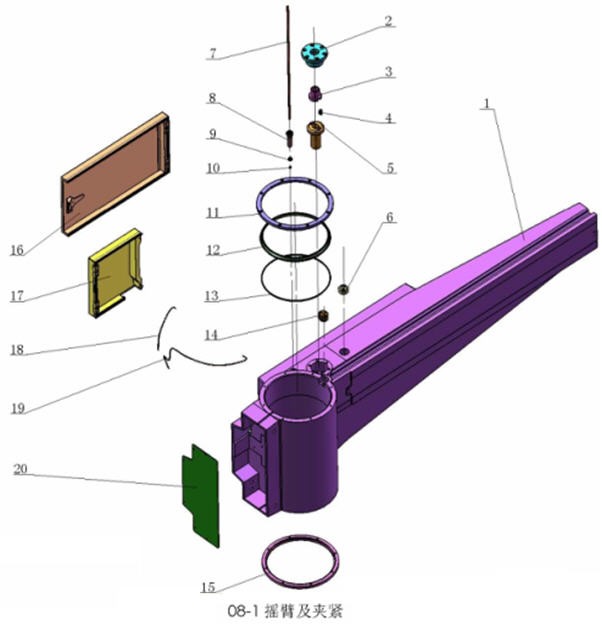

| 插图号 FIG No | 08-01 | ARM,CLAMPING AND LUBRICATING DEVICE | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 48011ASB | 摇臂 RADIAL ARM | 1 | |||
| 2 | 48012 | 压盖 COVER | 1 | |||
| 3 | 48013 | 螺母 NUT | 1 | |||
| 4 | 48312 | 撞销 LIMIT PIN | 1 | |||
| 5 | 48311 | 螺母 NUT | 1 | |||
| 6 | 48903 | 堵 PLUG | 1 | |||
| 7 | 48304A | 撞杆 LIMIT BAR | 1 | |||
| 8 | 48306 | 套 SLEEVE | 1 | |||
| 9 | 48305 | 螺钉 SCREWS | 1 | |||
| 10 | 48307 | 垫围 WASHER | 1 | |||
| 11 | 48924A | 压圈 PRESSURING RINGS | 1 | |||
| 12 | 48910 | 防尘圈 DUST RINGS | 1 | |||
| 13 | 48911 | 毡垫 FELT PAD | 1 | |||
| 14 | 48313 | 导向键 GUIDING KEY | 1 | |||
| 15 | 48923A | 压固 PRESSURING RINGS | 1 | |||
| 16 | 48315 | 左电器箱盖 COVER OF ELECTRIC CABIMET(LEFT) | 1 | |||
| 17 | 48316 | 右电器箱盖 COVER OF ELECTRIC CABINET(RIGHT) | 1 | |||
| 18 | 48921A | 油管 OIL PIPE | 1 | |||
| 19 | 48920A | 油管 OIL PIPE | 1 | |||
| 20 | 48330A | 盖 COVER | 1 | |||

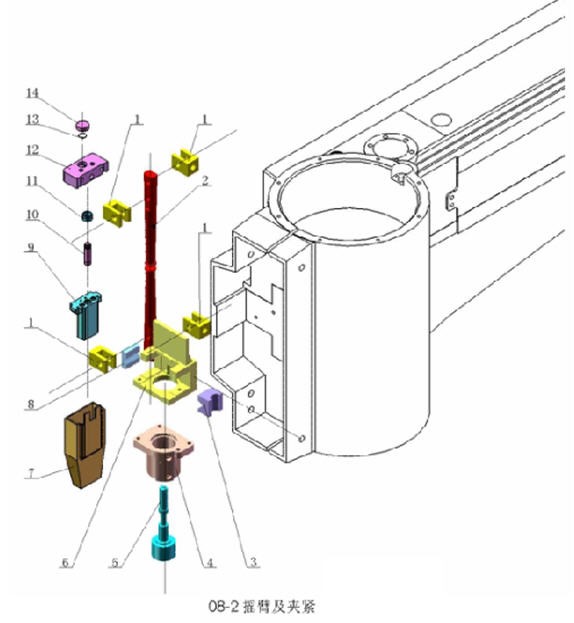

| 部别 GROUP | 08 | 摇臂夹紧及润滑 | ||||
| 插图号 FIG No | 08-02 | ARM,CLAMPING AND LUBRICATING DEVICE | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 48309 | 拉杆 LINKS | 4 | |||
| 2 | 48308 | 夹紧杆 CLAMPING BARS | 2 | |||
| 3 | 48310 | 顶块 BACK BLOCK | 1 | |||
| 4 | 48014A | 油缸 OIL CYLINDER | 1 | |||
| 5 | 48302 | 活塞 PISTON | 1 | |||
| 6 | 48015 | 油缸架 SUPPORT OF OIL CYLINDER | 1 | |||
| 7 | 881901 | 油盒 OIL BOX | 1 | |||
| 8 | 48303 | 压块 PUSHING BLOCK | 1 | |||
| 9 | 881011 | 油缸 OIL CYLINDER | 1 | |||
| 10 | 481301 | 活塞 PISTON | 1 | |||
| 11 | 881303 | 套 SLEEVE | 1 | |||
| 12 | 881012 | 盖 COVER | 1 | |||
| 13 | 881801 | 虑油网 SIEVE | 1 | |||
| 14 | 881903 | 盖 COVER | 1 | |||
| 部别 GROUP | 01 | 主轴变速 | ||||
|---|---|---|---|---|---|---|
| 插图号 FIG No | 01-01 | SPINDLE SPEED CHANGE MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 41011ASB | 主轴箱体 SPINDLE HEAD BODY | 1 | |||
| 2 | 41012ASB | 主轴箱盖 COVER OF SPINDLE HEAD | 1 | |||
| 3 | 41903 | 盖 COVER | 3 | |||
| 4 | 41350 | 压圈 PRESSURING RINGS | 3 | |||
| 5 | 41328 | 螺钉 SCREWS | 6 | |||
| 6 | 41335A | 盖板 COVER | 1 | |||
| 7 | 41013ASB | 电机座 MOTOR FRAME | 1 | |||
| 8 | 41812A | 标牌 MARK PLATE | 1 | |||
| 9 | 41827A | 标牌 MARK PLATE | 1 | Z3040x16/1 | ||
| 10 | 41827B | 标牌 MARK PLATE | 1 | Z3040X16/2 | ||
| 11 | 51827A | 标牌 MARK PLATE | 1 | Z3050X16/1 | ||
| 12 | 51827B | 标牌 MARK PLATE | 1 | Z3050X16/2 | ||
| 部别 GROUP | 01 | 主轴变速 | ||||
|---|---|---|---|---|---|---|
| 插图号 FIG No | 01-02 | SPINDLE SPEED CHANGE MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 41016 | 支承座 SUPPORTING BRACKET | 1 | |||
| 2 | 41353 | 垫 GASKET | 1 | |||
| 3 | 41310 | 压垫 PUSH PAD | 1 | |||
| 4 | 80; SZSC31-1 | 外摩擦片 OUTER FRICTION DISCS | 4 | |||
| 5 | 80; SZSC31-3 | 外摩擦片 OUTER FRICTION DISCS | 3 | |||
| 6 | 70; SZSC31-2 | 内摩擦片 INNER FRICTION DISCS | 8 | |||
| 7 | 41308 | 活塞 PISTON | 1 | |||
| 8 | 41017 | 接油器 OIL CONTAINER | 1 | |||
| 9 | 41345 | 齿轮 GEAR | 1 | |||
| 10 | 41312 | 垫 GASKET | 1 | |||
| 11 | 41311 | 齿轮 GEAR | 1 | |||
| 12 | 41309 | 轴 SHAFT | 1 | |||
| 13 | 电机 Y100L2-4 | 电机 ELECTRIC MOTOR | 1 | 3kW Z3040x16/1、2 | ||
| 13 | 电机 Y112M-4 | 电机 ELECTRIC MOTOR | 1 | 4kW Z3050x16/1、2 | ||
| 部别 GROUP | 01 | 主轴变速 | ||||
|---|---|---|---|---|---|---|
| 插图号 FIG No | 01-03 | SPINDLE SPEED CHANGE MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 41015 | 轴承座 BEARING SEAT | 1 | |||
| 2 | 41307 | 齿轮 GEAR | 1 | |||
| 3 | 41305 | 垫 GASKET | 2 | |||
| 4 | 41357 | 压片套 FRICTION SLEEVES | 1 | |||
| 5 | 70; SZSC31-2 | 内摩擦片 INNER FRICTION DISCS | 18 | |||
| 6 | 41304 | 轴 SHAFT | 1 | |||
| 7 | 41348 | 齿轮 GEAR | 1 | |||
| 8 | 41030 | 轴承座 BEARING SEAT | 1 | |||
| 9 | 41306 | 垫 GASKET | 3 | |||
| 10 | 41347 | 齿轮 GEAR | 1 | |||
| 11 | 80; SZSC31-1 | 外摩擦片 OUTER FRICTION DISCS | 8 | |||
| 12 | 80; SZSC31-3 | 外摩擦片 OUTER FRICTION DISCS | 8 | |||
| 13 | 41346 | 压片套 FRICTION SLEEVES | 1 | |||
| 部别 GROUP | 01 | 主轴变速 | ||||
|---|---|---|---|---|---|---|
| 插图号 FIG No | 01-04 | SPINDLE SPEED CHANGE MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 41018 | 堵 PLUG | 1 | |||
| 2 | 41315 | 轴 SHAFT | 1 | |||
| 3 | 41322 | 拉杆 LINK | 1 | |||
| 4 | 41023 | 垫 GASKET | 1 | |||
| 5 | 41029 | 油缸体 OIL CYLINDER | 1 | |||
| 6 | 41343 | 活塞 PISTON | 1 | |||
| 7 | 41028 | 套 SLEEVE | 1 | |||
| 8 | 41024 | 支承 SUPPORT | 1 | |||
| 9 | 41336 | 堵 PLUG | 1 | |||
| 10 | 41344 | 齿轮 GEAR | 1 | |||
| 11 | 41313 | 齿轮 GEAR | 1 | |||
| 部别 GROUP | 01 | 主轴变速 | ||||
|---|---|---|---|---|---|---|
| 插图号 FIG No | 01-05 | SPINDLE SPEED CHANGE MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 41018 | 堵 PLUG | 1 | |||
| 2 | 41319 | 齿轮 GEAR | 1 | |||
| 3 | 41342 | 拉杆 LINK | 1 | |||
| 4 | 41023 | 垫 GASKET | 1 | |||
| 5 | 41318 | 轴 SHAFT | 1 | |||
| 6 | 41343 | 活塞 PISTON | 1 | |||
| 7 | 41029(2) | 油缸 OIL CYLINDER | 1 | |||
| 8 | 41028 | 套 SLEEVE | 1 | |||
| 9 | 41024 | 支承 SUPPORT | 1 | |||
| 10 | 41336 | 堵 PLUG | 1 | |||
| 11 | 41316 | 齿轮 GEAR | 1 | |||
| 12 | 41317 | 齿轮 GEAR | 1 | |||
| 部别 GROUP | 01 | 主轴变速 | ||||
|---|---|---|---|---|---|---|
| 插图号 FIG No | 01-06 | SPINDLE SPEED CHANGE MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 41018 | 堵 PLUG | 1 | |||
| 2 | 41322 | 拉杆 LINK | 1 | |||
| 3 | 41320 | 齿轮 GEAR | 1 | |||
| 4 | 41024 | 支承 SUPPORT | 1 | |||
| 5 | 41023 | 垫 GASKET | 1 | |||
| 6 | 41341 | 齿轮 GEAR | 1 | |||
| 7 | 41343 | 活塞 PISTON | 1 | |||
| 8 | 41029(2) | 油缸 OIL CYLINDER | 1 | |||
| 9 | 41028 | 套 SLEEVE | 1 | |||
| 10 | 41340 | 齿轮 GEAR | 1 | |||
| 11 | 41314 | 垫 GASKET | 1 | |||
| 12 | 41323 | 轴 SHAFT | 1 | |||
| 13 | 41336 | 堵 PLUG | 1 | |||
| 14 | 41321S | 齿轮 GEAR | 1 | |||
| 部别 GROUP | 01 | 主轴变速 | ||||
|---|---|---|---|---|---|---|
| 插图号 FIG No | 01-07 | SPINDLE SPEED CHANGE MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 41018 | 堵 PLUG | 1 | |||
| 2 | 41326 | 轴 SHAFT | 1 | |||
| 3 | 41324S | 齿轮 GEAR | 1 | |||
| 4 | 41327AS | 齿轮 GEAR | 1 | |||
| 5 | 41353 | 垫 GASKET | 1 | |||
| 6 | 41337 | 拉杆 LINK | 1 | |||
| 7 | 41351 | 挡板 BACK PLATE | 1 | |||
| 8 | 41028 | 套 SLEEVE | 1 | |||
| 9 | 41026 | 油缸 OIL CYLINDER | 1 | |||
| 10 | 41352 | 堵 PLUG | 1 | |||
| 11 | 41025 | 套 SLEEVE | 1 | |||
| 12 | 41023 | 垫 GASKET | 1 | |||
| 13 | 41339 | 滑阀 SLIDING VALVE | 1 | |||
| 14 | 41338 | 活塞 PISTON | 1 | |||
| 15 | 41024 | 支承 SUPPORT | 1 | |||
| 16 | 41325 | 齿轮 GEAR | 1 | |||
| 17 | 41336 | 堵 PLUG | 1 | |||
| 18 | 41333 | 齿轮 GEAR | 1 | |||
| 部别 GROUP | 01 | 主轴变速 | ||||
|---|---|---|---|---|---|---|
| 插图号 FIG No | 01-08 | SPINDLE SPEED CHANGE MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 41020 | 轴承座 BEARING SEAT | 1 | |||
| 2 | 41329 | 齿轮 GEAR | 1 | |||
| 3 | 41331 | 齿轮 GEAR | 1 | |||
| 4 | 41902A | 主轴罩 SPINDLE COVER | 1 | |||
| 5 | 41022 | 轴承座 BEARING SEAT | 1 | |||
| 6 | 41330AS | 齿轮 GEAR | 1 | |||
| 7 | 41021 | 花键套 SPLINE SLEEVE | 1 | |||
| 部别 GROUP | 01 | 主轴变速 | ||||
|---|---|---|---|---|---|---|
| 插图号 FIG No | 01-09 | SPINDLE SPEED CHANGE MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 41014 | 支承座 SUPPORING BRACKET | 1 | |||
| 2 | 41303 | 阀芯 VALVE CORE | 1 | |||
| 3 | 41032 | 拨叉 SHIFING FORK | 1 | |||
| 4 | 41301 | 阀芯 VALVE CORE | 1 | |||
| 5 | 41031 | 轴座 BEARING SEAT | 1 | |||
| 6 | 41349 | 套 SLEEVES | 2 | |||
| 7 | 41302 | 支承套 BEARING SLEEVE | 1 | |||
| 部别 GROUP | 02 | 进给变速 | ||||
|---|---|---|---|---|---|---|
| 插图号 FIG No | 02-01 | FEED CHANGE MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 42307 | 轴 SHAFT | 1 | |||
| 2 | 42306 | 齿轮 GEAR | 1 | |||
| 3 | 42305 | 齿轮 GEAR | 1 | |||
| 4 | 41024 | 支承 SUPPORT | 1 | |||
| 5 | 42326 | 垫 GASKET | 1 | |||
| 6 | 41336 | 堵 PLUG | 1 | |||
| 7 | 42011 | 油缸 OIL CYLINDER | 1 | |||
| 8 | 42327 | 活塞 PISTON | 1 | |||
| 9 | 41025 | 套 SLEEVE | 1 | |||
| 10 | 42312 | 拉杆 LINK | 1 | |||
| 11 | 42304 | 齿轮 GEAR | 1 | |||
| 12 | 42308 | 轴 SHAFT | 1 | |||
| 部别 GROUP | 02 | 进给变速 | ||||
|---|---|---|---|---|---|---|
| 插图号 FIG No | 02-02 | FEED CHANGE MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 42311 | 轴 SHAFT | 1 | |||
| 2 | 41024 | 支承 SUPPORT | 1 | |||
| 3 | 42310 | 拉杆 LINK | 1 | |||
| 4 | 42326 | 垫 GASKET | 1 | |||
| 5 | 41336 | 堵 PLUG | 1 | |||
| 6 | 42011 | 油缸 OIL CYLINDER | 1 | |||
| 7 | 42327 | 活塞 PISTON | 1 | |||
| 8 | 41025 | 套 SLEEVE | 1 | |||
| 9 | 42301 | 齿轮 GEAR | 1 | |||
| 10 | 42303 | 齿轮 GEAR | 1 | |||
| 11 | 42309 | 齿轮 GEAR | 1 | |||
| 部别 GROUP | 02 | 进给变速 | ||||
|---|---|---|---|---|---|---|
| 插图号 FIG No | 02-03 | FEED CHANGE MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 42314 | 齿轮 GEAR | 1 | |||
| 2 | 42313 | 轴 SHAFT | 1 | |||
| 3 | 42321 | 齿轮 GEAR | 1 | |||
| 4 | 42302 | 齿轮 GEAR | 1 | |||
| 5 | 41024 | 支承 SUPPORT | 1 | |||
| 6 | 42312 | 拉杆 LINK | 1 | |||
| 7 | 41025 | 套 SLEEVE | 1 | |||
| 8 | 42327 | 活塞 PISTON | 1 | |||
| 9 | 42011 | 油缸 OIL CYLINDER | 1 | |||
| 10 | 41336 | 堵 PLUG | 1 | |||
| 11 | 42326 | 垫 GASKET | 1 | |||
| 12 | 42325 | 齿轮 GEAR | 1 | |||
| 13 | 42322 | 齿轮 GEAR | 1 | |||
| 14 | 42315 | 齿轮 GEAR | 1 | |||
| 15 | 42316 | 轴 SHAFT | 1 | |||
| 部别 GROUP | 02 | 进给变速 | ||||
|---|---|---|---|---|---|---|
| 插图号 FIG No | 02-04 | FEED CHANGE MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 42317 | 轴承座 BEARING SEAT | 1 | |||
| 2 | 42320 | 齿轮 GEAR | 1 | |||
| 3 | 42323 | 轴 SHAFT | 1 | |||
| 4 | 42324 | 拉杆 LINK | 1 | |||
| 5 | 41336 | 堵 PLUG | 1 | |||
| 6 | 42011 | 油缸 OIL CYLIMDER | 1 | |||
| 7 | 42327 | 活塞 PISTON | 1 | |||
| 8 | 41025 | 套 SLEEVE | 1 | |||
| 9 | 42326 | 垫 GASKET | 1 | |||
| 10 | 41024 | 支承 SUPPORT | 1 | |||
| 11 | 42318 | 挡油垫 OIL SEAL | 1 | |||
| 部别 GROUP | 03 | 进给机构 | ||||
|---|---|---|---|---|---|---|
| 插图号 FIG No | 03-01 | FEEDING MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 43901A | 手轮 HAND WHEEL | 1 | |||
| 2 | 43301A | 手轮 HAND WHEEL | 1 | |||
| 3 | 43308 | 蜗杆轴 WORM SHAFT | 1 | |||
| 4 | 43348 | 套 SLEEVE | 1 | |||
| 5 | 43336 | 轴承座 BEARING SEAT | 1 | |||
| 6 | 43307 | 支承盖 REST COVER | 1 | |||
| 7 | 43014 | 套 SLEEVE | 1 | |||
| 8 | 43310 | 垫 GASXET | 1 | |||
| 9 | 43313 | 套 SLEEVE | 1 | |||
| 10 | 43309 | 内齿套 INTERNAL GEAR SLEEVE | 1 | |||
| 11 | 43317 | 轴 SHAFT | 1 | |||
| 12 | 43316 | 螺母 NUT | 1 | |||
| 13 | 43015 | 花键套 SPLINE SLEEVE | 1 | |||
| 14 | 43315 | 螺母 NUT | 1 | |||
| 15 | 43314 | 离合器(上) UPPER CLUTCH | 1 | |||
| 16 | 43312 | 套 SLEEVE | 1 | |||
| 17 | 43311 | 离合器(下) LOWER CLUTCH | 1 | |||
| 18 | 43353 | 垫 GASXET | 1 | |||
| 19 | 43306 | 拉杆 LINK | 1 | |||
| 20 | 43305 | 垫 GASXET | 1 | |||
| 21 | 43304 | 滑动套 SLIDING BUSH | 1 | |||
| 22 | 43349 | 齿条套 RACX SLEEVE | 1 | |||
| 23 | 43011A | 轴承座 BEARING SEAT | 1 | |||
| 24 | 43302 | 螺钉 SCREW | 1 | |||
| 部别 GROUP | 03 | 进给机构 | ||||
|---|---|---|---|---|---|---|
| 插图号 FIG No | 03-02 | FEEDING MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 43902 | 手轮 HAND WHEEL | 1 | |||
| 2 | 43021A | 盖 COVER | 1 | |||
| 3 | 43318 | 销轴 PINS | 2 | |||
| 4 | 43319A | 手柄 HANDLES | 2 | |||
| 5 | 43018A | 刻度盘 NDEXING DIAL | 1 | 公制 METRIC SYSTEI | ||
| 5 | 43018A 吋 | 刻度盘 NDEXING DIAL | 1 | 英制 BRITISH SYSTEM | ||
| 6 | 43334 | 蜗杆 WORM | 1 | |||
| 7 | 43013A | 支承套 BEARING SLEEVE | 1 | |||
| 8 | 43351A | 套 SLEEVE | 1 | |||
| 9 | 43352A | 螺钉 SCREW | 1 | |||
| 10 | 43320 | 蜗轮 WORM WHEEL | 1 | |||
| 11 | 43346 | 弹簧 SPRING | 1 | |||
| 12 | 43343 | 推套 PUSH SLEEVE | 1 | |||
| 13 | 43332 | 轴 SHAFT | 1 | |||
| 14 | 43339 | 齿接合子 TEETH CLUTCH | 1 | |||
| 15 | 43019 | 支承套 BEARING SLEEVE | 1 | |||
| 16 | 43020 | 蜗轮 WORM WHEEL | 1 | |||
| 17 | 43329 | 套 SLEEVE | 1 | |||
| 18 | 43326 | 齿轮 GEAR | 1 | |||
| 17 | 43329 | 套 SLEEVE | 1 | |||
| 18 | 43326 | 齿轮 GEAR | 1 | |||
| 19 | 43327 | 管夹 PIPE CLANP | 1 | |||
| 20 | 43325 | 齿轮 GEAR | 1 | |||
| 21 | 43324 | 套 SLEEVE | 1 | |||
| 22 | 43331 | 轴 SHAFT | 1 | |||
| 23 | 43321 | 撞块 DOG | 1 | |||
| 24 | 43330A | 套管 DRIVE-PIPE | 1 | |||
| 25 | 43338 | 齿结合子 TEETH CLUTCH | 1 | |||
| 26 | 43340 | 套 SLEEVE | 1 | |||
| 27 | 43345 | 螺母 NUT | 1 | |||
| 28 | 43350 | 螺母 MUT | 1 | |||
| 29 | 43333 | 撞轴 BUIPING PIN | 1 | |||
| 30 | 43344 | 销 PIN | 1 | |||
| 31 | 43328 | 副尺 SUB-SCALE | 1 | 公制 METRIC sYSTE | ||
| 31 | 43328A | 副尺 SUB-SCALE | 1 | 英制 BRITISH SYSTEM | ||
| 32 | 43337 | 捏手 KNOB | 1 | |||
| 33 | 43801A | 标示牌 MARK PLATE | 1 | |||
| 34 | 43017A | 支承套 BEARING SLEEVE | 1 | |||
| 部别 GROUP | 04 | 操纵机构 | ||||
|---|---|---|---|---|---|---|
| 插图号 FIG No | 04-01 | OPERATING MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 44324 | 变速旋钮 KNOB | 1 | |||
| 2 | 44322 | 变速旋钮 KNOB | 1 | |||
| 3 | 44013 | 套 SLEEVE | 1 | |||
| 4 | 44308 | 轴 SHAFT | 1 | |||
| 5 | 44309A | 套简 QUILL | 1 | |||
| 6 | 44012A | 衬套 BUSH | 1 | |||
| 7 | 44022 | 密封盖 SEAL OVER | 1 | |||
| 8 | 44025 | 套 SLEEVE | 1 | |||
| 9 | 44304 | 齿轮 GEAR | 1 | |||
| 10 | 44325 | 堵 PLUG | 2 | |||
| 11 | 44303 | 阀芯 VALVE CORE | 1 | |||
| 12 | 44318 | 挡板 BACK PLATE | 1 | |||
| 13 | 44302 | 销 PIN | 1 | |||
| 14 | 44301 | 阀芯 VALVE CORE | 1 | |||
| 15 | 44305 | 齿轮 GEAR | 1 | |||
| 16 | 44011 | 阀体 VALVE BODY | 1 | |||
| 部别 GROUP | 04 | 操纵机构 | ||||
|---|---|---|---|---|---|---|
| 插图号 FIG No | 04-02 | OPERATING MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 44023A | 压盖 COVER | 1 | |||
| 2 | 44024 | 支承套 BEARING SLEEVE | 1 | |||
| 3 | 44015 | 支承座 SUPPORTING BRACKET | 1 | |||
| 4 | 44321 | 套 SLEEVE | 2 | |||
| 5 | 44342 | 拉杆 LINK | 1 | |||
| 6 | 44343 | 套管 QUILL | 1 | |||
| 7 | 44031 | 衬套 BUSH | 1 | |||
| 8 | 44327 | 垫 PAD | 1 | |||
| 9 | 44320 | 螺堵 PLUG | 1 | |||
| 10 | 44326 | 油塞 PLUG | 1 | |||
| 11 | 44020 | 阀体 VALVE BODY | 1 | |||
| 12 | 44316 | 阀芯 VALVE CORE | 1 | |||
| 13 | 44317 | 套 SLEEVE | 1 | |||
| 14 | 44341 | 连接杆 JOINT ROD | 1 | |||
| 15 | 44032 | 支承套 BEARING SLEEVE | 1 | |||
| 16 | 44307 | 手把 HANDLE | 1 | |||
| 部别 GROUP | 04 | 操纵机构 | ||||
|---|---|---|---|---|---|---|
| 插图号 FIG No | 04-03 | OPERATING MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 44016 | 分油器 OIL DISTRIBUTOR | 1 | |||
| 2 | 44017 | 上泵体 UPPER PART OF PUMP BODY | 1 | |||
| 3 | 44315 | 螺塞 SCREV PLUG | 1 | |||
| 4 | 44026A | 堵 PLUG | 1 | |||
| 5 | 44901A | 放油管 DRAINING OIL PIPE | 1 | |||
| 6 | 44329A | 螺堵 SCREW PLUG | 1 | |||
| 7 | 44313 | 连接套 JOINT SLEEVE | 1 | |||
| 8 | 44312 | 齿轮 GEAR | 1 | |||
| 部别 GROUP | 04 | 操纵机构 | ||||
|---|---|---|---|---|---|---|
| 插图号 FIG No | 04-04 | OPERATING MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 44950 | 油管 OIL PIPE | 1 | |||
| 2 | 44963 | 油管 OIL PIPE | 1 | |||
| 3 | 44961 | 油管 OIL PIPE | 1 | |||
| 4 | 44957 | 油管 OIL PIPE | 1 | |||
| 5 | 44965 | 油管 OIL PIPE | 1 | |||
| 6 | 44951 | 油管 OIL PIPE | 1 | |||
| 7 | 44966 | 油管 OIL PIPE | 1 | |||
| 8 | 44960 | 油管 OIL PIPE | 1 | |||
| 9 | 44955 | 油管 OIL PIPE | 1 | |||
| 10 | 44952 | 油管 OIL PIPE | 1 | |||
| 11 | 44953 | 油管 OIL PIPE | 1 | |||
| 12 | 44964 | 油管 OIL PIPE | 1 | |||
| 13 | 44956 | 油管 OIL PIPE | 1 | |||
| 14 | 44967 | 油管 OIL PIPE | 1 | |||
| 15 | 44971 | 油管 OIL PIPE | 1 | |||
| 16 | 44973 | 油管 OIL PIPE | 1 | |||
| 17 | 44969 | 油管 OIL PIPE | 1 | |||
| 18 | 44972 | 油管 OIL PIPE | 1 | |||
| 19 | 44970 | 油管 OIL PIPE | 1 | |||
| 20 | 44968 | 油管 OIL PIPE | 1 | |||
| 21 | 44958 | 油管 OIL PIPE | 1 | |||
| 22 | 44962 | 油管 OIL PIPE | 1 | |||
| 23 | 44974 | 油管 OIL PIPE | 1 | |||
| 24 | 44959 | 油管 OIL PIPE | 1 | |||
| 25 | 44954 | 油管 OIL PIPE | 1 | |||
| 部别 GROUP | 05 | 液压及夹紧机构 | ||||
|---|---|---|---|---|---|---|
| 插图号 FIG No | 05-01 | HYDRAULIC AND CLAMPING MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 45018 | 油泵盖板 COVER PLATE FOR OIL PUMP | 1 | |||
| 2 | 45019 | 油泵体 BODY OF OIL PUMP | 1 | |||
| 3 | 45328 | 齿轮 GEARS | 1 | |||
| 4 | 45314 | 套 SLEEVE | 1 | |||
| 5 | 45904 | 密封圈 SEAL RING | 1 | |||
| 6 | 45022A | 油泵底座 SEAT OF OIL PUMP | 1 | |||
| 7 | 45326A | 接合套 JOINT SLEEVE | 1 | |||
| 8 | YSJ80-4 | 电机 ELECTRIC MOTOR | 1 | |||
| 9 | 45023 | 盖板 COVER | 1 | |||
| 10 | 45311 | 接合套 JOINT SLEEVE | 1 | |||
| 11 | 45309 | 轴 SHAFTS | 1 | |||
| 12 | 45317 | 定心套 CENTRING SLEEVE | 1 | |||
| 13 | 45021 | 油泵体 BODY OF OIL PUMP | 1 | |||
| 14 | 45020 | 油泵体 BODY OF OIL PUMP | 1 | |||
| 15 | 45327 | 齿轮 GEARS | 1 | |||
| 部别 GROUP | 05 | 液压及夹紧机构 | ||||
|---|---|---|---|---|---|---|
| 插图号 FIG No | 05-02 | HYDRAULIC AND CLAMPING MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 45011A | 制动架 BRAKE BRACKET | 1 | |||
| 2 | 45014 | 楔铁 WEDGES | 2 | |||
| 3 | 45325 | 垫国 WASHERS | 2 | |||
| 4 | 45305 | 顶块 EJECTOR BLOCK | 1 | |||
| 5 | 45304 | 垫块 BEARERS | 2 | |||
| 6 | 45301 | 支承轴 SUPPOR TING SHAFTS | 2 | |||
| 7 | 45321A | 垫 GASKETS | 2 | |||
| 8 | 45901 | 挡板 BACK PLATES | 2 | |||
| 9 | 45302 | 螺钉 SCREVS | 4 | |||
| 10 | 45303 | 夹紧块 CLAMP BLOCK | 1 | |||
| 11 | 45307 | 压块 PUSH BLOCK | 1 | |||
| 12 | 45318 | 拉紧块 CLAMP BLOCK | 1 | |||
| 13 | 45319 | 垫 GASKETS | 1 | |||
| 14 | 45013 | 套 SLEEVE | 1 | |||
| 15 | 45306 | 活塞 PISTON | 1 | |||
| 16 | 45012 | 油缸 OIL CYLINDER | 1 | |||
| 部别 GROUP | 05 | 液压及夹紧机构 | ||||
|---|---|---|---|---|---|---|
| 插图号 FIG No | 05-03 | HYDRAULIC AND CLAMPING MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 45324A | 挡板 BACK FLATES | 1 | |||
| 2 | 45951 | 油管 OIL PIPE | 2 | |||
| 3 | 45952 | 油管 OIL PIPE | 2 | |||
| 4 | 45953 | 油管 OIL PIPE | 1 | |||
| 5 | 45953-1 | 油管 OIL PIPE | 1 | |||
| 6 | 45956 | 油管 OIL PIPE | 2 | |||
| 7 | 45957A | 油管 OIL PIPE | 1 | |||
| 8 | 45958A | 油管 OIL PIPE | 1 | |||
| 部别 GROUP | 06 | 主轴及平衡机构 | ||||
|---|---|---|---|---|---|---|
| 插图号 FIG No | 06-01 | SPINDLE & BALANCING MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 46301 | 主轴 SPINDLE | 1 Z3040x16/1 | 莫氏：4 MORSE TAPER:4 | ||
| 1′ | 46301B | 主轴 SPINDLE | 1 Z3040x16/2 | |||
| 1” | 56301 | 主轴 SPINDLE | 1 Z3050x16/1 | 莫氏：5 MORSE TAPER:5 | ||
| 1'” | 56301B | 主轴 SPINDLE | 1 Z3050x16/2 | |||
| 2 | 56902B | 密封围 SEAL RING | 1 | |||
| 3 | 56321B | 调整垫 ADJUSTING PAD | 1 | |||
| 4 | 56322B | 挡圈 SNAP RING | 1 | |||
| 5 | 46307 | 螺母 NUTS | 2 | |||
| 6 | 46306 | 垫圈 VASHER | 1 | |||
| 7 | 46305 | 盖 COVER | 1 | |||
| 8 | 46304 | 主轴套 QUILL | 1 | |||
| 8′ | 56304B | 主轴套 QUILL | 1 | |||
| 9 | 46011A | 导向套 GUIDING SLEEVE | 1 | |||
| 10 | 46302 | 垫圈 WASHER | 2 | |||
| 部别 GROUP | 06 | 主轴及平衡机构 | ||||
|---|---|---|---|---|---|---|
| 插图号 FIG No | 06-02 | SPINDLE AND ITS BALANCING MECHANISM | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 46013 | 支座 SUPPOUT BRACKET | 1 | |||
| 2 | 46312 | 调整螺杆 ADJUSTABLE LEADSCREW | 1 | |||
| 3 | 46313 | 螺座 SCREW BRACKET | 1 | |||
| 4 | 46311 | 支承座 SUPPOUT BRACKET | 1 | |||
| 5 | 46310 | 套筒 QILL | 1 | |||
| 6 | 46309 | 弹簧 SPRING | 1 | |||
| 7 | 46308 | 套 SLEEVE | 1 | |||
| 8 | 46012 | 支架 SUPPORT | 1 | |||
| 9 | 46314 | 链轮 CHAIN WHEEL | 1 | |||
| 10 | 46317 | 轴 SHAFT | 1 | |||
| 11 | 46318 | 轴套 SHAFT SLEEVE | 1 | |||
| 12 | 46316 | 凸轮 CAM | 1 | |||
| 13 | 46315 | 销钉 PINS | 1 | |||
| 部别 GROUP | 07 | 立柱、摇臂升降及冷却 | ||||
|---|---|---|---|---|---|---|
| 插图号 FIG No | 07-01 | COLUMN,ARM ELEVATING AND COOLING DEVICE | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 47011A | 底座 SEAT | 1 | |||
| 2 | 47012A | 内柱 INNER COLUMN | 1 | |||
| 3 | 47013A | 外柱 OUIER COLUMN | 1 | |||
| 4 | 47020 | 柱顶 CAPITAL | 1 | |||
| 5 | 47019 | 偏心套 EOCENTRIC SEEVE | 1 | |||
| 6 | 47311 | 圆板弹簧 DISC SPRING | 1 | |||
| 7 | 47014A | 体壳 SHELL | 1 | |||
| 8 | 47021 | 垫块 BEARER | 1 | |||
| 9 | 47301 | 浮动块 FLOATINGBLOCK | 1 | |||
| 10 | 47310 | 承压块 SUPPORTING BLOOX | 1 | |||
| 11 | 47015 | 杠杆 PRY BAR | 1 | |||
| 12 | 47303 | 下球面垫 (LOWER)SPHERICAL WASHER | 1 | |||
| 13 | 47302 | 上球面垫 (UPPER)SPHERICAL WASHER | 1 | |||
| 14 | 47326 | 螺母 NUT | 1 | |||
| 15 | 47313 | 盖 COVER | 1 | |||
| 16 | 47305 | 盖 COVER | 1 | |||
| 17 | 47030A | 盖 COVER | 1 | |||
| 18 | 47325 | 螺母 NUT | 1 | |||
| 19 | 47306 | 半圆快 ARCH BLOCK | 1 | |||
| 20 | 47017 | 套 SLEEVE | 1 | |||
| 21 | 47018 | 油缸 OIL CYLINDER | 1 | |||
| 22 | 47308 | 活塞 PISTON | 1 | |||
| 部别 GROUP | 07 | 立柱、摇臂升降及冷却 | ||||
|---|---|---|---|---|---|---|
| 插图号 FIG No | 07-02 | COLUMN,ARM ELEVATING AND COOLING DEVICE | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 473388 | 齿轮 GEAR | 1 | |||
| 2 | 47031A | 飞溅器 SPLASHER | 1 | |||
| 3 | 47315 | 齿轮 GEAR | 1 | |||
| 4 | 47319 | 螺母 NUT | 1 | |||
| 5 | 47328 | 套 SLEEVE | 1 | |||
| 6 | 47327 | 垫 RAD | 1 | |||
| 7 | 47025 | 垫围 WASHER | 1 | |||
| 8 | 47323 | 垫国 WASHER | 1 | |||
| 9 | 47317 | 丝杠 LEAD SCREW | 1 | |||
| 10 | 47318 | 轴承座 BEARING SEAT | 1 | |||
| 11 | 47026 | 套 SLEEVE | 1 | |||
| 12 | 47324 | 垫圈 WASHER | 1 | |||
| 13 | 47309 | 齿轮离合器 GEAR CLUTCH | 1 | |||
| 14 | 47023 | 轴套 SHAFT SLEEVE | 1 | |||
| 15 | 47307 | 小轴 SALL SHAFT | 1 | |||
| 16 | 47314 | 齿轮 GEAR | 1 | |||
| 17 | y901-4 | 电机 ELECTRIC MOTOR | 1 | |||
| 部别 GROUP | 08 | 摇臂夹紧及润滑 | ||||
|---|---|---|---|---|---|---|
| 插图号 FIG No | 08-01 | ARM,CLAMPING AND LUBRICATING DEVICE | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 48011ASB | 摇臂 RADIAL ARM | 1 | |||
| 2 | 48012 | 压盖 COVER | 1 | |||
| 3 | 48013 | 螺母 NUT | 1 | |||
| 4 | 48312 | 撞销 LIMIT PIN | 1 | |||
| 5 | 48311 | 螺母 NUT | 1 | |||
| 6 | 48903 | 堵 PLUG | 1 | |||
| 7 | 48304A | 撞杆 LIMIT BAR | 1 | |||
| 8 | 48306 | 套 SLEEVE | 1 | |||
| 9 | 48305 | 螺钉 SCREWS | 1 | |||
| 10 | 48307 | 垫围 WASHER | 1 | |||
| 11 | 48924A | 压圈 PRESSURING RINGS | 1 | |||
| 12 | 48910 | 防尘圈 DUST RINGS | 1 | |||
| 13 | 48911 | 毡垫 FELT PAD | 1 | |||
| 14 | 48313 | 导向键 GUIDING KEY | 1 | |||
| 15 | 48923A | 压固 PRESSURING RINGS | 1 | |||
| 16 | 48315 | 左电器箱盖 COVER OF ELECTRIC CABIMET(LEFT) | 1 | |||
| 17 | 48316 | 右电器箱盖 COVER OF ELECTRIC CABINET(RIGHT) | 1 | |||
| 18 | 48921A | 油管 OIL PIPE | 1 | |||
| 19 | 48920A | 油管 OIL PIPE | 1 | |||
| 20 | 48330A | 盖 COVER | 1 | |||
| 部别 GROUP | 08 | 摇臂夹紧及润滑 | ||||
|---|---|---|---|---|---|---|
| 插图号 FIG No | 08-02 | ARM,CLAMPING AND LUBRICATING DEVICE | ||||
| 图上序号 POSITION No | 零件号 PART No | 名称 DESCRIPTION | 数量 Q'TY | 附注 REMARKS | ||
| 1 | 48309 | 拉杆 LINKS | 4 | |||
| 2 | 48308 | 夹紧杆 CLAMPING BARS | 2 | |||
| 3 | 48310 | 顶块 BACK BLOCK | 1 | |||
| 4 | 48014A | 油缸 OIL CYLINDER | 1 | |||
| 5 | 48302 | 活塞 PISTON | 1 | |||
| 6 | 48015 | 油缸架 SUPPORT OF OIL CYLINDER | 1 | |||
| 7 | 881901 | 油盒 OIL BOX | 1 | |||
| 8 | 48303 | 压块 PUSHING BLOCK | 1 | |||
| 9 | 881011 | 油缸 OIL CYLINDER | 1 | |||
| 10 | 481301 | 活塞 PISTON | 1 | |||
| 11 | 881303 | 套 SLEEVE | 1 | |||
| 12 | 881012 | 盖 COVER | 1 | |||
| 13 | 881801 | 虑油网 SIEVE | 1 | |||
| 14 | 881903 | 盖 COVER | 1 | |||
Resources & Downloads
Z3040X16-1 Z3050x16-1 Z3040X16-12 Z3050X16-12 Radial Drilling Machine Parts Book
File size: 24.59 MB
Created: 09-07-2024
Updated: 09-07-2024
Hits: 475
SMTCL Z3050X16 Radial Drilling Machine Technical Agreement
File size: 466.09 KB
Created: 09-07-2024
Updated: 09-07-2024
Hits: 253
Recommended Related Products
If needed, please contact us for further selection
Recommended Related Products
Load More
Need help finding a machine?
We will gladly assist you in making the right decision to achieve your business goals
Get a free Consultation
