SMTCL CAK63 Series

, , ,

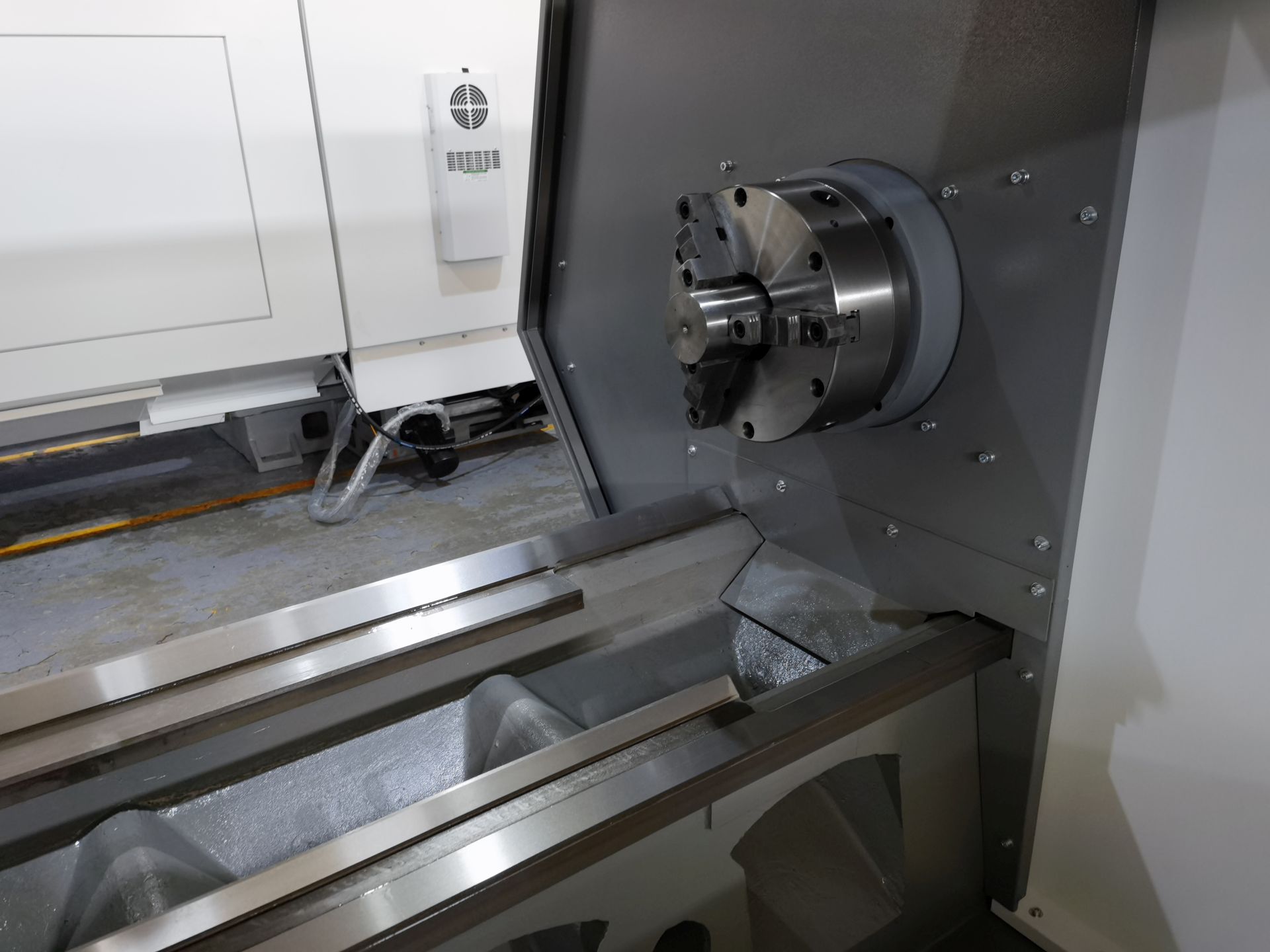

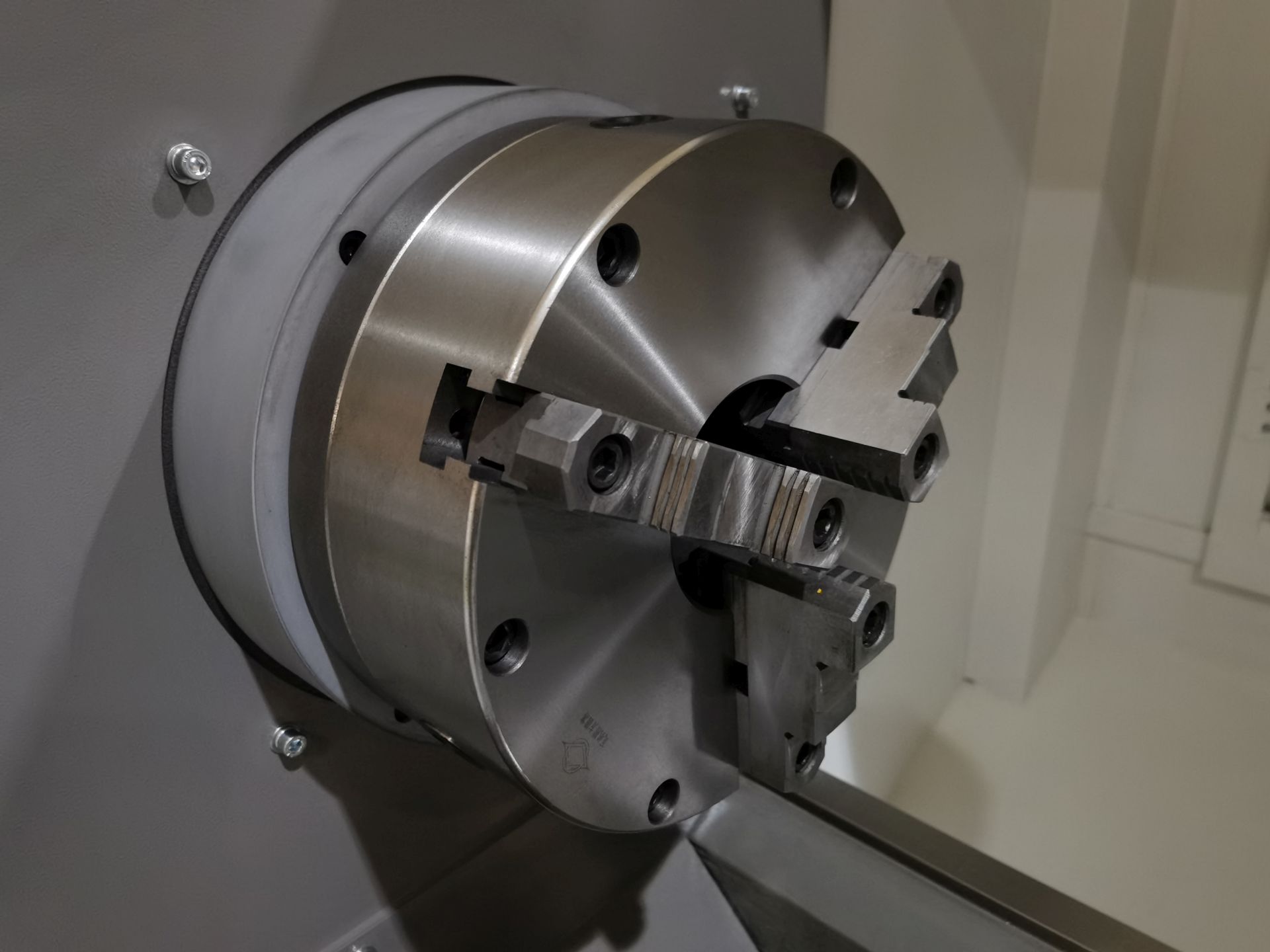

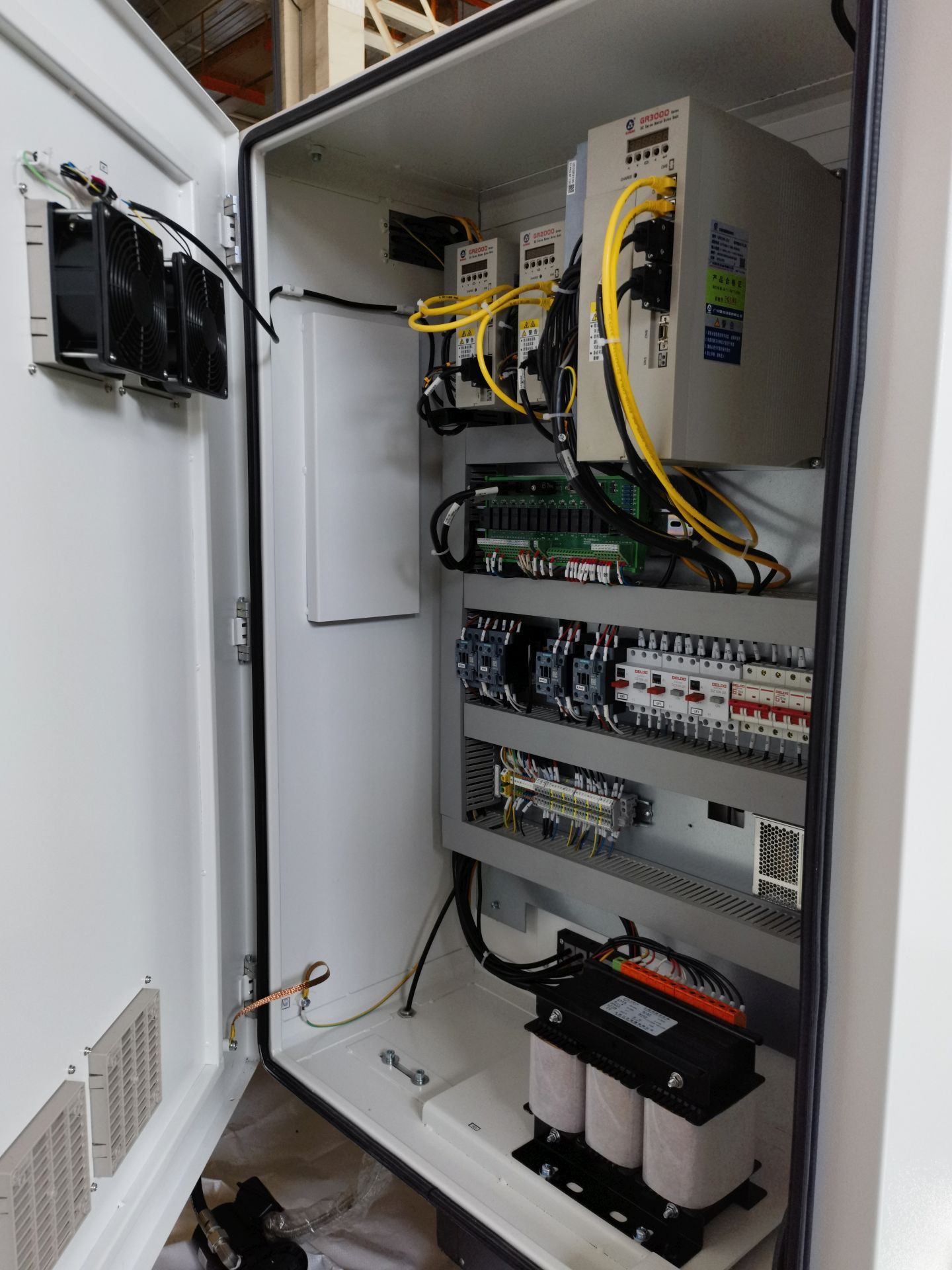

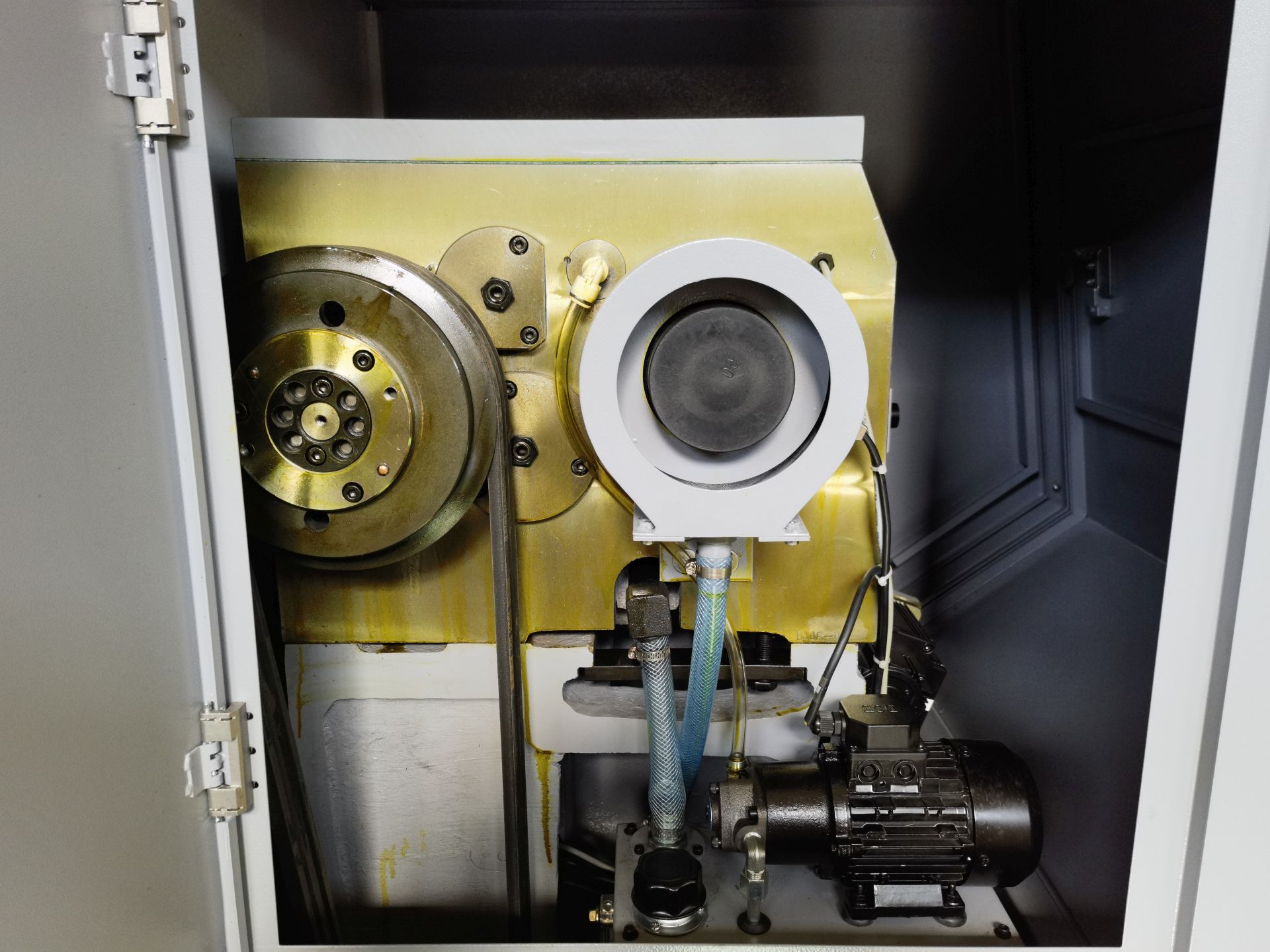

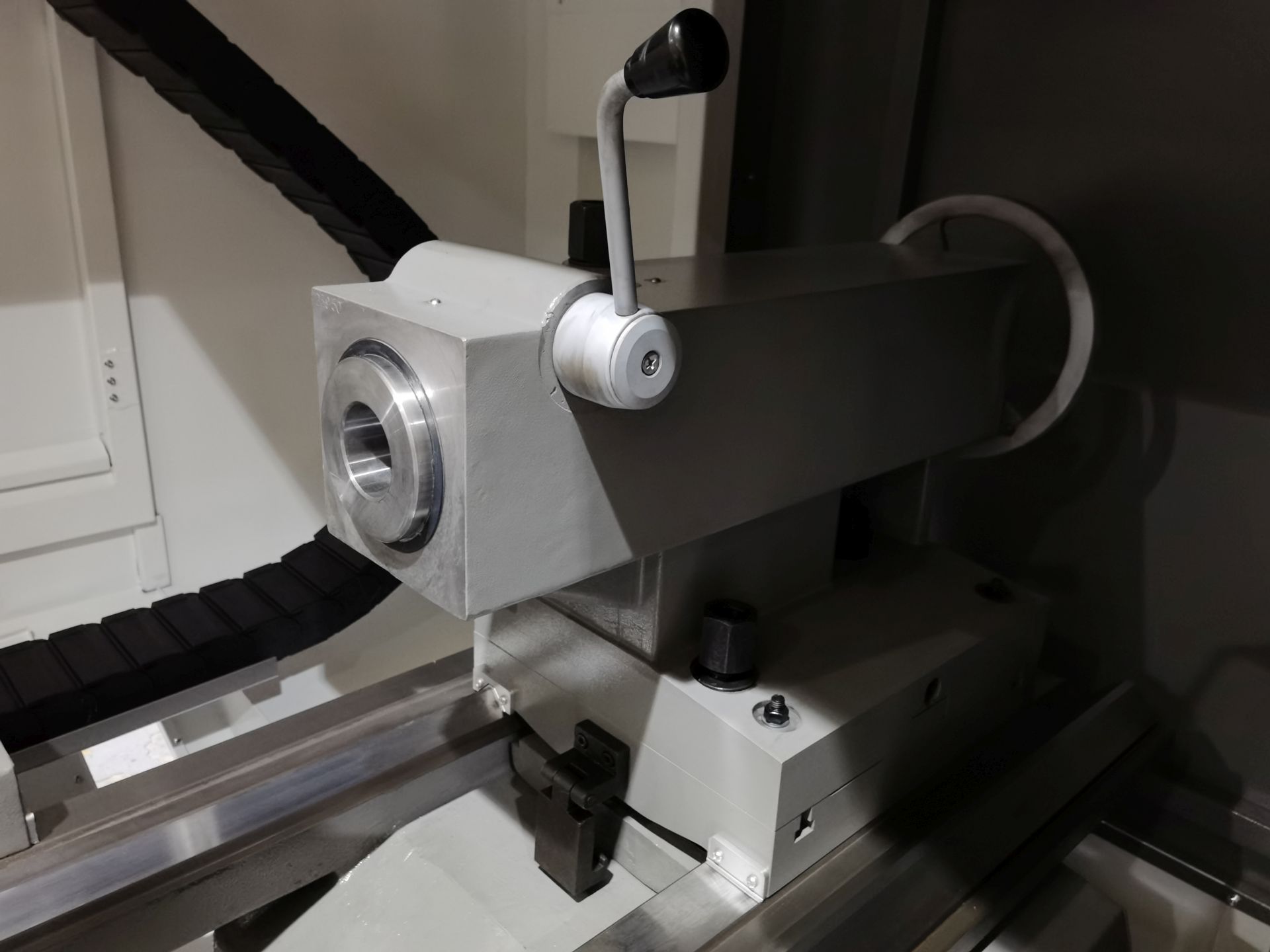

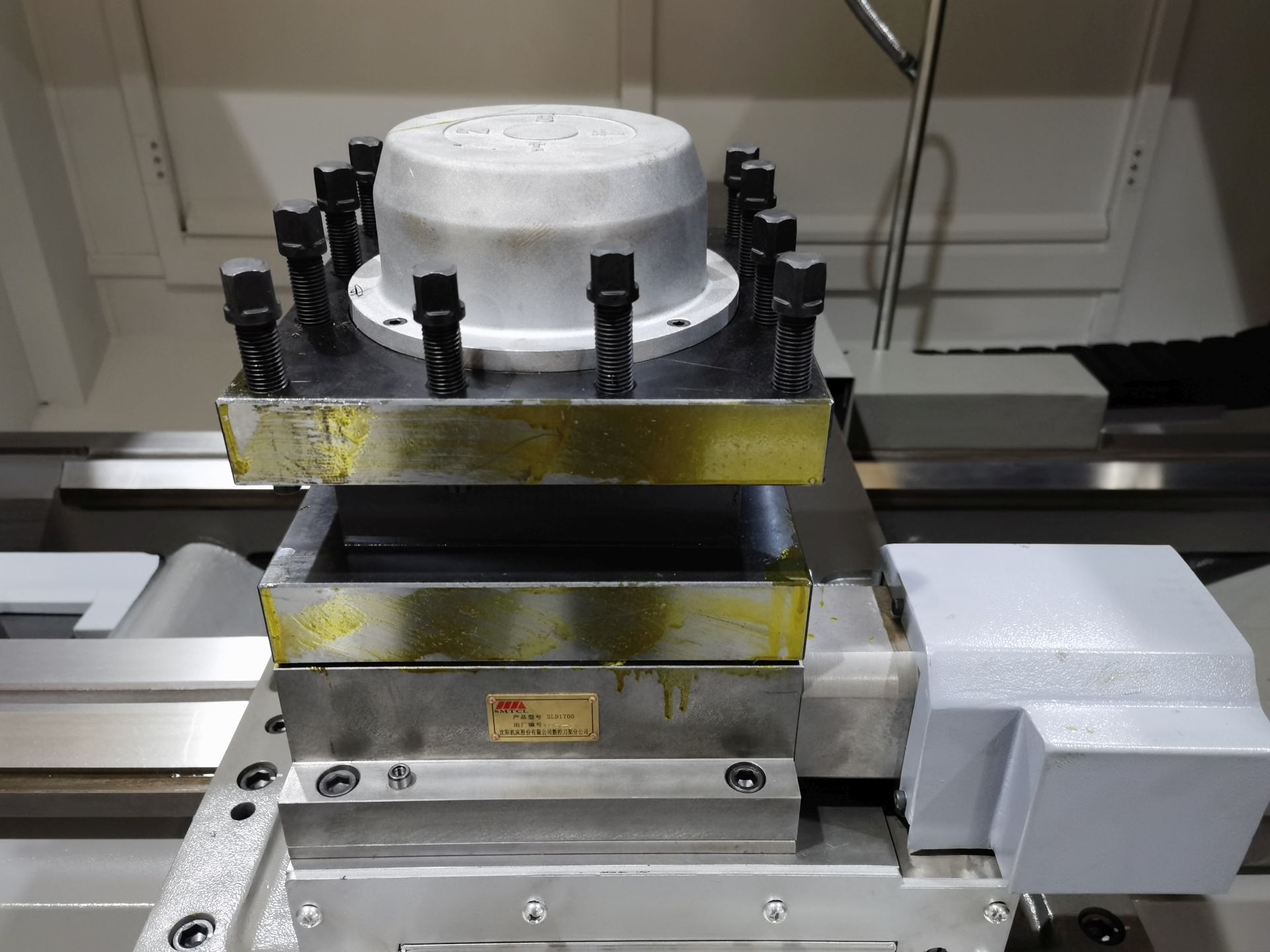

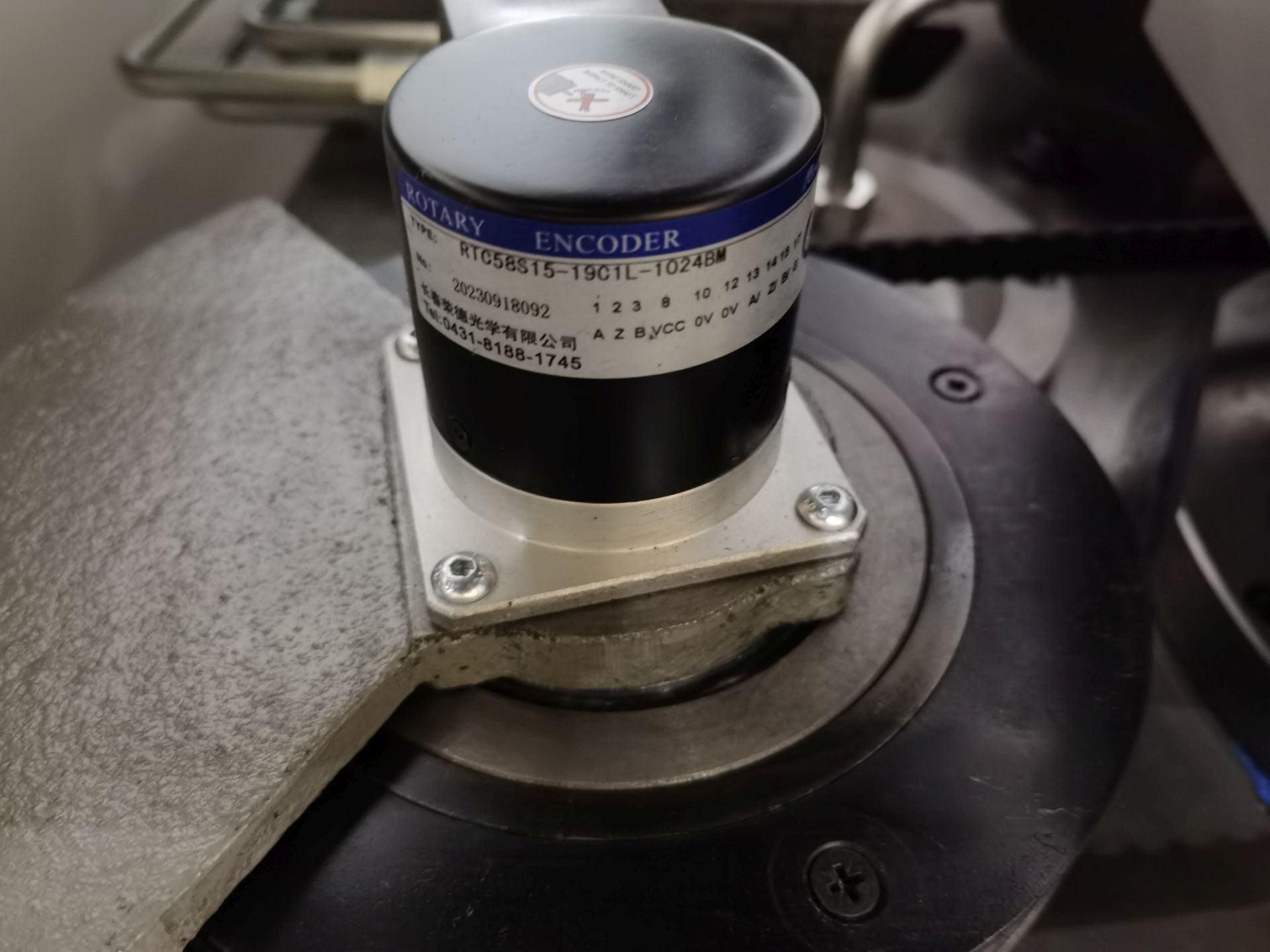

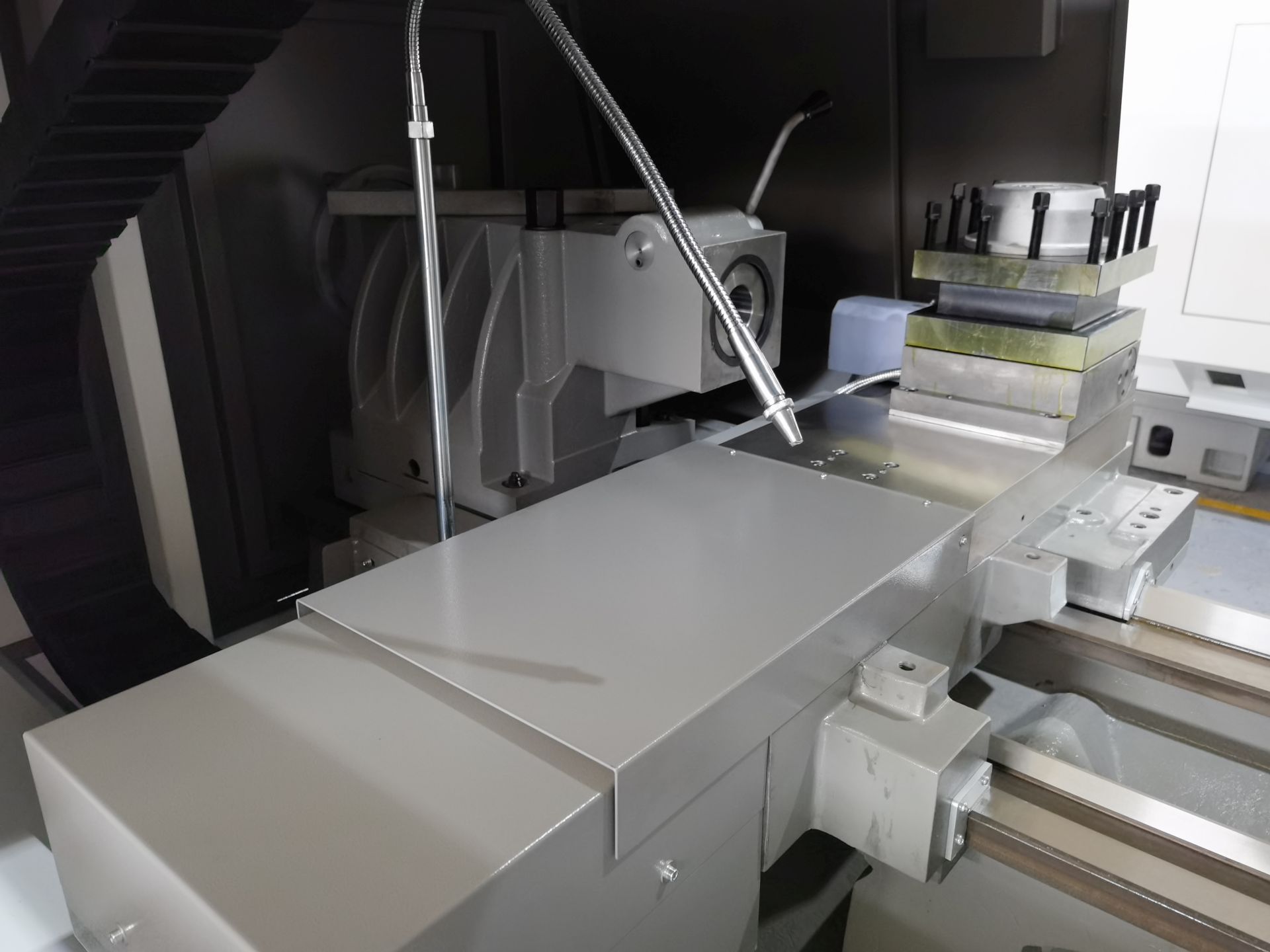

PRODUCT FEATURES
The machine is mainly used for turning various shaft-type workpieces and disc workpieces, cutting all kinds of threads, arcs,cones and internal and external curvic surfaces of gyro-rotors, and it can meet the need of speed while cutting ferrous and non-ferrous metals at high speed.

Therefore, the machine is suitable for of gyro-rotor workpieces in high-efficiency, large-batch and high-accuracy machining in the fields of automobile, motorcycle, electronic, aerospace, war industry, etc.

The workpieces produced on the machine can be up to the working accuracy of Grade IT6~IT7 and Cp can be up to 1.6.

Accuracy of the machine is in accordance with Standard JB/T8324.1-1996《Testing of the Accuracy for Horizontal NC Turning Machines》.
Request a Quote
Please enable JavaScript in your browser to complete this form.
Name
Please contact me by
Consultation details
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Contact

Wide Product Portfolio

We supply a diverse range of conventional and CNC metalworking machines loaded with features

Watch It

Professional Consultation

Trusted consultation and in house demonstrations to provide the best solutions for your business needs

Get Support

Outstanding Service

Full time, skilled service team employees available for start-up, maintenance and repair of your SMTCL machine

Details

Contact us

Please enable JavaScript in your browser to complete this form.
Name
Please contact me by
Consultation details
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Have any Questions?

Check our frequently asled question hope you get answer.

If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Check out our FAQ page for answers to common questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Check out our FAQ page for answers to common questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Check out our FAQ section for more information on how we can help
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Check out our FAQ page for answers to common questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
If you can't find what you're looking for
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Still haven't found what you're looking for your questions
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

ItemUnitCAK63CAK80CAK100
Specification8513520028585135/135520028585135200285
Max.parts lengthmm100015002150300010001500215030001000150021503000
Max cutting lengthmm850135020002850850135020002850850135020002850
Max swing diameter over bedmmΦ630Φ630Φ630Φ630Φ800Φ800Φ800Φ800Φ1000Φ1000Φ1000Φ1000
Max.swing diameter over slidemmΦ350Φ350Φ350Φ350Φ520Φ520Φ520Φ520Φ700Φ700Φ700Φ700
Max cutting diametermmΦ630Φ630Φ630Φ630Φ800Φ800Φ800Φ800Φ1000Φ1000Φ1000Φ1000
Spindle nose typeA2-11A2-11A2-11A2-11A2-11A2-11A2-11A2-11A2-11A2-11A2-11A2-11
Chuck diametermmΦ315Φ315Φ315Φ315Φ315Φ315/Φ400Φ315Φ315Φ500Φ500Φ500Φ500
Spindle boremmΦ104Φ104Φ104Φ104Φ104Φ104/Φ130Φ104Φ104Φ104Φ104Φ104Φ104
Spindle speed range
(Hydraulic 4-shift stepless)		r/min17-100017-100017-100017-100017-100017-1000/80017-100017-100017-100017-100017-100017-1000
Rated power of main motorkw11
(Main servo motor)		11
(Main servo motor)		11
(Main servo motor)		11
(Main servo motor)		15
(Main servo motor)		15
(Main servo motor)		15
(Main servo motor)		15
(Main servo motor)		15
(Main servo motor)		15
(Main servo motor)		15
(Main servo motor)		15
(Main servo motor)
Tailstock quill diametermmΦ125Φ125Φ125Φ125Φ125Φ125/Φ160Φ125Φ125Φ125Φ125Φ125Φ125
Tailstock quill travelmm250250250250250250250250250250250250
Turret typeVertical
4 positions		Vertical
4 positions		Vertical
4 positions		Vertical
4 positions		Vertical
4 positions		Vertical
4 positions		Vertical
4 positions		Vertical
4 positions		Vertical
4 positions		Vertical
4 positions		Vertical
4 positions		Vertical
4 positions
Tool shank sizemm□32×32□32×32□32×32□32×32□32×32□32×32
□40×40		□32×32□32×32□40×40□40×40□40×40□40×40
X/Z axis rapid traversem/min6/106/106/106/106/106/106/106/106/106/106/106/10
Machining accuracyIT6~IT7IT6~IT7IT6~IT7IT6~IT7IT6~IT7IT6~IT7IT6~IT7IT6~IT7IT6~IT7IT6~IT7IT6~IT7IT6~IT7
Machine net weightkg520055505950695054005750/6000615071505800615067507500
Overall dimension
(LxWxH)		mm3410x2010x17803860x2010x17804510x2010x17805360x2010x17803410x2010x17803860x2010x17804510x2010x17805360x2010x17803410x2250x19303860x2250x19304510x2250x19305360x2250x1930

Layout of the Machine



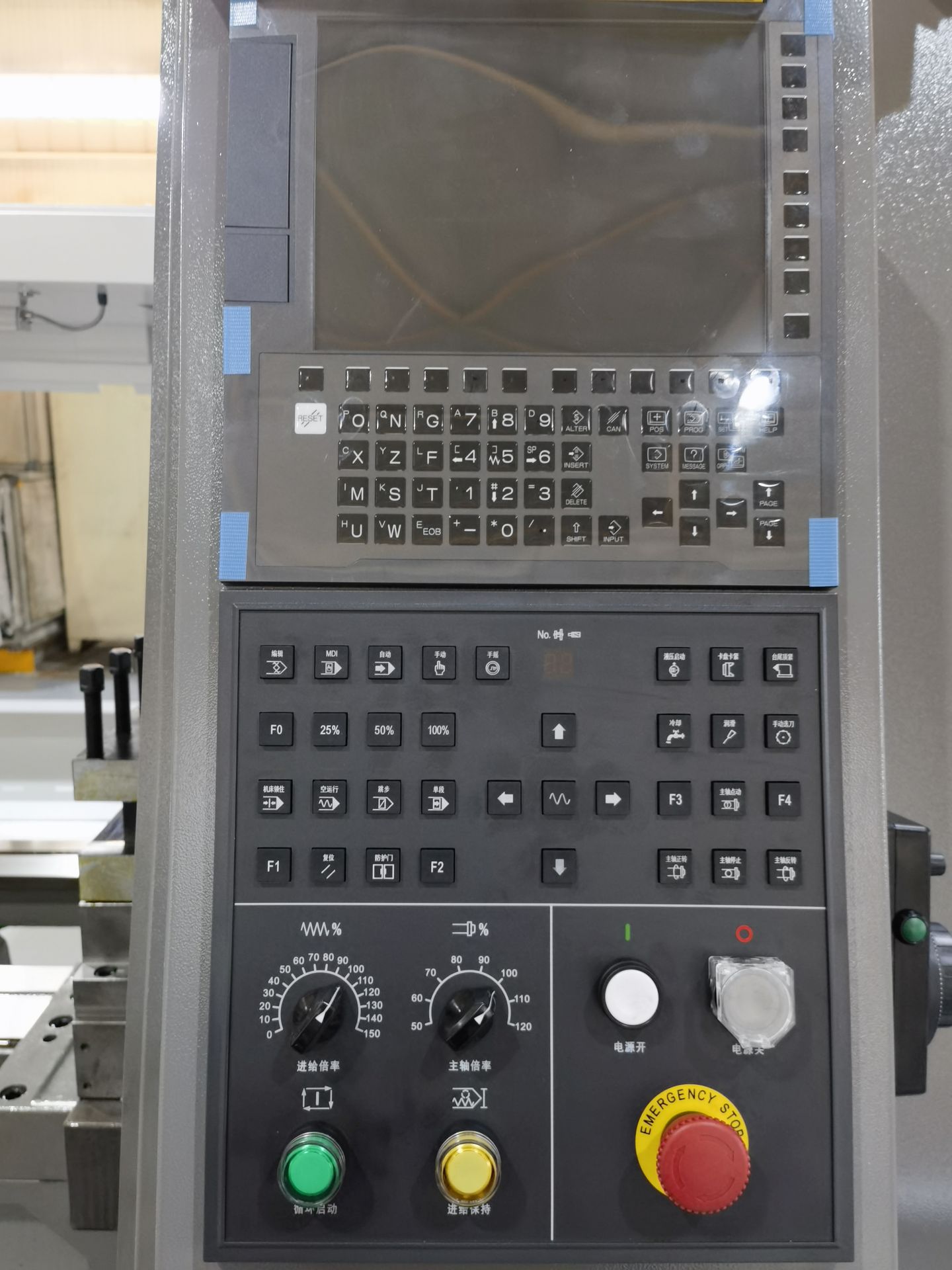

Control Handles of Machine

Item SpecificationCAK36CAK40CAK50CAK63CAK80CAK100
65658585P85L85P8585S135135S186186S8513520028585135135S20028585135200285
Control systemFANUC Oi-TF plus system◇◇◇◇◇◇◇◇◇◆◆◆◆◆◆◆◆◆◆◆◆◆
GSK 980YA3 system◆◆◆
GSK 980TDi system◆◆◆◆◆◆◆◆
GSK 988TA system◇◇◇◇◇◇◇◇◇◇◇◇◇
Siemens 808AD system◇◇◇◇◇◇◇◇◇
Siemens 828D system◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇
NC808Di system◇◇◇◇◇◇◇◇◇
Protection coverSemi◇◇◇◇◇◆◆◆◆◆◆◆◆
Full◆◆◆◆◆◆◆◆◆◆◇◇◆◆◆◆◆◆◆
TailstockManual◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆
Hydraulic◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇
Thinken quill tailstock◇◇◇◇◇◇◆◇◇◇◇◇◇
3-jaw manual chuckΦ200◆◇◇◇
Φ250◇◆◆◆◆◆◆◆◆◆◆◆
Φ315◇◇◇◇◇◇◇◇◆◆◆◆◆◆◆◆◆◇◇◇◇
Φ400◇◇◇◇◇◇◇◇◇◇◇◇◇
Φ500◇◇◇◇◇◇◇◇◇◆◆◆◆
Φ800◇◇◇◇◇◇◇◇◇◇◇◇◇
4-jaw manual chuckΦ200◇◇◇◇
Φ250◇◇◇◇◇◇◇◇◇◇◇◇
Φ320◇◇◇◇◇◇◇◇
Φ400◇◇◇◇◇◇◇◇◇◇◇◇◇
Φ500◇◇◇◇◇◇◇◇◇◇◇◇◇
Φ800◇◇◇◇◇◇◇◇◇
Hydraulic chuck8″Solid/Hollow◇◇◇◇
10″Solid/Hollov◇◇◇◇◇◇◇◇◇◇◇◇
12″Solid/Hollow◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇
15″Solid/Hollow◇◇◇◇◇◇◇◇◇◇◇◇◇
TurretVertical 4-position◆◆◆◇◆◇◆◆◆◆◆◆◆◆◆◆◆◆◆170A◆◆◆◆◆◆
Horizontal 6-position◇◇◇◆◇◆◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇
Gang tool◇◇◇◇◇◇◇◇◇◇
Steady restΦ30~Φ80mm(Roller type)◇◇◇◇
Φ20~Φ125mm(Roller type)◇◇◇◇◇◆◆
Φ120~Φ190mm(Roller type◇◇◇◇◇◇◇
Φ140~Φ210mm(Roller type)◇◇◇◇◇◇◇
Φ160~Φ350mm(Roller type)◇◇◆◆◇◇◇◆◆
Φ20~Φ170mm(Roller type)◇◇◇◇◇◇◇◇◇
Φ50~Φ400mm(Roller type)◇◇◆◆
Follow rest
(not for horizontal turret)		Φ30~Φ80mm◇◇◇◇
Φ20~Φ90mm◇◇◇◇◇◆◆
Φ20~Φ110mm◇◇◆◆◇◇◇◆◆◇◇◆◆
Boring tool holderΦ60/Φ80/Φ100/Φ120◇◇◇◇◇◇◇◇◇◇◇◇◇
SpindleSingle spindle◆◆◆◆◆◇◇◇
Manual shift◆◆Stepless◇Stepless◆◇Stepless◆◇Stepless◆
Auto shift◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆
Chip box◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆
Chi conveyorRear chip conveyor◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇
Safety lock◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇
◆ Standard ◇Optional
